arxiv: 2604.24271 · v1 · submitted 2026-04-27 · 🌌 astro-ph.IM · astro-ph.HE

Recognition: unknown

SVOM/VT: On-ground processing of VT-VHF data

Chao Wu , Jesse T. Palmerio , Tatyana Sadibekova , Yannis Canton , Kamshat Tazhenova , Susanna Diana Vergani , Li-Ping Xin , Yu-Lei Qiu
show 9 more authors
Henri Louvin Mo Zhang Mao-Hai Huang Isabelle Jegouzo Hua-Li Li Hong-Bo Cai Jin-Song Deng Bertrand Cordier Jian-Yan Wei
Authors on Pith no claims yet

Pith reviewed 2026-05-07 17:48 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.HE
keywords SVOMVT-VHF dataground processing pipelinesgamma-ray burst afterglowsECLAIRs triggersoptical counterpart identificationin-orbit performance
0
0 comments X

The pith

The VT-VHF ground processing system identifies optical afterglow candidates for a significant fraction of ECLAIRs triggers with available data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the on-ground architecture for handling three types of onboard-processed data sent from SVOM's Visible Telescope via VHF downlink. Three sequential pipelines decode packets, apply astrometric and photometric calibration, and then search for afterglow candidates of gamma-ray bursts. Assessment with the first year of in-orbit operations shows reliable candidate identification whenever VT-VHF data reach the ground. This setup supports quick optical follow-up observations of GRBs while sources are still bright, including color-based redshift hints and flags for high-redshift or dark events.

Core claim

The VT--VHF ground processing system, consisting of the pre-processing pipeline, the VT--VHF data processing pipeline (VVPP), and the VT afterglow candidate pipeline (VTAC), successfully identifies optical afterglow candidates for a significant fraction of ECLAIRs triggers that have available VT--VHF data, as demonstrated by the first year of SVOM operations.

What carries the argument

Three successive pipelines that perform packet decoding, astrometric/photometric calibration, and afterglow candidate identification on VHF-transmitted data.

If this is right

  • Rapid identification of GRB optical counterparts becomes feasible shortly after trigger.
  • Early detections enable spectroscopic redshift measurements while the source is still optically bright.
  • Dual-band colors supply preliminary redshift constraints and help select high-redshift candidates.
  • Non-detections in both bands can point to very high redshift, significant extinction, or intrinsically dark bursts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar VHF quick-look pipelines could be adapted for other transient missions to shorten response times.
  • Combining these candidates with ECLAIRs localizations could improve the overall efficiency of multi-instrument GRB follow-up campaigns.
  • Accumulated statistics from continued operations might quantify the fraction of optically dark gamma-ray bursts.

Load-bearing premise

Onboard data packets reach the ground intact and the calibration steps correctly separate real afterglows from artifacts or unrelated sources.

What would settle it

Independent optical observations of the same ECLAIRs triggers showing that most flagged candidates are false positives or that many real afterglows are missed by the pipelines.

Figures

Figures reproduced from arXiv: 2604.24271 by Bertrand Cordier, Chao Wu, Henri Louvin, Hong-Bo Cai, Hua-Li Li, Isabelle Jegouzo, Jesse T. Palmerio, Jian-Yan Wei, Jin-Song Deng, Kamshat Tazhenova, Li-Ping Xin, Mao-Hai Huang, Mo Zhang, Susanna Diana Vergani, Tatyana Sadibekova, Yannis Canton, Yu-Lei Qiu.

Figure 1
Figure 1. Figure 1: VT–VHF pipeline workflow diagram. All products from each pipeline and their connections view at source ↗
Figure 2
Figure 2. Figure 2: Schematic of the astrometric calibration geometry. For each attitude-chart star (green), reference view at source ↗
Figure 3
Figure 3. Figure 3: A typical example (sb25080601/GRB 250806A Xie et al. (2025)) of the VT–VHF data processing view at source ↗
Figure 4
Figure 4. Figure 4: Color–redshift relationship of GRB afterglows. The blue circles represent the XS-GRB sam view at source ↗

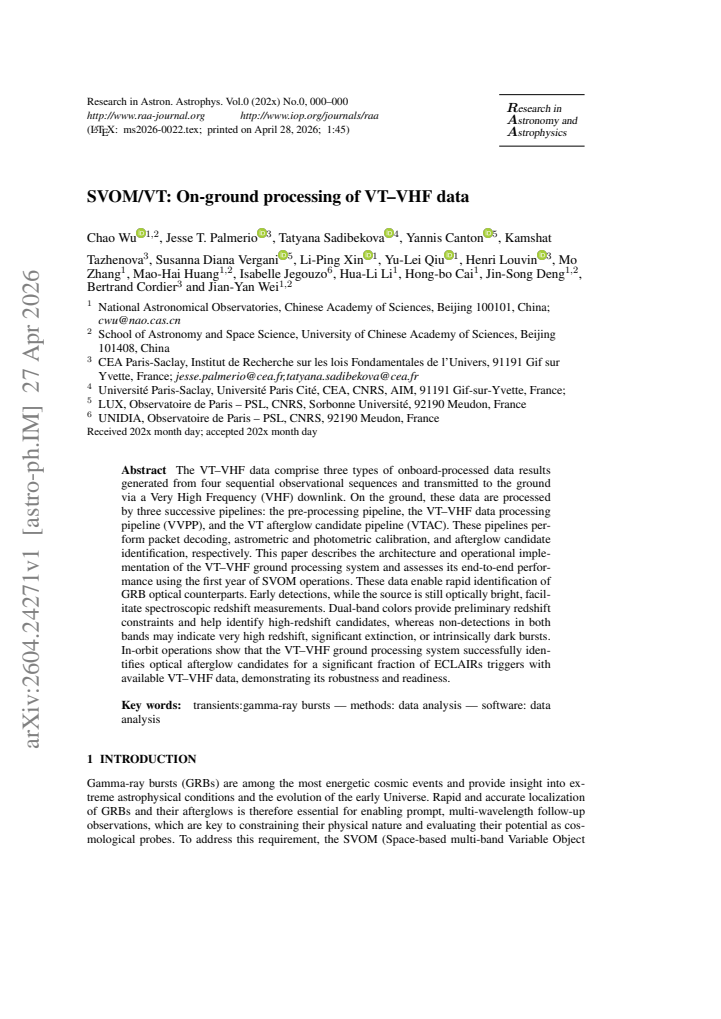

read the original abstract

The VT--VHF data comprise three types of onboard-processed data results generated from four sequential observational sequences and transmitted to the ground via a Very High Frequency (VHF) downlink. On the ground, these data are processed by three successive pipelines: the pre-processing pipeline, the VT--VHF data processing pipeline (VVPP), and the VT afterglow candidate pipeline (VTAC). These pipelines perform packet decoding, astrometric and photometric calibration, and afterglow candidate identification, respectively. This paper describes the architecture and operational implementation of the VT--VHF ground processing system and assesses its end-to-end performance using the first year of SVOM operations. These data enable rapid identification of GRB optical counterparts. Early detections, while the source is still optically bright, facilitate spectroscopic redshift measurements. Dual-band colors provide preliminary redshift constraints and help identify high-redshift candidates, whereas non-detections in both bands may indicate very high redshift, significant extinction, or intrinsically dark bursts. In-orbit operations show that the VT--VHF ground processing system successfully identifies optical afterglow candidates for a significant fraction of ECLAIRs triggers with available VT--VHF data, demonstrating its robustness and readiness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper describes the on-ground processing of VT-VHF data from the SVOM Visible Telescope, consisting of three pipelines (pre-processing for packet decoding, VVPP for astrometric/photometric calibration, and VTAC for afterglow candidate identification) applied to three types of onboard-processed results from four observational sequences. Using the first year of SVOM operations, it claims that the system successfully identifies optical afterglow candidates for a significant fraction of ECLAIRs triggers with available VT-VHF data, enabling rapid GRB counterpart detection, redshift measurements, and high-z candidate identification via dual-band colors or non-detections.

Significance. If the performance claims hold with supporting metrics, this work would be significant for SVOM operations by providing a robust, ready-to-use ground system for early optical afterglow identification while sources remain bright, directly facilitating spectroscopic follow-up and preliminary redshift constraints. The detailed architecture of the implemented pipelines represents a practical contribution to GRB instrumentation and data handling.

major comments (2)
  1. [Abstract] Abstract: The central claim that the VT-VHF ground processing system 'successfully identifies optical afterglow candidates for a significant fraction of ECLAIRs triggers with available VT-VHF data' is unsupported by any quantitative metrics, such as the numerical fraction of triggers yielding candidates, recovery efficiency for injected or known afterglows, false-positive rates from simulations or cross-matches, or explicit candidate selection thresholds/criteria in VTAC.
  2. [In-orbit operations / performance assessment] In-orbit operations / performance assessment section: No error analysis, validation details against known afterglows, or assessment of data packet transmission integrity (loss/corruption) and calibration accuracy in distinguishing true afterglows from artifacts is provided, leaving the robustness claim unevaluable. The weakest assumption that onboard packets arrive intact and VVPP calibration reliably separates sources is untested quantitatively.
minor comments (1)
  1. [Abstract / §2 (architecture)] The description of the three data types and four observational sequences would benefit from an accompanying schematic diagram or summary table to improve clarity of the data flow.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough and constructive review. We agree that the performance claims require stronger quantitative support to be fully evaluable, and we will revise the manuscript to address this. Our point-by-point responses to the major comments follow.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the VT-VHF ground processing system 'successfully identifies optical afterglow candidates for a significant fraction of ECLAIRs triggers with available VT-VHF data' is unsupported by any quantitative metrics, such as the numerical fraction of triggers yielding candidates, recovery efficiency for injected or known afterglows, false-positive rates from simulations or cross-matches, or explicit candidate selection thresholds/criteria in VTAC.

    Authors: We agree that the abstract's claim is not supported by quantitative metrics in the submitted version. The manuscript describes the system architecture and states that in-orbit operations demonstrate successful identification for a significant fraction of triggers, but does not provide the specific numbers, efficiencies, rates, or VTAC thresholds requested. In the revised manuscript we will add these metrics (including the observed fraction of ECLAIRs triggers with VT-VHF data that yielded candidates, recovery tests where feasible, false-positive estimates, and explicit VTAC selection criteria) and update the abstract accordingly. revision: yes

  2. Referee: [In-orbit operations / performance assessment] In-orbit operations / performance assessment section: No error analysis, validation details against known afterglows, or assessment of data packet transmission integrity (loss/corruption) and calibration accuracy in distinguishing true afterglows from artifacts is provided, leaving the robustness claim unevaluable. The weakest assumption that onboard packets arrive intact and VVPP calibration reliably separates sources is untested quantitatively.

    Authors: We acknowledge that the performance assessment section lacks the requested quantitative validation. We will expand this section to include error analysis, any available cross-checks against known afterglows from the first year of operations, an assessment of packet transmission integrity (including observed loss or corruption rates), and quantitative measures of VVPP calibration accuracy. These additions will clarify how true afterglows are separated from artifacts and will make the robustness of the assumptions explicit. revision: yes

Circularity Check

0 steps flagged

Descriptive pipeline paper with no derivations or predictions

full rationale

The paper describes the architecture and implementation of three ground pipelines (pre-processing, VVPP, VTAC) for handling VT-VHF data packets, performing calibration, and identifying afterglow candidates. It reports empirical performance from the first year of SVOM in-orbit operations without any mathematical derivations, equations, fitted parameters, or model predictions. The central claim of successful candidate identification for a significant fraction of triggers is an observational statement based on real data processing, not a reduction to self-defined inputs or self-citations. No load-bearing self-citation chains, uniqueness theorems, or ansatzes are present. This matches the expected non-circular outcome for a purely descriptive systems paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an engineering description of data pipelines with no mathematical modeling, free parameters, axioms, or invented physical entities.

pith-pipeline@v0.9.0 · 5583 in / 1069 out tokens · 36173 ms · 2026-05-07T17:48:36.205145+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 1 canonical work pages · 1 internal anchor

  1. [1]

    2026, Research in Astronomy and Astrophysics, 25, this issue 2, 5

    Cai, H.-B., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 2, 5

    2026

  2. [2]

    2026, Research in Astronomy and Astrophysics, 25, this issue 2, 4 Gaia Collaboration, Brown, A

    Cordier, B., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 2, 4 Gaia Collaboration, Brown, A. G. A., Vallenari, A., et al. 2021, A&A, 649, A1 4

    2026

  3. [3]

    2026, Research in Astronomy and Astrophysics, 25, this issue 2 G¨otz, D., et al

    Godet, O., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 2 G¨otz, D., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 2, 5

    2026

  4. [4]

    2026, Research in Astronomy and Astrophysics, 25, this issue 8

    Li, H.-L., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 8

    2026

  5. [5]

    2026, Research in Astronomy and Astrophysics, 25, this issue 2

    Louvin, H., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 2

    2026

  6. [6]

    2025, GRB Coordinates Network, 41677, 1 7

    Maiolino, T., Gu´epin-Detrigne, C., Dagoneau, N., et al. 2025, GRB Coordinates Network, 41677, 1 7

    2025

  7. [7]

    2022, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol

    Mao, Q., Qiu, Y ., Zhang, Y ., et al. 2022, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 12181, Space Telescopes and Instrumentation 2022: Ultraviolet to Gamma Ray, ed. J.-W. A. den Herder, S. Nikzad, & K. Nakazawa, 121815S 2

    2022

  8. [8]

    2026, Research in Astronomy and Astrophysics, 25, this issue 2, 4, 6

    Qiu, Y .-L., Li-Ping, X., Deng, J.-S., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 2, 4, 6

    2026

  9. [9]

    2019, A&A, 623, A92 9

    Selsing, J., Malesani, D., Goldoni, P., et al. 2019, A&A, 623, A92 9

    2019

  10. [10]

    1986, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol

    Tody, D. 1986, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 627, Instrumentation in astronomy VI, ed. D. L. Crawford, 733 4

    1986

  11. [11]

    2020, Research in Astronomy and Astrophysics, 20, 124 10

    Wang, J., Qiu, Y .-L., & Wei, J.-Y . 2020, Research in Astronomy and Astrophysics, 20, 124 10

    2020

  12. [12]

    The Deep and Transient Universe in the SVOM Era: New Challenges and Opportunities - Scientific prospects of the SVOM mission

    Wei, J., Cordier, B., Antier, S., et al. 2016, arXiv e-prints, arXiv:1610.06892 2

    work page internal anchor Pith review arXiv 2016

  13. [13]

    C., Greisen, E

    Wells, D. C., Greisen, E. W., & Harten, R. H. 1981, A&AS, 44, 363 4

    1981

  14. [14]

    J., Xin, L

    Xie, W. J., Xin, L. P., Schanne, S., et al. 2025, GRB Coordinates Network, 41243, 1 8, 9

    2025

  15. [15]

    2026, Research in Astronomy and Astrophysics, 25, this issue 5

    Yao, Z.-H., Qiu, Y .-L., Deng, J.-S., Xin, L.-P., et al. 2026, Research in Astronomy and Astrophysics, 25, this issue 5

    2026
