Quantitative Pulse Shape-Instability Analysis Using 2D-Runs FROG

Abinash Das, Bilol Banerjee, Ellen P. Crews, Pedram Abdolghader, Rana Jafari, Rick Trebino

Authors on Pith no claims yet

Pith reviewed 2026-05-08 01:59 UTC · model grok-4.3

classification ⚛️ physics.optics physics.atom-ph
keywords pulse shape instabilitySHG FROGruns test2D runspulse traintrace retrievalinstability parameterlaser diagnostics
0
0 comments X

The pith

A two-dimensional runs test applied to differences between measured and retrieved FROG traces yields a parameter R that quantifies pulse-shape instability in a train.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a way to assign a numerical value to how much the shapes of individual pulses vary within a train. It starts from the fact that the RANA retrieval method produces accurate average pulses even when the train is unstable, so any leftover systematic mismatch between the measured and retrieved trace must come from real shape changes. The authors extend the classic one-dimensional runs test, which flags non-random patterns in residuals, to two dimensions by counting hills and valleys across the full FROG surface. When the difference map shows many small runs the train is stable and the mismatch is just noise; when it shows few large runs the train is unstable. The resulting scalar R therefore turns an existing diagnostic into a direct instability meter.

Core claim

We introduce an instability parameter R that uses a two-dimensional runs test on the difference between measured and retrieved FROG traces to distinguish stable from unstable pulse trains. Because the RANA retrieval is reliable even for unstable pulses, systematic discrepancies reflect physical instability rather than retrieval failure. Many small 2D runs mean only noise and thus stability, while few large runs indicate systematic error from pulse-shape changes.

What carries the argument

The 2D runs test, which enumerates consecutive hills and valleys of the same sign in the two-dimensional difference map between measured and retrieved SHG FROG traces.

If this is right

  • Low R confirms that a single retrieved pulse shape accurately represents the entire train.
  • High R signals that the train contains a range of distinct pulse shapes that cannot be summarized by one trace.
  • The test can be applied to any existing multi-shot FROG data set without new hardware.
  • R provides a continuous scale rather than a binary stable/unstable label, allowing graded comparisons between laser sources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same 2D runs approach could be tried on other two-dimensional spectrograms such as streaking or autocorrelation surfaces.
  • If R proves monotonic with instability strength it might serve as a feedback signal for active laser stabilization loops.
  • Extending the method to higher-dimensional data, such as spatio-temporal measurements, would require only a generalization of the run-counting rule.

Load-bearing premise

Any non-random pattern in the trace differences is produced by actual pulse-shape variation rather than by noise statistics or retrieval artifacts.

What would settle it

A direct comparison of R values against an independent single-shot measurement of pulse-to-pulse shape variation on the same train would show whether high R consistently tracks real instability.

Figures

Figures reproduced from arXiv: 2604.24359 by Abinash Das, Bilol Banerjee, Ellen P. Crews, Pedram Abdolghader, Rana Jafari, Rick Trebino.

Figure 1
Figure 1. Figure 1: (a) Example of 1D runs in curve fitting, where the difference curve contains 6 runs, with red dots indicating data points greater than the fit and blue dots indicating data point less than the fit. (We will use this convention in Figs. (b-d) also). (b) Graph-based two-dimensional runs test applied to a sample 15  15 difference trace with randomly distributed + and − pixels, as defined in (a). Line segment… view at source ↗
read the original abstract

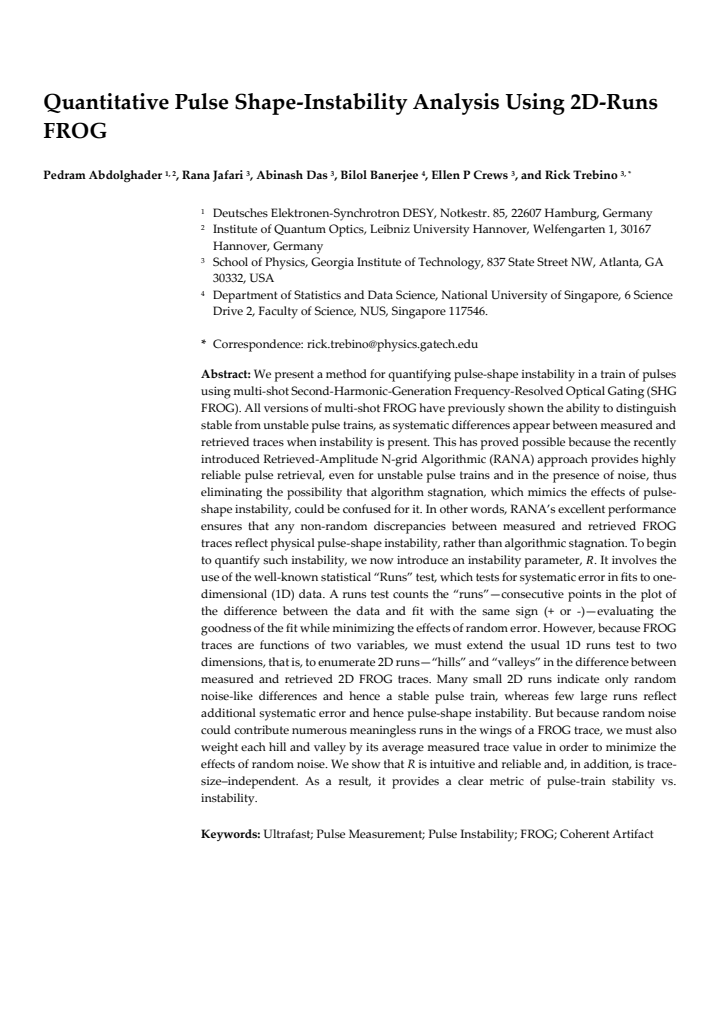

We present a method for quantifying pulse-shape instability in a train of pulses using multi-shot Second-Harmonic-Generation Frequency-Resolved Optical Gating (SHG FROG). All versions of multi-shot FROG have previously shown the ability to distinguish stable from unstable pulse trains, as systematic differences appear between measured and retrieved traces when instability is present. This has proved possible because the recently introduced Retrieved-Amplitude N-grid Algorithmic (RANA) approach provides highly reliable pulse retrieval, even for unstable pulse trains and in the presence of noise, thus eliminating the possibility that algorithm stagnation, which mimics the effects of pulse-shape instability, could be confused for it. In other words, RANAs excellent performance ensures that any non-random discrepancies between measured and retrieved FROG traces reflect physical pulse-shape instability, rather than algorithmic stagnation. To begin to quantify such instability, we now introduce an instability parameter, R. It involves the use of the well-known statistical Runs test, which tests for systematic error in fits to one-dimensional (1D) data. A runs test counts the runs consecutive points in the plot of the difference between the data and fit with the same sign evaluating the goodness of the fit while minimizing the effects of random error. However, because FROG traces are functions of two variables, we must extend the usual 1D runs test to two dimensions, that is, to enumerate 2D runs hills and valleys in the difference between measured and retrieved 2D FROG traces. Many small 2D runs indicate only random noise-like differences and hence a stable pulse train, whereas few large runs reflect additional systematic error and hence pulse-shape instability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a method to quantify pulse-shape instability in multi-shot SHG FROG traces by introducing an instability parameter R. R is obtained by extending the one-dimensional statistical runs test to two dimensions and applying it to the difference map between the measured trace and the trace retrieved via the RANA algorithm. The central argument is that RANA's reliability for unstable trains ensures any non-random residuals reflect physical instability rather than retrieval stagnation, with many small 2D runs indicating stability and few large runs indicating instability.

Significance. If the proposed R parameter can be shown to be reproducible and to correlate with independent measures of instability, the approach would provide a practical, statistics-based metric for characterizing unstable pulse trains where conventional FROG retrieval is otherwise ambiguous. The reliance on the runs test to suppress random noise effects is a reasonable design choice. At present, however, the absence of an explicit computational definition for R and of any validation against synthetic or experimental ground truth limits the result to a conceptual proposal rather than a demonstrated tool.

major comments (3)
  1. [the section introducing the instability parameter R] The manuscript does not supply an explicit formula, algorithm, or pseudocode for converting the enumerated 2D runs (hills and valleys) in the measured-minus-retrieved difference map into the numerical value of R. Without this definition, the claim that R quantifies instability cannot be evaluated or reproduced.
  2. [the discussion of RANA reliability and its implications for the runs test] No synthetic-data tests, Monte-Carlo ensembles of unstable pulse trains, or experimental comparisons with independent instability diagnostics are presented to establish that RANA residuals remain smaller than the systematic patterns that would produce a low-R classification. The central claim therefore rests on an unverified quantitative bound.
  3. [the paragraph describing the extension of the runs test to two dimensions] The precise procedure for identifying and counting 2D runs (connectivity rule, threshold for sign changes, handling of the two-dimensional grid) is not specified. This detail is load-bearing because the distinction between 'many small' and 'few large' runs directly determines the value of R.
minor comments (2)
  1. [Abstract] The abstract contains a typographical error: 'RANAs excellent performance' should read 'RANA's excellent performance'.
  2. A small illustrative example (synthetic stable vs. unstable difference maps with the resulting R values) would greatly clarify how the 2D runs test operates in practice.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments correctly identify areas where the manuscript requires additional explicit detail and supporting validation to move from a conceptual proposal to a fully specified and demonstrated method. We address each major comment below and will incorporate the necessary revisions.

read point-by-point responses

  1. Referee: [the section introducing the instability parameter R] The manuscript does not supply an explicit formula, algorithm, or pseudocode for converting the enumerated 2D runs (hills and valleys) in the measured-minus-retrieved difference map into the numerical value of R. Without this definition, the claim that R quantifies instability cannot be evaluated or reproduced.

    Authors: We agree that an explicit computational definition is essential for reproducibility. The instability parameter R is obtained by adapting the standard one-dimensional runs-test statistic to the two-dimensional difference map, specifically R = (N_r - mu) / sigma where N_r is the number of 2D runs counted under a chosen connectivity rule, mu is the expected number under randomness, and sigma is the corresponding standard deviation. In the revised manuscript we will insert the full mathematical expression together with pseudocode that details how the difference map is thresholded, how runs are enumerated, and how R is normalized to the range [0,1]. revision: yes

  2. Referee: [the discussion of RANA reliability and its implications for the runs test] No synthetic-data tests, Monte-Carlo ensembles of unstable pulse trains, or experimental comparisons with independent instability diagnostics are presented to establish that RANA residuals remain smaller than the systematic patterns that would produce a low-R classification. The central claim therefore rests on an unverified quantitative bound.

    Authors: The referee is correct that the present manuscript contains no Monte-Carlo validation or direct comparison with independent diagnostics. While the reliability of RANA for unstable trains is documented in prior work, the quantitative bound relating RANA residuals to the runs-test outcome is not demonstrated here. We will add a new section containing Monte-Carlo ensembles of synthetic unstable pulse trains together with the resulting R values, thereby providing the missing empirical support for the central claim. revision: yes

  3. Referee: [the paragraph describing the extension of the runs test to two dimensions] The precise procedure for identifying and counting 2D runs (connectivity rule, threshold for sign changes, handling of the two-dimensional grid) is not specified. This detail is load-bearing because the distinction between 'many small' and 'few large' runs directly determines the value of R.

    Authors: We acknowledge that the two-dimensional extension must be defined unambiguously. The revised manuscript will specify the connectivity rule (four-connectivity on the rectangular grid), the sign-change threshold (zero-crossing after noise-floor subtraction), and the handling of boundary and isolated pixels. These choices will be justified by reference to the one-dimensional runs test and illustrated with a small worked example. revision: yes

Circularity Check

0 steps flagged

Minor self-citation on RANA reliability; 2D-runs parameter defined independently

full rationale

The instability parameter R is constructed directly by extending the standard 1D runs test to enumerate 2D runs (hills and valleys) in the measured-minus-retrieved FROG trace difference map. This definition relies only on the well-known statistical runs test applied to the difference data and introduces no fitted parameters, self-referential equations, or reductions to prior results within the paper. The supporting statement that RANA retrieval remains reliable for unstable trains (thereby attributing non-random residuals to physical instability) references prior work, but this is a contextual assumption for interpretation rather than a load-bearing step in the derivation of R itself. The quantitative definition and application of R therefore remains self-contained and does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The approach depends on one key domain assumption about retrieval reliability and introduces the 2D runs concept as its core new element; no free parameters or invented physical entities are evident from the abstract.

axioms (1)
  • domain assumption The RANA approach provides highly reliable pulse retrieval even for unstable pulse trains and in the presence of noise.
    Invoked explicitly to ensure that observed discrepancies reflect physical instability rather than algorithmic failure.
invented entities (1)
  • 2D runs (hills and valleys in the difference map) no independent evidence
    purpose: To distinguish systematic error from random noise in two-dimensional FROG traces
    New statistical construct introduced to extend the 1D runs test to FROG data.

pith-pipeline@v0.9.0 · 5622 in / 1307 out tokens · 53128 ms · 2026-05-08T01:59:30.599064+00:00 · methodology
