Updated Design for LEP3

M. Koratzinos, P. Raimondi

Authors on Pith no claims yet

Pith reviewed 2026-05-07 17:23 UTC · model grok-4.3

classification ⚛️ physics.acc-ph

keywords LEP3electron-positron colliderLHC tunnelhigh luminosityZ bosonW bosonHiggs bosonaccelerator design

0 comments

The pith

An updated LEP3 design places a high-luminosity electron-positron collider inside the existing LHC tunnel for precision studies of the Z, W, and Higgs bosons.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an updated layout for the LEP3 machine, which is intended to run as a high-luminosity electron-positron collider inside the tunnel now occupied by the Large Hadron Collider. This setup would support detailed measurements of the Z boson, W boson, and Higgs boson. A sympathetic reader would care because such a machine could provide precision data on particle properties that complement the discoveries from hadron colliders. The design aims to reuse existing infrastructure to reduce costs and timelines for new physics capabilities.

Core claim

The central claim is that an updated LEP3 design can operate within the LHC tunnel infrastructure, delivering the high luminosity required for precision studies of the Z, W, and Higgs bosons through optimized beam optics and ring layout adapted to the existing facilities.

What carries the argument

The adapted ring layout and beam optics for the LEP3 collider in the LHC tunnel, which carries the argument by enabling high-luminosity operation without new major construction.

Load-bearing premise

The existing LHC tunnel infrastructure can support the LEP3 ring layout, beam optics, and infrastructure needs without major conflicts or prohibitive modifications.

What would settle it

Detailed engineering assessments or beam optics simulations that demonstrate insurmountable space conflicts or performance limitations in the shared tunnel.

Figures

Figures reproduced from arXiv: 2604.24427 by M. Koratzinos, P. Raimondi.

**Figure 1.** Figure 1: the LEP3 collider arc cell. The position of view at source ↗

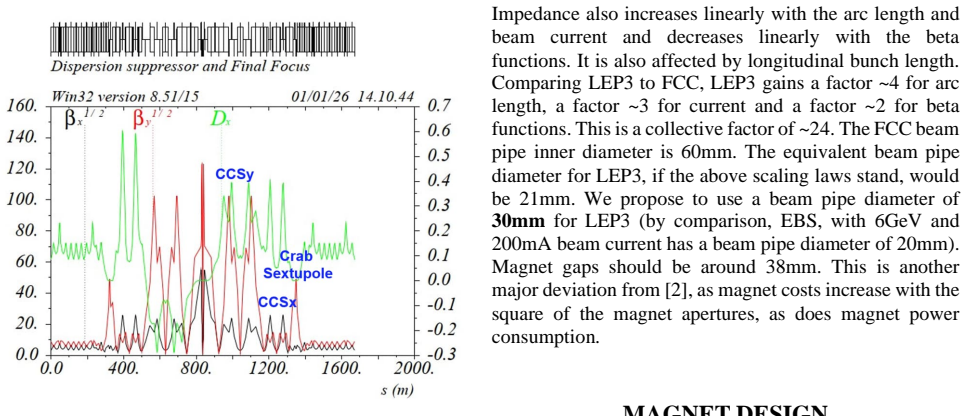

**Figure 3.** Figure 3: the Final Focus system. The interaction point is view at source ↗

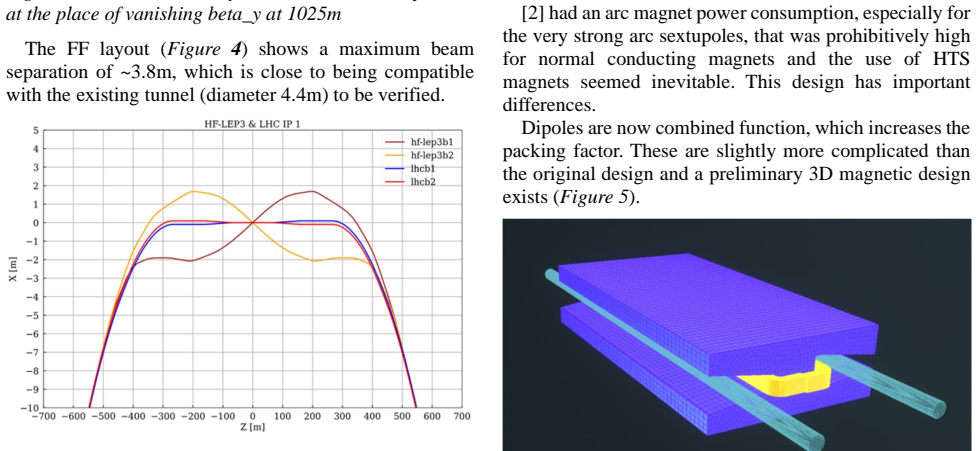

**Figure 4.** Figure 4: final focus layout. Maximum beam separation is view at source ↗

**Figure 6.** Figure 6: Booster cell layout. The length is the same as the view at source ↗

read the original abstract

An updated design for the LEP3 electron-positron collider is presented. The machine is designed to operate in the existing tunnel infrastructure currently hosting the Large Hadron Collider and aims to deliver high luminosity for precision studies of the Z, W, and Higgs boson.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a high-level restatement of the LEP3 concept for the LHC tunnel that states compatibility goals without providing parameters or analysis to support them.

read the letter

The main thing to know is that this paper presents an updated design for LEP3, an electron-positron collider intended to run in the existing LHC tunnel and deliver high luminosity for precision Z, W, and Higgs studies. It keeps the old idea current by stressing infrastructure reuse but adds little beyond that framing. The work does well in focusing on a practical angle: avoiding the expense of a brand-new ring by fitting into the 27 km circumference already in place. That kind of cost-conscious thinking is worth noting in accelerator discussions. The soft spots are more substantial. The central claim requires that the LEP3 lattice, magnet apertures, beam optics, cryogenics, and power systems can coexist with current LHC components without major conflicts or modifications. Yet the text supplies no beam parameters, luminosity scaling, or conflict-resolution steps to show how this would be achieved. The assumption that the tunnel infrastructure can support the layout therefore stays unquantified. This is not a minor gap; it sits at the heart of whether the design is viable. The paper does not contain equations, simulations, or new derivations, so it does not produce a fresh result. It is an incremental update to prior LEP3 proposals rather than a first-principles advance. Accelerator physicists or those planning future e+e- machines might skim it for the reminder of the concept, but anyone looking for concrete numbers or falsifiable checks will find little to use. I would not bring this to a reading group because there is not enough technical content to discuss productively. I would not cite it in my own work in the next year. It does not deserve peer review in this form; the authors would need to add detailed optics, infrastructure analysis, and feasibility checks before it merits referee time.

Referee Report

1 major / 0 minor

Summary. The manuscript presents an updated design for the LEP3 electron-positron collider, intended to operate in the existing LHC tunnel infrastructure and deliver high luminosity for precision studies of the Z, W, and Higgs bosons.

Significance. If the design parameters can be shown to be compatible with the 27 km LHC tunnel, this would represent a potentially cost-effective route to high-luminosity e+e- collisions at the Z, W, and Higgs energies by reusing existing civil engineering and infrastructure. The absence of any quantitative beam-optics, luminosity scaling, or infrastructure-conflict analysis, however, prevents assessment of whether this potential can be realized.

major comments (1)

[Abstract / main text] The central claim that LEP3 can be installed and operated in the existing LHC tunnel without major conflicts is load-bearing for the entire proposal, yet the manuscript supplies no lattice parameters, magnet apertures, cryogenics/power compatibility analysis, or luminosity estimates to substantiate it. This is the precise point raised by the skeptic note on unquantified tunnel compatibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address the major comment below and have revised the paper to incorporate the requested quantitative details.

read point-by-point responses

Referee: [Abstract / main text] The central claim that LEP3 can be installed and operated in the existing LHC tunnel without major conflicts is load-bearing for the entire proposal, yet the manuscript supplies no lattice parameters, magnet apertures, cryogenics/power compatibility analysis, or luminosity estimates to substantiate it. This is the precise point raised by the skeptic note on unquantified tunnel compatibility.

Authors: We agree that the original manuscript presented the updated LEP3 design at a conceptual level without sufficient quantitative substantiation of tunnel compatibility. In the revised version we have added a new section on beam optics that specifies the lattice parameters (including cell structure, quadrupole and dipole strengths, and beta functions) adapted to the 27 km LHC tunnel circumference. Magnet aperture requirements are now quantified with clearance margins relative to the existing LHC beam pipe. Preliminary luminosity estimates at the Z, W, and Higgs energies are provided using standard scaling relations from prior LEP3 studies, together with an infrastructure compatibility analysis covering cryogenics load, power consumption, and civil-engineering interfaces. These additions directly substantiate the feasibility claim while preserving the high-level overview. revision: yes

Circularity Check

0 steps flagged

No circularity in LEP3 design proposal

full rationale

The paper presents a high-level updated design concept for an e+e- collider to operate in the existing LHC tunnel infrastructure, with the goal of high luminosity for Z/W/Higgs studies. No mathematical derivations, equations, fitted parameters, or predictions are described in the provided abstract or context. The central claim is an engineering feasibility assertion relying on external assumptions about tunnel compatibility rather than any self-referential loop, self-citation chain, or input-output reduction by construction. This is a standard non-circular design outline.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract provides no explicit free parameters, axioms, or invented entities; the design implicitly assumes tunnel compatibility and standard accelerator physics principles.

pith-pipeline@v0.9.0 · 5316 in / 961 out tokens · 54083 ms · 2026-05-07T17:23:27.038873+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

4 extracted references · 1 canonical work pages

[1]

Koratzinos, LEP3: A possible low-cost high- luminosity Higgs factory, Proceedings of Science, IHEP-LHC-2012, 017

M. Koratzinos, LEP3: A possible low-cost high- luminosity Higgs factory, Proceedings of Science, IHEP-LHC-2012, 017. doi.org, 2012

2012
[2]

Anastopoulos, C. et al., LEP3: A high-luminosity e+e- Higgs & electroweak factory in the LHC tunnel - a possible back-up to the preferred option (FCC- ee and FCC-hh) for the next accelerator for CERN, (Submitted to Journal of Physics G, Manuscript Ref: JPhysG-105609.R1), 2025

2025
[3]

Raimondi et al., The Extremely Brilliant Source storage ring of the European Synchrotron Radiation Facility., Communications Physics 6, 82, 2023

P. Raimondi et al., The Extremely Brilliant Source storage ring of the European Synchrotron Radiation Facility., Communications Physics 6, 82, 2023

2023
[4]

FCC Collaboration, Benedikt, M., Zimmermann, F., et al. (2025), Future Circular Collider Feasibility Study Report: Volume 2 Accelerators, technical infrastructure and safety., European Physical Journal Special Topics, 234(19), 5713– 6197. https://doi.org/10.1140/epjs/s11734-025-01967-4, 2025

work page doi:10.1140/epjs/s11734-025-01967-4 2025
