Weighted Directional Total Nuclear Variation for Joint Yttrium-90 PET/SPECT Reconstruction with CTAC-derived Guidance

D Deidda, D R McGowan, J Anton-Rodriguez, K Thielemans, S Arridge, S Porter

Authors on Pith no claims yet

Pith reviewed 2026-05-07 17:09 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords Yttrium-90PET reconstructionSPECT reconstructionjoint reconstructiontotal nuclear variationCT guidanceimage regularisationpersonalised dosimetry
0
0 comments X

The pith

A weighted directional total nuclear variation regularizer improves recovery of small lesions in joint Y-90 PET/SPECT reconstruction by aligning edges with CT-derived directions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that a new joint regularizer can exploit the complementary strengths of low-count Y-90 PET and higher-count but blurred bremsstrahlung SPECT by enforcing geometry-consistent edges across the two modalities. CT attenuation maps supply the directional information that tells the algorithm where activity changes should occur together, while a nuclear-norm penalty on the joint gradient matrix avoids forcing the intensities themselves to match. Data-driven normalisation handles the large difference in scale between the modalities. In phantom tests the method raises recovery coefficients relative to simpler directional and nuclear-norm penalties and beats sequential kernel reconstruction for the smallest spheres; in nine patients it raises tumour-to-background ratio at matched background activity. These gains matter because accurate post-treatment activity maps are required for personalised dosimetry after selective internal radiation therapy.

Core claim

The central claim is that the weighted directional total nuclear variation (w-dTNV) regulariser, formed by taking the nuclear norm of the dual-modality Jacobian whose columns are the CT-directed and modality-normalised gradients of the PET and SPECT images, produces higher recovery coefficients for small spheres than directional total variation or weighted total nuclear variation and higher tumour-to-background ratios than sequential hybrid kernel expectation maximisation at comparable background levels.

What carries the argument

The weighted directional total nuclear variation (w-dTNV), which penalises the nuclear norm of a 2-by-3 Jacobian matrix assembled from the CT-weighted gradients of the PET and SPECT images after data-driven per-voxel scaling to equalise modality ranges.

If this is right

  • In the NEMA IEC phantom with 20 bootstrapped noise realisations, w-dTNV raises recovery coefficients above those of dTV and w-TNV and exceeds SHKEM for the smallest spheres.
  • Across 45 lesions in nine post-SIRT patients, w-dTNV produces higher tumour-to-background ratios than SHKEM at comparable background activity.
  • The CT-guided coupling supplies a practical route to more stable quantitative Y-90 activity maps for personalised dosimetry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same CT-derived directional weighting could be tested on other paired modalities where one channel has high spatial resolution but low counts and the other has high counts but spatial blur.
  • If the normalisation step proves robust across scanner vendors, the method could be deployed without scanner-specific tuning.
  • Motion mismatch between the CT and the emission scans would be expected to degrade the directional guidance and could be checked by introducing controlled misalignment in phantom data.

Load-bearing premise

That the directions taken from the CT attenuation map correctly indicate where the true activity edges should align in both PET and SPECT, and that normalising the two modalities from separate preliminary reconstructions does not bias the final joint solution.

What would settle it

A larger patient study in which tumour-to-background ratio no longer increases under w-dTNV while background activity remains comparable, or a phantom experiment in which recovery coefficients for the smallest spheres fall below those of SHKEM, would falsify the claimed benefit.

Figures

Figures reproduced from arXiv: 2604.24437 by D Deidda, D R McGowan, J Anton-Rodriguez, K Thielemans, S Arridge, S Porter.

Figure 1
Figure 1. Figure 1: Left: VOIs (warm background (BG), lung insert (LI), view at source ↗
Figure 2
Figure 2. Figure 2: Visualisation of the five identified lesions and the view at source ↗
Figure 3

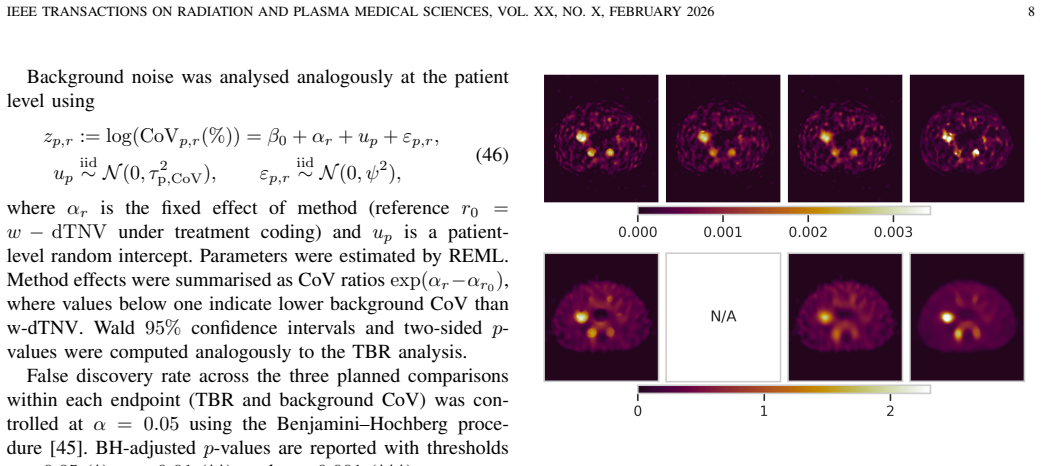

Figure 3. Figure 3: Visual comparison of NEMA phantom reconstructions view at source ↗
Figure 4
Figure 4. Figure 4: Recovery coefficient (RC) for NEMA phantom spheres for w-dTNV, dTV, w-TNV and SHKEM (shown at subiteration 27). Also shown are the equivalent RCs for a high-count, long-OSEM reconstruction (24ss, 240it). The grey line demonstrates perfect recovery. Statistical significance is reported for paired comparisons versus w-dTNV (Benjamini–Hochberg adjusted): ∗ p < 0.05, ∗∗ p < 0.01, ∗∗∗ p < 0.001. In contrast, SH… view at source ↗
Figure 5

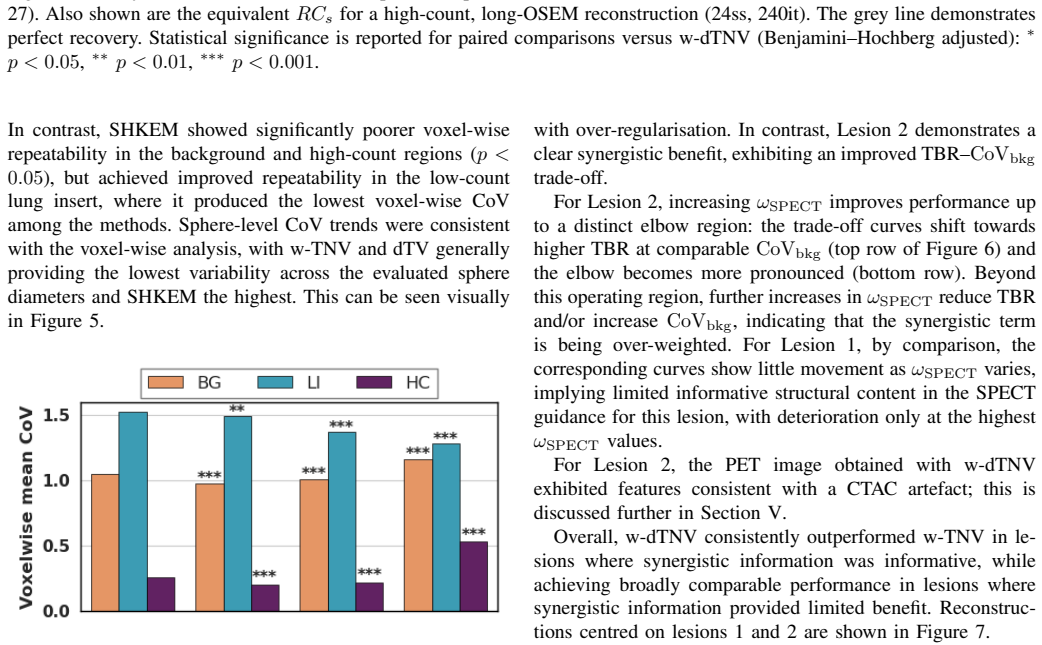

Figure 5. Figure 5: Mean voxel-wise coefficient of variation (CoV) view at source ↗
Figure 6

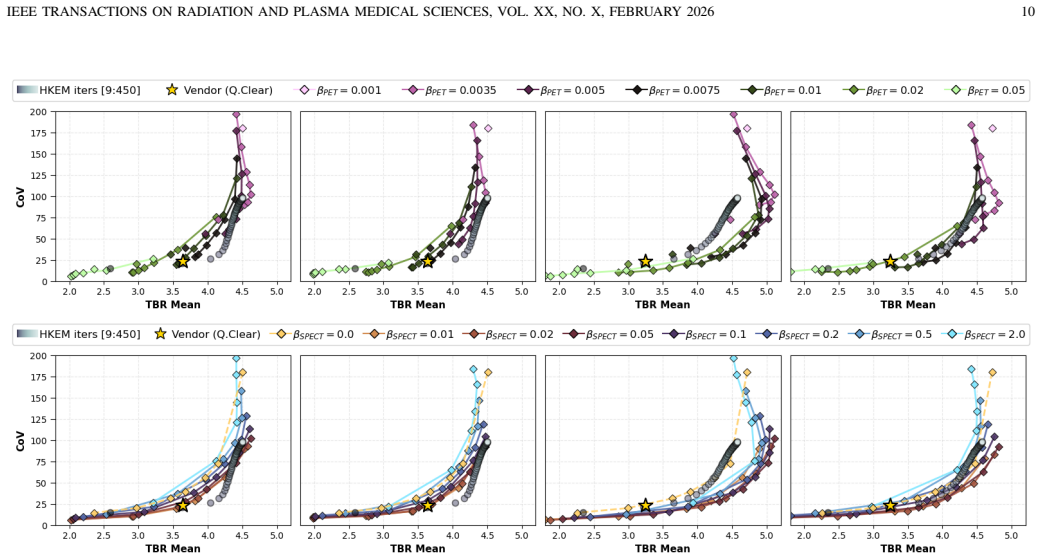

Figure 6. Figure 6: Impact of varying PET weighting (ωPET) while holding SPECT regularisation constant (top row) and varying SPECT weighting (ωSPECT) while holding PET regularisation constant (bottom row) on TBR and CoVbkg for lesion 1 (first and second columns) and lesion 2 (third and fourth columns). The first and third columns show w-dTNV and the second and fourth show w-TNV. Axial views. Coronal views view at source ↗
Figure 7
Figure 7. Figure 7: Visual comparison of reconstruction methods for patient SIRT3 lesion 1 (top row in each quadrant) and lesion 2 view at source ↗
Figure 8
Figure 8. Figure 8: TBR mean (left) for all lesions and patients, and view at source ↗
Figure 9
Figure 9. Figure 9: Patient study. CTAC-derived attenuation map view at source ↗
Figure 10
Figure 10. Figure 10: NEMA phantom (central axial slice). CTAC-derived view at source ↗
read the original abstract

Quantitative post-treatment activity imaging is essential for personalised dosimetry after Yttrium-90 selective internal radiation therapy (SIRT). Yttrium-90 PET offers high spatial resolution but is extremely low-count, whereas bremsstrahlung SPECT has higher count statistics but is degraded by blur, scatter, and septal penetration. Since both modalities image the same microsphere distribution, joint synergistic reconstruction can exploit their physical coupling, with CT attenuation correction (CTAC) providing additional anatomical guidance. We propose weighted directional total nuclear variation (w-dTNV), a joint variational regulariser for coupled PET/SPECT reconstruction with CTAC-guided anisotropy. w-dTNV penalises the nuclear norm of a dual-modality Jacobian, promoting co-located, geometry-consistent edges without forcing intensity correlation. Directionality is derived from the CTAC attenuation map $\mu$ and applied to PET/SPECT gradients, allowing efficient per-voxel spectral computations. PET/SPECT scale disparity is mitigated using data-driven modality normalisation from preliminary reconstructions. We evaluate w-dTNV on a NEMA IEC phantom with 20 bootstrapped PET noise realisations and on 9 post-SIRT patients with 45 lesions, against dTV, w-TNV, and sequential hybrid kernel expectation maximisation (SHKEM). In the phantom, w-dTNV improves recovery coefficients over dTV and w-TNV, and improves recovery over SHKEM for the smallest spheres. In patients, w-dTNV gives higher tumour-to-background ratios than SHKEM at comparable background activity. These results suggest that CTAC-guided synergistic variational coupling improves lesion recovery and clinical lesion contrast, offering a practical route towards more stable post-SIRT Yttrium-90 activity estimates for personalised dosimetry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript proposes weighted directional total nuclear variation (w-dTNV), a joint variational regularizer that applies a weighted nuclear norm to the dual-modality Jacobian of PET and SPECT gradients, with anisotropy directions derived from the CT attenuation map and scale disparity addressed via data-driven normalization from preliminary reconstructions. It reports improved recovery coefficients over dTV, w-TNV, and SHKEM on a NEMA IEC phantom (20 noise realizations) and higher tumour-to-background ratios than SHKEM at comparable background activity on 9 post-SIRT patients (45 lesions).

Significance. If the quantitative gains hold after addressing methodological details, the approach could improve quantitative accuracy for post-SIRT Y-90 dosimetry by exploiting complementary PET resolution and SPECT count statistics under CTAC anatomical guidance, without forcing intensity correlation between modalities. The dual-modality testing on phantom and patient data with multiple baselines is a positive aspect.

major comments (1)
  1. Abstract and Methods (normalization paragraph): The data-driven modality normalisation from preliminary reconstructions is load-bearing for the central claim, as the nuclear norm couples modalities through joint singular values; any residual scale mismatch or artifact bias from the unspecified preliminary reconstructions can directly influence which edges are promoted, making it unclear whether reported gains in recovery coefficients and TBR are attributable to w-dTNV/CTAC guidance or to the normalisation step itself. An explicit description of the preliminary reconstruction method, normalisation factor computation, and a sensitivity test would be required to support the attribution.
minor comments (1)
  1. Abstract: The quantitative improvements are stated qualitatively (e.g., 'improves recovery coefficients'); adding specific values or effect sizes with statistical details would aid assessment of clinical relevance.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the potential impact of w-dTNV. We address the single major comment below.

read point-by-point responses

  1. Referee: Abstract and Methods (normalization paragraph): The data-driven modality normalisation from preliminary reconstructions is load-bearing for the central claim, as the nuclear norm couples modalities through joint singular values; any residual scale mismatch or artifact bias from the unspecified preliminary reconstructions can directly influence which edges are promoted, making it unclear whether reported gains in recovery coefficients and TBR are attributable to w-dTNV/CTAC guidance or to the normalisation step itself. An explicit description of the preliminary reconstruction method, normalisation factor computation, and a sensitivity test would be required to support the attribution.

    Authors: We agree that the data-driven normalization requires fuller documentation to support attribution of the reported gains. In the revised manuscript we will expand the Methods section with: (i) the exact preliminary reconstruction method (sequential hybrid-kernel EM applied independently to each modality), (ii) the normalization-factor computation (ratio of mean activity concentrations inside a liver VOI drawn on the preliminary images), and (iii) a sensitivity study showing that recovery coefficients and TBR remain stable for normalization factors varied by ±20 % around the data-driven value. These additions will make clear that the quantitative improvements arise from the CTAC-guided joint nuclear-norm coupling rather than from the scaling step alone. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected; derivation and evaluation remain self-contained

full rationale

The paper defines w-dTNV as a new joint variational regulariser that penalises the nuclear norm of the dual-modality Jacobian with CTAC-derived directional weights, then mitigates scale disparity via a separate data-driven normalisation step from preliminary reconstructions. The central claims consist of measured empirical gains in recovery coefficients (phantom) and tumour-to-background ratios (patients) against independent baselines (dTV, w-TNV, SHKEM). No equation or step equates the reported improvements to the normalisation factors or to any fitted parameter by construction; the regulariser is motivated from first principles and tested on external datasets. No self-citation chain, ansatz smuggling, or renaming of known results is load-bearing for the claimed performance gains.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Full text unavailable; specific free parameters, axioms, and invented entities cannot be audited in detail. The abstract implies data-driven normalization factors and CT-derived directions but provides no explicit list or values.
