The role of physical models in the validation and calibration of numerical models -- The example of the Lilleb{ae}lt Bridge

Paula Apollonia Wunderlich , Gledson Rodrigo Tondo , Guido Morgenthal
Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:11 UTC · model grok-4.3

classification 💻 cs.CE
keywords physical modelsnumerical modelingoperational modal analysisbridge dynamicsmodel validationscale modelsstructural calibrationLillebælt Bridge
0
0 comments X

The pith

Physical scale models like the Lillebælt Bridge can supply experimental reference data to calibrate and validate numerical engineering models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper maintains that physical scale models retain clear value in engineering despite advances in computing power. It uses the historical Lillebælt Bridge scale model to show how operational modal analysis extracts natural frequencies and damping ratios from measurements on the physical object. These values then serve as benchmarks that numerical models must match during calibration and validation. A reader would care because the approach pairs tangible experiments with computer simulations to produce more trustworthy dynamic predictions for real structures.

Core claim

The scale model of the Lillebælt Bridge allows experimental determination of natural frequencies and damping ratios via operational modal analysis, providing reference data for the calibration and validation of numerical models of the bridge.

What carries the argument

The Lillebælt Bridge scale model combined with operational modal analysis to measure modal parameters as reference data for numerical models.

If this is right

  • Engineers gain a tangible benchmark to test whether numerical models correctly capture structural dynamics.
  • Calibration of finite-element or other simulation models improves when anchored to measured frequencies and damping from physical prototypes.
  • Research and teaching benefit from models that make abstract dynamic properties directly observable and comparable to computations.
  • Validation workflows for bridge designs can incorporate both physical experiments and numerical runs to reduce uncertainty.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Physical models could serve as low-cost checks for scaling laws in other civil structures before full numerical deployment.
  • Routine use of such models might highlight cases where purely computational approaches miss subtle damping mechanisms.
  • Similar historical models could be re-measured with modern sensors to build open validation datasets for the field.

Load-bearing premise

The scale model accurately reproduces the dynamic properties of the full-scale bridge without major distortions from scaling effects, material differences, or boundary conditions.

What would settle it

If the modal parameters measured on the scale model produce a numerical model whose predictions diverge substantially from observed dynamic behavior of the real Lillebælt Bridge under wind or traffic loads.

Figures

Figures reproduced from arXiv: 2604.25623 by Gledson Rodrigo Tondo, Guido Morgenthal, Paula Apollonia Wunderlich.

Figure 1

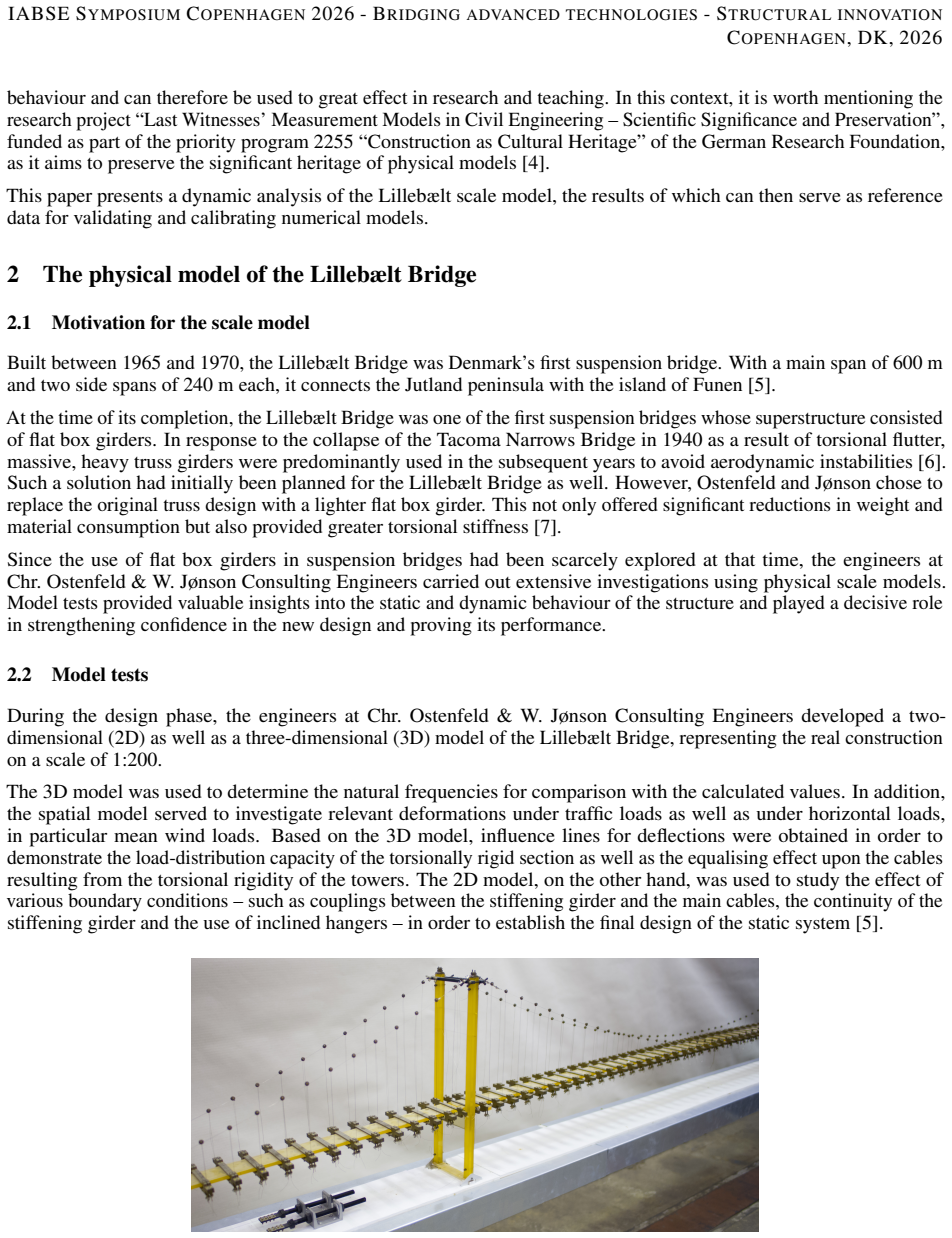

Figure 1. Figure 1: 1:200 scale model of the Lillebælt Bridge (Photo by Guido Morgenthal). view at source ↗
Figure 2
Figure 2. Figure 2: Detail of the Lillebælt scale model showing the model superstructure [5]. view at source ↗
Figure 3

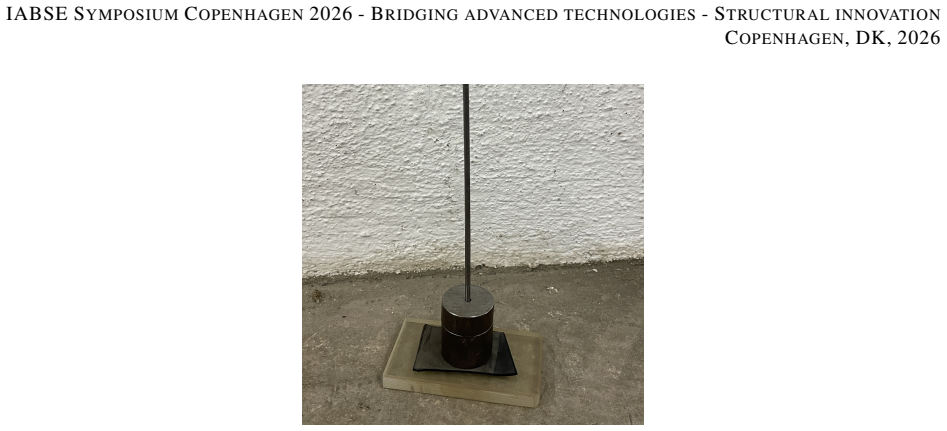

Figure 3. Figure 3: Device for impulse excitation. 3.1.2 Sensor selection and configuration MPU-6050 sensors, that integrate a three-axis accelerometer with a three-axis gyroscope [9], are employed in the experiment. The MEMS-based sensors, controlled by Raspberry Pi microcomputers [10], are mounted on a metal frame and centrally positioned on top of the superstructure (see view at source ↗
Figure 4
Figure 4. Figure 4: Sensor mounting (a) on the model superstructure together with the Raspberry Pi (b). view at source ↗
Figure 5
Figure 5. Figure 5: Mode shapes of the scale model along with measurement points. view at source ↗
Figure 6
Figure 6. Figure 6: Normalized frequency spectrum of the acceleration response in z, with peaks indicating the first three bending view at source ↗
Figure 7
Figure 7. Figure 7: Servomotor (a) installed on the model superstructure, connected to a Raspberry Pi (b). view at source ↗
Figure 8
Figure 8. Figure 8: Stabilization diagram of measured response to an excitation with the third bending eigenfrequency. view at source ↗
Figure 9
Figure 9. Figure 9: Free decay response of the recorded angular velocity at position B under excitation at the first torsional view at source ↗
Figure 10
Figure 10. Figure 10: Model scale of the Lillebælt Bridge model. view at source ↗
read the original abstract

With the rapid advancement of computer technologies enabling fast calculations of complex structures, numerical methods have become a central tool in engineering sciences, while physical models have increasingly receded into the background. Nevertheless, owing to their clarity and comprehensibility, these former engineering tools remain of great value and their use can still be highly relevant today. At the example of the scale model of the Lilleb{\ae}lt Bridge -- developed by the Copenhagen engineers Christen Ostenfeld and Wriborg J{\o}nson and given for research purposes to the Bauhaus-Universit\"at Weimar -- this paper illustrates how physical models can still serve as useful instruments in research and teaching. By applying operational modal analysis, the natural frequencies and damping ratios of the bridge model are experimentally determined, which in turn can serve as reference data for the calibration and validation of numerical models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript argues that physical models retain significant value in modern engineering research and education despite the dominance of numerical methods. Using the historical scale model of the Lillebælt Bridge as a case study, the authors apply operational modal analysis (OMA) to experimentally determine the model's natural frequencies and damping ratios, which are positioned as reference data for the calibration and validation of numerical models of the same physical system.

Significance. If the experimental results are robustly documented and the OMA procedure is clearly described, this work provides a concrete, accessible illustration of how physical scale models can complement numerical simulations in structural dynamics. It contributes to the literature on hybrid experimental-numerical workflows by reviving interest in physical models for both research reference data and pedagogical purposes, particularly through the use of a documented historical artifact.

major comments (2)
  1. [Results section] Results section: The manuscript does not report the specific numerical values of the natural frequencies and damping ratios obtained via OMA, nor does it include any comparison (even preliminary) between these experimental values and predictions from a numerical model of the scale bridge. This omission weakens the central illustration that the physical-model data can serve as effective reference for calibration and validation.
  2. [Experimental setup / OMA application] Section describing the experimental setup: Details on sensor placement, excitation method (ambient or forced), data acquisition parameters, and the specific OMA algorithm (e.g., SSI, FDD) are insufficient to allow independent assessment or reproduction of the modal parameters, which are load-bearing for the claim that these data are reliable references.
minor comments (3)
  1. [Abstract] The abstract would be strengthened by including at least the key measured natural frequencies and damping ratios to immediately demonstrate the experimental output.
  2. [Scale model description / figures] Figure captions and the description of the scale model should specify the geometric scale factor and material properties to allow readers to evaluate potential similitude considerations, even if not central to the argument.
  3. [Introduction] The introduction would benefit from one or two additional references to recent literature on hybrid physical-numerical validation in bridge engineering to better situate the contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the recommendation for minor revision. We agree that the manuscript will benefit from greater detail on the experimental procedure and explicit reporting of the modal parameters to better demonstrate the physical model's role as reference data.

read point-by-point responses

  1. Referee: [Results section] Results section: The manuscript does not report the specific numerical values of the natural frequencies and damping ratios obtained via OMA, nor does it include any comparison (even preliminary) between these experimental values and predictions from a numerical model of the scale bridge. This omission weakens the central illustration that the physical-model data can serve as effective reference for calibration and validation.

    Authors: We agree that explicit numerical values are required to substantiate the claim that the physical model supplies usable reference data. In the revised manuscript we will add a dedicated results subsection (or table) reporting the natural frequencies and damping ratios identified by OMA. To further illustrate the validation potential, we will also include a brief, preliminary comparison against a simple finite-element model of the scale bridge. These additions directly address the referee's concern while remaining consistent with the paper's focus on the enduring value of physical models. revision: yes

  2. Referee: [Experimental setup / OMA application] Section describing the experimental setup: Details on sensor placement, excitation method (ambient or forced), data acquisition parameters, and the specific OMA algorithm (e.g., SSI, FDD) are insufficient to allow independent assessment or reproduction of the modal parameters, which are load-bearing for the claim that these data are reliable references.

    Authors: We acknowledge that the current description of the experimental campaign is too concise for reproducibility. In the revised version we will expand the experimental-setup section to specify: (i) sensor types and exact placement locations on the model, (ii) the excitation method (ambient vibration only, given the historical character of the artifact), (iii) data-acquisition parameters (sampling frequency, record length, and number of channels), and (iv) the OMA algorithm employed (Stochastic Subspace Identification, SSI). These additions will enable readers to evaluate and, if desired, reproduce the reported modal parameters. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central argument rests on an experimental demonstration: operational modal analysis is applied to a physical scale model to extract natural frequencies and damping ratios as reference data for numerical model calibration and validation. No equations, derivations, parameter fittings, or self-citations appear in the provided text that reduce any claim to its own inputs by construction. The illustration uses external empirical measurements on the Lillebælt model rather than any self-referential logic or renamed known results, rendering the derivation chain self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities introduced; the work is purely experimental illustration based on prior engineering practice.
