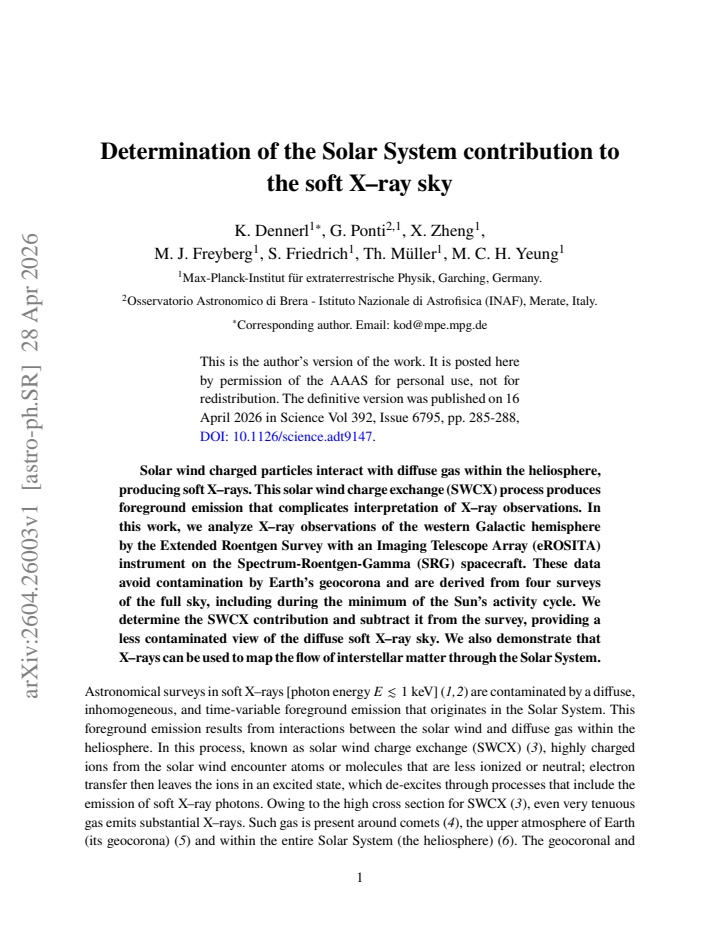

Determination of the Solar System contribution to the soft X-ray sky

K. Dennerl , G. Ponti , X. Zheng , M. J. Freyberg , S. Friedrich , Th. M\"uller , M. C. H. Yeung

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:59 UTC · model grok-4.3

classification 🌌 astro-ph.SR

keywords solar wind charge exchangeSWCXsoft X-ray backgroundeROSITAheliosphereinterstellar mediumdiffuse X-ray emission

0 comments

The pith

eROSITA data from solar minimum isolate solar wind charge exchange emission for subtraction from the diffuse soft X-ray sky

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines soft X-ray emissions observed by eROSITA across the western Galactic hemisphere using data from four full-sky surveys collected during the Sun's activity minimum. It quantifies the foreground produced when solar wind ions exchange charge with neutral interstellar gas inside the heliosphere. Subtracting this solar-system component yields a map of the remaining diffuse emission with reduced local contamination. The same data also show that X-ray intensity variations can trace the inflow and distribution of interstellar matter as it crosses into the Solar System.

Core claim

The solar wind charge exchange process creates a measurable and spatially variable soft X-ray foreground within the heliosphere. Using eROSITA observations restricted to the western Galactic hemisphere and solar-minimum intervals, the contribution is isolated and removed, producing a less contaminated view of the Galactic diffuse soft X-ray background. The residual spatial and temporal structure in the SWCX signal further demonstrates that X-ray measurements can map the flow of interstellar neutral gas through the Solar System.

What carries the argument

Solar wind charge exchange (SWCX) as a time-variable X-ray foreground, isolated by restricting eROSITA all-sky survey data to the western Galactic hemisphere during solar minimum.

Load-bearing premise

The chosen eROSITA observations from the western Galactic hemisphere and solar minimum periods contain the SWCX signal with negligible leftover contamination from geocorona, other solar variations, or instrument effects.

What would settle it

Independent measurements of soft X-ray intensity in the same sky regions during solar maximum or from another instrument would show whether the subtracted component matches predicted SWCX levels and whether the remaining map aligns with expected Galactic emission models.

read the original abstract

Solar wind charged particles interact with diffuse gas within the heliosphere, producing soft X-rays. This solar wind charge exchange (SWCX) process produces foreground emission that complicates interpretation of X-ray observations. In this work, we analyze X-ray observations of the western Galactic hemisphere by the Extended Roentgen Survey with an Imaging Telescope Array (eROSITA) instrument on the Spectrum-Roentgen-Gamma (SRG) spacecraft. These data avoid contamination by Earth's geocorona and are derived from four surveys of the full sky, including during the minimum of the Sun's activity cycle. We determine the SWCX contribution and subtract it from the survey, providing a less contaminated view of the diffuse soft X-ray sky. We also demonstrate that X-rays can be used to map the flow of interstellar matter through the Solar System.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

eROSITA solar-minimum data in the western hemisphere lets them subtract SWCX and map interstellar flow, but the modeling and residual checks are the part that needs real scrutiny.

read the letter

This paper uses four eROSITA full-sky surveys taken during solar minimum in the western Galactic hemisphere to isolate the solar wind charge exchange (SWCX) foreground and subtract it from the soft X-ray background. It also claims the X-ray maps can trace the flow of interstellar gas through the Solar System. The data selection avoids geocoronal emission and exploits the quiet solar period to reduce time-variable solar wind effects, which is a practical step beyond earlier work with other instruments. That choice gives a cleaner starting point for diffuse background studies and shows a concrete way to use X-rays for heliospheric mapping. The setup is straightforward and the motivation is clear for anyone who reduces X-ray survey data. The main limitation is that the abstract and available description give almost no information on the actual SWCX model, how errors are propagated after subtraction, or what cross-checks were done against independent tracers like the local hot bubble or galactic halo emission. Without those steps visible, it is hard to judge whether the subtracted maps are free of systematic residuals from unmodeled solar variability or local emission. The stress-test concern about possible lingering contamination is worth checking directly in the full analysis; if the paper does not include explicit tests for that, the claim of a less contaminated view rests on an assumption that may not hold at the needed precision. This work is aimed at specialists who already work on soft X-ray backgrounds, galactic hot gas, or heliospheric interactions. A reader in those areas would get usable maps and a demonstration of the mapping technique, but it stays inside that subfield. I would send it to peer review. The data are new and the observational strategy has clear practical value, so referees can evaluate the modeling details and any remaining uncertainties.

Referee Report

2 major / 0 minor

Summary. The paper analyzes eROSITA X-ray observations of the western Galactic hemisphere, selected from four all-sky surveys including solar minimum periods to avoid geocoronal contamination. It claims to determine the solar wind charge exchange (SWCX) foreground contribution, subtract it to yield a less contaminated map of the diffuse soft X-ray sky, and demonstrate that X-ray data can map the flow of interstellar matter through the Solar System.

Significance. If the SWCX isolation, modeling, and subtraction are robustly validated, the work would be significant for X-ray astronomy by reducing a key foreground in diffuse emission studies and for heliophysics by providing an observational probe of interstellar gas flow via charge exchange. It could improve interpretations of local hot bubble and galactic halo emission.

major comments (2)

[Data selection and analysis] The central claim that the selected data (western Galactic hemisphere, solar minimum) cleanly isolate a measurable SWCX component with negligible residual geocoronal or solar variability contamination is load-bearing but not quantitatively supported. No assessment of contamination levels relative to the SWCX signal or validation against independent models is evident, risking systematic bias in the subtracted maps.
[Abstract and methods overview] No modeling details for SWCX determination, error propagation, or validation steps (e.g., cross-checks with other periods or instruments) are provided, preventing evaluation of whether the data support the subtraction success and the interstellar flow mapping demonstration.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. The comments highlight important areas where additional quantitative support and methodological detail will strengthen the presentation. We address each major comment below and will incorporate the necessary revisions.

read point-by-point responses

Referee: [Data selection and analysis] The central claim that the selected data (western Galactic hemisphere, solar minimum) cleanly isolate a measurable SWCX component with negligible residual geocoronal or solar variability contamination is load-bearing but not quantitatively supported. No assessment of contamination levels relative to the SWCX signal or validation against independent models is evident, risking systematic bias in the subtracted maps.

Authors: We agree that the manuscript would be improved by a more explicit quantitative assessment of residual contamination. While the data selection from solar minimum periods and the western Galactic hemisphere was chosen specifically to minimize geocoronal and solar variability effects, we acknowledge that direct comparisons of contamination levels to the SWCX signal and cross-validation with independent models were not presented in sufficient detail. In the revised version we will add a new subsection that quantifies these residuals (using both internal consistency checks across the four surveys and comparisons to published SWCX models), thereby demonstrating that any remaining contamination is negligible relative to the extracted SWCX component. revision: yes
Referee: [Abstract and methods overview] No modeling details for SWCX determination, error propagation, or validation steps (e.g., cross-checks with other periods or instruments) are provided, preventing evaluation of whether the data support the subtraction success and the interstellar flow mapping demonstration.

Authors: We accept that the current methods description is too concise to allow full evaluation. The manuscript outlines the overall approach but does not supply the step-by-step modeling procedure, the formalism for error propagation through the subtraction, or the specific validation tests performed. We will expand the Methods section (and add an appendix if space requires) to provide these details, including the functional form used for the SWCX model, how uncertainties are propagated, and the cross-checks against other epochs and instruments that support both the subtraction and the interstellar-flow mapping result. revision: yes

Circularity Check

0 steps flagged

No circularity: observational data analysis with independent subtraction

full rationale

The paper performs an observational analysis of eROSITA X-ray data from the western Galactic hemisphere during solar minimum periods. It selects data to avoid geocoronal contamination, determines the SWCX foreground contribution through direct measurement and subtraction, and presents the resulting map of the diffuse soft X-ray sky. No equations, predictions, or central claims reduce by construction to fitted parameters, self-definitions, or self-citation chains; the derivation chain consists of data processing steps that remain externally falsifiable against independent X-ray surveys and solar wind models.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; typical SWCX analyses rely on standard assumptions about solar wind properties and heliospheric gas distribution that are not detailed here.

pith-pipeline@v0.9.0 · 5464 in / 1171 out tokens · 46244 ms · 2026-05-07T14:59:39.994381+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

55 extracted references · 34 canonical work pages

[1]

S. L. Snowden,et al., ROSAT Survey Diffuse X-Ray Background Maps. II.Astrophys. J. 485(1), 125–135 (1997), doi:10.1086/304399

work page doi:10.1086/304399 1997
[2]

Zheng,et al., Broadband maps of eROSITA and their comparison with the ROSAT survey

X. Zheng,et al., Broadband maps of eROSITA and their comparison with the ROSAT survey. Astron. Astrophys.681, A77 (2024), doi:10.1051/0004-6361/202346576

work page doi:10.1051/0004-6361/202346576 2024
[3]

T. E. Cravens, Comet Hyakutake x-ray source: Charge transfer of solar wind heavy ions. Geophys. Res. Lett.24(1), 105–108 (1997), doi:10.1029/96GL03780

work page doi:10.1029/96gl03780 1997
[4]

C. M. Lisse,et al., Discovery of X–ray and extreme ultraviolet emission from Comet C/Hyakutake 1996 B2.Science274, 205–209 (1996)

1996
[5]

Kameda,et al., Ecliptic North-South Symmetry of Hydrogen Geocorona.Geophys

S. Kameda,et al., Ecliptic North-South Symmetry of Hydrogen Geocorona.Geophys. Res. Lett. 44(23), 11,706–11,712 (2017), doi:10.1002/2017GL075915

work page doi:10.1002/2017gl075915 2017
[6]

Qu ´emerais, B

E. Qu ´emerais, B. McClintock, G. Holsclaw, O. Katushkina, V. Izmodenov, Hydrogen atoms in the inner heliosphere: SWAN-SOHO and MASCS-MESSENGER observations.Jour- nal of Geophysical Research (Space Physics)119(10), 8017–8029 (2014), doi:10.1002/ 2014JA019761

2014
[7]

Dennerl, J

K. Dennerl, J. Englhauser, J. Tr¨ umper, X–ray Emissions from Comets Detected in the R¨ontgen X-ray Satellite All-Sky Survey.Science277, 1625–1630 (1997)

1997
[8]

D. P. Cox, Modeling the Local Bubble, inIAU Colloq. 166: The Local Bubble and Beyond, D. Breitschwerdt, M. J. Freyberg, J. Truemper, Eds. (-), vol. 506, pp. 121–131 (1998), doi: 10.1007/BFb0104706

work page doi:10.1007/bfb0104706 1998
[9]

M. J. Freyberg, On the Zero-Level of the Soft X-ray Background, inIAU Colloq. 166: The Local Bubble and Beyond, D. Breitschwerdt, M. J. Freyberg, J. Truemper, Eds. (-), vol. 506, pp. 113–116 (1998), doi:10.1007/BFb0104704

work page doi:10.1007/bfb0104704 1998
[10]

T. E. Cravens, Heliospheric x–ray emission associated with charge transfer of the solar wind with interstellar neutrals.Astrophys. J.532, L153 (2000)

2000
[11]

B. Y. Welsh, R. L. Shelton, The trouble with the Local Bubble.Astrophys. Space Sci.323, 1–16 (2009), doi:10.1007/s10509-009-0053-3

work page doi:10.1007/s10509-009-0053-3 2009
[12]

Uprety,et al., Solar Wind Charge Exchange Contribution to the ROSAT All Sky Survey Maps.Astrophys

Y. Uprety,et al., Solar Wind Charge Exchange Contribution to the ROSAT All Sky Survey Maps.Astrophys. J.829(2), 83 (2016), doi:10.3847/0004-637X/829/2/83

work page doi:10.3847/0004-637x/829/2/83 2016
[13]

D. G. Sibeck,et al., Imaging Plasma Density Structures in the Soft X-Rays Generated by Solar Wind Charge Exchange with Neutrals.Space Sci. Rev.214(4), 79 (2018), doi:10.1007/ s11214-018-0504-7. 10

2018
[14]

K. D. Kuntz, Solar wind charge exchange: an astrophysical nuisance.Astron. Astrophys. Rev. 27(1), 1 (2019), doi:10.1007/s00159-018-0114-0

work page doi:10.1007/s00159-018-0114-0 2019
[15]

2021, A&A, 647, A1, doi: 10.1051/0004-6361/202039313

P. Predehl,et al., The eROSITA X-ray telescope on SRG.Astron. Astrophys.647, A1 (2021), doi:10.1051/0004-6361/202039313

work page doi:10.1051/0004-6361/202039313 2021
[16]

M., Kukhianidze, V., et al

A. Merloni,et al., The SRG/eROSITA all-sky survey. First X-ray catalogues and data release of the western Galactic hemisphere.Astron. Astrophys.682, A34 (2024), doi:10.1051/0004-6361/ 202347165

work page doi:10.1051/0004-6361/ 2024
[17]

Materials and methods are available as supplementary materials
[18]

von Steiger, T

R. von Steiger, T. H. Zurbuchen, D. J. McComas, Oxygen flux in the solar wind: Ulysses observations.Geophys. Res. Lett.37(22), L22101 (2010), doi:10.1029/2010GL045389

work page doi:10.1029/2010gl045389 2010
[19]

For a line of sight crossing the heliosphere, the neutral hydrogen column density is𝑁 H ∼10 13 to 1015 cm−2
[20]

D. J. McComas,et al., Weaker solar wind from the polar coronal holes and the whole Sun. Geophys. Res. Lett.35(18), L18103 (2008), doi:10.1029/2008GL034896

work page doi:10.1029/2008gl034896 2008
[21]

D. Koutroumpa, Solar wind ion charge state distributions and compound cross sections for solar wind charge exchange X-ray emission.Earth and Planetary Physics8(1), 105–118 (2024), doi:10.26464/epp2023056

work page doi:10.26464/epp2023056 2024
[22]

Lallement,et al., Deflection of the Interstellar Neutral Hydrogen Flow Across the Helio- spheric Interface.Science307(5714), 1447–1449 (2005), doi:10.1126/science.1107953

R. Lallement,et al., Deflection of the Interstellar Neutral Hydrogen Flow Across the Helio- spheric Interface.Science307(5714), 1447–1449 (2005), doi:10.1126/science.1107953

work page doi:10.1126/science.1107953 2005
[23]

C. S. Weller, R. R. Meier, Observations of helium in the interplanetary/interstellar wind: the solar-wake effect.Astrophys. J.193, 471–476 (1974), doi:10.1086/153182

work page doi:10.1086/153182 1974
[24]

Lallement,et al., Modeling the interstellar-interplanetary helium 58.4 nm resonance glow: Towards a reconciliation with particle measurements.Astron

R. Lallement,et al., Modeling the interstellar-interplanetary helium 58.4 nm resonance glow: Towards a reconciliation with particle measurements.Astron. Astrophys.426, 875–884 (2004)

2004
[25]

J. L. Bertaux, J. E. Blamont, Evidence for a Source of an Extraterrestrial Hydrogen Lyman- alpha Emission.Astron. Astrophys.11, 200 (1971)

1971
[26]

G. E. Thomas, R. F. Krassa, OGO 5 Measurements of the Lyman Alpha Sky Background. Astron. Astrophys.11, 218 (1971)

1971
[27]

Koutroumpa, M

D. Koutroumpa, M. R. Collier, K. D. Kuntz, R. Lallement, S. L. Snowden, Solar Wind Charge Exchange Emission from the Helium Focusing Cone: Model to Data Comparison.Astrophys. J. 697(2), 1214–1225 (2009), doi:10.1088/0004-637X/697/2/1214

work page doi:10.1088/0004-637x/697/2/1214 2009
[28]

Galeazzi,et al., The origin of the local 1/4-keV X-ray flux in both charge exchange and a hot bubble.Nature512(7513), 171–173 (2014), doi:10.1038/nature13525

M. Galeazzi,et al., The origin of the local 1/4-keV X-ray flux in both charge exchange and a hot bubble.Nature512(7513), 171–173 (2014), doi:10.1038/nature13525. 11

work page doi:10.1038/nature13525 2014
[29]

Lallement,et al., Solar cycle dependence of the helium focusing cone from SOHO/UVCS observations

R. Lallement,et al., Solar cycle dependence of the helium focusing cone from SOHO/UVCS observations. Electron impact rates and associated pickup ions.Astron. Astrophys.426, 867– 874 (2004), doi:10.1051/0004-6361:200400028

work page doi:10.1051/0004-6361:200400028 2004
[30]

Ringuette,et al., HaloSat Observations of Heliospheric Solar Wind Charge Exchange

R. Ringuette,et al., HaloSat Observations of Heliospheric Solar Wind Charge Exchange. Astrophys. J.918(2), 41 (2021), doi:10.3847/1538-4357/ac0e33

work page doi:10.3847/1538-4357/ac0e33 2021
[31]

J. H. King, N. E. Papitashvili, Solar wind spatial scales in and comparisons of hourly Wind and ACE plasma and magnetic field data.Journal of Geophysical Research (Space Physics) 110(A2), A02104 (2005), doi:10.1029/2004JA010649

work page doi:10.1029/2004ja010649 2005
[32]

Bochsler, Solar abundances of oxygen and neon derived from solar wind observations

P. Bochsler, Solar abundances of oxygen and neon derived from solar wind observations. Astron. Astrophys.471(1), 315–319 (2007), doi:10.1051/0004-6361:20077772

work page doi:10.1051/0004-6361:20077772 2007
[33]

For emission confined to a thin shell, the observed surface brightness follows the same dependence

The radial expansion of the solar wind causes the SWCX volume emissivity to decrease with the inverse square of the heliocentric distance. For emission confined to a thin shell, the observed surface brightness follows the same dependence. Accordingly, the surface brightness of SWCX emission at 3.2 au is only about 10% of that at 1 au
[34]

Determination of the Solar System contribution to the soft X–ray sky

K. Dennerl, Replication data and code for the study “Determination of the Solar System contribution to the soft X–ray sky” [Data set], Zenodo (2025). https://doi.org/10.5281/zenodo.18503367

work page doi:10.5281/zenodo.18503367 2025
[35]

Papitashvili,OMNIWeb Plus(Goddard Space Flight Center); https://omniweb.gsfc.nasa.gov

N. Papitashvili,OMNIWeb Plus(Goddard Space Flight Center); https://omniweb.gsfc.nasa.gov
[36]

Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series , year = 2020, series =

K. Dennerl,et al., The calibration of eROSITA on SRG, inSociety of Photo-Optical Instru- mentation Engineers (SPIE) Conference Series(2020), p. 114444Q, doi:10.1117/12.2562330

work page doi:10.1117/12.2562330 2020
[37]

X-ray catalogue

H. Brunner,et al., The eROSITA Final Equatorial Depth Survey (eFEDS). X-ray catalogue. Astron. Astrophys.661, A1 (2022), doi:10.1051/0004-6361/202141266

work page doi:10.1051/0004-6361/202141266 2022
[38]

These initial steps were performed using the programprep1in (34)
[39]

The programprep2in (34) subtracts the background
[40]

M. C. H. Yeung,et al., SRG/eROSITA X-ray shadowing study of giant molecular clouds. Astron. Astrophys.676, A3 (2023), doi:10.1051/0004-6361/202345867

work page doi:10.1051/0004-6361/202345867 2023
[41]

The dark sky map is computed using the programprep3in (34)
[42]

Programsprep4andprep5transform the exposure map and previously computed maps, and programprep 6computes the exposure map for the dark sky map
[43]

This is performed using the programflxobsin (34)
[44]

The placement of the emission regions and the computation of the basis functions are done in the programloc01in (34). 12
[45]

The fitting is done in the programloc02in (34)
[46]

The programprlocin (34) compares the observed and simulated surface brightness profiles (Fig. 2)
[47]

E., & King , J

N. Papitashvili, J. H. King,OMNI Hourly Data Set, Space Physics Data Facility (2020), doi:10.48322/1shr-ht18

work page doi:10.48322/1shr-ht18 2020
[48]

Balogh, J

A. Balogh, J. R. Jokipii, The Heliospheric Magnetic Field and Its Extension to the Inner Heliosheath.Space Sci. Rev.143(1-4), 85–110 (2009), doi:10.1007/s11214-008-9485-2

work page doi:10.1007/s11214-008-9485-2 2009
[49]

Odstr ˇcil, V

D. Odstr ˇcil, V. J. Pizzo, Three-dimensional propagation of CMEs in a structured solar wind flow: 1. CME launched within the streamer belt.J. Geophys. Res.104(A1), 483–492 (1999), doi:10.1029/1998JA900019

work page doi:10.1029/1998ja900019 1999
[50]

C. N. Arge, V. J. Pizzo, Improvement in the prediction of solar wind conditions using near- real time solar magnetic field updates.J. Geophys. Res.105(A5), 10465–10480 (2000), doi:10.1029/1999JA000262

work page doi:10.1029/1999ja000262 2000
[51]

C. O. Lee,et al., The Solar Wind at 1 AU During the Declining Phase of Solar Cycle 23: Comparison of 3D Numerical Model Results with Observations.Sol. Phys.254(1), 155–183 (2009), doi:10.1007/s11207-008-9280-y

work page doi:10.1007/s11207-008-9280-y 2009
[52]

L. K. Jian,et al., Comparison of Observations at ACE and Ulysses with Enlil Model Results: Stream Interaction Regions During Carrington Rotations 2016 - 2018.Sol. Phys.273(1), 179–203 (2011), doi:10.1007/s11207-011-9858-7

work page doi:10.1007/s11207-011-9858-7 2016
[53]

A. J. Prise, L. K. Harra, S. A. Matthews, C. S. Arridge, N. Achilleos, Analysis of a coronal mass ejection and corotating interaction region as they travel from the Sun passing Venus, Earth, Mars, and Saturn.Journal of Geophysical Research (Space Physics)120(3), 1566–1588 (2015), doi:10.1002/2014JA020256

work page doi:10.1002/2014ja020256 2015
[54]

M ¨obius,et al., Synopsis of the interstellar He parameters from combined neutral gas, pickup ion and UV scattering observations and related consequences.Astron

E. M ¨obius,et al., Synopsis of the interstellar He parameters from combined neutral gas, pickup ion and UV scattering observations and related consequences.Astron. Astrophys.426, 897–907 (2004), doi:10.1051/0004-6361:20035834

work page doi:10.1051/0004-6361:20035834 2004
[55]

This information is used by the programmapsimto compose all-sky maps that eROSITA should have seen in each eRASS

All-sky maps for each day from eRASS 1 to eRASS 4 can be generated with the program runsimin (34), which also extracts the regions that were scanned. This information is used by the programmapsimto compose all-sky maps that eROSITA should have seen in each eRASS. The programflxsimextracts from these maps the surface brightness profiles resulting from the ...

2020
