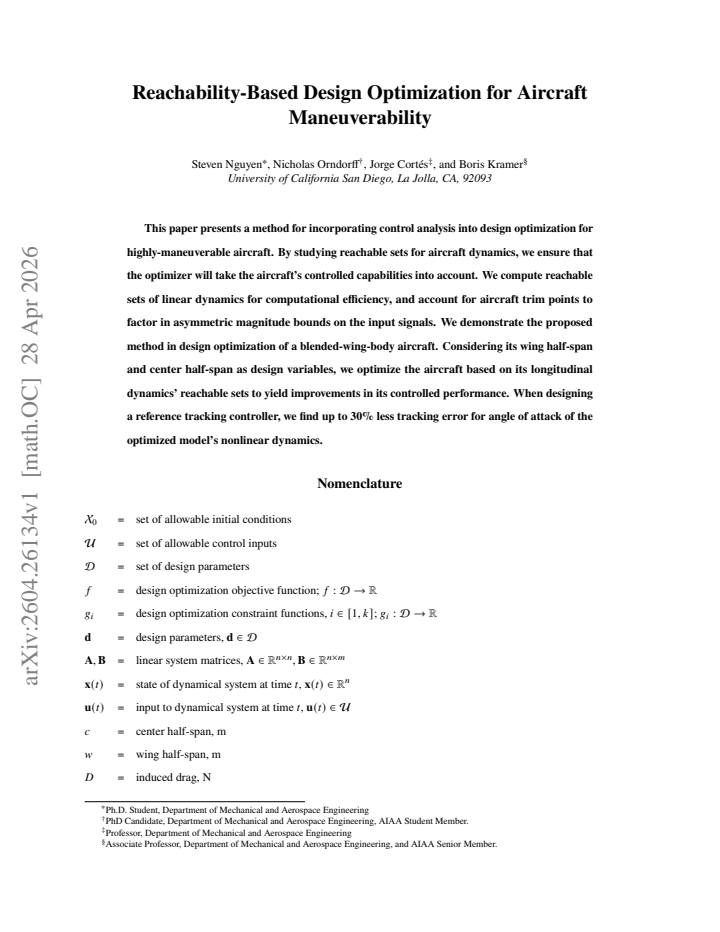

Reachability-Based Design Optimization for Aircraft Maneuverability

Boris Kramer, Jorge Cort\'es, Nicholas Orndorff, Steven Nguyen

Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:02 UTC · model grok-4.3

classification 🧮 math.OC
keywords reachability analysisdesign optimizationaircraft maneuverabilityblended-wing-bodyreference trackinglinear dynamicstrim pointsangle of attack
0
0 comments X

The pith

Optimizing aircraft wing spans with reachable sets from linear dynamics cuts nonlinear angle-of-attack tracking error by up to 30 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a design optimization method for highly maneuverable aircraft that folds control analysis directly into the geometry search. Reachable sets computed from linear dynamics around trim points serve as a proxy for the aircraft's controlled capabilities, allowing the optimizer to favor configurations whose inputs can actually reach the needed states. In the blended-wing-body example, this produces new values for wing half-span and center half-span that, when the full nonlinear model is later controlled, deliver up to 30 percent smaller tracking error on angle of attack. A reader should care because conventional shape optimization often produces airframes whose open-loop performance looks good but whose closed-loop maneuverability turns out to be limited.

Core claim

By optimizing the longitudinal reachable sets of a blended-wing-body aircraft around its trim points, the method selects wing half-span and center half-span values that improve the closed-loop reference-tracking performance of the nonlinear dynamics, yielding up to 30 percent less tracking error on angle of attack.

What carries the argument

Reachable sets of linear dynamics around trim points, which encode the states reachable under asymmetric bounded inputs and thereby quantify controlled maneuverability for the optimizer.

If this is right

  • Aircraft geometry choices can be scored by the volume or shape of their reachable sets rather than by open-loop metrics alone.
  • The same linear-reachability proxy can be applied to other design variables such as tail size or control-surface placement.
  • Reference-tracking controllers designed after optimization inherit the performance gains already baked into the reachable-set criterion.
  • The approach avoids the computational cost of full nonlinear reachable-set calculations while still improving closed-loop behavior.
  • Trim-point accounting automatically respects the asymmetric actuator limits typical of real aircraft.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same linear-reachability idea could be tested on fixed-wing drones or eVTOL vehicles where trim-point linearizations are already routine.
  • If the linear approximation underestimates reachable volume in certain flight regimes, the optimizer might still produce designs that are only marginally better than non-reachability baselines.
  • Extending the method to include multiple trim points simultaneously or to add stability-margin constraints would be a direct next step that does not require new theory.

Load-bearing premise

Reachable sets computed from linear dynamics around trim points sufficiently represent the controlled capabilities of the full nonlinear aircraft dynamics.

What would settle it

Nonlinear closed-loop simulation of the optimized geometry that shows no reduction in angle-of-attack tracking error relative to a baseline geometry chosen without reachability constraints.

read the original abstract

This paper presents a method for incorporating control analysis into design optimization for highly-maneuverable aircraft. By studying reachable sets for aircraft dynamics, we ensure that the optimizer will take the aircraft's controlled capabilities into account. We compute reachable sets of linear dynamics for computational efficiency, and account for aircraft trim points to factor in asymmetric magnitude bounds on the input signals. We demonstrate the proposed method in design optimization of a blended-wing-body aircraft. Considering its wing half-span and center half-span as design variables, we optimize the aircraft based on its longitudinal dynamics' reachable sets to yield improvements in its controlled performance. When designing a reference tracking controller, we find up to 30\% less tracking error for angle of attack of the optimized model's nonlinear dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes incorporating reachability analysis into aircraft design optimization for improved maneuverability. It computes reachable sets from linearized longitudinal dynamics around trim points (accounting for asymmetric input bounds via trim) to optimize design variables such as wing half-span and center half-span of a blended-wing-body aircraft. The resulting design is validated in nonlinear simulation, where a reference-tracking controller achieves up to 30% lower angle-of-attack tracking error compared to a baseline.

Significance. If the linear reachable-set surrogate reliably ranks designs by their nonlinear closed-loop tracking performance, the approach would provide a computationally tractable way to embed controllability metrics directly into multidisciplinary design optimization, addressing a longstanding gap between aerodynamic design and control requirements for highly maneuverable vehicles.

major comments (3)
  1. [Abstract] Abstract: the reported 30% tracking-error reduction is presented without a baseline design description, controller details, error metric definition (RMS, integral, peak), number of evaluated designs, or any correlation between linear reachable-set volume and nonlinear tracking error across candidates; this leaves the central claim that the linear surrogate preserves performance ordering unsupported.
  2. [Method] The method section (implied by the abstract description): the claim that reachable sets of linear dynamics around trim points suffice for design optimization rests on the untested assumption that enlarging these sets improves nonlinear tracking; no intermediate diagnostic (e.g., scatter plot of reachable-set volume vs. nonlinear error, or nonlinear reachability comparison for the same designs) is supplied to substantiate the ordering preservation.
  3. [Validation] Validation paragraph: the nonlinear simulation result is given as a single scalar improvement without error bars, sensitivity to trim-point selection, or comparison against a direct nonlinear reachability baseline, making it impossible to judge whether the linear approximation is load-bearing or merely coincidental for the chosen operating region.
minor comments (2)
  1. [Abstract] The abstract should explicitly state the precise optimization objective (e.g., reachable-set volume, Hausdorff distance, or a weighted combination) rather than the generic phrase 'controlled performance.'
  2. Notation for the linearization points, asymmetric bound handling, and reachable-set computation algorithm should be introduced with equation references for reproducibility.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We provide point-by-point responses below and indicate the planned revisions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the reported 30% tracking-error reduction is presented without a baseline design description, controller details, error metric definition (RMS, integral, peak), number of evaluated designs, or any correlation between linear reachable-set volume and nonlinear tracking error across candidates; this leaves the central claim that the linear surrogate preserves performance ordering unsupported.

    Authors: We agree that additional context in the abstract would strengthen the presentation of our central claim. In the revised manuscript, we will update the abstract to include a description of the baseline design, details on the reference-tracking controller, the specific error metric used (RMS tracking error), the number of designs evaluated during optimization, and a statement on the correlation observed between reachable-set volumes and nonlinear tracking performance. These elements will help substantiate that the linear surrogate preserves the performance ordering. revision: yes

  2. Referee: [Method] The method section (implied by the abstract description): the claim that reachable sets of linear dynamics around trim points suffice for design optimization rests on the untested assumption that enlarging these sets improves nonlinear tracking; no intermediate diagnostic (e.g., scatter plot of reachable-set volume vs. nonlinear error, or nonlinear reachability comparison for the same designs) is supplied to substantiate the ordering preservation.

    Authors: We acknowledge that the assumption underlying our approach requires empirical support through intermediate diagnostics. While the final nonlinear validation shows improvement, we will add a scatter plot in the revised manuscript illustrating the relationship between linear reachable-set volumes and nonlinear tracking errors across the candidate designs. This will provide evidence for the ordering preservation and justify the use of the linear surrogate. revision: yes

  3. Referee: [Validation] Validation paragraph: the nonlinear simulation result is given as a single scalar improvement without error bars, sensitivity to trim-point selection, or comparison against a direct nonlinear reachability baseline, making it impossible to judge whether the linear approximation is load-bearing or merely coincidental for the chosen operating region.

    Authors: We agree that the validation section would be improved by additional details and analyses. We will incorporate error bars from repeated simulations, perform sensitivity studies with respect to trim-point selection, and discuss the role of the linear approximation. A full comparison to nonlinear reachability is not feasible due to computational demands, but we will clarify why the linear approach is appropriate for the design optimization loop. revision: partial

standing simulated objections not resolved
  • Full direct nonlinear reachability comparison for multiple designs, as it is computationally intractable within the optimization framework.

Circularity Check

0 steps flagged

No circularity: reachable-set objective is independent of reported nonlinear tracking error

full rationale

The optimization objective is defined directly from the volume (or similar metric) of reachable sets computed from the linearized longitudinal dynamics around trim points, with design variables (wing half-span, center half-span) entering only through the system matrices. The reported 30% reduction in angle-of-attack tracking error is obtained by applying a separate reference-tracking controller to the full nonlinear dynamics of the optimized design and is not part of the optimization cost or any fitted parameter. No equation equates the final tracking error to a reachable-set quantity by construction, and no self-citation supplies a uniqueness theorem or ansatz that forces the result. The linear-to-nonlinear validation step therefore remains an external check rather than a tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard linear-systems reachability theory and the assumption that trim-point linearizations adequately represent controlled nonlinear behavior for optimization purposes.

axioms (2)
  • domain assumption Reachable sets of linear time-invariant dynamics can be computed efficiently and used as a proxy for controlled maneuverability.
    Invoked to justify linear approximation for computational efficiency in design loop.
  • domain assumption Aircraft trim points produce asymmetric magnitude bounds on inputs that must be incorporated into reachability.
    Stated as necessary to account for realistic actuator limits.

pith-pipeline@v0.9.0 · 5422 in / 1341 out tokens · 67107 ms · 2026-05-07T15:02:03.501998+00:00 · methodology
