Hybrid hadrons at rest and on the light front

Edward Shuryak , Ismail Zahed
Authors on Pith no claims yet

Pith reviewed 2026-05-07 11:43 UTC · model grok-4.3

classification ✦ hep-ph
keywords hybrid hadronsconstituent gluonBorn-Oppenheimerlight-front wave functionsgluon PDFsccgqqqgQCD
0
0 comments X

The pith

Heavy hybrid hadrons are described by treating the gluon as a massive quasiparticle in a Born-Oppenheimer framework, yielding light-front wave functions and gluon PDFs for ccg and qqqg systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a unified description of heavy hybrid hadrons by treating the gluon excitation as a massive quasiparticle within the Born-Oppenheimer approximation. This picture uses instanton-induced interactions to generate the gluon's mass and a variational method to find the effective potentials between heavy quarks and the gluon. From these potentials, light-front wave functions are derived for the ccg and qqqg systems through both variational approximations and numerical solutions of the momentum-space Schrödinger equation. The resulting wave functions then yield the gluon parton distribution functions. A reader would care because this bridges the static properties of hybrid states at rest with their dynamic structure on the light front, offering a practical way to compute observables in QCD hybrids.

Core claim

We present a unified description of heavy hybrid hadrons based on a constituent-gluon picture embedded in the Born-Oppenheimer (BO) framework. In this approach, the gluonic excitation is treated as a dynamical quasiparticle with a mass generated by instanton-induced interactions. We propose a simple variational derivation of the BO potentials. The main focus of the paper is the derivation of light-front wave functions for hybrid systems, specifically for the ccg and qqqg cases. We employ both variational methods and numerical solutions of the Schrödinger equation in momentum representation. Using the resulting wave functions, we compute the gluon PDFs for these systems.

What carries the argument

The Born-Oppenheimer potentials for heavy quark-gluon systems, derived variationally with a massive constituent gluon generated by instanton interactions, which are then used to construct light-front wave functions by solving the Schrödinger equation in momentum space.

If this is right

  • Light-front wave functions for the ccg and qqqg hybrid systems follow from solving the momentum-space Schrödinger equation on the derived Born-Oppenheimer potentials.
  • Gluon parton distribution functions are obtained directly by integrating the light-front wave functions over the transverse momenta.
  • The same framework describes the hybrids both in their rest frame and in light-front kinematics without additional assumptions.
  • Variational methods provide a simple approximation to the full numerical solution for the wave functions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The derived PDFs could be inserted into models of high-energy scattering to predict cross sections involving hybrid states.
  • The approach suggests a route to compute additional light-front observables such as form factors once the wave functions are in hand.
  • If the instanton-generated mass proves robust, the same quasiparticle treatment might apply to other gluonic excitations beyond the lowest hybrid states.

Load-bearing premise

The gluonic excitation can be treated as a dynamical quasiparticle whose mass is generated by instanton-induced interactions, and that a variational approach to the Born-Oppenheimer potentials is adequate for deriving reliable light-front wave functions.

What would settle it

A significant mismatch between the gluon PDFs computed from these light-front wave functions and PDFs extracted from lattice QCD calculations or from experimental data on hybrid hadron production would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.26708 by Edward Shuryak, Ismail Zahed.

Figure 1

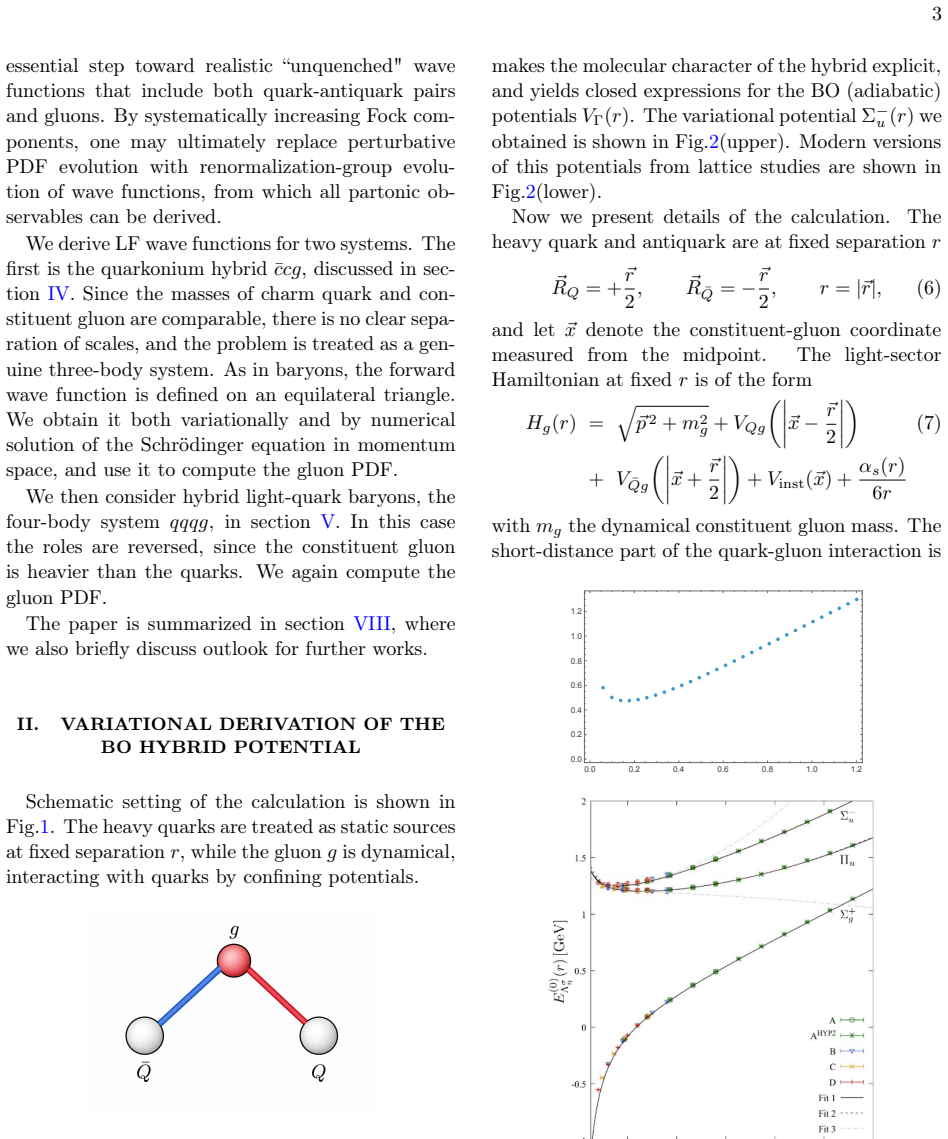

Figure 1. Figure 1: FIG. 1. Schematic setting of the variational calculation: view at source ↗
Figure 3

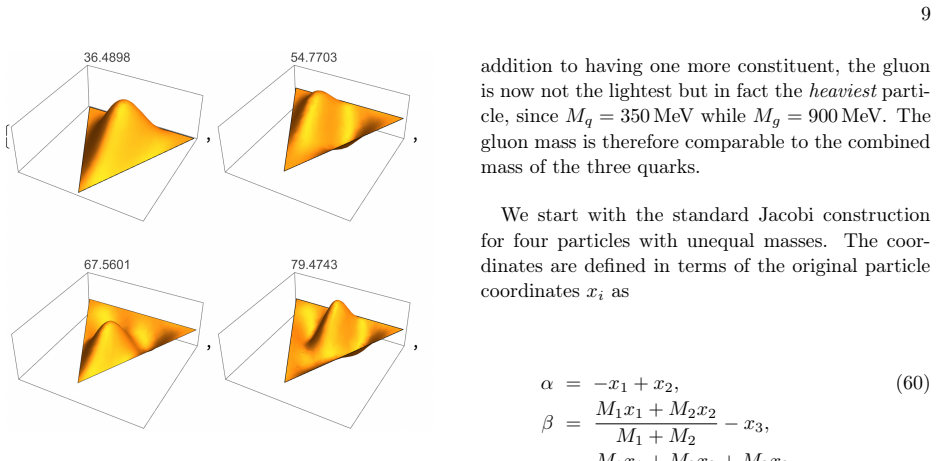

Figure 3. Figure 3: FIG. 3. Four lowest eigenstates of the Hamiltonian for view at source ↗
Figure 4

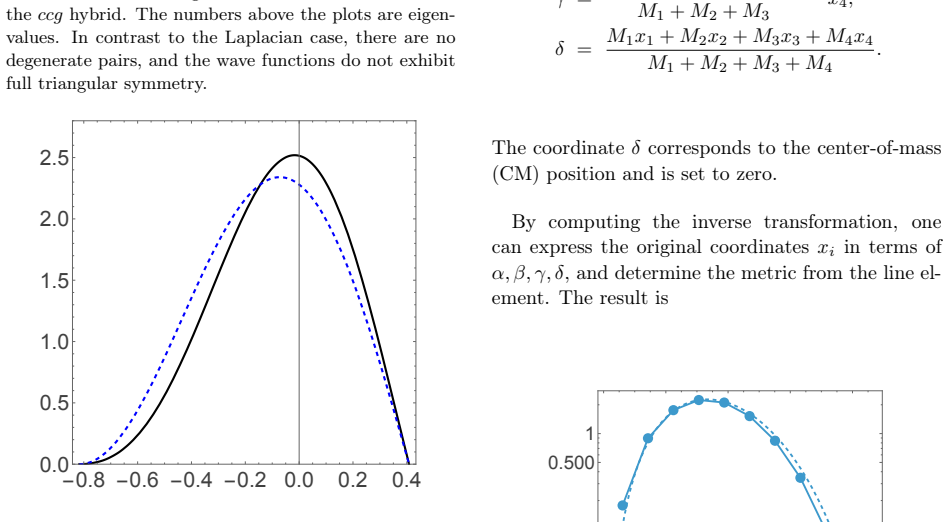

Figure 4. Figure 4: FIG. 4. Ground-state wave function of the view at source ↗
Figure 5

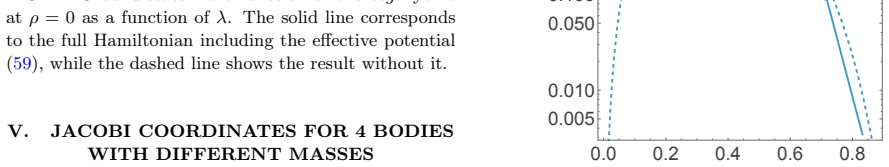

Figure 5. Figure 5: FIG. 5. Gluon PDF in the view at source ↗
Figure 7

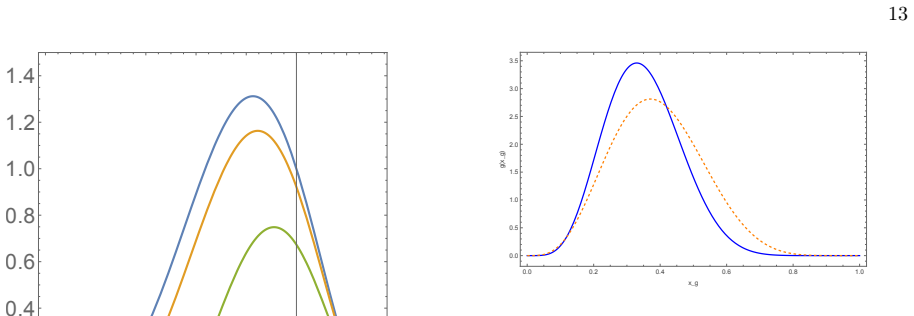

Figure 7. Figure 7: FIG. 7. Gluon PDF (solid-blue line) for the variational view at source ↗
Figure 8

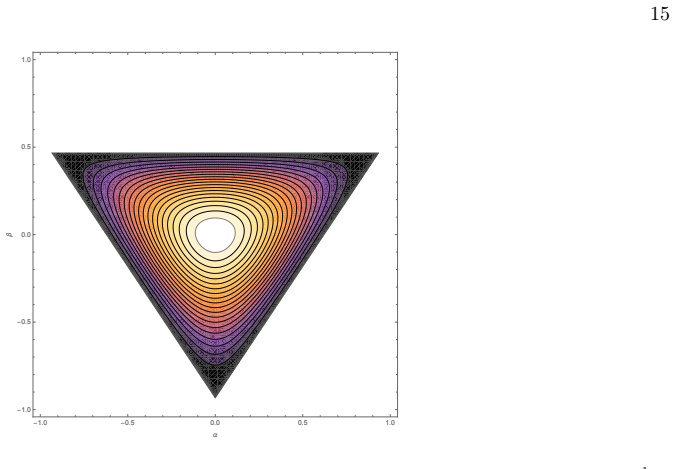

Figure 8. Figure 8: FIG. 8. 2D contour plot of the variational wavefunction of view at source ↗
Figure 9

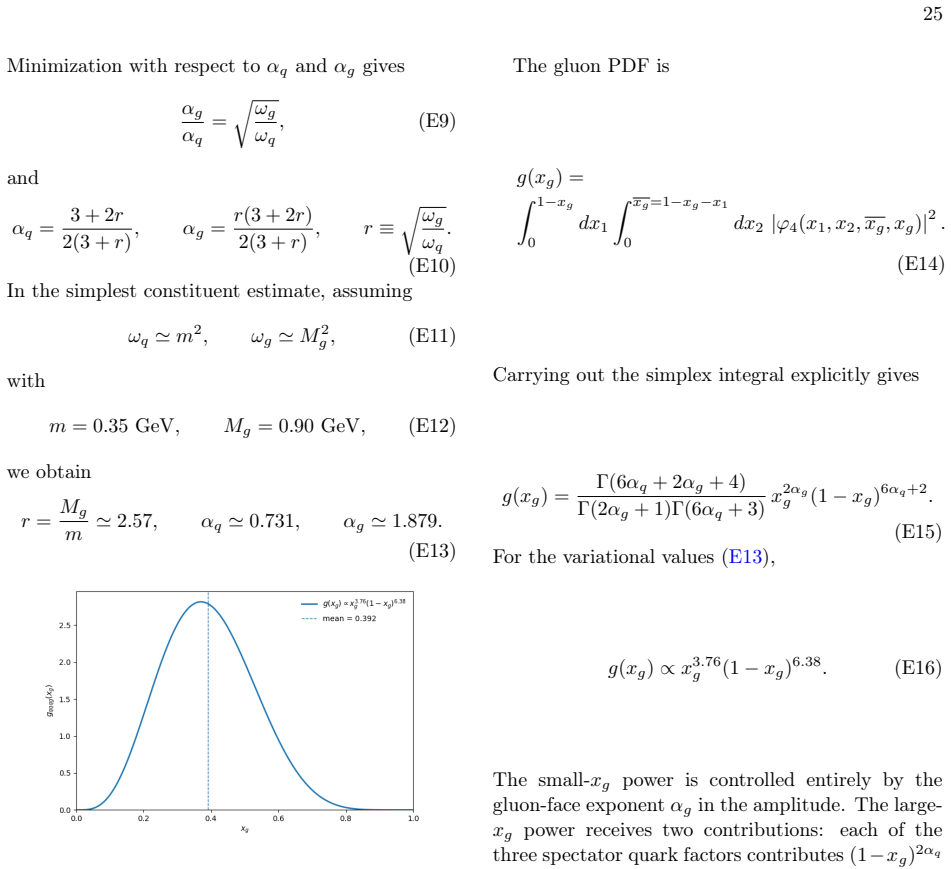

Figure 9. Figure 9: FIG. 9. Gluon PDF for the view at source ↗

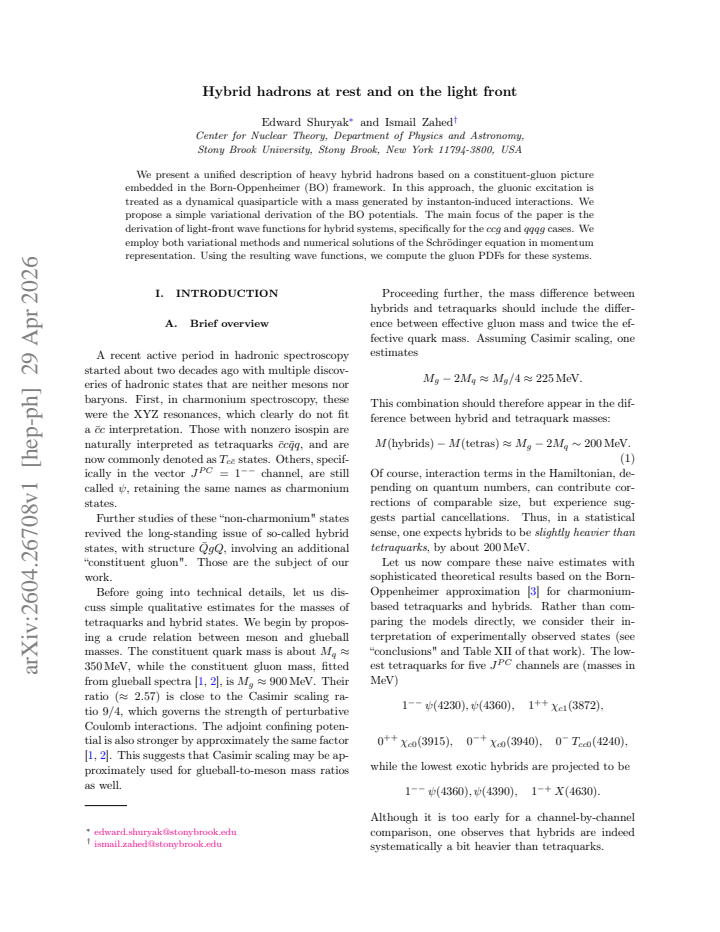

read the original abstract

We present a unified description of heavy hybrid hadrons based on a constituent-gluon picture embedded in the Born-Oppenheimer (BO) framework. In this approach, the gluonic excitation is treated as a dynamical quasiparticle with a mass generated by instanton-induced interactions. We propose a simple variational derivation of the BO potentials. The main focus of the paper is the derivation of light-front wave functions for hybrid systems, specifically for the $ccg$ and $qqqg$ cases. We employ both variational methods and numerical solutions of the Schr\"odinger equation in momentum representation. Using the resulting wave functions, we compute the gluon PDFs for these systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper claims to present a unified description of heavy hybrid hadrons based on a constituent-gluon picture embedded in the Born-Oppenheimer (BO) framework, treating the gluonic excitation as a dynamical quasiparticle with a mass generated by instanton-induced interactions. It proposes a simple variational derivation of the BO potentials. The main focus is the derivation of light-front wave functions for hybrid systems, specifically for the ccg and qqqg cases, using both variational methods and numerical solutions of the Schrödinger equation in momentum representation, followed by computation of the gluon PDFs for these systems.

Significance. If validated, this framework could bridge non-relativistic effective models with light-front dynamics for exotic hybrid states, offering a practical route to gluon PDFs that are otherwise challenging to compute. The combination of variational and numerical techniques in momentum space is a methodological strength, and extending the BO approach to light-front wave functions addresses a relevant gap in hybrid hadron phenomenology.

major comments (2)
  1. Abstract: the description of variational and numerical methods supplies no error estimates, comparisons to data or lattice results, or validation of the quasiparticle mass assumption, leaving the central claim of computing usable gluon PDFs without demonstrated quantitative support.
  2. The section on the constituent-gluon picture and variational derivation of BO potentials: the gluon is modeled as a massive quasiparticle from instanton-induced interactions without explicit separation of this free parameter from predictions or sensitivity tests, which risks circularity when the resulting wave functions are used to extract PDFs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of the significance of our work and for the detailed comments. We address the major concerns point by point below, indicating the revisions we will implement.

read point-by-point responses

  1. Referee: Abstract: the description of variational and numerical methods supplies no error estimates, comparisons to data or lattice results, or validation of the quasiparticle mass assumption, leaving the central claim of computing usable gluon PDFs without demonstrated quantitative support.

    Authors: We agree that the abstract should more clearly indicate the scope of the calculation. In the revised manuscript we will modify the abstract to state that the gluon PDFs are model predictions obtained within the constituent-gluon Born-Oppenheimer framework, that error control is provided by the agreement between the variational and numerical solutions of the Schrödinger equation (detailed in Sections 3 and 4), and that direct comparisons with lattice QCD or experimental data lie outside the present study but are a natural extension. The quasiparticle mass is treated as an input parameter whose value is taken from the instanton literature; its role is discussed in the main text. revision: yes

  2. Referee: The section on the constituent-gluon picture and variational derivation of BO potentials: the gluon is modeled as a massive quasiparticle from instanton-induced interactions without explicit separation of this free parameter from predictions or sensitivity tests, which risks circularity when the resulting wave functions are used to extract PDFs.

    Authors: The gluon mass enters the model as a single free parameter whose origin is the instanton-induced effective interaction. The variational derivation of the BO potentials itself is performed for arbitrary mass and does not presuppose a numerical value. To remove any appearance of circularity we will add an explicit sensitivity analysis (new subsection or appendix) in which the mass is varied over a physically motivated interval and the resulting changes in the light-front wave functions and PDFs are quantified. This will demonstrate which features are robust and which depend on the precise mass choice. revision: yes

Circularity Check

0 steps flagged

No significant circularity: derivation uses standard variational/numerical methods on assumed inputs without reducing predictions to fits by construction

full rationale

The paper's chain starts from an effective constituent-gluon model with instanton-generated mass (an external assumption), applies a variational ansatz to generate BO potentials, solves the Schrödinger equation variationally or numerically in momentum space to obtain light-front wave functions, and finally computes gluon PDFs from those wave functions. None of these steps is shown to be equivalent to its inputs by definition or by fitting the target PDFs themselves; the PDFs are downstream outputs of the wave functions rather than parameters adjusted to match data. Self-citations or prior instanton work are not load-bearing for the central LF wave-function derivation, which remains self-contained against external benchmarks like lattice or other models. This is the normal non-circular outcome for a model-building paper.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 1 invented entities

The central claim rests on treating the gluon as a quasiparticle whose mass arises from instantons and on the validity of the Born-Oppenheimer separation for these systems; these are introduced without independent derivation in the abstract.

free parameters (1)
  • gluon quasiparticle mass
    Generated by instanton-induced interactions and used as input for the BO potentials and wave functions.
axioms (2)
  • domain assumption Born-Oppenheimer approximation applies to heavy hybrid hadrons with gluonic excitations
    Invoked to separate quark and gluon degrees of freedom and derive potentials.
  • domain assumption Instanton effects generate an effective mass for the constituent gluon
    Used to justify the quasiparticle picture without further derivation shown.
invented entities (1)
  • constituent gluon quasiparticle no independent evidence
    purpose: To model the gluonic excitation as a dynamical degree of freedom with mass in the BO framework
    Postulated to embed the gluon excitation into the hybrid hadron description.

pith-pipeline@v0.9.0 · 5398 in / 1477 out tokens · 54193 ms · 2026-05-07T11:43:13.104240+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

18 extracted references · 8 canonical work pages · 1 internal anchor

  1. [1]

    ,[21] ,[111] . (116) The color-singlet hybrid is obtained by coupling a color-octetqqqcore to the octet gluon, (qqq)8 ⊗g 8 →1 C,(117) so the three-quark core must carry mixed permuta- tion symmetry [21]C ∼ . A. LF kinematics and Jacobi variables We use the same LF kinematics and Jacobi mo- menta as in the text. The parton fractions satisfy xi ≥0, x 1 +x 2...

  2. [2]

    These are the natural fixed-mq spin-flavor basis states for the quark core. H. Antisymmetricqqqcore on the LF The fully antisymmetric quark core is obtained by taking the[111]component of[21] C ⊗[21] SF Ψcore qqq (N, mq) = 1√ 2 Cρ Φλ SF (N, mq)− C λ Φρ SF (N, mq) . (150) This is the unique lowest quark-core structure com- patible with the Pauli principle,...

  3. [3]

    Depending on the interaction, parity, and additional dynamical assumptions, notalloftheseneedcontributeequally. Similarly, for fixed Jz = +3 2 (164) one may use |1⟩= Φ LF +1 Ψcore qqq (N,+ 1 2)|1,0⟩,(165) |2⟩= Φ LF +1 Ψcore qqq (N,− 1 2)|1,+1⟩,(166) |3⟩= Φ LF −1 Ψcore qqq (N,+ 1 2)|1,+1⟩,(167) if a constituent-gluon basis including theλ g = 0 polarization...

  4. [4]

    bridging scale

    ItisagainusedtocalculatethegluonPDF,shown in Fig. 7. It is important to note that LF wave functions provide a complete description of the correspond- ing states. While in this work we have focused on single-particle momentum distributions (PDFs), these wave functions can be used to compute a wide range of observables, including TMDs, GPDs, form factors, a...

  5. [5]

    One finds ⟨⃗ p2⟩Π = 2 a2 ⊥ + 1 2a2 ∥ ,⟨⃗ p 2⟩Σ = 1 a2 ⊥ + 3 2a2 ∥ ,(D6) and therefore TΠ =m g + 1 2mg 2 a2 ⊥ + 1 2a2 ∥ ! , TΣ =m g + 1 2mg 1 a2 ⊥ + 3 2a2 ∥ ! .(D7)

    Kinetic The kinetic expectation values are most easily evaluated from⟨⃗ p2⟩= R d3x|∇ψ| 2. One finds ⟨⃗ p2⟩Π = 2 a2 ⊥ + 1 2a2 ∥ ,⟨⃗ p 2⟩Σ = 1 a2 ⊥ + 3 2a2 ∥ ,(D6) and therefore TΠ =m g + 1 2mg 2 a2 ⊥ + 1 2a2 ∥ ! , TΣ =m g + 1 2mg 1 a2 ⊥ + 3 2a2 ∥ ! .(D7)

  6. [6]

    Coulomb The Coulomb matrix elements are I(Π) C (r;a ⊥, a∥) = Z d3x|ψ Π(⃗ x)|2 1 |⃗ x−⃗ r/2|+ 1 |⃗ x+⃗ r/2| , (D8) I(Σ) C (r;a ⊥, a∥) = Z d3x|ψ Σ(⃗ x)|2 1 |⃗ x−⃗ r/2|+ 1 |⃗ x+⃗ r/2| , (D9) 23 which, after the trivialϕintegration, reduce to the two-dimensional forms I(Π) C (r;a ⊥, a∥) = 2√π a4 ⊥a∥ Z ∞ 0 dρ ρ3e−ρ2/a2 ⊥ Z ∞ −∞ dz e−z2/a2 ∥ 1p ρ2 + (z−r/2) 2 +...

  7. [7]

    Confining The confining matrix elements are defined analogously I(Π) σ (r;a ⊥, a∥) = Z d3x|ψ Π(⃗ x)|2 ⃗ x−⃗ r 2 + ⃗ x+⃗ r 2 ,(D12) I(Σ) σ (r;a ⊥, a∥) = Z d3x|ψ Σ(⃗ x)|2 ⃗ x−⃗ r 2 + ⃗ x+⃗ r 2 .(D13) After the angular integration these become I(Π) σ (r;a ⊥, a∥) = 2√π a4 ⊥a∥ Z ∞ 0 dρ ρ3e−ρ2/a2 ⊥ Z ∞ −∞ dz e−z2/a2 ∥ p ρ2 + (z−r/2) 2 + p ρ2 + (z+r/2) 2 , (D14)...

  8. [8]

    Instanton For a Gaussian instanton-induced interaction, Vinst(⃗ x) =−GΓe−x2/ρ2 0 ,(D16) withρ 0 the instanton size, the expectation values are elementary. For theΠu ansatz one obtains IΠ(a⊥, a∥) = Z d3x|ψ Π(⃗ x)|2e−x2/ρ2 0 = a−2 ⊥ a−2 ⊥ +ρ −2 0 2 a−2 ∥ a−2 ∥ +ρ −2 0 !1/2 ,(D17) while for theΣ− u ansatz one finds IΣ(a⊥, a∥) = Z d3x|ψ Σ(⃗ x)|2e−x2/ρ2 0 = a−...

  9. [9]

    III is recovered in the isotropic limit

    Connection to isotropic ansatz It is essential to verify that the spherical ansatz of Sec. III is recovered in the isotropic limit. Setting a⊥ =a ∥ = 1 β ,(D22) one finds ψ(m=±1) Π ∝ρ e imϕe−β2(ρ2+z2)/2 ∝r e −β2r2/2Y1,±1(ˆx), (D23) and ψΣ ∝z e −β2(ρ2+z2)/2 ∝r e −β2r2/2Y10(ˆx).(D24) The kinetic terms reduce correctly to ⟨⃗ p2⟩Π = 5 2 β2,⟨⃗ p 2⟩Σ = 5 2 β2,(...

  10. [10]

    Glueballs, Constituent Gluons and Instantons

    E. Shuryak and I. Zahed, (2026), arXiv:2604.04803 [hep-ph]

    work page internal anchor Pith review Pith/arXiv arXiv 2026

  11. [11]

    Shuryak and I

    E. Shuryak and I. Zahed, (2026), arXiv:2601.15085 [hep-ph]

    work page arXiv 2026

  12. [12]

    Hybrids, tetraquarks, pen- taquarks, doubly heavy baryons, and quarkonia in Born- Oppenheimer effective theory,

    M. Berwein, N. Brambilla, A. Mohapatra, and A. Vairo, Phys. Rev. D110, 094040 (2024), arXiv:2408.04719 [hep-ph]

    work page arXiv 2024

  13. [13]

    K. J. Juge, J. Kuti, and C. J. Morningstar, Phys. Rev. Lett.82, 4400 (1999), arXiv:hep-ph/9902336

    work page arXiv 1999

  14. [14]

    Braaten, C

    E. Braaten, C. Langmack, and D. H. Smith, Phys. Rev. D90, 014044 (2014), arXiv:1402.0438 [hep-ph]

    work page arXiv 2014

  15. [15]

    Miesch, E

    N. Miesch, E. Shuryak, and I. Zahed, (2025), arXiv:2510.23404 [hep-ph]

    work page arXiv 2025

  16. [16]

    F. He, E. Shuryak, W. Wu, and I. Zahed, Phys. Rev. D113, 054015 (2026), arXiv:2510.02076 [hep-ph]

    work page arXiv 2026

  17. [17]

    Schlosser and M

    C. Schlosser and M. Wagner, Phys. Rev. D105, 054503 (2022)

    2022

  18. [18]

    Shuryak and I

    E. Shuryak and I. Zahed, Phys. Rev. D107, 034026 (2023), arXiv:2202.00167 [hep-ph]

    work page arXiv 2023
