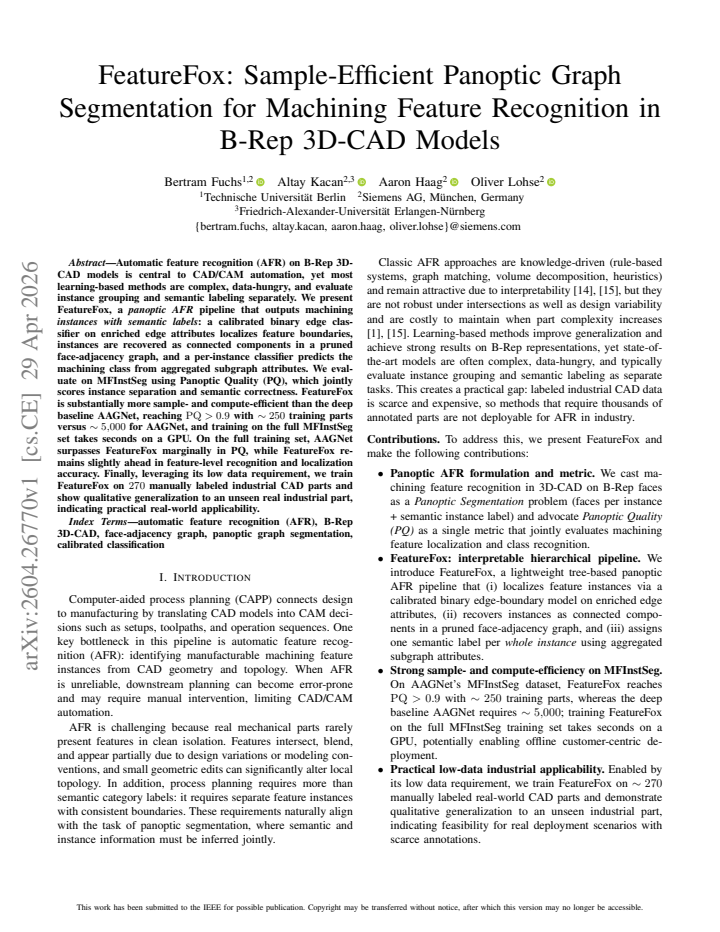

FeatureFox: Sample-Efficient Panoptic Graph Segmentation for Machining Feature Recognition in B-Rep 3D-CAD Models

Bertram Fuchs , Altay Kacan , Aaron Haag , Oliver Lohse

Authors on Pith no claims yet

Pith reviewed 2026-05-07 12:08 UTC · model grok-4.3

classification 💻 cs.CE

keywords featurefoxaagnetfeaturemachiningpanopticrecognitionsemantictraining

0 comments

The pith

FeatureFox combines binary edge classification on B-Rep graphs with connected-component instance recovery to deliver sample-efficient panoptic machining feature recognition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The approach treats a CAD model as a graph where faces are nodes and shared edges connect them. A simple classifier looks at attributes of each edge to decide if it forms a feature boundary. The graph is then pruned to keep only those boundaries, and connected groups of faces become separate feature instances. A second classifier looks at each group to name the machining operation it represents. This structured graph method avoids heavy neural networks and learns from hundreds of examples instead of thousands.

Core claim

FeatureFox is substantially more sample- and compute-efficient than the deep baseline AAGNet, reaching PQ>0.9 with ~250 training parts versus ~5,000 for AAGNet, and training on the full MFInstSeg set takes seconds on a GPU.

Load-bearing premise

That performance on the MFInstSeg benchmark and qualitative results on 270 manually labeled industrial parts plus one unseen real part demonstrate practical real-world applicability across diverse CAD models.

read the original abstract

Automatic feature recognition (AFR) on B-Rep 3D-CAD models is central to CAD/CAM automation, yet most learning-based methods are complex, data-hungry, and evaluate instance grouping and semantic labeling separately. We present FeatureFox, a panoptic AFR pipeline that outputs machining instances with semantic labels: a calibrated binary edge classifier on enriched edge attributes localizes feature boundaries, instances are recovered as connected components in a pruned face-adjacency graph, and a per-instance classifier predicts the machining class from aggregated subgraph attributes. We evaluate on MFInstSeg using Panoptic Quality (PQ), which jointly scores instance separation and semantic correctness. FeatureFox is substantially more sample- and compute-efficient than the deep baseline AAGNet, reaching $\mathrm{PQ}>0.9$ with $\sim250$ training parts versus $\sim5{,}000$ for AAGNet, and training on the full MFInstSeg set takes seconds on a GPU. On the full training set, AAGNet surpasses FeatureFox marginally in PQ, while FeatureFox remains slightly ahead in feature-level recognition and localization accuracy. Finally, leveraging its low data requirement, we train FeatureFox on $270$ manually labeled industrial CAD parts and show qualitative generalization to an unseen real industrial part, indicating practical real-world applicability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

FeatureFox gives a simple graph pipeline for panoptic machining feature recognition that runs fast and claims strong low-data performance, but the key efficiency comparison to AAGNet needs a matched retraining check to hold up.

read the letter

The paper's main contribution is a lightweight pipeline: a calibrated binary edge classifier on enriched attributes finds boundaries, instances come from connected components in a pruned face-adjacency graph, and a per-instance classifier assigns machining labels. This produces panoptic output without the heavy deep models common in the area. It is distinct from AAGNet in the explicit separation of boundary detection, instance recovery, and semantic labeling on the B-Rep graph structure. Training finishes in seconds on a GPU and the method reaches PQ above 0.9 on roughly 250 parts from MFInstSeg, which is the practical angle worth noting for CAD/CAM work that often lacks large labeled sets. They also run it on 270 manually labeled industrial parts and show qualitative results on one unseen real part. That low-data regime and speed are the parts that could matter to practitioners. The comparison to AAGNet is the soft spot. The abstract states AAGNet needs around 5,000 parts for similar performance, but it is not stated whether AAGNet was retrained and evaluated on the identical 250-part subset with the same attributes and splits. If the 5,000 figure is simply taken from the original AAGNet paper, then dataset differences or protocol variations could account for some of the reported gap rather than the pipeline itself. On the full MFInstSeg set the two methods are close, with AAGNet slightly ahead in overall PQ. The abstract also omits error bars, statistical tests, and ablations, so the full manuscript is required to judge how stable the numbers are. This work is for people building or evaluating feature recognition tools in manufacturing who want lighter alternatives to end-to-end deep networks. A reader already familiar with graph methods on CAD data will get the most out of the concrete steps and the PQ results. It is coherent enough and addresses a real bottleneck, so it deserves a serious referee who can ask for the matched baseline run and any missing controls. I would send it to review rather than desk reject.

Referee Report

1 major / 3 minor

Summary. The manuscript introduces FeatureFox, a panoptic graph segmentation pipeline for automatic machining feature recognition in B-Rep 3D-CAD models. It employs a calibrated binary edge classifier on enriched edge attributes to localize feature boundaries, recovers instances as connected components in a pruned face-adjacency graph, and predicts semantic machining classes from aggregated subgraph attributes. Evaluated on the MFInstSeg benchmark using Panoptic Quality (PQ), the method claims substantially greater sample and compute efficiency than the deep baseline AAGNet, reaching PQ > 0.9 with approximately 250 training parts versus ~5,000 for AAGNet, with training on the full set completing in seconds on GPU. On the full dataset AAGNet is marginally superior in PQ while FeatureFox leads slightly in feature-level accuracy; additional qualitative results are shown on 270 manually labeled industrial parts and one unseen real part.

Significance. If the sample-efficiency comparison holds under controlled conditions, the work addresses a practical bottleneck in CAD/CAM automation where labeled data is limited. The panoptic formulation that jointly scores instance separation and semantic labeling within a lightweight graph pipeline is a clear strength relative to separate instance and semantic pipelines. The emphasis on interpretability, low data requirements, and rapid training is relevant to industrial deployment. The inclusion of results on manually labeled industrial parts is a positive step toward real-world validation.

major comments (1)

Abstract: the central sample-efficiency claim asserts that FeatureFox reaches PQ>0.9 with ~250 training parts versus ~5,000 for AAGNet. This comparison is load-bearing for the stated superiority only if AAGNet was retrained and evaluated on the identical reduced MFInstSeg subset (~250 parts) under matched conditions (same train/test splits, same input attributes, same protocol). The abstract supplies no explicit statement that such a controlled baseline experiment was performed; if the ~5,000 figure is taken directly from the original AAGNet publication, differences in dataset statistics or training setup could confound the result. This requires clarification or new matched experiments in the results section.

minor comments (3)

Abstract: concrete PQ numbers are reported without error bars, standard deviations across runs, or statistical significance tests for the efficiency and accuracy comparisons.
Abstract and evaluation: implementation details (edge-attribute enrichment procedure, exact pruning thresholds for the face-adjacency graph, classifier hyperparameters, and calibration method) are not supplied, limiting reproducibility.
Evaluation on industrial parts: the qualitative generalization results on 270 manually labeled parts plus one unseen real part would be strengthened by quantitative metrics on that set or explicit discussion of observed failure modes.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for recognizing the practical relevance of FeatureFox's sample efficiency and panoptic formulation. We address the single major comment below and will incorporate the requested clarification in the revised manuscript.

read point-by-point responses

Referee: Abstract: the central sample-efficiency claim asserts that FeatureFox reaches PQ>0.9 with ~250 training parts versus ~5,000 for AAGNet. This comparison is load-bearing for the stated superiority only if AAGNet was retrained and evaluated on the identical reduced MFInstSeg subset (~250 parts) under matched conditions (same train/test splits, same input attributes, same protocol). The abstract supplies no explicit statement that such a controlled baseline experiment was performed; if the ~5,000 figure is taken directly from the original AAGNet publication, differences in dataset statistics or training setup could confound the result. This requires clarification or new matched experiments in the results section.

Authors: We agree that the abstract does not explicitly state whether AAGNet was retrained on the reduced ~250-part subset under matched conditions. The ~5,000 figure is taken directly from the original AAGNet publication, which evaluates on the full MFInstSeg training set. We did not retrain or re-evaluate AAGNet on the identical reduced subset with the same protocol, as our emphasis was on the efficiency of the proposed lightweight graph pipeline rather than exhaustive baseline re-implementation. To resolve the concern, we will revise the abstract to explicitly note the source of the AAGNet figure and add a clarifying paragraph in the results section stating that the comparison reflects the data requirements reported in the respective publications. While a matched retraining of AAGNet on 250 parts would enable a stricter head-to-head evaluation, the current evidence still demonstrates FeatureFox's substantially lower data requirement and orders-of-magnitude faster training, which are the core practical advantages claimed. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical pipeline with independent evaluation

full rationale

The paper presents FeatureFox as a graph-based panoptic segmentation pipeline (binary edge classifier on enriched attributes, connected components for instances, per-instance classifier) evaluated on the external MFInstSeg benchmark using Panoptic Quality. No equations, derivations, or first-principles results are described that reduce to fitted inputs by construction. The efficiency comparison to AAGNet is an empirical claim about training set sizes, not a self-referential prediction. No self-citations, ansatzes, or renamings of known results appear in the provided text as load-bearing steps. The method is self-contained against the stated external dataset.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that machining features correspond to connected components after edge-based pruning and that aggregated subgraph attributes suffice for semantic classification. No free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)

domain assumption Machining features in B-Rep models can be recovered as connected components in a pruned face-adjacency graph after binary edge classification.
Invoked in the instance recovery step of the pipeline.
