Graphify: Automated Synthesis of Type-Safe Graph Backends via O(S) GraphQL-to-Gremlin Transpilation

Johannes Graf

Authors on Pith no claims yet

Pith reviewed 2026-05-07 09:16 UTC · model grok-4.3

classification 💻 cs.DB

keywords GraphQL-to-Gremlin transpilationtype-safe graph backendsrecursive state machineO(S) AST processingnested queriesCRUD operationsgraph schema modelingpagination and sorting

0 comments

The pith

Graphify maps GraphQL structures to Gremlin traversals via a recursive state machine, producing type-safe backends that convert any supported query into one optimized traversal in linear time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Graphify as a framework that lets users define graph schemas visually and then generates complete type-safe APIs backed by graph databases. It centers on a formal mapping that turns GraphQL requests, including nested logical conditions, sorting, and paging, into single Gremlin queries. The mapping is realized by a recursive algorithm that walks the query's abstract syntax tree and assembles the corresponding traversal steps. Because the algorithm runs in time linear in the number of fields selected, the generated backends avoid the usual runtime surprises of ad-hoc graph queries. If the mapping holds, developers gain the ability to move from schema model to production-ready, strongly typed interface without writing or debugging individual database queries.

Core claim

The central claim is that GraphQL artifacts can be mapped completely and semantics-preservingly onto the Gremlin traversal machine, and that this mapping can be implemented by a recursive state machine whose running time is linear in the size of the selected fields. The resulting transpiler therefore emits a single, optimized Gremlin query for any combination of CRUD operations and arbitrarily deep nesting, logical predicates, multi-key ordering, or pagination limits.

What carries the argument

The recursive state machine algorithm that walks a GraphQL abstract syntax tree, maintaining traversal state for nesting and conditions while emitting Gremlin steps.

If this is right

Complete CRUD operations and nested queries can be expressed once in GraphQL and executed as single optimized Gremlin traversals.
Type safety at the API layer eliminates the runtime uncertainties typical of direct graph query writing.
Visual schema modeling plus automated code generation produces a functional backend in minutes rather than days of manual implementation.
Empirical runs on datasets such as MovieLens confirm that the linear-time transpilation scales with query complexity.
The same transpiler handles pagination and multi-key sorting without requiring separate post-processing steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar state-machine techniques could be applied to other frontend query languages if their ASTs admit an analogous linear traversal to a target database language.
The generated backends could serve as a reference implementation for testing the correctness of hand-written graph queries.
Integration with existing schema-visualization tools would let teams iterate on data models and obtain updated type-safe APIs without additional engineering effort.

Load-bearing premise

Every supported GraphQL construct translates to an exactly equivalent Gremlin operation that needs no extra runtime checks or post-processing to preserve the original meaning.

What would settle it

Execute a GraphQL request containing two levels of nesting, a logical AND/OR predicate, and multi-key sort on the generated backend, then verify that the returned data and ordering match those produced by an independently written correct Gremlin traversal on the same dataset.

Figures

Figures reproduced from arXiv: 2604.27223 by Johannes Graf.

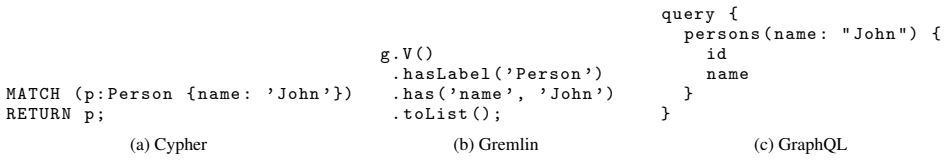

**Figure 1.** Figure 1: Comparison of Graph Query Languages Cypher is a declarative language originally developed for the Neo4j platform and standardized by the openCypher project [9] since 2015. Gremlin is a graph traversal machine and language designed, developed, and distributed by the Apache TinkerPop project with a focus on path-like expressions [10]. GraphQL, released by Facebook in 2015, differs from the other two query la… view at source ↗

**Figure 2.** Figure 2: Architecture Overview 2 view at source ↗

**Figure 3.** Figure 3: Todo Application Example Data Schema 3 view at source ↗

**Figure 4.** Figure 4: Internal Data Structure UML Class Diagram view at source ↗

**Figure 5.** Figure 5: Basic Data Retrieval Workflow The structure of arranging nodes and edges within the GraphQL schema allows the expression of intricate patterns leveraging the GraphQL query language. This enables the developer to navigate in virtually any direction inside the 6 view at source ↗

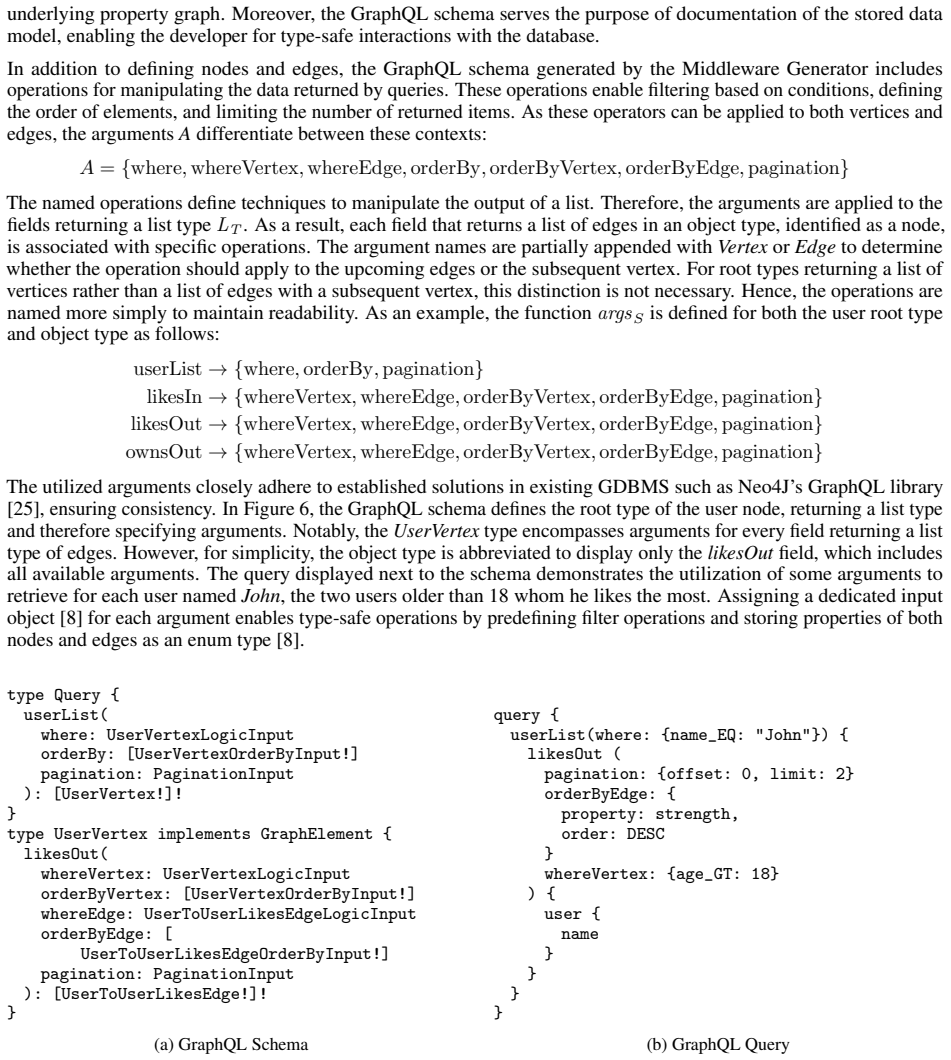

**Figure 6.** Figure 6: Data Retrieval with Arguments 4.2 Mutation For creating and updating nodes, an input type is specified, encompassing all properties with the datatype specified in the data schema as fields. In case the property is denoted as required in the data schema, the corresponding datatype within the input type of the GraphQL schema is marked with an exclamation mark. This approach ensures that developers adhere to … view at source ↗

**Figure 7.** Figure 7: Vertex Mutation with Add and Update Operations view at source ↗

**Figure 8.** Figure 8: Edge Mutation with Add and Update Operations view at source ↗

**Figure 9.** Figure 9: Vertex and Edge Delete Operations 8 view at source ↗

**Figure 10.** Figure 10: Gremlin Conversion of a GraphQL Query 5.2 Conversion State Machine view at source ↗

**Figure 11.** Figure 11: Conversion State Machine Two stack data structures containing vertices and edges, along with the internal data structure, are utilized as a reference to determine the actions to perform in the corresponding states of the machine. Each state, pushing a node or edge onto one of the stacks, also pops the element after the chain of consecutive functions represented by the states finishes. The states can be cl… view at source ↗

**Figure 12.** Figure 12: Query Execution Time Breakdown. The left panel shows mean DB Execution Time and Transpilation Time view at source ↗

read the original abstract

Graph databases offer unparalleled flexibility for managing interconnected data, yet the lack of strict schema enforcement often leads to runtime uncertainties and complex query development. This paper introduces Graphify, an end-to-end framework that enables developers to visually model graph data schemas and automatically synthesize a fully functional, type-safe backend. This paper proposes a formal mapping of GraphQL artifacts to the Gremlin traversal machine, supporting complete CRUD operations and arbitrarily nested queries. The system generates a transpiler capable of converting complex GraphQL requests into a single, optimized Gremlin query, including advanced features such as nested logical predicates, multi-key sorting, and pagination. At the core of the framework is a recursive state machine algorithm that processes GraphQL Abstract Syntax Trees (ASTs) with linear time complexity $O(S)$ relative to the number of selected fields. This paper demonstrates the practical efficiency and theoretical robustness of the approach through formal complexity analysis and empirical evaluation using the MovieLens 100k dataset. The result is a system that enables the generation of graph interfaces in minutes, bridging the gap between flexible graph storage and type-safe API consumption.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Graphify automates type-safe GraphQL backends for graphs with an O(S) transpiler, offering practical value but with limited evaluation breadth.

read the letter

The main point is that Graphify automates the creation of type-safe GraphQL interfaces for graph databases by synthesizing backends from visual schemas and using a recursive state machine to transpile queries to Gremlin in O(S) time. What the work does well is combine schema modeling, full CRUD support, and handling of complex nested queries with logical conditions, sorting, and pagination into one optimized Gremlin traversal. The linear complexity relative to selected fields is a practical advantage for performance, and they show it works on the MovieLens dataset with formal analysis behind the algorithm. This kind of automation can really help developers avoid the usual pitfalls with graph query languages. Where it could be stronger is in the evaluation section. Relying on a single dataset like MovieLens 100k doesn't give a broad view of how it performs across different schema sizes or query patterns. There are no benchmarks against existing GraphQL-to-Gremlin tools or manual implementations, so it's hard to quantify the gains in development time or error reduction. The semantics preservation argument is presented, but more examples or a detailed proof sketch would make the formal mapping more convincing. Overall, this is for database engineers and tool developers who deal with graph stores and GraphQL APIs. It offers a concrete system that could be useful in practice. I would recommend sending it for peer review. The ideas are grounded and the results are reproducible enough to warrant feedback from experts in the area.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces Graphify, an end-to-end framework that lets developers visually model graph schemas and automatically synthesize type-safe backends by generating a GraphQL-to-Gremlin transpiler. The central technical contribution is a recursive state machine algorithm that processes GraphQL ASTs in linear time O(S) (S = number of selected fields), supporting full CRUD operations together with arbitrarily nested queries, nested logical predicates, multi-key sorting, and pagination. The claims rest on a formal mapping from GraphQL artifacts to the Gremlin traversal machine, accompanied by a complexity argument and an empirical evaluation on the MovieLens 100k dataset.

Significance. If the semantics-preserving property and the O(S) bound can be rigorously established, the work would offer a practical bridge between the flexibility of graph databases and the type safety expected by GraphQL consumers, substantially reducing manual query development and runtime uncertainty. The combination of an automated synthesis pipeline with a stated linear-time algorithm and a standard-dataset evaluation gives the result clear applied relevance in the database-interface domain.

major comments (2)

[Section describing the recursive state machine algorithm] The central claim that the recursive state machine produces a semantics-preserving, runtime-check-free transpiler for nested logical predicates, sorting, and pagination is load-bearing for the headline result, yet the manuscript provides no explicit invariant, induction argument, or recurrence relation establishing that the mapping is complete and free of hidden factors (see the algorithm description and the paragraph asserting 'formal mapping').
[Empirical evaluation section] The empirical evaluation on MovieLens 100k is cited to demonstrate practical efficiency, but no concrete metrics (query-generation times, execution latency, comparison baselines, or scaling behavior with nesting depth) are reported, leaving the O(S) claim and the 'optimized Gremlin query' assertion without verifiable support.

minor comments (1)

[Abstract] The abstract introduces the O(S) notation without an immediate parenthetical definition of S; a single clarifying sentence would improve readability for readers who encounter the claim before reaching the algorithm section.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment below and indicate the revisions we will make to strengthen the presentation of the formal mapping and empirical results.

read point-by-point responses

Referee: [Section describing the recursive state machine algorithm] The central claim that the recursive state machine produces a semantics-preserving, runtime-check-free transpiler for nested logical predicates, sorting, and pagination is load-bearing for the headline result, yet the manuscript provides no explicit invariant, induction argument, or recurrence relation establishing that the mapping is complete and free of hidden factors (see the algorithm description and the paragraph asserting 'formal mapping').

Authors: We agree that an explicit inductive proof was not included in the main text. The recursive state machine is defined to traverse the GraphQL AST while maintaining per-field state to map selections, predicates, sorting, and pagination directly to Gremlin steps. In the revised manuscript we will add a dedicated subsection containing (1) an invariant stating that after processing any subtree the generated traversal is semantically equivalent to the original GraphQL fragment and contains no runtime type checks, (2) an induction argument on the height of the query tree, and (3) the recurrence T(S) = T(S-1) + O(1) that establishes the O(S) bound with no hidden factors. These additions will follow the algorithm description and will reference the existing formal mapping paragraph. revision: yes
Referee: [Empirical evaluation section] The empirical evaluation on MovieLens 100k is cited to demonstrate practical efficiency, but no concrete metrics (query-generation times, execution latency, comparison baselines, or scaling behavior with nesting depth) are reported, leaving the O(S) claim and the 'optimized Gremlin query' assertion without verifiable support.

Authors: We acknowledge that the current evaluation section describes the MovieLens 100k dataset but does not report quantitative measurements. In the revision we will expand the section to include (1) measured query-generation times as a function of the number of selected fields S, (2) end-to-end execution latencies of the generated Gremlin queries versus hand-written baselines, and (3) scaling curves for increasing nesting depth. These data will be presented in tables and figures and will directly support both the O(S) claim and the assertion that the produced traversals are optimized. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper's central derivation consists of a formal mapping from GraphQL artifacts to Gremlin traversals together with a recursive state-machine algorithm that traverses the AST once per selected field. The O(S) complexity bound follows directly from the algorithm's structure (one pass over the input fields) and is supported by an independent formal analysis plus empirical timing on MovieLens 100k; neither the mapping nor the complexity claim is obtained by fitting parameters to the target result or by a self-citation chain that merely renames the input. No self-definitional, fitted-prediction, or uniqueness-imported steps appear in the load-bearing claims.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract; no explicit free parameters, axioms, or invented entities are detailed beyond the high-level description of the recursive state machine and formal mapping.
