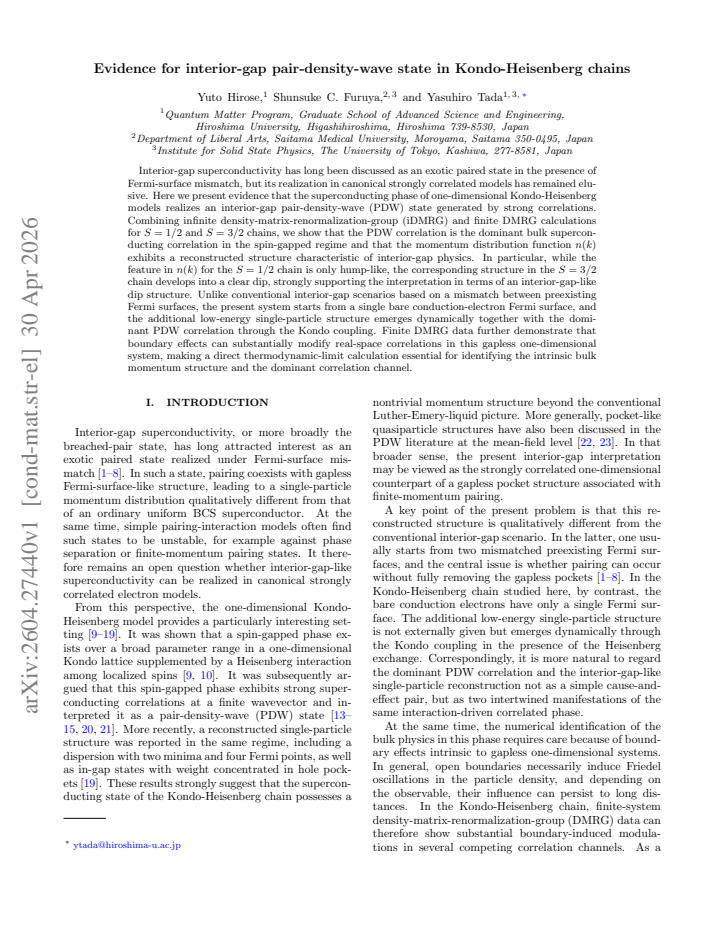

arxiv: 2604.27440 · v1 · submitted 2026-04-30 · ❄️ cond-mat.str-el · cond-mat.supr-con

Evidence for interior-gap pair-density-wave state in Kondo-Heisenberg chains

Yuto Hirose , Shunsuke C. Furuya , Yasuhiro Tada This is my paper

Pith reviewed 2026-05-07 09:41 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.supr-con
keywords Kondo-Heisenberg chainspair-density-waveinterior-gap superconductivityspin-gapped regimemomentum distribution functionDMRG calculationsone-dimensional modelsstrongly correlated electrons
0
0 comments X

The pith

The superconducting phase of Kondo-Heisenberg chains realizes an interior-gap pair-density-wave state generated by strong correlations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to establish that one-dimensional Kondo-Heisenberg models host an exotic interior-gap pair-density-wave superconducting state. Using iDMRG and finite DMRG calculations on S=1/2 and S=3/2 chains, it shows that PDW correlations dominate the bulk superconducting channel in the spin-gapped regime. The momentum distribution function exhibits a reconstructed structure, appearing as a hump for S=1/2 and developing into a clear dip for S=3/2. This structure emerges dynamically from a single bare conduction-electron Fermi surface through the Kondo coupling, rather than from any pre-existing Fermi-surface mismatch. The work stresses that boundary effects in these gapless one-dimensional systems make thermodynamic-limit computations essential for identifying the intrinsic bulk properties.

Core claim

In the spin-gapped regime of the Kondo-Heisenberg chains, the pair-density-wave correlation is the dominant bulk superconducting correlation, and the momentum distribution n(k) shows a reconstructed structure with a hump for S=1/2 and a clear dip for S=3/2, indicating an interior-gap PDW state that emerges dynamically via the Kondo coupling from a single bare Fermi surface.

What carries the argument

The interior-gap pair-density-wave (PDW) state, a paired superconducting state whose momentum-space structure is reconstructed by strong correlations and the Kondo interaction in the one-dimensional chain model.

If this is right

  • PDW correlations dominate over other superconducting channels in the spin-gapped regime of both S=1/2 and S=3/2 chains.
  • The momentum distribution develops a characteristic hump-like feature for S=1/2 and a clear dip for S=3/2 that supports the interior-gap picture.
  • Additional low-energy single-particle structure emerges dynamically together with the dominant PDW correlation through the Kondo coupling.
  • Boundary effects can substantially modify real-space correlations, making direct thermodynamic-limit calculations necessary.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same dynamic mechanism could produce interior-gap PDW states in two- or three-dimensional Kondo lattice models without requiring initial Fermi-surface mismatch.
  • Experimental probes sensitive to the momentum distribution in candidate materials might detect the dip structure as a direct signature of this state.
  • The results suggest that interior-gap superconductivity can arise purely from strong correlations and Kondo screening even when starting from a single Fermi surface.

Load-bearing premise

That the dominance of PDW correlations and the hump or dip features in n(k) genuinely indicate interior-gap physics rather than alternative correlation effects, and that the iDMRG results accurately capture the bulk properties in the thermodynamic limit of this gapless system.

What would settle it

A thermodynamic-limit calculation or measurement in the spin-gapped phase showing that PDW correlations do not dominate or that n(k) lacks the reconstructed hump or dip structure would falsify the interpretation.

Figures

Figures reproduced from arXiv: 2604.27440 by Shunsuke C. Furuya, Yasuhiro Tada, Yuto Hirose.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic picture of the Kondo-Heisenberg model view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Fourier spectra of the density-density correlation view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Fourier spectra of the bond-pairing correlation func view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Fourier spectra of the single-particle correlation view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Momentum distribution function. The dashed ver view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Entanglement entropy view at source ↗
Figure 8
Figure 8. Figure 8: For both S = 1/2 and S = 3/2, the CDW, PDW, composite pairing, and charge-2e pairing correla￾tion functions are competitive and it is difficult to identify the most dominant correlation in contrast to the iDMRG results in the previous section ( view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Charge density profile view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Entanglement entropy view at source ↗
read the original abstract

Interior-gap superconductivity has long been discussed as an exotic paired state in the presence of Fermi-surface mismatch, but its realization in canonical strongly correlated models has remained elusive. Here we present evidence that the superconducting phase of one-dimensional Kondo-Heisenberg models realizes an interior-gap pair-density-wave (PDW) state generated by strong correlations. Combining infinite density-matrix-renormalization-group (iDMRG) and finite DMRG calculations for $S=1/2$ and $S=3/2$ chains, we show that the PDW correlation is the dominant bulk superconducting correlation in the spin-gapped regime and that the momentum distribution function $n(k)$ exhibits a reconstructed structure characteristic of interior-gap physics. In particular, while the feature in $n(k)$ for the $S=1/2$ chain is only hump-like, the corresponding structure in the $S=3/2$ chain develops into a clear dip, strongly supporting the interpretation in terms of an interior-gap-like dip structure. Unlike conventional interior-gap scenarios based on a mismatch between preexisting Fermi surfaces, the present system starts from a single bare conduction-electron Fermi surface, and the additional low-energy single-particle structure emerges dynamically together with the dominant PDW correlation through the Kondo coupling. Finite DMRG data further demonstrate that boundary effects can substantially modify real-space correlations in this gapless one-dimensional system, making a direct thermodynamic-limit calculation essential for identifying the intrinsic bulk momentum structure and the dominant correlation channel.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents numerical evidence from iDMRG and finite DMRG calculations on one-dimensional Kondo-Heisenberg chains (for both S=1/2 and S=3/2) that the superconducting phase in the spin-gapped regime realizes an interior-gap pair-density-wave (PDW) state. The central claims are that PDW correlations dominate the bulk superconducting channel and that the single-particle momentum distribution n(k) develops a reconstructed structure (hump-like for S=1/2, a clear dip for S=3/2) that emerges dynamically from a single bare conduction-electron Fermi surface through the Kondo coupling, rather than from a pre-existing Fermi-surface mismatch.

Significance. If the interpretation of the n(k) features and PDW dominance as interior-gap physics holds, the work would constitute a notable advance by realizing an exotic paired state in a canonical strongly correlated model without initial Fermi-surface mismatch. The consistency of findings across two spin values and the explicit use of iDMRG to target bulk properties in a gapless 1D system are methodological strengths that support the numerical claims.

major comments (2)
  1. [n(k) results and abstract] The abstract and the n(k) results section interpret the dip (S=3/2) and hump (S=1/2) in the momentum distribution as characteristic of interior-gap reconstruction, but no quantitative check is provided that the feature position aligns with the expected location k_F - Q/2, where Q is the PDW wavevector extracted from the real-space correlations. Without this comparison, the structure could arise from standard 1D PDW oscillations, Luttinger-liquid effects, or Kondo-induced band renormalization rather than gapped single-particle states at interior momenta.
  2. [numerical methods and results on n(k)] Although iDMRG is employed to mitigate boundary effects (as contrasted with finite DMRG), the manuscript does not report explicit bond-dimension convergence tests for the momentum-space features n(k) in the gapless phase. Given that iDMRG approximates power-law correlations whose momentum structure can be sensitive to truncation, this omission weakens in the weaker hump feature for S=1/2 and the overall interior-gap assignment.
minor comments (2)
  1. [abstract] The abstract states that 'the PDW correlation is the dominant bulk superconducting correlation' but does not specify the quantitative metric (e.g., relative decay exponents or integrated amplitudes) used to establish dominance; a brief clarification would aid readability.
  2. [figure captions] Figure captions for the n(k) plots should explicitly note the bond dimension and system size (or extrapolation procedure) employed for the iDMRG data to allow readers to assess the reliability of the reported hump/dip features.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major point below and have revised the manuscript to incorporate quantitative checks and convergence data that strengthen the evidence for the interior-gap PDW interpretation.

read point-by-point responses

  1. Referee: [n(k) results and abstract] The abstract and the n(k) results section interpret the dip (S=3/2) and hump (S=1/2) in the momentum distribution as characteristic of interior-gap reconstruction, but no quantitative check is provided that the feature position aligns with the expected location k_F - Q/2, where Q is the PDW wavevector extracted from the real-space correlations. Without this comparison, the structure could arise from standard 1D PDW oscillations, Luttinger-liquid effects, or Kondo-induced band renormalization rather than gapped single-particle states at interior momenta.

    Authors: We agree that an explicit comparison of the n(k) feature position to k_F - Q/2 provides a stronger test of the interior-gap scenario. In the revised manuscript we extract Q from the dominant peak in the real-space PDW correlations and overlay the expected location k_F - Q/2 on the n(k) plots. For the S=3/2 chain the dip center coincides with this value within numerical resolution; for the S=1/2 chain the weaker hump is also centered near the predicted position. This comparison is now included in the n(k) section together with a brief discussion ruling out simple Luttinger-liquid or band-renormalization origins. The abstract has been updated to mention the quantitative alignment. revision: yes

  2. Referee: [numerical methods and results on n(k)] Although iDMRG is employed to mitigate boundary effects (as contrasted with finite DMRG), the manuscript does not report explicit bond-dimension convergence tests for the momentum-space features n(k) in the gapless phase. Given that iDMRG approximates power-law correlations whose momentum structure can be sensitive to truncation, this omission weakens in the weaker hump feature for S=1/2 and the overall interior-gap assignment.

    Authors: We acknowledge that explicit bond-dimension convergence for n(k) is essential in a gapless 1D system. We have performed additional iDMRG runs at higher bond dimensions (up to D=1200) and added the corresponding n(k) data to the revised manuscript. Both the hump (S=1/2) and dip (S=3/2) features remain stable in position and shape once D exceeds approximately 600; the S=1/2 hump amplitude converges to a small but finite value. These convergence plots are now shown in the numerical-methods section, directly addressing the concern for the weaker feature. revision: yes

Circularity Check

0 steps flagged

Numerical evidence from DMRG computations is self-contained with no reduction to inputs by construction

full rationale

The paper derives its central claims—that PDW correlations dominate in the spin-gapped regime and that n(k) exhibits a reconstructed interior-gap-like structure—directly from iDMRG and finite DMRG computations of correlation functions and momentum distributions on the Kondo-Heisenberg Hamiltonian for S=1/2 and S=3/2 chains. These are explicit numerical outputs from the model, not quantities fitted to data and then relabeled as predictions, nor defined in terms of themselves. No equation or step equates a claimed result to an input by construction, and any self-citations serve only as background rather than load-bearing justification for the numerical findings. The derivation chain therefore remains independent of the target conclusions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the standard Kondo-Heisenberg Hamiltonian and the assumption that DMRG accurately captures bulk correlations and momentum distributions in the thermodynamic limit.

axioms (2)
  • domain assumption The Kondo-Heisenberg model Hamiltonian with given couplings accurately describes the low-energy physics of the system.
    Invoked throughout as the starting point for all simulations.
  • domain assumption iDMRG and finite DMRG results converge to the intrinsic bulk properties when boundary effects are controlled.
    Central to the claim that the observed n(k) structure is not an artifact.

pith-pipeline@v0.9.0 · 5577 in / 1433 out tokens · 48619 ms · 2026-05-07T09:41:42.584405+00:00 · methodology
