BAss: Symbolic Reasoning in Abstract Dialectical Frameworks

Samuel Pastva, Van-Giang Trinh

Pith reviewed 2026-05-07 08:09 UTC · model grok-4.3

classification 💻 cs.LO cs.LG

keywords Abstract Dialectical FrameworksBinary Decision DiagramsSymbolic ReasoningBoolean NetworksStable ModelsFixed PointsSystems BiologyFormal Argumentation

0 comments

The pith

BAss computes all admissible, complete, preferred and stable models of abstract dialectical frameworks using binary decision diagrams.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents BAss, a symbolic solver that uses binary decision diagrams to compute the full range of interpretations and models for abstract dialectical frameworks. It builds on the established link between ADFs and Boolean networks to extend earlier BDD tools and deliver results on large real-world instances. Experiments across collections of biological and argumentation models show BAss outperforms prior BDD solvers and matches or exceeds SAT and ASP methods when solution spaces grow large. The method succeeds in enumerating every fixed point or minimal trap space for certain biological networks that existing tools cannot finish. This capability opens concrete new case studies in systems biology that rely on exhaustive enumeration.

Core claim

BAss provides fully symbolic computation of all admissible, complete, and preferred interpretations together with two-valued and stable models of an ADF. By encoding the problem in BDDs and exploiting the ADF–Boolean-network equivalence, the solver scales to instances whose solution sets are too large for previous BDD implementations and competitive with SAT/ASP solvers on the same data.

What carries the argument

BAss, the BDD-based ADF symbolic solver that represents and manipulates the entire set of interpretations simultaneously via binary decision diagrams.

If this is right

Full enumeration of fixed points and minimal trap spaces becomes feasible for certain biological networks that previous tools could not finish.
Symbolic methods can replace or complement SAT/ASP solvers for ADF semantics when the number of solutions is large.
New systems-biology case studies that require exhaustive listing of all stable models or admissible interpretations are now tractable.
The same BDD encoding can be reused across both the ADF and Boolean-network communities without separate implementations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Hybrid solvers that switch between BDD and SAT representations depending on instance size could further extend the reachable model scale.
The approach may transfer to other formal-argumentation formalisms that share similar semantics definitions.
Automated parameter tuning of BDD variable orderings could reduce the remaining cases where performance lags behind SAT methods.

Load-bearing premise

The collection of real-world BN and ADF models used for testing is representative and that the BDD encoding stays compact without hidden exponential blow-up on those instances.

What would settle it

A publicly available ADF or Boolean-network model of realistic size on which BAss either times out or returns an incomplete set of interpretations while at least one SAT or ASP solver finishes and produces the complete set within the same time bound.

Figures

Figures reproduced from arXiv: 2604.27576 by Samuel Pastva, Van-Giang Trinh.

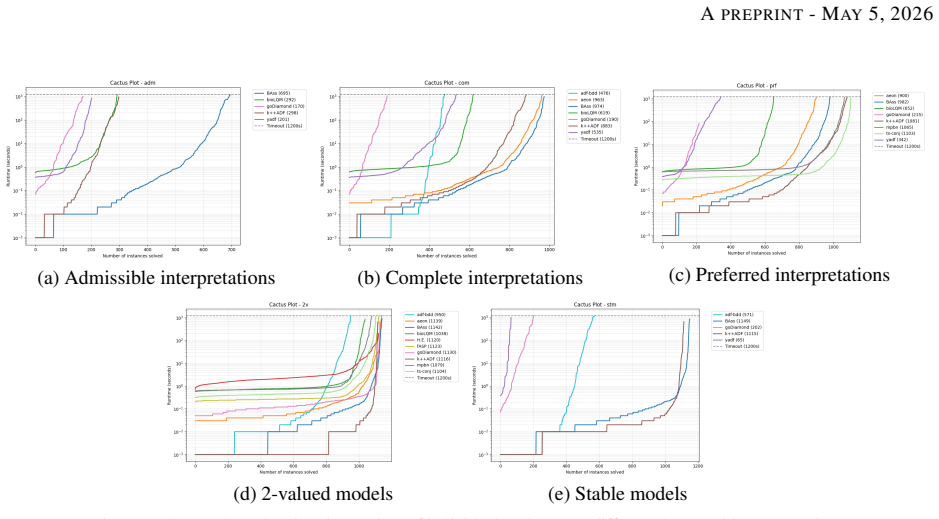

**Figure 1.** Figure 1: Cactus plots showing the runtime of individual tools across different ADF problem categories. view at source ↗

read the original abstract

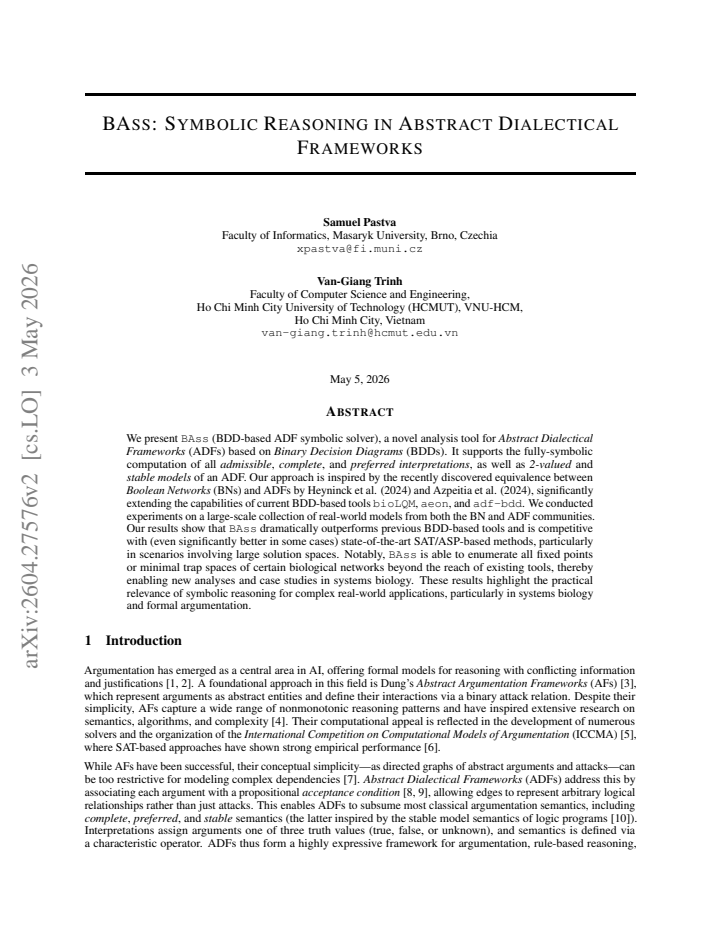

We present BAss (BDD-based ADF symbolic solver), a novel analysis tool for Abstract Dialectical Frameworks (ADFs) based on Binary Decision Diagrams (BDDs). It supports the fully symbolic computation of all admissible, complete, and preferred interpretations, as well as two-valued and stable models of an ADFs. Our approach is inspired by the recently discovered equivalence between Boolean Networks (BNs) and ADFs by Heyninck et al. (2024) and Azpeitia et al. (2024), significantly extending current BDD-based tools bioLQM, AEON, and adf-bdd. We conducted experiments on a large-scale collection of real-world models from both the BN and ADF communities. Our results show that BAss dramatically outperforms previous BDD-based tools and is competitive (even significantly better in some cases) with state-of-the-art SAT/ASP-based methods, particularly in scenarios involving large solution spaces. Notably, BAss is able to enumerate all fixed points or minimal trap spaces of certain biological networks beyond the reach of existing tools, thereby enabling new analysis and case studies in systems biology. These results highlight the practical relevance of symbolic reasoning for complex real-world applications, particularly in systems biology and formal argumentation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

read the letter

BAss is a practical BDD solver that extends prior tools to full ADF semantics and handles some larger biological networks, but its performance edge lacks structural characterization of the test models. The paper takes the 2024 BN-ADFs equivalence and implements a uniform symbolic engine for admissible, complete, preferred, two-valued, and stable semantics. That is the concrete advance over bioLQM, AEON, and adf-bdd, which lacked full coverage. On the real-world collection the authors assembled, BAss finishes faster than those BDD baselines and stays competitive with SAT and ASP solvers, especially when solution spaces grow large. It also reaches some fixed-point and trap-space enumerations that timed out before. Those results are useful for systems-biology users who need exhaustive answers on networks that are still modest in size but already too big for earlier symbolic code. The experiments appear to rest on external, independently published models rather than synthetic cases tuned to the method, which is a plus. The soft spot is the missing analysis of why the diagrams stay compact. The paper reports runtimes and success rates but does not break out treewidth, cyclicity, or strongly connected components of the dependency graphs, nor does it test variable-ordering sensitivity. Without that, it is hard to know whether the speedups will transfer to other ADF instances or whether the benchmark set simply favors BDDs. The implementation itself looks grounded in the cited equivalence, and the claims do not appear circular. This paper is for researchers who build or use logic-based models of biological networks and want a ready tool for exhaustive symbolic queries. It is not a deep theoretical contribution, but the engineering and the empirical comparison are solid enough to merit referee time. I would send it to peer review and ask the authors to add a short section on the structural properties of the networks where the BDDs remain tractable.

Referee Report

2 major / 3 minor

Summary. The paper introduces BAss, a BDD-based symbolic solver for Abstract Dialectical Frameworks (ADFs) that computes all admissible, complete, and preferred interpretations as well as two-valued and stable models. It builds on the recently established equivalence between Boolean Networks (BNs) and ADFs (Heyninck et al. 2024; Azpeitia et al. 2024), extends prior BDD tools (bioLQM, AEON, adf-bdd), and reports experimental results on real-world BN/ADF models showing dramatic outperformance over previous BDD solvers and competitiveness (sometimes superiority) with SAT/ASP solvers, especially on instances with large solution spaces. The work claims to enable enumeration of fixed points and minimal trap spaces for certain biological networks previously beyond reach.

Significance. If the performance and correctness claims hold, the work would be significant for bridging symbolic reasoning techniques with practical analysis in formal argumentation and systems biology. The BDD approach offers a promising alternative to SAT/ASP for exhaustive enumeration in large solution spaces, and the ability to handle previously intractable biological models could open new case studies. The paper correctly credits the foundational BN-ADF equivalence and positions the tool as an extension rather than a reinvention.

major comments (2)

[§4 (Experimental Evaluation)] §4 (Experimental Evaluation): The central performance claim—that BAss enumerates all fixed points/minimal trap spaces on certain biological networks beyond prior tools—rests on the assumption that the BDD encoding (via the BN equivalence) produces diagrams whose size remains tractable. However, the manuscript provides no analysis of dependency-graph properties (treewidth, cyclicity, number of SCCs) or variable-ordering heuristic behavior that would predict when compactness holds. This leaves open whether the observed speed-ups are intrinsic to the symbolic method or an artifact of the particular benchmark distribution.
[§3 (The BAss Approach) and §4] §3 (The BAss Approach) and §4: The abstract and experimental claims assert correct implementation of the ADF semantics via the BN equivalence, yet the paper supplies no verification details (e.g., cross-checks against known small ADF instances, data-exclusion rules, or timeout handling). Without these, it is impossible to confirm that the reported equivalence is faithfully realized in the BDD encoding.

minor comments (3)

[Abstract] The abstract refers to a 'large-scale collection' of real-world models but provides no quantitative summary (number of instances, variable counts, or solution-space sizes). Adding a table or paragraph with these statistics would improve clarity.
[§4 (Experimental Evaluation)] Ensure that all baseline tools (bioLQM, AEON, adf-bdd, and the SAT/ASP solvers) are cited with precise version numbers and that the experimental setup (hardware, timeout limits, memory bounds) is stated explicitly in §4.
[§2 (Preliminaries)] Notation for interpretations and models is introduced without a dedicated preliminary section; a short table summarizing the supported semantics (admissible, complete, preferred, stable, etc.) would aid readers unfamiliar with ADFs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed report. We appreciate the recognition of BAss's potential significance in bridging symbolic methods with argumentation and systems biology. We address each major comment point by point below, describing the revisions we will make to strengthen the manuscript.

read point-by-point responses

Referee: §4 (Experimental Evaluation): The central performance claim—that BAss enumerates all fixed points/minimal trap spaces on certain biological networks beyond prior tools—rests on the assumption that the BDD encoding (via the BN equivalence) produces diagrams whose size remains tractable. However, the manuscript provides no analysis of dependency-graph properties (treewidth, cyclicity, number of SCCs) or variable-ordering heuristic behavior that would predict when compactness holds. This leaves open whether the observed speed-ups are intrinsic to the symbolic method or an artifact of the particular benchmark distribution.

Authors: We agree that additional structural analysis of the benchmarks would help readers assess the generality of the performance results. In the revised manuscript, we will add a dedicated paragraph in §4 that reports, for each benchmark family: the number of SCCs, approximate treewidth (computed via standard heuristics such as min-fill), and a cyclicity measure (e.g., feedback arc set size relative to nodes). We will also describe the variable-ordering heuristic (the topological order induced by the BN/ADF dependency graph, with ties broken by variable appearance frequency) and show that BDD sizes remain modest precisely when the networks exhibit the sparse, modular structure typical of biological models. These additions will demonstrate that the observed speed-ups are tied to the symbolic method's exploitation of real-world structure rather than an artifact of the chosen distribution. revision: yes
Referee: §3 (The BAss Approach) and §4: The abstract and experimental claims assert correct implementation of the ADF semantics via the BN equivalence, yet the paper supplies no verification details (e.g., cross-checks against known small ADF instances, data-exclusion rules, or timeout handling). Without these, it is impossible to confirm that the reported equivalence is faithfully realized in the BDD encoding.

Authors: We acknowledge that the current manuscript omits explicit verification procedures. In the revised version we will insert a new subsection 'Implementation Verification' in §3. It will report: (i) systematic cross-checks on all ADF instances with ≤20 variables from the literature, comparing BAss outputs against adf-bdd and a SAT-based reference solver (exact match on admissible, complete, preferred, and stable semantics); (ii) the timeout policy (3600 s wall-clock limit per instance; timeouts are recorded separately and excluded from 'solved' counts); and (iii) data-exclusion rules (none applied beyond parse failures, of which there were zero in the collected benchmark set). These details will confirm that the BN–ADF equivalence is correctly realized in the BDD encoding. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation relies on external equivalence and independent benchmarks

full rationale

The paper presents BAss as a BDD-based symbolic solver for ADFs that extends prior tools (bioLQM, AEON, adf-bdd) by leveraging the BN-ADF equivalence cited from Heyninck et al. (2024) and Azpeitia et al. (2024). These citations are external to the present authors and are not self-citations. All performance claims rest on experiments over a collection of real-world models rather than any fitted parameters, self-definitional reductions, or predictions that collapse to inputs by construction. No uniqueness theorems, ansatzes, or renamings are smuggled in via self-citation chains. The central method (symbolic computation of interpretations and models) is therefore self-contained against external benchmarks and does not reduce to its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the correctness of the BDD implementation for ADF semantics and the validity of the BN-ADFs equivalence from prior work. No new free parameters or invented entities are introduced.

axioms (2)

domain assumption The equivalence between Boolean Networks and Abstract Dialectical Frameworks as established by Heyninck et al. (2024) and Azpeitia et al. (2024)
The approach is inspired by and extends this equivalence for symbolic computation.
standard math BDDs can efficiently represent and manipulate the boolean functions corresponding to ADF interpretations and models
Core assumption underlying the symbolic solver design.

pith-pipeline@v0.9.0 · 5515 in / 1397 out tokens · 64707 ms · 2026-05-07T08:09:12.546243+00:00 · methodology
