Circle Pattern Theorem for Quasi-simplicial Triangulated Surfaces

Aijin Lin, Qingyi Liu

Pith reviewed 2026-05-07 05:19 UTC · model grok-4.3

classification 🧮 math.GT

keywords circle patternsquasi-simplicial triangulationsKAT inequalitiescurvature imagefinite coveringDelta complexesclosed surfacestriangulated surfaces

0 comments

The pith

Quasi-simplicial triangulations admit circle patterns with prescribed angles precisely when KAT inequalities hold on all subsets of the lifted vertex set.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the Circle Pattern Theorem from simplicial triangulations to quasi-simplicial ones on closed surfaces. These allow loops and multiple edges provided the lift to the universal cover remains simplicial. The central result is that the image of the curvature map for such circle patterns is exactly the set of assignments satisfying the KAT inequalities on every subset of the lifted vertices. This is proved by reducing the quasi-simplicial case to the simplicial case through a finite covering that preserves the relevant curvature constraints. A reader would care because the extension removes the prior restriction that any three vertices determine at most one triangle, thereby applying the theorem to a wider class of surface triangulations realized as Delta complexes.

Core claim

For a quasi-simplicial triangulation of a closed surface whose lift to the universal cover is simplicial, the curvature image under the circle pattern map is completely characterized by the KAT inequalities imposed on all subsets of the lifted vertex set. The proof proceeds by applying a finite covering to reduce the problem to the simplicial case without introducing new combinatorial obstructions or altering the curvature constraints, thereby transferring the known characterization from the simplicial setting.

What carries the argument

Finite covering reduction of quasi-simplicial Delta complexes to simplicial triangulations, which transfers the KAT inequalities on all subsets of the lifted vertex set to characterize the curvature image.

If this is right

Circle patterns with prescribed intersection angles exist on triangulations that include loops and multiple edges.
The existence and rigidity statements from the simplicial Circle Pattern Theorem carry over directly after the finite covering reduction.
The curvature image for quasi-simplicial triangulations is fixed exactly by the KAT inequalities on lifted vertex subsets.
The result applies to Delta complexes without requiring that any three vertices span at most one triangle.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The covering technique implies that combinatorial features of the base triangulation, such as multiple edges, do not create independent obstructions beyond those already visible in the lift.
Similar reduction arguments could be tested on other existence theorems for geometric structures on surfaces that currently assume simplicial combinatorics.
Explicit constructions on low-genus surfaces with doubled edges would provide concrete checks on whether the lifted inequalities remain sharp.

Load-bearing premise

Any quasi-simplicial triangulation whose lift to the universal cover is simplicial can be reduced via a finite covering to the simplicial case without introducing new combinatorial obstructions or altering the curvature constraints.

What would settle it

A quasi-simplicial triangulation on a closed surface where a curvature assignment satisfies the KAT inequalities on all subsets of the lifted vertices yet no circle pattern realizing those curvatures exists, or where the inequalities fail but a circle pattern still exists.

Figures

Figures reproduced from arXiv: 2604.27919 by Aijin Lin, Qingyi Liu.

**Figure 1.** Figure 1: Left: The one-vertex triangulation T of the torus. Right: Its lifted simplicial triangulation Tb on the 3 × 3 covering. (Open vertices and dashed edges are copies of solid vertices and edges via the deck transformations.) view at source ↗

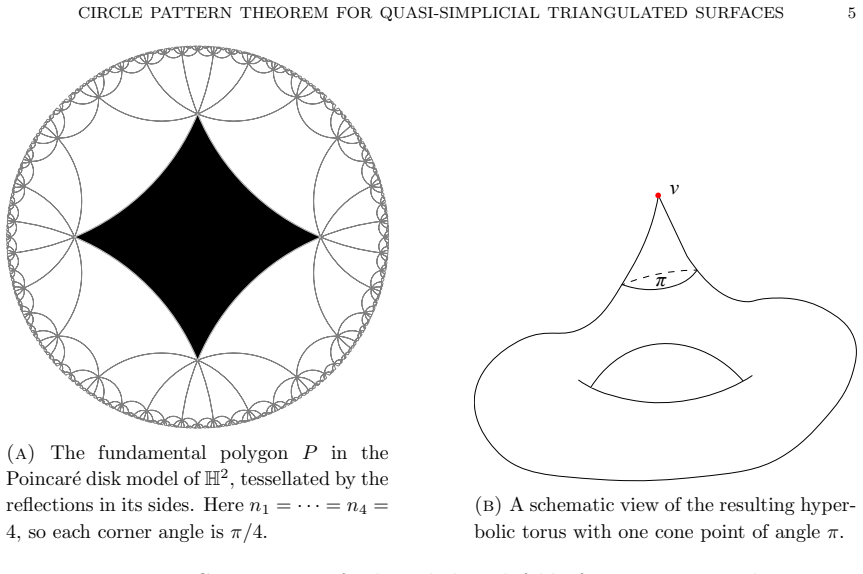

**Figure 2.** Figure 2: Construction of a hyperbolic orbifold of genus g = 1 with a single cone point. contains all vi . Assigning to each vertex v a target curvature Kv = 2π − Θi if v = vi and Kv = 0 otherwise, the problem reduces to finding a circle packing metric r ∈ R V >0 such that K(r) = K. If such a circle packing metric exists, the resulting cone metric on Σ has the desired cone angles. Thus the existence problem for orbi… view at source ↗

**Figure 3.** Figure 3: A three-circle configuration with intersection angles Φi , Φj , Φk and corresponding inner angles θi , θj , θk of the triangle of centers. As shown in view at source ↗

read the original abstract

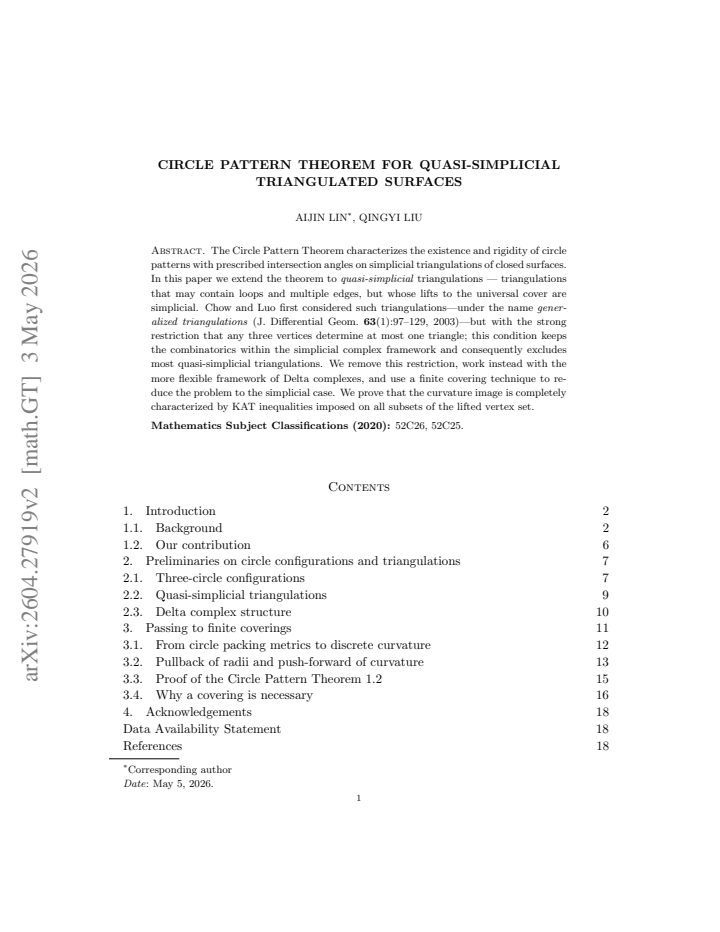

The Circle Pattern Theorem characterizes the existence and rigidity of circle patterns with prescribed intersection angles on simplicial triangulations of closed surfaces. In this paper we extend the theorem to quasi-simplicial triangulations -- triangulations that may contain loops and multiple edges, but whose lifts to the universal cover are simplicial. Chow and Luo first considered such triangulations -- under the name \emph{generalized triangulations} (J.~Differential Geom.~\textbf{63}(1):97--129, 2003) -- but with the strong restriction that any three vertices determine at most one triangle; this condition keeps the combinatorics within the simplicial complex framework and consequently excludes most quasi-simplicial triangulations. We remove this restriction, work instead with the more flexible framework of Delta complexes, and use a finite covering technique to reduce the problem to the simplicial case. We prove that the curvature image is completely characterized by KAT inequalities imposed on all subsets of the lifted vertex set.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper extends Chow-Luo circle patterns to quasi-simplicial triangulations via Delta complexes and finite-cover reduction, with the main open question being whether that reduction preserves the curvature image exactly.

read the letter

The key takeaway is that this paper removes the 'at most one triangle per three vertices' restriction from the Chow-Luo circle pattern theorem and extends the result to quasi-simplicial triangulations using Delta complexes and a finite-cover reduction. They define quasi-simplicial triangulations as those where the universal cover is simplicial, even if the base has loops or multiple edges. By lifting to a finite cover that is simplicial, they reduce the problem to the known case and then characterize the curvature image via KAT inequalities on subsets of the lifted vertex set. This is a genuine technical advance because it handles a broader class of triangulations that arise naturally in some geometric constructions. The approach avoids having to rebuild the entire theory from scratch. The potential weak point is in the covering reduction itself. The claim is that the curvature image is completely characterized by those lifted inequalities. For this to hold, the reduction must preserve the set of admissible assignments exactly, without the deck transformations imposing additional constraints on the curvatures that aren't already encoded in the KAT conditions. For example, if a cycle in the base corresponds to a closed path in the cover, the sum of curvatures around identified vertices might need to match in ways that require extra checks. The abstract states they prove the full characterization, so they presumably address this, but a referee would want to see explicit verification that no new obstructions are introduced. Overall, this is solid work for the subfield. It is aimed at researchers in discrete conformal geometry who want to work with more general triangulations. Someone looking for new applications or computational implementations might find it relevant, though the paper itself stays theoretical. It deserves a serious referee because the extension is nontrivial and the method could apply elsewhere. I would recommend sending it to peer review.

Referee Report

2 major / 2 minor

Summary. The paper extends the Circle Pattern Theorem to quasi-simplicial triangulations (Delta complexes on closed surfaces whose universal covers are simplicial). It removes Chow-Luo's restriction that any three vertices determine at most one triangle by working in the Delta-complex framework and reducing via finite covering to the simplicial case. The central result is that the curvature image is completely characterized by the KAT inequalities imposed on all subsets of the lifted vertex set.

Significance. If the finite-covering reduction preserves the curvature image bijectively, the result substantially enlarges the class of triangulations for which circle patterns with prescribed intersection angles are known to exist and be rigid. This removes an artificial combinatorial restriction and brings the theorem closer to the full range of Delta complexes that arise in discrete geometry. The manuscript correctly identifies the covering technique as the key technical step and supplies the lifted KAT inequalities as the characterizing condition.

major comments (2)

[§4] §4 (Finite covering reduction): The argument that the lifted KAT inequalities on the universal cover characterize the curvature image for the base quasi-simplicial triangulation does not explicitly verify that no additional linear relations are imposed by the deck transformations. In particular, if a deck transformation identifies vertices or edges, the curvature sums around the corresponding cycles in the base must satisfy extra constraints; it is not shown that these are automatically implied by the subset inequalities on the lifted vertex set. This step is load-bearing for the main theorem.
[Theorem 1.1] Theorem 1.1 (Main characterization): The statement that the curvature image equals the set of assignments satisfying the lifted KAT inequalities assumes a bijection between admissible curvatures on the base and on the cover. The manuscript does not supply a lemma confirming that every solution on the cover descends to a solution on the base without violating the original intersection-angle conditions after quotienting by the covering group.

minor comments (2)

[§2] The definition of quasi-simplicial triangulation in §2 could be illustrated with a small example (e.g., a Delta complex with a loop or double edge whose lift is simplicial) to clarify the distinction from Chow-Luo's generalized triangulations.
Notation for the lifted vertex set and the action of the deck group is introduced without a dedicated diagram; a single figure showing the covering map and vertex identifications would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. The major comments correctly identify places where the finite-covering argument and the bijection between curvature images require more explicit justification. We have revised the manuscript to strengthen these steps with additional arguments and a supporting lemma.

read point-by-point responses

Referee: [§4] §4 (Finite covering reduction): The argument that the lifted KAT inequalities on the universal cover characterize the curvature image for the base quasi-simplicial triangulation does not explicitly verify that no additional linear relations are imposed by the deck transformations. In particular, if a deck transformation identifies vertices or edges, the curvature sums around the corresponding cycles in the base must satisfy extra constraints; it is not shown that these are automatically implied by the subset inequalities on the lifted vertex set. This step is load-bearing for the main theorem.

Authors: We agree that the original presentation in §4 left this invariance implicit. In the revised manuscript we have inserted a new paragraph in §4 that explicitly verifies the absence of extra linear relations. Because the KAT inequalities are required to hold for every finite subset of the lifted vertex set, they are automatically invariant under the finite deck group action. Any curvature sum around a cycle in the base is a linear combination of lifted curvatures over an orbit; the subset inequalities applied to all group translates of that orbit force the necessary compatibility without introducing independent constraints. This is now stated as a short proposition immediately after the reduction to the simplicial case. revision: yes
Referee: [Theorem 1.1] Theorem 1.1 (Main characterization): The statement that the curvature image equals the set of assignments satisfying the lifted KAT inequalities assumes a bijection between admissible curvatures on the base and on the cover. The manuscript does not supply a lemma confirming that every solution on the cover descends to a solution on the base without violating the original intersection-angle conditions after quotienting by the covering group.

Authors: We accept that an explicit bijection statement improves the exposition. We have added Lemma 4.3 in the revised version, which proves that the correspondence is bijective. Lifting a base curvature to the cover is immediate by periodicity. For the converse, any solution on the cover is group-invariant (by the subset inequalities applied to all translates), so it descends to the base. The intersection angles are preserved because they are assigned to edges and triangles that are locally identified by the covering map; the quotient therefore inherits exactly the same angle data. The lemma also records that the resulting base metric satisfies the original circle-pattern equations. revision: yes

Circularity Check

0 steps flagged

No circularity; finite-covering reduction is an independent proof technique

full rationale

The paper extends the Circle Pattern Theorem to quasi-simplicial triangulations (Delta complexes whose universal covers are simplicial) by invoking a finite covering to reduce to the simplicial case, then asserts that the curvature image is characterized exactly by KAT inequalities on all subsets of the lifted vertex set. No equations, fitted parameters, or self-citations appear in the abstract or description. The cited prior result is by Chow-Luo (distinct authors), and the covering reduction is presented as a combinatorial/topological argument rather than a tautological renaming or input-equals-output construction. Without any quoted step that reduces a claimed prediction or uniqueness statement to a definition or fit by construction, the derivation chain remains self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only; no explicit parameters, axioms, or new entities are stated. The work presupposes the original Circle Pattern Theorem and the existence of finite covers that preserve simpliciality.

axioms (1)

domain assumption The Circle Pattern Theorem holds for simplicial triangulations of closed surfaces
The extension is built directly on this prior result via reduction.
