Understanding Energy Flow and Inefficiency of a Thermomagnetic Generator by Transient Multi-Physics Modelling

Ali Izadi, Bruno Neumann, Sebastian F\"ahler

Pith reviewed 2026-05-10 06:02 UTC · model grok-4.3

classification ⚛️ physics.app-ph cond-mat.mtrl-sci

keywords thermomagnetic generatormulti-physics simulationwaste heat recoveryenergy flow analysisSankey diagramtransient heat flowdigital twinlow-grade heat

0 comments

The pith

A validated 3D multi-physics model traces the energy losses and heat bottlenecks inside thermomagnetic generators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Thermomagnetic generators turn low-temperature waste heat into electricity with almost no moving parts, yet prototypes still show low efficiency and slow cycling speeds. The authors create a full three-dimensional simulation that links magnetic fields, heat movement, fluid flow, and electrical output using only the known shape and material properties of an existing device. This model reproduces measured voltage to 96 percent and power to 95 percent, giving access to internal details experiments cannot provide. A Sankey diagram then maps where input heat splits into useful electricity versus losses, while time-dependent heat tracking shows what slows the operating cycle. The resulting picture points directly to the physical causes of both problems.

Core claim

By constructing and experimentally validating a three-dimensional transient multi-physics model of a genus-3 thermomagnetic generator, the authors demonstrate that prior two-dimensional or uncoupled simulations miss key effects; the full coupling of magnetic, thermal, fluid, and electrical domains reproduces open-circuit voltage and power output within 4-5 percent and thereby exposes the precise locations of energy dissipation and the heat-transfer steps that cap cycle frequency.

What carries the argument

The 3D transient multi-physics digital twin that simultaneously solves the coupled magnetic, thermal, fluid-flow, and electrical equations across the generator geometry.

If this is right

Energy dissipation pathways can be quantified so that design changes target the largest losses first.
Heat-transfer rates that limit cycling speed can be isolated and improved by geometry or material adjustments.
The validated model supports rapid virtual iteration of TMG designs before any new hardware is built.
Higher-efficiency, higher-frequency TMGs become feasible for recovering industrial low-grade waste heat.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same coupled simulation framework could diagnose performance limits in related solid-state thermal generators such as magnetocaloric devices.
Material substitutions suggested by the heat-flow analysis might raise operating frequency without mechanical redesign.
Embedding the model inside an optimization loop would allow automatic search for geometries that minimize the identified losses.

Load-bearing premise

The simulation built from known geometry and tabulated material properties reproduces the real device's behavior without significant unmodeled effects or measurement discrepancies.

What would settle it

A new prototype with changed geometry or magnetic material whose measured voltage, power, or frequency deviates by more than 5 percent from the model's predictions.

read the original abstract

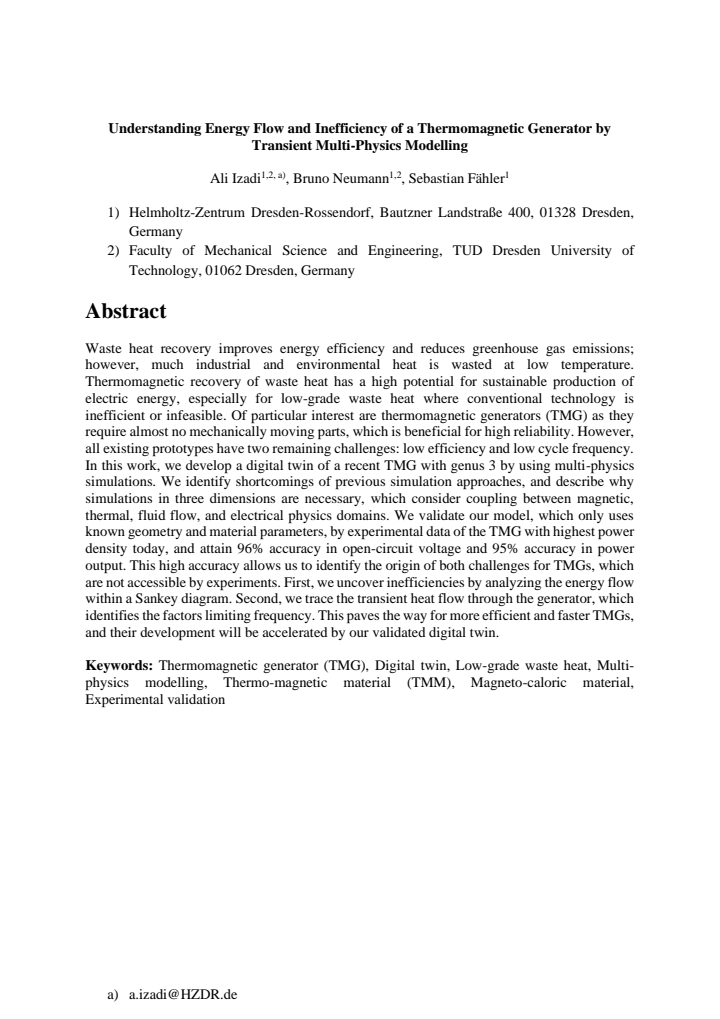

Waste heat recovery improves energy efficiency and reduces greenhouse gas emissions; however, much industrial and environmental heat is wasted at low temperature. Thermomagnetic recovery of waste heat has a high potential for sustainable production of electric energy, especially for low-grade waste heat where conventional technology is inefficient or infeasible. Of particular interest are thermomagnetic generators (TMG) as they require almost no mechanically moving parts, which is beneficial for high reliability. However, all existing prototypes have two remaining challenges: low efficiency and low cycle frequency. In this work, we develop a digital twin of a recent TMG with genus 3 by using multi-physics simulations. We identify shortcomings of previous simulation approaches, and describe why simulations in three dimensions are necessary, which consider coupling between magnetic, thermal, fluid flow, and electrical physics domains. We validate our model, which only uses known geometry and material parameters, by experimental data of the TMG with highest power density today, and attain 96% accuracy in open-circuit voltage and 95% accuracy in power output. This high accuracy allows us to identify the origin of both challenges for TMGs, which are not accessible by experiments. First, we uncover inefficiencies by analyzing the energy flow within a Sankey diagram. Second, we trace the transient heat flow through the generator, which identifies the factors limiting frequency. This paves the way for more efficient and faster TMGs, and their development will be accelerated by our validated digital twin.
