VQ-SAD: Vector Quantized Structure Aware Diffusion For Molecule Generation

Farshad Noravesh , Reza Haffari , Layki Soon , Arghya Pal
Authors on Pith no claims yet

Pith reviewed 2026-05-09 20:08 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords molecule generationdiffusion modelsvector quantizationVQ-VAEneuro-symbolic modelsmolecular graphsgraph generationlatent discrete codes
0
0 comments X

The pith

Vector quantized codes from a pretrained VQ-VAE improve diffusion models for generating molecules.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes VQ-SAD, which trains a VQ-VAE to turn atom and bond types into discrete latent codes before freezing the model. It then feeds those codebooks as fixed tokenizers into a diffusion model that has a learnable forward process. This replaces one-hot vectors and fingerprint hashes, which either lose information or create collisions, with a larger balanced discrete space that mixes symbolic labels and structural features. The approach yields slight gains over prior diffusion methods on standard molecule benchmarks. A reader would care because it offers a practical way to generate molecules that respect both discrete chemistry rules and continuous geometric patterns.

Core claim

By pretraining a VQ-VAE on molecular graphs and using its learned codebooks as frozen discrete tokenizers for atoms and bonds, VQ-SAD feeds structured symbolic inputs into a diffusion denoising network with a learnable forward process, producing a neuro-symbolic generator that slightly outperforms existing state-of-the-art diffusion models on the QM9 and ZINC250k datasets.

What carries the argument

Frozen VQ-VAE codebooks that act as discrete tokenizers for atom and bond types inside the diffusion denoising steps.

If this is right

  • The larger discrete code space produces more balanced distributions of atom and bond types during each denoising step.
  • Symbolic labels from the codes combine directly with neural structural features inside the same diffusion network.
  • The learnable forward process receives cleaner discrete inputs and therefore generates molecules with fewer invalid structures.
  • Overall generation quality on standard benchmarks rises modestly above one-hot or fingerprint baselines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same frozen-codebook trick could discretize other graph or sequence generators that currently rely on continuous embeddings.
  • Making the VQ-VAE trainable together with the diffusion model might reduce any residual information loss at the interface.
  • The neuro-symbolic split could be tested on related discrete-structure tasks such as protein backbone design or crystal lattice generation.

Load-bearing premise

The discrete codes produced by the VQ-VAE already contain enough accurate symbolic and structural detail about molecules to help the diffusion process without adding bias or new loss.

What would settle it

Retraining the diffusion model on QM9 with the VQ codes and measuring lower scores on standard validity, uniqueness, or novelty metrics than current top diffusion baselines would show the codes do not deliver the claimed benefit.

Figures

Figures reproduced from arXiv: 2605.00354 by Arghya Pal, Farshad Noravesh, Layki Soon, Reza Haffari.

Figure 1
Figure 1. Figure 1: radar graph to compare VQ-SAD with other similar meth￾ods contributions: 1. Developing a new methodology to leverage structural information in learning the forward process of dif￾fusion based graph generation and conditioning the schedulars based on these structural features. 2. Considering VQ-VAE as a pretrained model and taking it as a fixed node and edge tokenizer and fixed decoder to have more balanced… view at source ↗
Figure 2
Figure 2. Figure 2: in (a) the carbon has a symbolic representation that in￾dicates it is two hops away from oxygen. (b) illustrates a carbon atom that is two hops away from sulfur [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Conventional denoiser that ignores symbolic context. (b) Learns both tokenizer and denoiser in parallel (unstable). (c) Proposed VQ-SAD: tokenizer frozen, denoiser receives discrete symbolic code. with masking or replacing probability M0:T is as follows: pθ(G0:T , M0:T ) = p(GT , MT ) Y T t=1 pθ(Gt−1, Mt−1 | Gt, Mt) (1) We use the language of necessary and sufficient conditions in mathematics to justif… view at source ↗

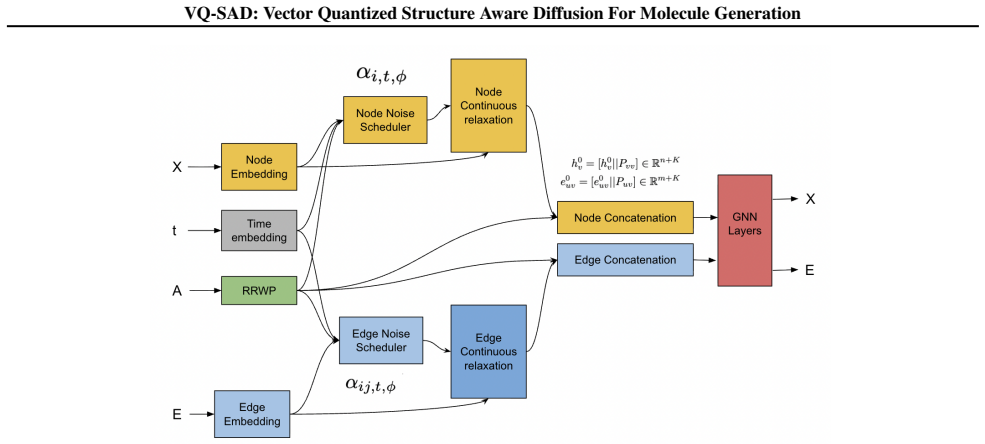

Figure 4
Figure 4. Figure 4: The framework of SAD. where I denotes the identity matrix. For each node i ∈ V , the diagonal term Pi,i can additionally be used as an initial node-level structural encoding. 3.5. Diffusion 3.5.1. CATEGORICAL NOISE We assume each discrete random variable xt has a cat￾egorical distribution xt ∼ Cat(xt; p) with p ∈ [0, 1]K and 1 T p = 1. The forward process with discrete vari￾ables q(xt|xt−1) can be represen… view at source ↗
Figure 5
Figure 5. Figure 5: The steps of VQ-SAD. 3.8. VQ-SAD VQ-SAD is built on top of SAD with two major differences. The first one is generalizing the learnable transition matrix to consider the case of having replacement probability γ. The second major difference is using VQ-VAE as a tokenizer to create a more balanced atom and edge types. The training of VQ-SAD is shown in algorithm 2 and the learning of tokenizer details are in … view at source ↗
Figure 6
Figure 6. Figure 6: generated QM9 without leveraging structural information 12 [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗

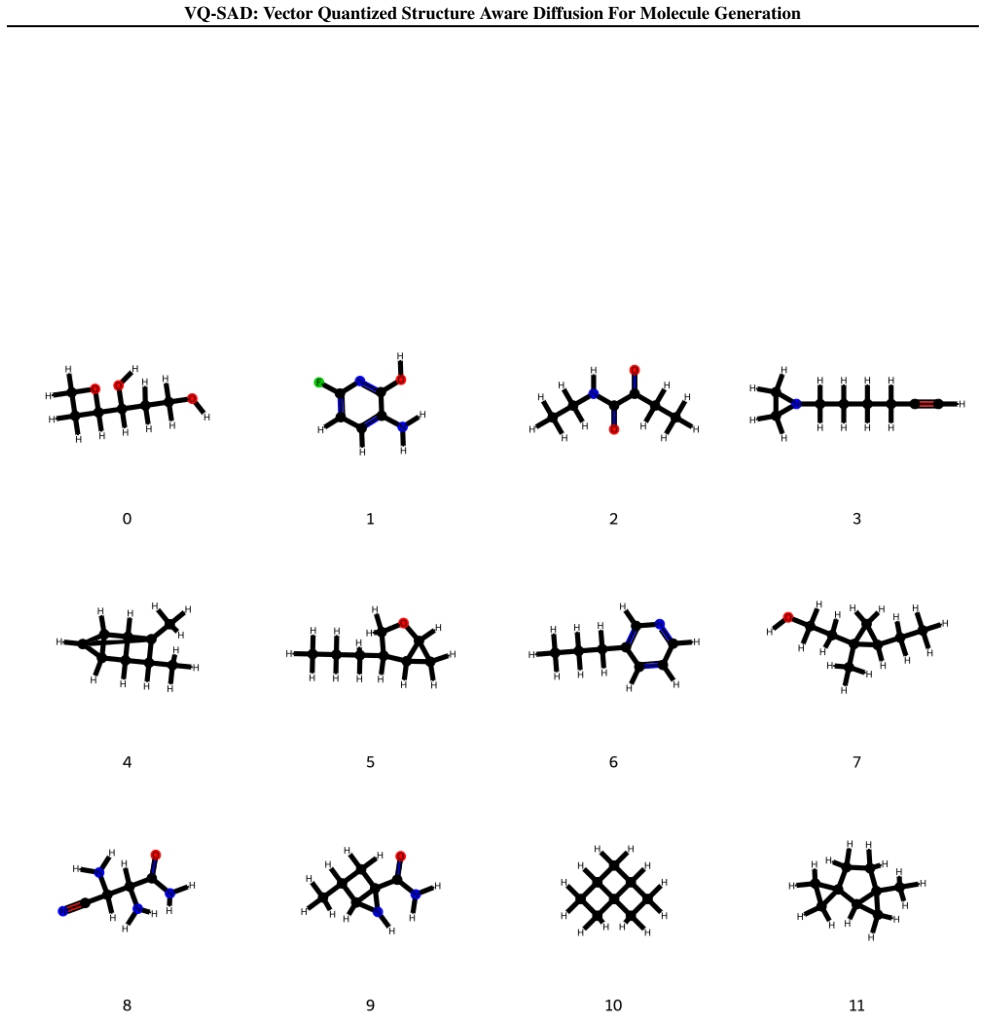

Figure 7
Figure 7. Figure 7: generated QM9 using structural information 13 [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: generated QM9 using structural information 14 [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: generated ZINC250k without leveraging structural information 15 [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: generated ZINC250k using structural information 16 [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: generated ZINC250k using structural information 17 [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗
read the original abstract

Many diffusion based molecule generation methods ignore the symbolic information of molecules and represent the atom and bond type as one hot representation. Methods based on Morgan fingerprints produce hash collisions and are hard to embed into a continuous space without information loss and random fingerprints correspond to no valid molecule. To circumvent this issue we use another paradigm and consider atom and bond codes as latent variables of VQ-VAE. We introduce VQ-SAD which first trains a VQ-VAE and uses the frozen pretrained VQ-VAE model and considers the codebooks for both atom and bond types as tokenizers for the downstream diffusion process. VQ-SAD is a neuro-symbolic model that utilizes both symbolic and neural structural information for a diffusion based model with learnable forward process. The large discrete code space provides a more balanced atom and bond types which enhances the denoising process. VQ-VAE slightly outperforms SOTA models for diffusion based molecule generation on QM9 and ZINC250k datasets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces VQ-SAD, a neuro-symbolic diffusion model for molecule generation. It first trains a VQ-VAE to learn discrete latent codes for atom and bond types, freezes the VQ-VAE, and uses its codebooks as tokenizers within a downstream diffusion process that features a learnable forward diffusion. The approach combines symbolic discrete codes with neural structural information; the authors claim that the resulting large discrete code space yields more balanced atom/bond representations that improve the denoising process, leading to slight outperformance over state-of-the-art diffusion-based molecule generators on the QM9 and ZINC250k datasets.

Significance. If the empirical results and mechanistic claims are substantiated, the work would provide a concrete demonstration that vector-quantized discrete representations can be productively fused with continuous diffusion models for molecular graphs, offering an alternative to one-hot encodings or fingerprint-based embeddings that suffer from collisions or invalidity. This could influence subsequent neuro-symbolic generative methods in cheminformatics by showing how frozen VQ codebooks can regularize the denoising trajectory without requiring end-to-end joint training.

major comments (2)
  1. [Abstract] Abstract: the headline claim that VQ-SAD 'slightly outperforms SOTA models' is presented without any numerical metrics, error bars, baseline values, or dataset-specific scores, rendering the central empirical assertion impossible to evaluate and directly undermining the reader's ability to assess whether the discrete-code mechanism produces the reported gain.
  2. [Method] Method and experimental sections: the paper provides no ablation studies, codebook utilization statistics, or controlled comparisons that isolate the contribution of the frozen VQ-VAE codes from other design choices (neuro-symbolic architecture, learnable forward process, training schedule). Without such isolation, the weakest assumption—that the discrete codes supply balanced structural information without introducing quantization bias or loss—remains untested and the causal link to improved denoising is insecure.
minor comments (1)
  1. [Abstract] The abstract would be strengthened by a single sentence summarizing the key quantitative improvements (e.g., validity, uniqueness, or property scores) even if full tables appear later.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment point by point below, indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the headline claim that VQ-SAD 'slightly outperforms SOTA models' is presented without any numerical metrics, error bars, baseline values, or dataset-specific scores, rendering the central empirical assertion impossible to evaluate and directly undermining the reader's ability to assess whether the discrete-code mechanism produces the reported gain.

    Authors: We agree that the abstract lacks concrete numerical support for the outperformance claim. In the revised version, we will expand the abstract to report specific metrics on QM9 and ZINC250k (e.g., validity, uniqueness, novelty scores) with direct comparisons to the cited SOTA diffusion baselines, including any available standard deviations from repeated runs. This will make the empirical assertion evaluable. revision: yes

  2. Referee: [Method] Method and experimental sections: the paper provides no ablation studies, codebook utilization statistics, or controlled comparisons that isolate the contribution of the frozen VQ-VAE codes from other design choices (neuro-symbolic architecture, learnable forward process, training schedule). Without such isolation, the weakest assumption—that the discrete codes supply balanced structural information without introducing quantization bias or loss—remains untested and the causal link to improved denoising is insecure.

    Authors: The referee is correct that the manuscript contains no explicit ablation studies or codebook utilization statistics to isolate the frozen VQ-VAE contribution. The presented results compare the full VQ-SAD model against SOTA diffusion baselines on standard benchmarks, which provides overall performance evidence but does not fully disentangle the discrete tokenization effect from the learnable forward process or other elements. In revision we will add codebook utilization statistics (e.g., per-code usage frequencies for atoms and bonds) and expand the discussion of how the large discrete space yields more balanced representations. Full controlled ablations would require new experiments; we will therefore note this as a limitation while incorporating the statistics and mechanistic discussion that can be derived from existing trained models. revision: partial

Circularity Check

0 steps flagged

No significant circularity; standard two-stage training pipeline with empirical claims.

full rationale

The paper's method trains a VQ-VAE on molecular data, freezes its codebooks, and feeds the resulting discrete tokens into a downstream diffusion model with a learnable forward process. This sequence is described as a conventional neuro-symbolic composition without any equation that defines a quantity in terms of itself or renames a fitted parameter as a 'prediction.' No self-citations, uniqueness theorems, or ansatzes imported from prior author work appear in the abstract or method outline. The outperformance statement is presented as an observed result on QM9/ZINC250k rather than a logical consequence forced by the architecture definition. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, axioms, or invented entities are stated in the provided text.

axioms (1)
  • domain assumption A pretrained VQ-VAE can produce discrete codes that preserve enough chemical validity and structural information for downstream diffusion.
    The entire pipeline rests on the VQ-VAE codes being useful tokenizers.
