Anisotropy of Cosmic Background Photons from Annihilating/Decaying Dark Matter
Pith reviewed 2026-05-09 18:59 UTC · model grok-4.3
The pith
A formulation for the angular power spectrum of photons from dark matter requires including detector energy resolution to be accurate.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We provide a detailed formulation for calculating the angular power spectrum of the cosmic background photons arising from the dark matter decay or annihilation in a comprehensive manner. We pay particular attention to the case of dark matter decaying or annihilating into line photons. It is pointed out that taking account of the energy resolution of the detector is essential to correctly evaluate the angular power spectrum. We apply our formulation to the observational data from infrared, optical, X-ray and gamma-ray telescopes.
What carries the argument
The angular power spectrum calculation that integrates over the detector's energy resolution for line photon signals from dark matter processes.
If this is right
- Accurate constraints on dark matter lifetime and annihilation cross section can be derived from existing telescope observations.
- Previous studies that neglected energy resolution may have incorrect estimates of photon anisotropy.
- Line photon signals from dark matter can be more reliably distinguished from other cosmic sources.
Where Pith is reading between the lines
- This approach could extend to other diffuse backgrounds like neutrinos or cosmic rays from dark matter.
- Future detectors with better energy resolution might reveal or rule out dark matter contributions more effectively.
- Connections to structure formation could be explored if anisotropy patterns depend on dark matter clustering.
Load-bearing premise
Dark matter annihilation and decay occur through standard channels that produce photons in predictable ways without exotic propagation effects.
What would settle it
Observing whether the measured angular power spectrum in gamma-ray data matches the predicted spectrum only when energy resolution is included, or deviates significantly from it.
Figures
read the original abstract

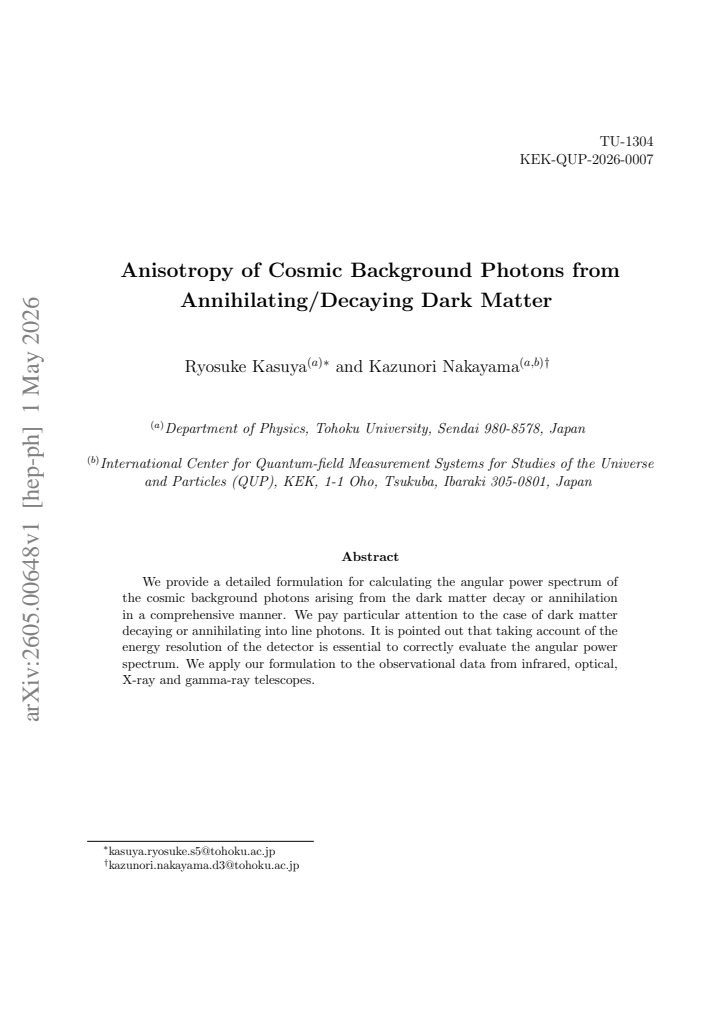

We provide a detailed formulation for calculating the angular power spectrum of the cosmic background photons arising from the dark matter decay or annihilation in a comprehensive manner. We pay particular attention to the case of dark matter decaying or annihilating into line photons. It is pointed out that taking account of the energy resolution of the detector is essential to correctly evaluate the angular power spectrum. We apply our formulation to the observational data from infrared, optical, X-ray and gamma-ray telescopes.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a detailed formulation for the angular power spectrum of cosmic background photons produced by dark matter annihilation or decay, with special focus on the monochromatic line-photon case. It stresses that detector energy resolution must be included to obtain correct results and applies the formalism to existing infrared, optical, X-ray, and gamma-ray telescope data.
Significance. If the redshift-dependent convolution of the instrument response is implemented correctly, the work supplies a practical tool for extracting DM constraints from anisotropy measurements that complements intensity bounds. The emphasis on energy resolution for line signals addresses a commonly overlooked systematic in extragalactic photon backgrounds.
major comments (1)
- [Formulation for line photons and angular power spectrum calculation] The line-photon formulation (described in the section on monochromatic photons and the subsequent line-of-sight integral) must convolve the detector resolution kernel R(E_obs(z), E_bin) with the redshift-dependent observed energy E_obs = E_rest/(1+z). A fixed energy window evaluated at a reference energy would produce an incorrect effective window function for C_ℓ, especially for decay signals whose redshift kernel is broad; the manuscript should explicitly show that the integral over contributing shells uses the z-dependent resolution rather than a single fixed cut.
minor comments (2)
- [Abstract] The abstract would benefit from a one-sentence statement of the principal numerical result or bound obtained from the data application.
- [Throughout the formulation section] Notation for the energy-resolution function and the line-of-sight weighting should be defined once and used consistently across equations.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comment on the line-photon formulation. We address the point below and will revise the manuscript accordingly.
read point-by-point responses
-
Referee: The line-photon formulation (described in the section on monochromatic photons and the subsequent line-of-sight integral) must convolve the detector resolution kernel R(E_obs(z), E_bin) with the redshift-dependent observed energy E_obs = E_rest/(1+z). A fixed energy window evaluated at a reference energy would produce an incorrect effective window function for C_ℓ, especially for decay signals whose redshift kernel is broad; the manuscript should explicitly show that the integral over contributing shells uses the z-dependent resolution rather than a single fixed cut.
Authors: We agree that the convolution with the detector resolution must employ the redshift-dependent observed energy E_obs(z) = E_rest/(1 + z) for each contributing shell in the line-of-sight integral. Our formulation already implements this by evaluating the resolution kernel at the observed energy corresponding to each redshift in the integral for the angular power spectrum C_ℓ. Nevertheless, we acknowledge that the manuscript does not explicitly contrast this with a fixed reference-energy window or demonstrate the integration step in sufficient detail. In the revised version we will add an explicit expression for the z-dependent convolution inside the line-of-sight integral, together with a short paragraph explaining why a fixed energy cut would be inaccurate for broad redshift kernels (especially decays). This clarification will appear in the section on monochromatic photons. revision: yes
Circularity Check
Standard line-of-sight formulation with detector response; no reduction to self-inputs
full rationale
The paper derives the angular power spectrum C_ℓ via line-of-sight integrals over DM density (or density-squared) weighted by photon production rate and instrument response, with explicit attention to energy resolution for line signals. No quoted equations or steps reduce the claimed result to a fitted parameter, self-defined quantity, or load-bearing self-citation chain. The formulation starts from standard cosmology and particle physics inputs and computes the observable without circular redefinition of the target anisotropy. The emphasis on redshift-dependent resolution convolution is presented as a calculational correction rather than a tautology.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Indirect and direct search for dark matter,
M. Klasen, M. Pohl, and G. Sigl, “Indirect and direct search for dark matter,”Prog. Part. Nucl. Phys.85(2015) 1–32,arXiv:1507.03800 [hep-ph]
-
[2]
M. Cirelli, A. Strumia, and J. Zupan, “Dark Matter,”arXiv:2406.01705 [hep-ph]
work page internal anchor Pith review arXiv
-
[3]
M. Kawasaki and T. Yanagida, “Constraint on cosmic density of the string moduli field in gauge mediated supersymmetry breaking theories,”Phys. Lett. B399(1997) 45–48,arXiv:hep-ph/9701346
-
[4]
Spectrum of background x-rays from moduli dark matter,
T. Asaka, J. Hashiba, M. Kawasaki, and T. Yanagida, “Spectrum of background x-rays from moduli dark matter,”Phys. Rev. D58(1998) 023507,arXiv:hep-ph/9802271. 24
-
[5]
Spectral gamma-ray signatures of cosmological dark matter annihilation,
L. Bergstrom, J. Edsjo, and P. Ullio, “Spectral gamma-ray signatures of cosmological dark matter annihilation,”Phys. Rev. Lett.87(2001) 251301, arXiv:astro-ph/0105048
-
[6]
Cosmological dark matter annihilations into gamma-rays - a closer look,
P. Ullio, L. Bergstrom, J. Edsjo, and C. G. Lacey, “Cosmological dark matter annihilations into gamma-rays - a closer look,”Phys. Rev. D66(2002) 123502, arXiv:astro-ph/0207125
-
[7]
Diffuse gamma-ray background and cosmic-ray positrons from annihilating dark matter,
M. Kawasaki, K. Kohri, and K. Nakayama, “Diffuse gamma-ray background and cosmic-ray positrons from annihilating dark matter,”Phys. Rev. D80(2009) 023517, arXiv:0904.3626 [astro-ph.CO]
-
[8]
Cosmic Gamma-ray from Inverse Compton Process in Unstable Dark Matter Scenario,
K. Ishiwata, S. Matsumoto, and T. Moroi, “Cosmic Gamma-ray from Inverse Compton Process in Unstable Dark Matter Scenario,”Phys. Lett. B679(2009) 1–5, arXiv:0905.4593 [astro-ph.CO]
-
[9]
Extragalactic Inverse Compton Light from Dark Matter Annihilation and the Pamela Positron Excess,
S. Profumo and T. E. Jeltema, “Extragalactic Inverse Compton Light from Dark Matter Annihilation and the Pamela Positron Excess,”JCAP07(2009) 020, arXiv:0906.0001 [astro-ph.CO]
-
[10]
Anisotropy of the cosmic gamma-ray background from dark matter annihilation,
S. Ando and E. Komatsu, “Anisotropy of the cosmic gamma-ray background from dark matter annihilation,”Phys. Rev. D73(2006) 023521,arXiv:astro-ph/0512217
-
[11]
S. Ando, E. Komatsu, T. Narumoto, and T. Totani, “Dark matter annihilation or unresolved astrophysical sources? Anisotropy probe of the origin of cosmic gamma-ray background,”Phys. Rev. D75(2007) 063519,arXiv:astro-ph/0612467
-
[12]
S. Ando and E. Komatsu, “Constraints on the annihilation cross section of dark matter particles from anisotropies in the diffuse gamma-ray background measured with Fermi-LAT,”Phys. Rev. D87no. 12, (2013) 123539,arXiv:1301.5901 [astro-ph.CO]
-
[13]
Particle dark matter searches in the anisotropic sky,
N. Fornengo and M. Regis, “Particle dark matter searches in the anisotropic sky,” Front. Physics2(2014) 6,arXiv:1312.4835 [astro-ph.CO]
-
[14]
M. Fornasaet al., “Angular power spectrum of the diffuse gamma-ray emission as measured by the Fermi Large Area Telescope and constraints on its dark matter interpretation,”Phys. Rev. D94no. 12, (2016) 123005,arXiv:1608.07289 [astro-ph.HE]
-
[15]
The role of the eROSITA all-sky survey in searches for sterile neutrino dark matter,
F. Zandanel, C. Weniger, and S. Ando, “The role of the eROSITA all-sky survey in searches for sterile neutrino dark matter,”JCAP09(2015) 060,arXiv:1505.07829 [astro-ph.CO]. 25
-
[16]
Axion decay and anisotropy of near-IR extragalactic background light,
Y. Gong, A. Cooray, K. Mitchell-Wynne, X. Chen, M. Zemcov, and J. Smidt, “Axion decay and anisotropy of near-IR extragalactic background light,”Astrophys. J.825 no. 2, (2016) 104,arXiv:1511.01577 [astro-ph.CO]
-
[17]
Can decaying particle explain cosmic infrared background excess?,
K. Kohri, T. Moroi, and K. Nakayama, “Can decaying particle explain cosmic infrared background excess?,”Phys. Lett. B772(2017) 628–633,arXiv:1706.04921 [astro-ph.CO]
-
[18]
O. E. Kalashev, A. Kusenko, and E. Vitagliano, “Cosmic infrared background excess from axionlike particles and implications for multimessenger observations of blazars,” Phys. Rev. D99no. 2, (2019) 023002,arXiv:1808.05613 [hep-ph]
-
[19]
Anisotropic cosmic optical background bound for decaying dark matter in light of the LORRI anomaly,
K. Nakayama and W. Yin, “Anisotropic cosmic optical background bound for decaying dark matter in light of the LORRI anomaly,”Phys. Rev. D106no. 10, (2022) 103505,arXiv:2205.01079 [hep-ph]
-
[20]
Probing the blue axion with cosmic optical background anisotropies,
P. Carenza, G. Lucente, and E. Vitagliano, “Probing the blue axion with cosmic optical background anisotropies,”Phys. Rev. D107no. 8, (2023) 083032, arXiv:2301.06560 [hep-ph]
-
[21]
Particle decays during the cosmic dark ages
X.-L. Chen and M. Kamionkowski, “Particle decays during the cosmic dark ages,” Phys. Rev. D70(2004) 043502,arXiv:astro-ph/0310473
work page Pith review arXiv 2004
-
[22]
CMB Constraints on WIMP Annihilation: Energy Absorption During the Recombination Epoch
T. R. Slatyer, N. Padmanabhan, and D. P. Finkbeiner, “CMB Constraints on WIMP Annihilation: Energy Absorption During the Recombination Epoch,”Phys. Rev. D80 (2009) 043526,arXiv:0906.1197 [astro-ph.CO]
work page Pith review arXiv 2009
-
[23]
Cosmology of axion dark matter,
C. A. J. O’Hare, “Cosmology of axion dark matter,”PoSCOSMICWISPers(2024) 040,arXiv:2403.17697 [hep-ph]
-
[24]
A. Boyarsky, M. Drewes, T. Lasserre, S. Mertens, and O. Ruchayskiy, “Sterile neutrino Dark Matter,”Prog. Part. Nucl. Phys.104(2019) 1–45,arXiv:1807.07938 [hep-ph]
-
[25]
M. LoVerde and N. Afshordi, “Extended Limber Approximation,”Phys. Rev. D78 (2008) 123506,arXiv:0809.5112 [astro-ph]. [26]PlanckCollaboration, P. A. R. Adeet al., “Planck Early Results XVIII: The power spectrum of cosmic infrared background anisotropies,”Astron. Astrophys.536(2011) A18,arXiv:1101.2028 [astro-ph.CO]
work page Pith review arXiv 2008
-
[26]
A. Kashlinsky, R. G. Arendt, M. L. N. Ashby, G. G. Fazio, J. Mather, and S. H. Moseley, “New measurements of the cosmic infrared background fluctuations in deep Spitzer/IRAC survey data and their cosmological implications,”Astrophys. J.753 (2012) 63,arXiv:1201.5617 [astro-ph.CO]. 26
-
[27]
Looking at cosmic near-infrared background radiation anisotropies,
A. Kashlinsky, R. G. Arendt, F. Atrio-Barandela, N. Cappelluti, A. Ferrara, and G. Hasinger, “Looking at cosmic near-infrared background radiation anisotropies,” Rev. Mod. Phys.90no. 2, (2018) 025006,arXiv:1802.07774 [astro-ph.CO]. [29]Planck HFI Core TeamCollaboration, P. A. R. Adeet al., “Planck early results: first assessment of the High Frequency Inst...
-
[28]
Acs filters and dispersers
Space Telescope Science Institute, “Acs filters and dispersers.”Exposure Time Calculator, HST Cycle 33.2 Documentation. https://etc.stsci.edu/etcstatic/users_guide/appendix_b_acs.html. Accessed: 2026-04-23
2026
-
[29]
Spectroscopic search for optical emission lines from dark matter decay,
H. Wanget al., “Spectroscopic search for optical emission lines from dark matter decay,”Phys. Rev. D110no. 10, (2024) 103007,arXiv:2311.05476 [astro-ph.CO]
-
[30]
First constraints on qcd axion dark matter using james webb space telescope observations, 2025
E. Pinetti, “First constraints on QCD axion dark matter using James Webb Space Telescope observations,”arXiv:2503.11753 [hep-ph]
-
[31]
Robust bounds on ALP dark matter from dwarf spheroidal galaxies in the optical MUSE-Faint survey,
E. Todarello, M. Regis, J. Reynoso-Cordova, M. Taoso, D. Vaz, J. Brinchmann, M. Steinmetz, and S. L. Zoutendijke, “Robust bounds on ALP dark matter from dwarf spheroidal galaxies in the optical MUSE-Faint survey,”JCAP05(2024) 043, arXiv:2307.07403 [astro-ph.CO]
-
[32]
cajohare/axionlimits: Axionlimits
C. O’Hare, “cajohare/axionlimits: Axionlimits.” https://cajohare.github.io/AxionLimits/, July, 2020
2020
-
[33]
G. G. Raffelt,Stars as laboratories for fundamental physics: The astrophysics of neutrinos, axions, and other weakly interacting particles. 5, 1996
1996
-
[34]
Cosmology and Astrophysics with the Diffuse eRASS1 X-Ray Angular Power Spectrum,
E. T. Lau, ´A. Bogd´ an, D. Nagai, N. Cappelluti, and M. Shirasaki, “Cosmology and Astrophysics with the Diffuse eRASS1 X-Ray Angular Power Spectrum,”Astrophys. J.983no. 1, (2025) 8,arXiv:2410.22397 [astro-ph.CO]
-
[35]
eROSITA Calibration Products in DR1
eROSITA-DE Consortium, “eROSITA Calibration Products in DR1.” https://erosita.mpe.mpg.de/dr1/eSASS4DR1/eSASS4DR1_arfrmf/. Accessed: 2026-04-28. 27
2026
-
[36]
Deep Search for Decaying Dark Matter with XMM-Newton Blank-Sky Observations,
J. W. Foster, M. Kongsore, C. Dessert, Y. Park, N. L. Rodd, K. Cranmer, and B. R. Safdi, “Deep Search for Decaying Dark Matter with XMM-Newton Blank-Sky Observations,”Phys. Rev. Lett.127no. 5, (2021) 051101,arXiv:2102.02207 [astro-ph.CO]
-
[37]
Almost closing theνMSM sterile neutrino dark matter window with NuSTAR,
K. Perez, K. C. Y. Ng, J. F. Beacom, C. Hersh, S. Horiuchi, and R. Krivonos, “Almost closing theνMSM sterile neutrino dark matter window with NuSTAR,”Phys. Rev. D 95no. 12, (2017) 123002,arXiv:1609.00667 [astro-ph.HE]
-
[38]
New Constraints on Sterile Neutrino Dark Matter fromN uST ARM31 Observations,
K. C. Y. Ng, B. M. Roach, K. Perez, J. F. Beacom, S. Horiuchi, R. Krivonos, and D. R. Wik, “New Constraints on Sterile Neutrino Dark Matter fromN uST ARM31 Observations,”Phys. Rev. D99(2019) 083005,arXiv:1901.01262 [astro-ph.HE]
-
[39]
Long-exposure NuSTAR constraints on decaying dark matter in the Galactic halo,
B. M. Roach, S. Rossland, K. C. Y. Ng, K. Perez, J. F. Beacom, B. W. Grefenstette, S. Horiuchi, R. Krivonos, and D. R. Wik, “Long-exposure NuSTAR constraints on decaying dark matter in the Galactic halo,”Phys. Rev. D107no. 2, (2023) 023009, arXiv:2207.04572 [astro-ph.HE]
-
[40]
Cosmological bounds on pseudo Nambu-Goldstone bosons
D. Cadamuro and J. Redondo, “Cosmological bounds on pseudo Nambu-Goldstone bosons,”JCAP02(2012) 032,arXiv:1110.2895 [hep-ph]
work page Pith review arXiv 2012
-
[41]
Detecting dark matter annihilation with CMB polarization: Signatures and experimental prospects,
N. Padmanabhan and D. P. Finkbeiner, “Detecting dark matter annihilation with CMB polarization: Signatures and experimental prospects,”Phys. Rev. D72(2005) 023508,arXiv:astro-ph/0503486
-
[42]
Effects of Dark Matter Annihilation on the Cosmic Microwave Background,
T. Kanzaki, M. Kawasaki, and K. Nakayama, “Effects of Dark Matter Annihilation on the Cosmic Microwave Background,”Prog. Theor. Phys.123(2010) 853–865, arXiv:0907.3985 [astro-ph.CO]
-
[43]
D. P. Finkbeiner, S. Galli, T. Lin, and T. R. Slatyer, “Searching for Dark Matter in the CMB: A Compact Parameterization of Energy Injection from New Physics,”Phys. Rev. D85(2012) 043522,arXiv:1109.6322 [astro-ph.CO]
-
[44]
Energy Injection And Absorption In The Cosmic Dark Ages,
T. R. Slatyer, “Energy Injection And Absorption In The Cosmic Dark Ages,”Phys. Rev. D87no. 12, (2013) 123513,arXiv:1211.0283 [astro-ph.CO]
-
[45]
CMB Constraint on Dark Matter Annihilation after Planck 2015,
M. Kawasaki, K. Nakayama, and T. Sekiguchi, “CMB Constraint on Dark Matter Annihilation after Planck 2015,”Phys. Lett. B756(2016) 212–215, arXiv:1512.08015 [astro-ph.CO]. [50]PlanckCollaboration, N. Aghanimet al., “Planck 2018 results. VI. Cosmological parameters,”Astron. Astrophys.641(2020) A6,arXiv:1807.06209 [astro-ph.CO]. [Erratum: Astron.Astrophys. 6...
-
[46]
M. Kawasaki, H. Nakatsuka, K. Nakayama, and T. Sekiguchi, “Revisiting CMB constraints on dark matter annihilation,”JCAP12no. 12, (2021) 015, arXiv:2105.08334 [astro-ph.CO]
-
[47]
Scalar field couplings to quadratic curvature and decay into gravitons,
Y. Ema, K. Mukaida, and K. Nakayama, “Scalar field couplings to quadratic curvature and decay into gravitons,”JHEP05(2022) 087,arXiv:2112.12774 [hep-ph]
-
[48]
Optical gravitational waves as signals of gravitationally-decaying particles,
A. Strumia and G. Landini, “Optical gravitational waves as signals of gravitationally-decaying particles,”JHEP04(2025) 068,arXiv:2501.09794 [hep-ph]
-
[49]
Statistics of Primordial Density Perturbations from Discrete Seed Masses,
R. J. Scherrer and E. Bertschinger, “Statistics of Primordial Density Perturbations from Discrete Seed Masses,”Astrophys. J.381(Nov., 1991) 349
1991
-
[50]
Halo Models of Large Scale Structure
A. Cooray and R. K. Sheth, “Halo Models of Large Scale Structure,”Phys. Rept.372 (2002) 1–129,arXiv:astro-ph/0206508
work page Pith review arXiv 2002
-
[51]
Large scale bias and the peak background split
R. K. Sheth and G. Tormen, “Large scale bias and the peak background split,”Mon. Not. Roy. Astron. Soc.308(1999) 119,arXiv:astro-ph/9901122
work page Pith review arXiv 1999
-
[52]
Formation of galaxies and clusters of galaxies by selfsimilar gravitational condensation,
W. H. Press and P. Schechter, “Formation of galaxies and clusters of galaxies by selfsimilar gravitational condensation,”Astrophys. J.187(1974) 425–438
1974
-
[53]
Excursion set mass functions for hierarchical Gaussian fluctuations,
J. R. Bond, S. Cole, G. Efstathiou, and N. Kaiser, “Excursion set mass functions for hierarchical Gaussian fluctuations,”Astrophys. J.379(1991) 440
1991
-
[54]
M. Maggiore and A. Riotto, “The Halo Mass Function from Excursion Set Theory. I. Gaussian fluctuations with non-Markovian dependence on the smoothing scale,” Astrophys. J.711(2010) 907–927,arXiv:0903.1249 [astro-ph.CO]
-
[55]
Using the evolution of clusters to constrain Omega,
V. R. Eke, S. Cole, and C. S. Frenk, “Using the evolution of clusters to constrain Omega,”Mon. Not. Roy. Astron. Soc.282(1996) 263–280,arXiv:astro-ph/9601088
-
[56]
Power spectra for cold dark matter and its variants,
D. J. Eisenstein and W. Hu, “Power spectra for cold dark matter and its variants,” Astrophys. J.511(1997) 5,arXiv:astro-ph/9710252
-
[57]
J. F. Navarro, C. S. Frenk, and S. D. M. White, “A Universal density profile from hierarchical clustering,”Astrophys. J.490(1997) 493–508,arXiv:astro-ph/9611107
-
[58]
Profiles of dark haloes. Evolution, scatter, and environment,
J. S. Bullock, T. S. Kolatt, Y. Sigad, R. S. Somerville, A. V. Kravtsov, A. A. Klypin, J. R. Primack, and A. Dekel, “Profiles of dark haloes. Evolution, scatter, and environment,”Mon. Not. Roy. Astron. Soc.321(2001) 559–575, arXiv:astro-ph/9908159. 29
-
[59]
A. V. Maccio’, A. A. Dutton, and F. C. v. d. Bosch, “Concentration, Spin and Shape of Dark Matter Haloes as a Function of the Cosmological Model: WMAP1, WMAP3 and WMAP5 results,”Mon. Not. Roy. Astron. Soc.391(2008) 1940–1954, arXiv:0805.1926 [astro-ph]
-
[60]
G. L. Bryan and M. L. Norman, “Statistical properties of x-ray clusters: Analytic and numerical comparisons,”Astrophys. J.495(1998) 80,arXiv:astro-ph/9710107. 30
