arxiv: 2605.00860 · v1 · submitted 2026-04-21 · ⚛️ physics.ao-ph · cs.LG

Recognition: unknown

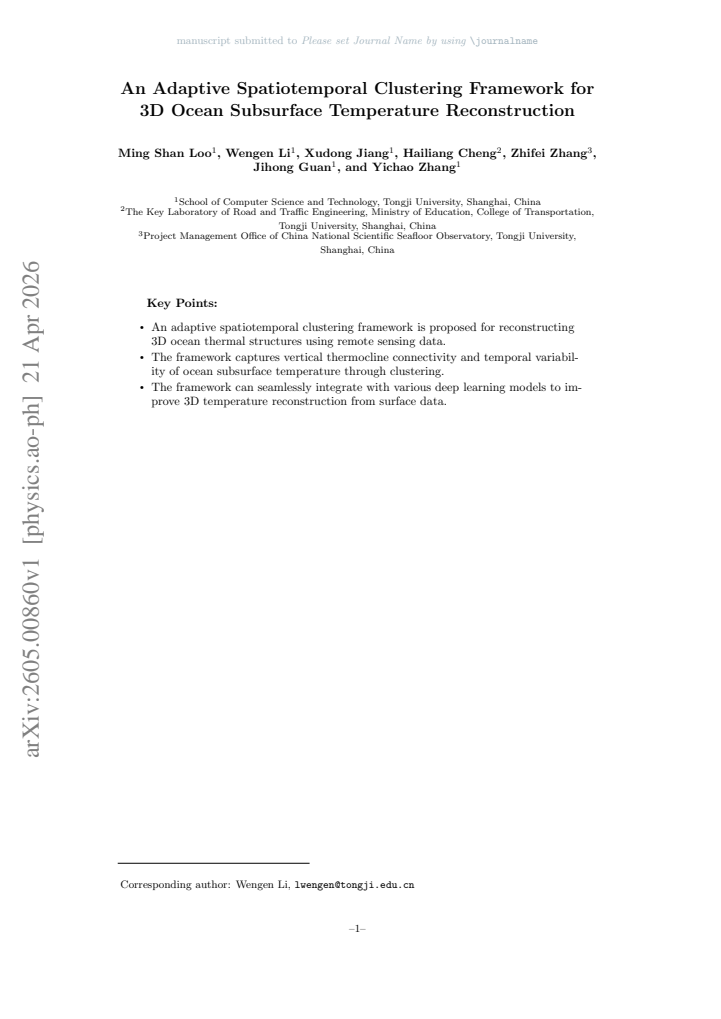

An Adaptive Spatiotemporal Clustering Framework for 3D Ocean Subsurface Temperature Reconstruction

Hailiang Cheng, Jihong Guan, Ming Shan Loo, Wengen Li, Xudong Jiang, Yichao Zhang, Zhifei Zhang

Pith reviewed 2026-05-10 01:23 UTC · model grok-4.3

classification ⚛️ physics.ao-ph cs.LG

keywords ocean subsurface temperature reconstructionspatiotemporal clusteringdeep learningsatellite remote sensing3D ocean fieldsclimate variabilitysea surface data

0 comments

The pith

An adaptive spatiotemporal clustering framework enables more accurate reconstruction of global ocean subsurface temperatures using only surface satellite data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an adaptive framework that applies spatiotemporal clustering to group ocean locations sharing similar vertical temperature structures and temporal patterns. This grouping is then used to train specialized deep learning models, including convolutional networks and vision transformers, for reconstructing three-dimensional subsurface temperature fields from surface measurements alone. The approach addresses the challenges of data scarcity and heterogeneity in ocean processes. Results from experiments show these enhanced models reduce root mean square errors by between 12.4 and 27.2 percent compared to standard versions. A reader would care because accurate subsurface temperature data supports better models of ocean circulation and climate change.

Core claim

The authors claim that incorporating an adaptive spatiotemporal clustering step into deep learning pipelines allows for the accurate global reconstruction of ocean subsurface temperature fields at depth using only sea surface temperature, salinity, height, and wind observations, with the clustering capturing the necessary vertical dependencies and temporal variations to achieve RMSE reductions of 12.4% to 27.2% across tested models such as DP-CNN, Attention U-Net, and ViT.

What carries the argument

The adaptive spatiotemporal clustering framework that partitions the global ocean into regions based on similar vertical structural dependencies and temporal variation patterns of subsurface temperature, enabling the application of region-specific deep learning models.

If this is right

The framework improves the generalization of deep learning models across global ocean scales.
Reconstructed temperature fields provide better inputs for meteorological modeling and climate change assessment.
Only surface observations are needed for full 3D reconstruction, reducing reliance on sparse subsurface measurements.
Multiple deep learning architectures benefit from the clustering approach.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the clustering proves robust, similar adaptive grouping could be applied to reconstruct other ocean variables like currents or nutrients from surface data.
The method may support higher-resolution reconstructions in data-sparse regions by leveraging pattern similarities.
Integration with real-time satellite data streams could enable dynamic updates to ocean temperature maps.

Load-bearing premise

The clustering step must reliably identify groups that share physical dependencies in temperature profiles and variations, rather than producing partitions that fail to improve model accuracy or generalization.

What would settle it

Running the deep learning models with and without the adaptive clustering on a new global dataset or in a different time period, and observing whether the reported RMSE improvements disappear or reverse, would test the central claim.

Figures

Figures reproduced from arXiv: 2605.00860 by Hailiang Cheng, Jihong Guan, Ming Shan Loo, Wengen Li, Xudong Jiang, Yichao Zhang, Zhifei Zhang.

**Figure 2.** Figure 2: Two study areas in the Indian Ocean and South China Sea, respectively. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

**Figure 3.** Figure 3: Non-uniform vertical stratification of the subsurface temperature datasets. The [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: Overview of the proposed framework which consists of two stages, i.e., spa [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

**Figure 5.** Figure 5: Comparison of reconstruction errors before and after applying the proposed [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

**Figure 6.** Figure 6: Vertical clustering results in the South China Sea. (a–b) Temperature section [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗

**Figure 7.** Figure 7: Temporal clustering results dividing the typical annual cycle into sub-periods [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

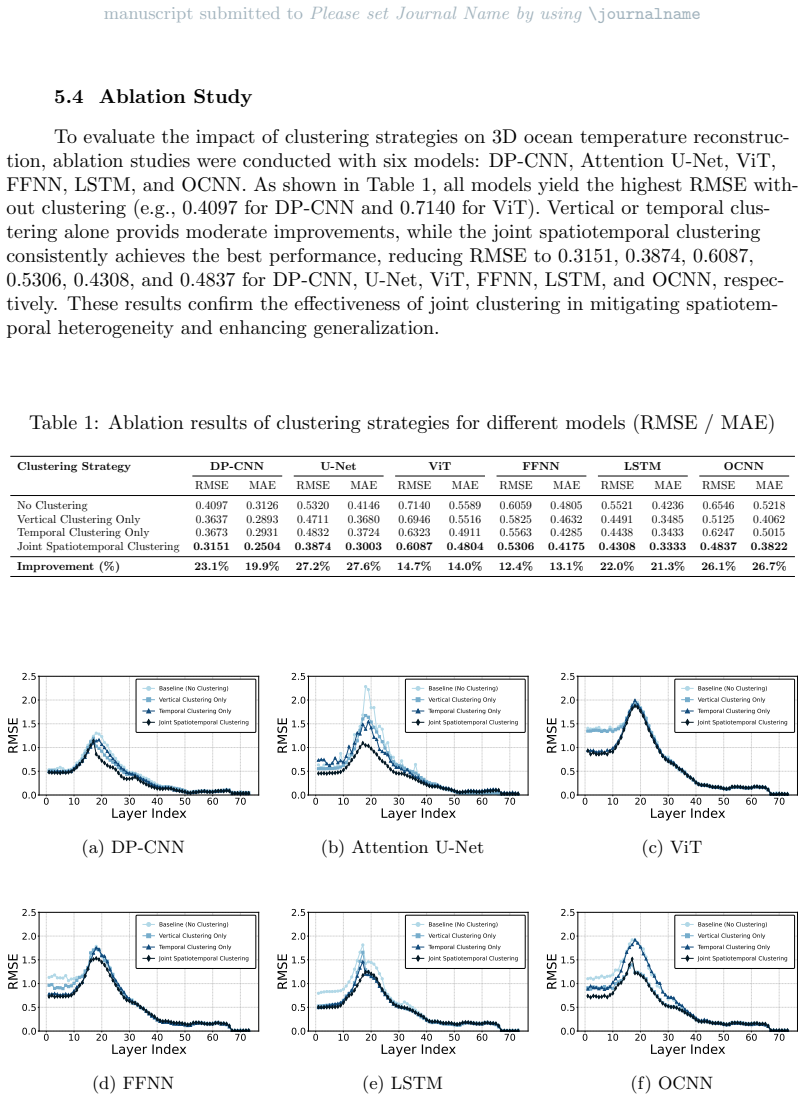

**Figure 8.** Figure 8: Layer-wise RMSE under different clustering strategies in the South China Sea. [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗

**Figure 9.** Figure 9: Vertical profiles of reconstructed temperature fields within the upper 1500 me [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗

**Figure 10.** Figure 10: Detailed comparison of reconstructed temperature fields within the upper 350 [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗

**Figure 11.** Figure 11: Absolute error distributions at depths of 50 m, 100 m, 150 m, and 200 m. [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗

read the original abstract

The reconstruction of ocean subsurface temperature (OST) using satellite remote sensing data holds significant scientific value for advancing the understanding of ocean dynamics and climate variability. However, the scarcity of subsurface observations, combined with the high degree of nonlinearity and spatiotemporal heterogeneity in subsurface processes, poses substantial challenges to the accuracy and generalization capability of traditional reconstruction methods. To address these limitations, this study proposes an adaptive framework that could capture both vertical structural dependencies and temporal variation patterns of OST via spatio-temporal clustering. By incorporating this framework with various deep learning models, e.g., dual-path convolutional neural networks (DP-CNN), Attention U-Net, and Vision Transformer (ViT), the OST field can be accurately reconstructed at a global scale only using surface observations, i.e., sea surface temperature (SST), sea surface salinity (SSS), sea surface height (SSH), and sea surface wind (SSW). Experimental results demonstrate that multiple deep learning methods using the proposed framework largely outperform their original counterparts, yielding improvements in RMSE ranging from 12.4\% to 27.2\%. This study provides a reliable solution for subsurface temperature reconstruction, offering important implications for meteorological modeling and climate change assessment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The adaptive clustering helps DL models reconstruct ocean subsurface temps better according to the abstract, but without details on the clustering process or validation, the gains are difficult to evaluate.

read the letter

The punchline is that this work combines adaptive spatiotemporal clustering with several deep learning architectures to reconstruct global ocean subsurface temperature fields from surface measurements, claiming RMSE improvements of 12.4 to 27.2 percent over the baseline models. What the paper does is take the challenge of nonlinear and heterogeneous subsurface processes and propose clustering to group similar vertical and temporal patterns. Then it applies this to DP-CNN, Attention U-Net, and ViT. Showing consistent gains across these different models is a reasonable way to demonstrate that the framework adds value. The focus on using only SST, SSS, SSH, and SSW for global reconstruction is practical for areas where in-situ data is limited. The paper does well in identifying a clear application area and testing the idea on multiple networks rather than just one. The soft spots center on the experimental validation. The abstract states the improvements but provides no information about the underlying data, how the adaptive clustering is implemented in practice, the splitting of data for training and testing, or any measures of uncertainty. This makes it impossible to assess if the results are robust. The stress-test note points to a potential issue with data leakage if the clustering step uses information from the full dataset, including periods or locations that should be held out. In spatiotemporal settings like this, that is a common pitfall, and if the paper does not explicitly avoid it by computing clusters only on training data, the generalization claims would be weakened. Since no equations or formal derivations are highlighted, the contribution is empirical, so the evidence needs to be solid. This paper would appeal to researchers working on ocean remote sensing, climate data assimilation, and machine learning applications in geosciences. A reader interested in improving reconstruction accuracy for subsurface variables could find the framework adaptable to their own problems. It is worth sending to peer review. The core idea is straightforward enough that referees can provide targeted feedback on the methods and results sections, which appear to be the main areas needing more detail. Even with the current limitations in the abstract, the work has enough substance to benefit from external review rather than being rejected outright.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes an adaptive spatiotemporal clustering framework to capture vertical structural dependencies and temporal variation patterns of ocean subsurface temperature (OST). The framework is combined with deep learning models (DP-CNN, Attention U-Net, ViT) to reconstruct global 3D OST fields from surface observations (SST, SSS, SSH, SSW) only, with experimental results claiming RMSE improvements of 12.4% to 27.2% over the baseline models.

Significance. If the reported gains prove robust and free of leakage, the framework would offer a practical way to improve accuracy and generalization in subsurface ocean temperature reconstruction, directly supporting better ocean dynamics understanding and climate variability studies. The integration of clustering with multiple DL architectures is a strength that could be adopted more broadly if the validation is rigorous.

major comments (2)

[Results / Experimental validation] The central empirical claim (RMSE gains of 12.4–27.2%) is presented without any description of data sources, temporal/spatial train-test splits, cross-validation procedure, error bars, or statistical significance testing. This absence leaves the headline result unverifiable and directly undermines the generalization claims across global scales.
[Methods / Clustering framework] The adaptive clustering step (described in the methods) risks data leakage if cluster centroids or assignments are derived from the full observation record rather than training data alone. In spatiotemporal reconstruction, using test-period surface fields or subsurface truth to form clusters would provide indirect supervision unavailable at inference, invalidating the reported improvements in generalization.

minor comments (1)

[Abstract] The abstract uses tentative language ('could capture') that should be aligned with the strength of the reported results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments highlight important aspects of experimental rigor and methodological transparency that we will address in the revision. Below we respond point by point to the major comments.

read point-by-point responses

Referee: [Results / Experimental validation] The central empirical claim (RMSE gains of 12.4–27.2%) is presented without any description of data sources, temporal/spatial train-test splits, cross-validation procedure, error bars, or statistical significance testing. This absence leaves the headline result unverifiable and directly undermines the generalization claims across global scales.

Authors: We agree that the initial manuscript did not provide sufficient detail on the experimental protocol, which is necessary for reproducibility and verification of the reported gains. In the revised version we will add a dedicated subsection in Methods describing: (i) exact data sources (EN4 subsurface temperature profiles, AVHRR SST, SMOS SSS, AVISO SSH, and ERA5 SSW, all interpolated to a common 1° grid); (ii) the temporal split (training 1993–2015, validation 2016–2018, test 2019–2020) together with spatial hold-out regions; (iii) the 5-fold temporal cross-validation procedure used to respect autocorrelation; (iv) error bars as standard deviation across the five folds; and (v) paired t-test p-values confirming statistical significance of the 12.4–27.2 % RMSE reductions relative to the baseline models. These additions will make the headline results fully verifiable. revision: yes
Referee: [Methods / Clustering framework] The adaptive clustering step (described in the methods) risks data leakage if cluster centroids or assignments are derived from the full observation record rather than training data alone. In spatiotemporal reconstruction, using test-period surface fields or subsurface truth to form clusters would provide indirect supervision unavailable at inference, invalidating the reported improvements in generalization.

Authors: We share the referee’s concern about data leakage in spatiotemporal settings. Our adaptive clustering is performed strictly on the training partition: cluster centroids are computed from training-set surface and (where available) subsurface fields only, and test samples are assigned to the nearest pre-computed training centroid using a distance metric that does not incorporate any test-period information. No subsurface truth from the test period is ever used. We will revise the Methods section to state this separation explicitly, add pseudocode that isolates the clustering step to the training phase, and include a short paragraph confirming that inference-time clustering uses only the fixed training centroids. This clarification will demonstrate that the reported generalization improvements remain valid. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results from clustering + DL pipeline

full rationale

The paper describes an adaptive spatiotemporal clustering step followed by per-cluster training of DP-CNN, Attention U-Net, and ViT models, with performance reported as empirical RMSE gains on held-out data. No equations, first-principles derivations, or 'predictions' are presented that reduce by construction to fitted inputs or self-citations. The central claim rests on experimental comparisons rather than any self-definitional or fitted-input-called-prediction structure. Clustering details and data partitioning are methodological choices whose validity is external to any internal reduction; the reported improvements are framed as measured outcomes, not tautological outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on the domain assumption that surface variables contain sufficient information for subsurface reconstruction and that clustering can isolate meaningful spatiotemporal regimes; no free parameters or invented entities are explicitly named in the abstract.

axioms (2)

domain assumption Surface observations (SST, SSS, SSH, SSW) contain sufficient information to reconstruct subsurface temperature fields via learned mappings.
This is the core premise enabling the use of only satellite surface data for 3D reconstruction.
domain assumption Spatio-temporal heterogeneity in OST can be effectively partitioned by adaptive clustering to improve model performance.
Invoked to justify the clustering framework as a solution to nonlinearity and heterogeneity.
