ProMoTA: a model-driven framework for end-to-end traceability analysis

Sadaf Mustafiz , Marko Mijalkovic , Moharram Challenger

Authors on Pith no claims yet

Pith reviewed 2026-05-09 18:55 UTC · model grok-4.3

classification 💻 cs.SE

keywords model-driven engineeringend-to-end traceabilityprocess modelingmegamodelsAcceleotraceability analysisMDE workflowsmodel transformations

0 comments

The pith

ProMoTA generates end-to-end traceability information to enable global model traceability from high-level models to generated code.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces ProMoTA as a framework that integrates process modeling with traceability in model-driven engineering. Process models describe MDE workflows covering platform-independent modeling, platform-specific modeling, and code generation. Execution is automated using megamodels and transformation chains, with extensions to Acceleo for local traceability. The result is a global traceability map that supports analysis across the full chain. A reader would care because it provides visibility into how abstract models become concrete code in complex systems like IoT applications.

Core claim

The generation of end-to-end traceability information enables global model traceability, from high-level input models to generated code, forming the basis for traceability analysis. ProMoTA is an Eclipse-based framework that extends the Acceleo model transformation language with local traceability support, includes a global traceability map generator and end-to-end traceability analysis modules, and is demonstrated with a Wireless Sensor Network-Based IoT application.

What carries the argument

Megamodel-driven process execution combined with local traceability extensions to Acceleo that produce a global traceability map for analysis.

Load-bearing premise

The selected process models must accurately reflect actual MDE workflows from PIM to PSM to code, and the combination of megamodel execution with local traceability extensions must yield complete and consistent global links.

What would settle it

Finding missing or incorrect traceability links in the output for the demonstrated IoT application would show that the end-to-end generation does not produce reliable global traceability.

Figures

Figures reproduced from arXiv: 2605.01042 by Marko Mijalkovic, Moharram Challenger, Sadaf Mustafiz.

**Figure 1.** Figure 1: Sample process model. using traditional methods, such as manual processes or paper-based processes. Process models can be created via UML 2.0 Activity Diagrams (Obj, 2015a). These diagrams have become a preferred choice in modelling business and software procedures due to their versatility and robustness. They offer the capability to concurrently model multiple processes while also efficiently managing… view at source ↗

**Figure 2.** Figure 2: Architecture of the ProMoTA framework [Adapted from ( view at source ↗

**Figure 3.** Figure 3: Overview of the ProMoTA approach. cess models, transformations, and trace models. All of these elements are connected through the megamodel, and the different elements can be used in combination to enact and analyze process models view at source ↗

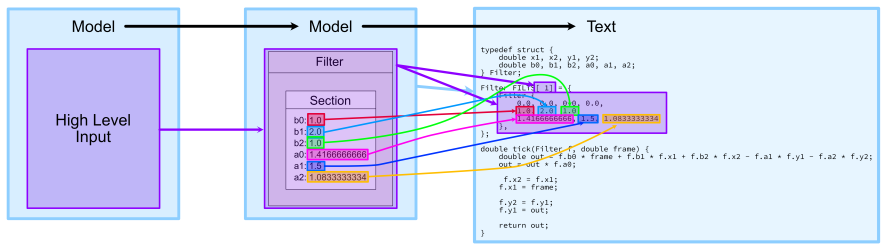

**Figure 4.** Figure 4: Sample traceability diagram. code. 4.2.1 Augmenting loops Loops are a common construct in Acceleo transformations. They are used to iterate over a collection of elements and generate output for each element. Each loop iteration generates a traceable element in the target model. To generate traceability information for these elements, we augment the loop construct with a traceability annotation, which ta… view at source ↗

**Figure 6.** Figure 6: Trace identifier tree. of a root node and a series of child nodes that represent each segment of the identifier path. Each child node represents a structural element in the source model, such as a class or element. The child nodes are linked together to form a tree structure, where each node represents a level in the identifier path. For example, consider the identifier path we used earlier: filters[0].se… view at source ↗

**Figure 5.** Figure 5: ProMoTA local trace metamodel. After generating identifier paths and traceability annotations in the transformed code, we can extract this information into a separate trace model. Extracting this information allows us to construct a more formal and complete traceability map that links all model elements to their corresponding code artefacts. We can then use this trace model to perform various analysis … view at source ↗

**Figure 7.** Figure 7: ProMoTA megamodel metamodel. trace files through their URIs rather than containing the trace data directly. These are stored as Resources in the megamodel. This URI-based approach keeps the megamodel lightweight while preserving full accessibility to traceability information. The Global Trace Map is constructed dynamically during process enactment. ProMoTA reads the process model to determine transformat… view at source ↗

**Figure 8.** Figure 8: Process model of WSN-IoT application development. view at source ↗

**Figure 9.** Figure 9: WSN-based IoT application: post-enactment megamodel (purple parallelograms view at source ↗

**Figure 10.** Figure 10: WSN-based IoT application: Global Trace Map (GTM). view at source ↗

**Figure 11.** Figure 11: WSN-based IoT application: slice of the Global Trace Map. view at source ↗

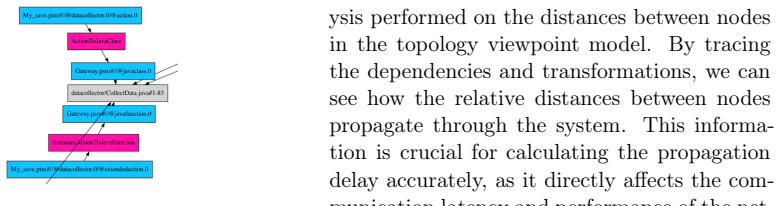

**Figure 12.** Figure 12: Excerpt from global trace map showing gateway-related traceability links. 1 Input . pim :/ indirect /#0/ indirectdevice /#0 2 = > ... PSMM : Platform // 3 == > ... Sink .c :1:181 view at source ↗

**Figure 13.** Figure 13: WSN-Based IoT system application: change impact analysis. in IP address allocation. With continuous traceability and analyzability, stakeholders can effectively manage change impact and maintain the integrity of the network configuration, reducing the risk of connectivity issues and enhancing the overall system performance. 6.3 Origin tracking analysis Propagation delay is a critical parameter that aff… view at source ↗

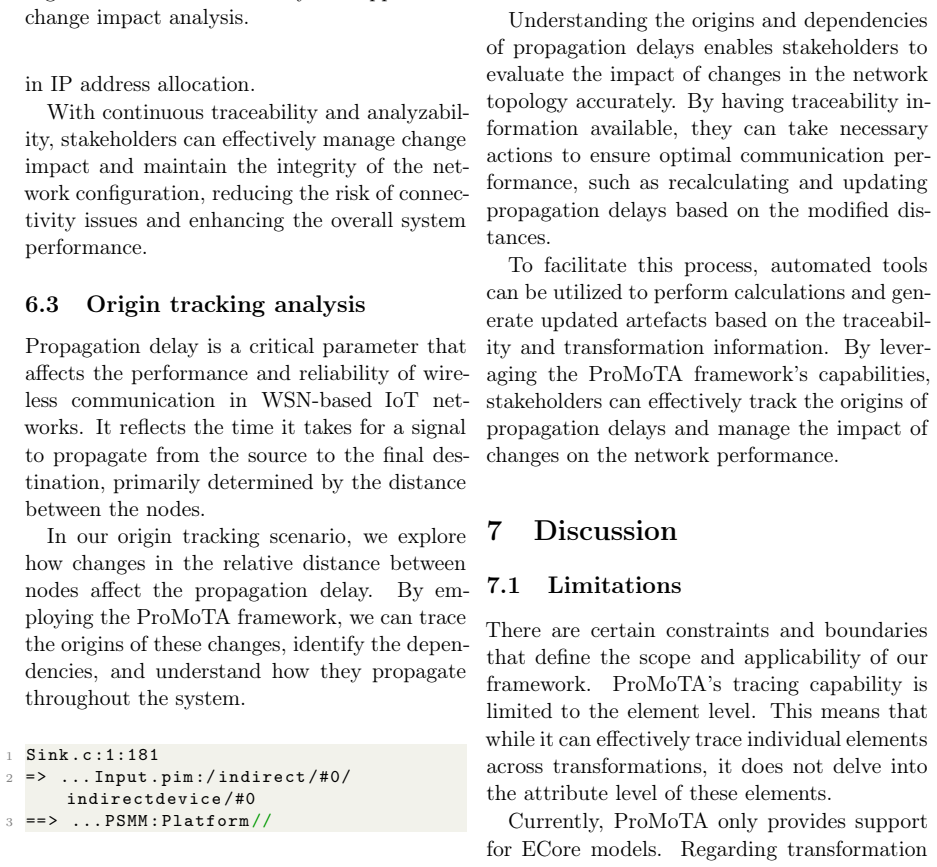

**Figure 14.** Figure 14: WSN-Based IoT system application: origin tracking analysis view at source ↗

read the original abstract

In this paper, we propose an approach that integrates end-to-end traceability with process modelling. OurprocessmodelsrepresentMDEworkflowsthatspan platform-independent-modelling, platform-specificmodelling, andcodegenerationphases. Processexecutionisautomated using megamodels and model transformation chains. The generation of end-to-end traceability information enables global model traceability, from high-level input models to generated code, forming the basis for traceability analysis. We have built an Eclipse-based framework, ProMoTA, to support our approach. ProMoTA extends the Acceleo model transformation language, introducing local traceability support. It also includes a global traceability map generator and end-to-end traceability analysis modules, providing users with a holistic view of the entire transformation process. Our framework is demonstrated with the use of a Wireless Sensor Network-Based IoT application.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ProMoTA adds local traceability to Acceleo plus a global map generator for MDE chains, but the completeness claim rests on one untested demo.

read the letter

The main takeaway is that this paper delivers a concrete Eclipse framework called ProMoTA that extends Acceleo with local traceability support and adds a global traceability map generator driven by megamodels. It ties process models for PIM-to-PSM-to-code workflows directly to end-to-end link generation and shows the result on a Wireless Sensor Network IoT example. That combination is the actual new piece: a packaged tool rather than another abstract traceability idea. The architecture description is clear enough that someone could replicate the local-to-global aggregation step. The demonstration walks through the full chain without obvious gaps in the reported output, which is the kind of practical detail that tool papers sometimes skip. The work is aimed at MDE researchers and tool builders who already use Acceleo or similar transformation languages and need traceability for maintenance or compliance. A reader looking for implementation patterns or a starting point for similar extensions would get usable material from the framework modules and the megamodel execution approach. The soft spot is the evaluation. Everything rests on a single application with no counts of generated links, no check for missed mappings under conditional or many-to-one transformations, and no comparison to manual tracing or other MDE traceability tools. The assumption that the chosen process models plus the map generator will always produce complete, consistent global links is asserted by construction but not independently verified. That makes the central claim only partially evidenced. The paper shows clear thinking about how to integrate process modeling with traceability and engages honestly with the practical constraints of transformation chains. It is coherent on its own terms. I would bring it to a reading group to discuss how tool papers should demonstrate link quality. It deserves peer review because it ships a working artifact with a demonstration, even if revisions would need to address the validation gap.

Referee Report

2 major / 2 minor

Summary. The paper presents ProMoTA, an Eclipse-based framework that integrates end-to-end traceability with process modeling for MDE workflows spanning PIM, PSM, and code generation phases. Process execution is automated via megamodels and model transformation chains; local traceability extensions to Acceleo are combined with a global traceability map generator and analysis modules to provide a holistic view from high-level input models to generated code. The approach is illustrated through a demonstration on a Wireless Sensor Network-based IoT application.

Significance. If the completeness and correctness claims hold, ProMoTA would provide a practical, integrated solution to the longstanding challenge of maintaining end-to-end traceability in model-driven engineering, particularly valuable for complex domains such as IoT. The concrete construction of the framework, including the Acceleo extensions and megamodel-driven execution, represents a tangible engineering contribution that could be adopted by practitioners. The single demonstration supplies initial evidence of feasibility, though the absence of quantitative metrics or comparative evaluation limits the assessed impact to a proof-of-concept level.

major comments (2)

[§5] §5 (Demonstration): The WSN-IoT case study illustrates successful generation of traceability links but reports no quantitative metrics (e.g., precision, recall, or completeness ratio), error analysis, or comparison against existing traceability tools or baselines, leaving the central claim of holistic, complete end-to-end traceability only partially evidenced.
[§3] §3 (Approach): The global traceability map generator is described as producing complete links by construction from local Acceleo traces and megamodel execution, yet no formal semantics, enumeration of transformation patterns (e.g., many-to-one mappings, conditional branches), or independent verification is provided to rule out omissions or inconsistencies.

minor comments (2)

[Abstract] Abstract: Concatenated words without spaces appear (e.g., 'OurprocessmodelsrepresentMDEworkflowsthatspan', 'platform-specificmodelling, andcodegenerationphases'); these should be corrected for readability.
[Throughout] Throughout: Terminology for megamodels, PIM/PSM phases, and traceability map components should be defined consistently on first use; additional implementation details on the end-to-end traceability analysis modules would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the opportunity to respond to the referee's report. We address the major comments point by point and outline the revisions we intend to make to strengthen the manuscript.

read point-by-point responses

Referee: [§5] §5 (Demonstration): The WSN-IoT case study illustrates successful generation of traceability links but reports no quantitative metrics (e.g., precision, recall, or completeness ratio), error analysis, or comparison against existing traceability tools or baselines, leaving the central claim of holistic, complete end-to-end traceability only partially evidenced.

Authors: We acknowledge that the demonstration section would be strengthened by the inclusion of quantitative metrics and comparisons. In the revised manuscript, we will add quantitative data from the case study, such as the total number of traceability links generated across the transformation chain, the distribution of link types, and a manual inspection for completeness in a subset of the generated artifacts. We will also include a brief comparison with existing traceability approaches in the related work section, highlighting the unique integration with process modeling. However, a full comparative evaluation with baselines would require additional experiments that are outside the current scope but will be noted as future work. revision: partial
Referee: [§3] §3 (Approach): The global traceability map generator is described as producing complete links by construction from local Acceleo traces and megamodel execution, yet no formal semantics, enumeration of transformation patterns (e.g., many-to-one mappings, conditional branches), or independent verification is provided to rule out omissions or inconsistencies.

Authors: We agree that additional details on the construction of the global traceability map would enhance the rigor of the approach description. In the revision, we will expand §3 to include an enumeration of the supported transformation patterns, with examples of many-to-one mappings and conditional branches as handled by our Acceleo extensions. We will also provide a more detailed explanation of how completeness is ensured by the composition rules derived from the megamodel. While a complete formal semantics is not provided in the current version due to the engineering focus of the paper, we will include an informal proof sketch based on the inductive construction of the map. Independent verification will be facilitated by making the ProMoTA framework available as open source upon acceptance. revision: yes

Circularity Check

0 steps flagged

No circularity: framework construction without derivation chain or self-referential reduction

full rationale

The paper presents the design, implementation, and demonstration of the ProMoTA Eclipse-based framework for integrating end-to-end traceability into MDE process models via megamodels and Acceleo extensions. No mathematical derivations, equations, fitted parameters, or predictions are claimed. Core assertions (e.g., generation of global traceability links from PIM/PSM to code) are supported directly by the tool's construction and a single WSN-IoT example, without reducing to tautological inputs or load-bearing self-citations. The approach is self-contained as an engineering artifact; completeness is asserted via the implemented components rather than derived from prior outputs of the same work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on standard assumptions of the MDE community rather than new postulates; the framework itself is the primary invented artifact.

axioms (1)

domain assumption MDE workflows can be faithfully represented as executable process models using megamodels and transformation chains
Invoked when the paper states that process execution is automated using megamodels and model transformation chains.

invented entities (1)

ProMoTA framework no independent evidence
purpose: To provide local traceability support in Acceleo, global traceability map generation, and end-to-end analysis modules
New software artifact introduced by the authors to realize the proposed integration.
