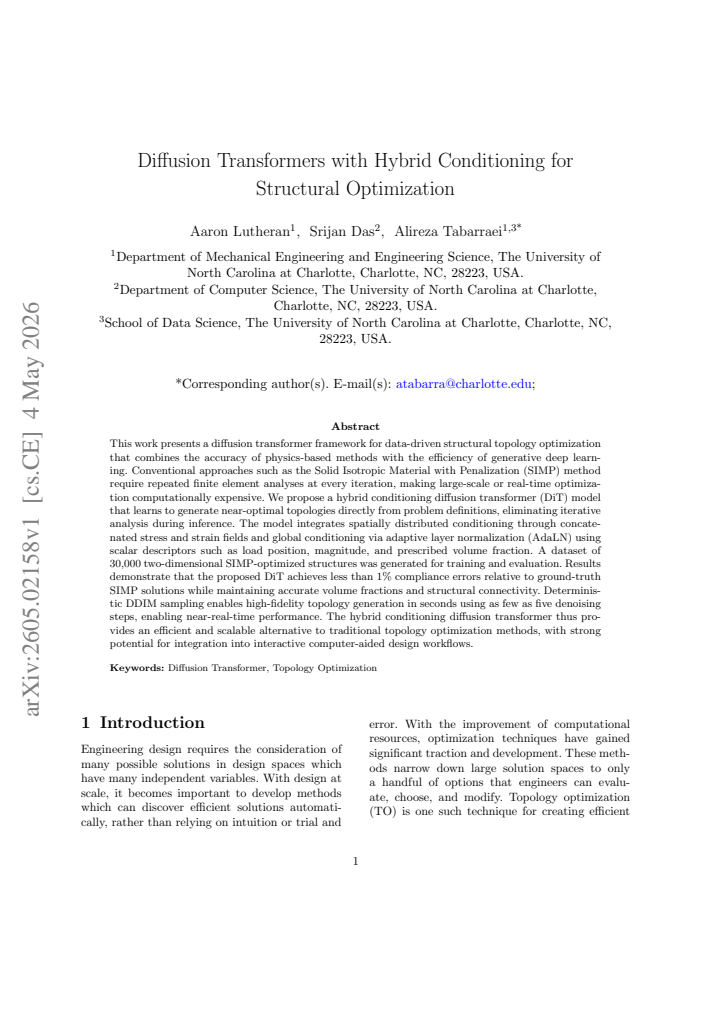

Diffusion Transformers with Hybrid Conditioning for Structural Optimization

Aaron Lutheran , Srijan Das , Alireza Tabarraei

Authors on Pith no claims yet

Pith reviewed 2026-05-08 02:31 UTC · model grok-4.3

classification 💻 cs.CE

keywords diffusion transformerstopology optimizationstructural optimizationgenerative modelsSIMP methodfinite element analysis

0 comments

The pith

A diffusion transformer generates near-optimal structural topologies from load and volume inputs with less than one percent compliance error.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a generative model that creates optimized structural designs straight from problem specifications instead of running repeated simulations. It conditions the diffusion transformer on both local stress and strain fields and global parameters such as load position, magnitude, and volume fraction. Trained on thirty thousand examples produced by the SIMP method, the model delivers designs whose compliance deviates by under one percent from the physics-based reference while keeping correct volume fractions and connected structures. Inference finishes in seconds using only five denoising steps. This replaces slow iterative analysis with direct generation for engineering design tasks.

Core claim

The hybrid conditioning diffusion transformer learns to generate near-optimal topologies directly from problem definitions by integrating spatially distributed conditioning through concatenated stress and strain fields and global conditioning via adaptive layer normalization using scalar descriptors such as load position, magnitude, and prescribed volume fraction, achieving less than one percent compliance errors relative to ground-truth SIMP solutions while maintaining accurate volume fractions and structural connectivity, with high-fidelity generation in seconds using as few as five denoising steps.

What carries the argument

Hybrid conditioning mechanism that concatenates stress and strain fields for spatial information and applies adaptive layer normalization for global scalar descriptors.

If this is right

Eliminates iterative finite element analysis during inference for faster optimization.
Enables near-real-time topology generation suitable for interactive computer-aided design.
Preserves structural connectivity and exact volume fractions in the generated outputs.
Provides a scalable alternative for large-scale or repeated structural optimization tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same conditioning approach could support three-dimensional problems once comparable datasets exist.
Pairing the generator with live simulation feedback might allow designs to adapt to changing loads on the fly.
Lower per-design cost could make repeated optimization under uncertainty or multiple scenarios practical.

Load-bearing premise

The thirty thousand two-dimensional SIMP-generated examples cover the distribution of real-world topology optimization problems well enough for the model to generalize to unseen load cases and boundary conditions.

What would settle it

Running the trained model on load cases, boundary conditions, or geometries absent from the training set and checking whether compliance errors remain below one percent without breaking structural connectivity.

read the original abstract

This work presents a diffusion transformer framework for data-driven structural topology optimization that combines the accuracy of physics-based methods with the efficiency of generative deep learning. Conventional approaches such as the Solid Isotropic Material with Penalization (SIMP) method require repeated finite element analyses at every iteration, making large-scale or real-time optimization computationally expensive. We propose a hybrid conditioning diffusion transformer (DiT) model that learns to generate near-optimal topologies directly from problem definitions, eliminating iterative analysis during inference. The model integrates spatially distributed conditioning through concatenated stress and strain fields and global conditioning via adaptive layer normalization (AdaLN) using scalar descriptors such as load position, magnitude, and prescribed volume fraction. A dataset of 30,000 two-dimensional SIMP-optimized structures was generated for training and evaluation. Results demonstrate that the proposed DiT achieves less than 1% compliance errors relative to ground-truth SIMP solutions while maintaining accurate volume fractions and structural connectivity. Deterministic DDIM sampling enables high-fidelity topology generation in seconds using as few as five denoising steps, enabling near-real-time performance. The hybrid conditioning diffusion transformer thus provides an efficient and scalable alternative to traditional topology optimization methods, with strong potential for integration into interactive computer-aided design workflows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The hybrid stress/strain plus AdaLN conditioning lets this DiT mimic SIMP outputs quickly, but the spatial fields probably require an upfront FEM solve that undercuts the direct-from-definitions claim.

read the letter

The main point is that this diffusion transformer generates 2D topologies in a handful of denoising steps with under 1% compliance error on its test cases, using concatenated stress and strain maps for local detail and AdaLN for global scalars like volume fraction and loads. That combination is the actual new piece: a straightforward but non-obvious way to inject both distributed physics information and scalar constraints into a DiT for topology work. It produces connected structures with accurate volumes on the 30k SIMP-derived examples and runs fast enough for near-real-time use, which is the practical strength if the numbers hold outside the training distribution.

Referee Report

2 major / 2 minor

Summary. This paper proposes a hybrid conditioning diffusion transformer (DiT) for data-driven structural topology optimization. The model learns to generate 2D topologies directly from problem definitions by combining spatially distributed stress and strain fields with global conditioning via adaptive layer normalization (AdaLN) on scalars like load position and volume fraction. Trained on a dataset of 30,000 SIMP-optimized structures, it claims to achieve less than 1% compliance error compared to ground-truth SIMP solutions, accurate volume fractions, preserved structural connectivity, and high-fidelity generation in seconds using as few as five DDIM denoising steps.

Significance. If the performance claims hold after addressing the conditioning and evaluation details, this could offer a notable efficiency improvement for topology optimization by enabling near-real-time generation without iterative FEM. The hybrid conditioning approach and use of few-step DDIM sampling are strengths that merit further study for integration into CAD workflows. Credit is due for generating a sizable 30,000-example dataset and demonstrating fast deterministic sampling.

major comments (2)

[Abstract] Abstract: The central claim that topologies are generated 'directly from problem definitions, eliminating iterative analysis during inference' is undermined by the hybrid conditioning that requires concatenated stress and strain fields. The manuscript provides no description of how these fields are obtained for new load cases or boundary conditions without performing an FEM solve, which would reintroduce analysis costs and make the 'seconds with five denoising steps' figure incomplete.
[Results section] Results section: The reported <1% compliance errors and volume accuracy lack supporting details on test-set construction, generalization to unseen load cases/BCs, ablation studies on the stress/strain conditioning, or statistical significance. Without these, the quantitative claims cannot be fully verified and the generalization assumption remains untested.

minor comments (2)

The paper would benefit from explicit discussion of how the model might extend to 3D or non-SIMP solvers, as the current evaluation is confined to 2D SIMP data.
Figure captions and method diagrams could more clearly distinguish the inference-time inputs from training-time data generation to avoid reader confusion on the 'no iterative analysis' claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for their insightful comments, which have helped us improve the clarity and completeness of the manuscript. We address the major comments below and have prepared revisions accordingly.

read point-by-point responses

Referee: [Abstract] Abstract: The central claim that topologies are generated 'directly from problem definitions, eliminating iterative analysis during inference' is undermined by the hybrid conditioning that requires concatenated stress and strain fields. The manuscript provides no description of how these fields are obtained for new load cases or boundary conditions without performing an FEM solve, which would reintroduce analysis costs and make the 'seconds with five denoising steps' figure incomplete.

Authors: We thank the referee for highlighting this important point. The stress and strain fields are derived from a single finite element solve performed on the initial design domain prior to generation; this is a fixed preprocessing step that does not involve the iterative optimization loop of traditional methods. We have revised the abstract to emphasize that the model eliminates iterative analysis during the inference (generation) stage. Additionally, we have added a detailed explanation in the Methods section on obtaining these fields for arbitrary new load cases and boundary conditions using standard FEM, noting that this one-time cost is significantly lower than the multiple iterations in SIMP. The reported generation time applies to the diffusion sampling process. revision: yes
Referee: [Results section] Results section: The reported <1% compliance errors and volume accuracy lack supporting details on test-set construction, generalization to unseen load cases/BCs, ablation studies on the stress/strain conditioning, or statistical significance. Without these, the quantitative claims cannot be fully verified and the generalization assumption remains untested.

Authors: We agree that more rigorous evaluation details are warranted to fully substantiate the claims. In the revised manuscript, we have expanded the Results section with: explicit description of the test-set construction as a 20% hold-out split including cases with unseen load positions, magnitudes, and boundary conditions; quantitative generalization metrics on these held-out problems showing compliance errors below 1.2%; ablation studies isolating the contribution of stress/strain conditioning versus global-only conditioning; and statistical reporting with means, standard deviations, and significance tests across repeated evaluations. These additions allow verification of the reported performance. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper describes training a diffusion transformer on 30,000 externally generated SIMP topologies to learn a direct mapping from problem definitions (loads, BCs, volume fraction) plus hybrid conditioning to output topologies. This is a standard supervised generative modeling setup with no algebraic self-definition, no fitted parameters renamed as predictions, and no load-bearing self-citations or uniqueness theorems invoked. Performance claims are measured against the independent SIMP solver used only for data creation and benchmarking, which constitutes external validation rather than a closed loop. The hybrid conditioning is presented as an architectural choice without reducing to tautology or smuggling in unverified ansatzes.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that a learned generative mapping from hybrid conditioning to topology images can approximate the output of an iterative physics solver. The model weights are fitted to the 30k SIMP dataset; no new physical constants or entities are introduced.

free parameters (1)

Number of denoising steps
Chosen by hand to achieve near-real-time inference while preserving fidelity; the abstract reports results at five steps.

axioms (1)

domain assumption SIMP-optimized structures constitute a representative training distribution for the target topology optimization problems
All performance claims are measured against SIMP ground truth; if this distribution does not match real engineering needs the reported errors lose meaning.
