UnGAP: Uncertainty-Guided Affine Prompting for Real-Time Crack Segmentation

Conghui Li , Huanyu He , Xin Wang , Weiyao Lin , Chern Hong Lim

Authors on Pith no claims yet

Pith reviewed 2026-05-08 19:09 UTC · model grok-4.3

classification 💻 cs.CV

keywords crack segmentationaleatoric uncertaintyaffine promptingreal-time inferencefeature modulationstructural health monitoringboundary detectionheteroscedastic modeling

0 comments

The pith

Treating aleatoric uncertainty as an active prompt via pixel-wise affine transformations closes the loop to improve real-time crack segmentation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that uncertainty estimation can actively refine features instead of serving only as a passive output. This matters because crack images contain local ambiguities from lighting, blur, and texture that cause standard models to underfit difficult boundaries, while typical uncertainty approaches worsen the problem by attenuating gradients on high-variance pixels. The core mechanism turns predicted variance into a guiding signal for targeted feature adjustments, allowing the model to strengthen learning exactly where it is needed most. If this holds, segmentation improves on ambiguous regions while preserving the speed required for practical monitoring.

Core claim

UnGAP builds a closed-loop system in which the Uncertainty-Prompted Feature Modulator treats aleatoric uncertainty as an active visual prompt and applies pixel-wise affine transformations to dynamically calibrate feature distributions, converting the gradient-suppression effect of high variance into a constructive rectification signal for ambiguous crack regions, with an added boundary-aware detection head to tighten prediction precision.

What carries the argument

The Uncertainty-Prompted Feature Modulator (UPFM), which uses predicted uncertainty to drive pixel-wise affine transformations that recalibrate features and reverse the heteroscedastic optimization pathology.

If this is right

Segmentation accuracy rises on complex crack boundaries while inference speed stays real-time.
Uncertainty shifts from a passive post-hoc metric to an integrated calibration tool inside the network.
The boundary-aware detection head adds explicit constraints that tighten edge predictions.
The closed-loop design directly counters the tendency of high-variance pixels to be ignored during training.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same uncertainty-to-affine modulation pattern could be tested on other tasks that rely on fine local gradients rather than global context.
Combining the modulator with video inputs might enable continuous crack tracking across frames without extra post-processing.
The approach may reduce reliance on heavy data augmentation by internally emphasizing hard examples through variance signals.

Load-bearing premise

High predicted variance can be turned into a reliable constructive signal for feature rectification through affine modulation without introducing artifacts or instability.

What would settle it

An ablation that disables the uncertainty-guided affine modulation and measures whether boundary precision drops specifically on high-variance pixels while overall speed remains unchanged.

Figures

Figures reproduced from arXiv: 2605.02380 by Chern Hong Lim, Conghui Li, Huanyu He, Weiyao Lin, Xin Wang.

**Figure 1.** Figure 1: Comparison of predicted heat map between UnGAP (Ours) and stochastic segmentation methods view at source ↗

**Figure 2.** Figure 2: Contrasting the importance of global context vs. local features. For conventional object recognition view at source ↗

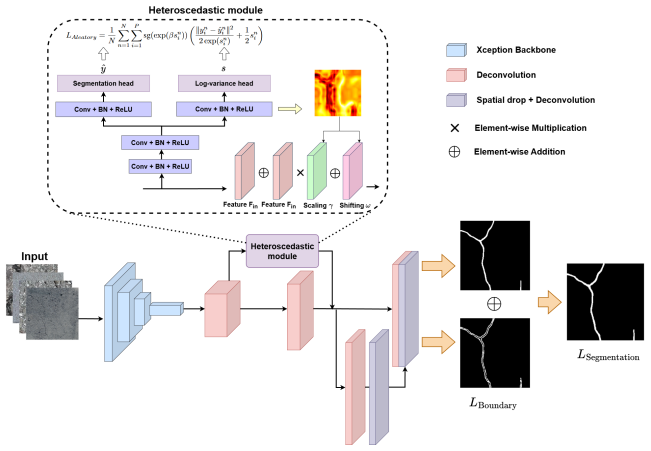

**Figure 3.** Figure 3: Overview of the proposed UnGAP architecture. The framework employs an Xception-based view at source ↗

**Figure 4.** Figure 4: Visual comparison of segmentation results on the crackvision12k dataset. The rows display di view at source ↗

**Figure 5.** Figure 5: Comparison of uncertainty behaviors between the Closed-loop (Ours) and Open-loop settings. view at source ↗

read the original abstract

Real-time crack segmentation is vital for structural health monitoring but is plagued by aleatoric uncertainties arising from varying lighting, blur, and texture ambiguity. Current uncertainty-aware approaches typically treat uncertainty estimation as a passive endpoint for post-hoc analysis, failing to close the loop by feeding this information back to refine feature representations. We contend that independent pixel-wise heteroscedastic modeling is uniquely suited for crack segmentation, as cracks are defined by fine-grained local gradients rather than the global semantic coherence relied upon in general object segmentation. However, this approach suffers from a structural optimization pathology: high predicted variance attenuates loss gradients, effectively causing the model to ignore difficult samples and under-fit complex boundaries. To address these challenges, we propose UnGAP, a novel framework that establishes a closed-loop mechanism between uncertainty estimation and feature learning. Central to our approach is the Uncertainty-Prompted Feature Modulator (UPFM), which treats aleatoric uncertainty as an active visual prompt rather than a mere output. UPFM dynamically calibrates feature distributions through pixel-wise affine transformations. Crucially, this mechanism mitigates the heteroscedastic pathology by transforming high variance, which would otherwise indicate gradient suppression, into a constructive signal for stronger feature rectification in ambiguous regions. Additionally, a boundary-aware detection head is introduced to further constrain prediction precision. Extensive experiments demonstrate that UnGAP balances superior segmentation accuracy with real-time inference speed, effectively validating the benefit of transforming uncertainty from a passive metric into an active calibration tool.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

UnGAP turns uncertainty into an active affine prompt for crack segmentation but lacks gradient flow analysis.

read the letter

The main thing to know is that UnGAP uses uncertainty as an active prompt for pixel-wise affine feature modulation to address gradient attenuation in real-time crack segmentation. This approach is new because it creates a closed loop where the uncertainty estimate directly influences feature learning through the UPFM, rather than serving only as a passive output. Treating aleatoric uncertainty this way for tasks defined by local gradients like cracks is a distinct angle compared to typical uncertainty-aware segmentation. The addition of a boundary-aware head helps with precision, and the focus on real-time inference makes it relevant for practical structural health monitoring. The paper does well in clearly stating the optimization pathology and proposing a mechanism to turn high variance into a rectification signal. However, the central claim needs more support. There is no detailed derivation or analysis of how the affine transformations from the uncertainty map affect the loss gradients, so it's not clear if this truly strengthens learning on difficult boundaries or just reparameterizes the attenuation. Experiments are claimed to validate the benefits, but without ablations isolating the UPFM or checks for instability, the evidence feels preliminary. The assumption that independent pixel-wise modeling is uniquely suited here could be tested more broadly. This paper is for people working on applied computer vision for infrastructure, where speed and accuracy on ambiguous features matter. A reader looking for new ways to integrate uncertainty into segmentation pipelines would find the idea worth considering. I recommend putting it through peer review. The practical angle and the novel modulator give it enough substance for referees to evaluate the claims and suggest improvements.

Referee Report

3 major / 2 minor

Summary. The paper proposes UnGAP, a framework for real-time crack segmentation that introduces the Uncertainty-Prompted Feature Modulator (UPFM) to treat aleatoric uncertainty as an active visual prompt. UPFM applies pixel-wise affine transformations to dynamically calibrate feature distributions, aiming to mitigate the structural optimization pathology where high predicted variance attenuates loss gradients and causes under-fitting on complex boundaries. A boundary-aware detection head is added to constrain prediction precision. The abstract asserts that this closed-loop mechanism between uncertainty estimation and feature learning yields superior segmentation accuracy while maintaining real-time inference speed, with independent pixel-wise heteroscedastic modeling claimed to be particularly suited to crack segmentation due to its reliance on fine-grained local gradients.

Significance. If the central mechanism is shown to work as described, the work could advance uncertainty-aware segmentation by converting uncertainty estimation from a passive post-hoc tool into an active modulator of feature learning. This is especially relevant for tasks defined by local gradient structures rather than global semantics, and the emphasis on countering heteroscedastic gradient attenuation offers a concrete direction for improving boundary precision in real-time settings. No machine-checked proofs, reproducible code releases, or parameter-free derivations are described.

major comments (3)

[Abstract] Abstract (paragraph on UPFM): the claim that UPFM 'mitigates the heteroscedastic pathology by transforming high variance... into a constructive signal for stronger feature rectification' is asserted without any explicit mapping from the variance map to the affine scale and shift parameters, without a derivation of the composite gradient flow through the modulator, and without analysis showing that the modulation increases rather than attenuates or destabilizes gradients on ambiguous boundaries.
[Abstract] Abstract (final sentence): the assertion that 'extensive experiments demonstrate that UnGAP balances superior segmentation accuracy with real-time inference speed' is unsupported by any reported metrics, ablation results, dataset descriptions, baseline comparisons, or quantitative tables; the central performance claim therefore rests on unverified assertions.
[Abstract] Abstract (paragraph on independent pixel-wise heteroscedastic modeling): the statement that this modeling 'is uniquely suited for crack segmentation, as cracks are defined by fine-grained local gradients rather than the global semantic coherence relied upon in general object segmentation' is presented without comparative experiments or justification against alternative uncertainty formulations.

minor comments (2)

The abstract introduces the boundary-aware detection head but provides no architectural details on its design, loss formulation, or integration with UPFM.
Notation for the affine transformation (scale and shift) and the uncertainty map should be defined explicitly with equations even in the abstract or introduction to allow immediate assessment of the proposed mechanism.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. The feedback correctly identifies that the abstract makes high-level claims that would benefit from more explicit support drawn from the full paper. We address each major comment below and will incorporate revisions to strengthen the presentation.

read point-by-point responses

Referee: [Abstract] Abstract (paragraph on UPFM): the claim that UPFM 'mitigates the heteroscedastic pathology by transforming high variance... into a constructive signal for stronger feature rectification' is asserted without any explicit mapping from the variance map to the affine scale and shift parameters, without a derivation of the composite gradient flow through the modulator, and without analysis showing that the modulation increases rather than attenuates or destabilizes gradients on ambiguous boundaries.

Authors: The referee is correct that the abstract presents this claim at a summary level. Section 3.2 of the manuscript defines the UPFM, where the predicted variance map is fed into a lightweight module that produces the per-pixel scale and shift parameters for the affine transformation. We agree that an explicit derivation of the gradient flow through this modulator and an analysis of its effect on boundary gradients would strengthen the work. We will add this derivation (showing the composite gradient expression) and supporting analysis or visualization in the revised method section. revision: yes
Referee: [Abstract] Abstract (final sentence): the assertion that 'extensive experiments demonstrate that UnGAP balances superior segmentation accuracy with real-time inference speed' is unsupported by any reported metrics, ablation results, dataset descriptions, baseline comparisons, or quantitative tables; the central performance claim therefore rests on unverified assertions.

Authors: We acknowledge that the abstract summarizes results without numbers. The full manuscript contains quantitative tables (Section 4) reporting mIoU, F1-score, and FPS on multiple crack datasets, ablations isolating the UPFM and boundary head, and comparisons against real-time baselines. To address the comment, we will revise the abstract to include the key supporting metrics (e.g., achieved mIoU and inference speed) while keeping it concise. revision: yes
Referee: [Abstract] Abstract (paragraph on independent pixel-wise heteroscedastic modeling): the statement that this modeling 'is uniquely suited for crack segmentation, as cracks are defined by fine-grained local gradients rather than the global semantic coherence relied upon in general object segmentation' is presented without comparative experiments or justification against alternative uncertainty formulations.

Authors: The justification appears in the introduction, which contrasts the local-gradient nature of cracks with global semantic tasks. The experiments section demonstrates the benefit of the pixel-wise heteroscedastic formulation through ablations. However, direct comparisons to alternative uncertainty models (e.g., homoscedastic or global) are limited. We will add a short discussion and, if space permits, a targeted ablation in the revised experiments to provide stronger comparative justification. revision: partial

Circularity Check

0 steps flagged

No circularity: architectural proposal with independent components

full rationale

The paper introduces UPFM as a novel pixel-wise affine modulator that converts uncertainty maps into scale/shift parameters, along with a boundary head. These are presented as design choices to address heteroscedastic gradient attenuation, without any equations or derivations that reduce the claimed performance gains to fitted inputs, self-cited uniqueness theorems, or renamed prior results by construction. The contention that pixel-wise heteroscedastic modeling is uniquely suited to cracks is stated directly rather than imported via self-citation. No load-bearing steps collapse the closed-loop claim to tautology; the mechanism is defined externally to the final metric.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review is limited to the abstract; no explicit free parameters, background axioms, or new physical entities are stated. The method implicitly assumes standard supervised segmentation training and the existence of the described heteroscedastic optimization pathology.

pith-pipeline@v0.9.0 · 5573 in / 1213 out tokens · 39500 ms · 2026-05-08T19:09:49.023553+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean (J(x) = ½(x+x⁻¹)−1, washburn_uniqueness_aczel) washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

L_β-NLL = sg(σ^{2β}) [ ½ exp(−s)‖y−ŷ‖² + ½ s ]
Foundation/BranchSelection.lean (RCLCombiner, IsCouplingCombiner) RCLCombiner_isCoupling_iff unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

F_refined = F_in ⊙ (1+γ) + ω, with γ, ω predicted by 1×1 convolutions from the uncertainty map h
Foundation/AlphaCoordinateFixation.lean (parameter-free α=1 pin) alpha_pin_under_high_calibration unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

we set ... loss weight w1=0.87, w2=0.13, w3=0.001 ... β=0.5

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
