Hybrid Machine Learning and Physical Modeling of Feedstock Deformation During Robotic 3D Printing of Continuous Fiber Thermoplastic Composites

Chady Ghnatios, Kazem Fayazbakhsh

Authors on Pith no claims yet

Pith reviewed 2026-05-08 02:11 UTC · model grok-4.3

classification 💻 cs.CE
keywords 3D printingcontinuous fiber compositesfeedstock deformationhybrid modelingneural ODEviscoelastic modelingrobotic depositioncomposite prepregs
0
0 comments X

The pith

A hybrid model of viscoelastic physics and neural ODEs predicts composite feedstock deformation during robotic 3D printing and generalizes above training temperatures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a hybrid modeling approach to forecast how continuous fiber thermoplastic composite feedstock deforms as it is deposited by a robot. Experiments using DMA and DSC identify residual stress relief, drying, crystallization, and thermal stresses as the main drivers. These are captured by combining a Kelvin-Voigt physical model for viscoelastic response with a stabilized neural ODE for the remaining effects. The resulting model is then tested in actual robotic printing and reproduces observed behavior even when temperatures exceed the training range. A reader would care because accurate deformation prediction supports better path planning and fewer defects in manufacturing strong composite parts.

Core claim

The hybrid model, constructed from DMA and DSC experiments, uses Kelvin-Voigt viscoelastic modeling of the composite prepregs together with a stabilized neural ODE for drying and crystallization. When applied to robotic 3D printing, this model reproduces the prepreg deformation behavior far above the temperatures used in training, demonstrating robustness and generalization capability.

What carries the argument

The stabilized neural ODE coupled to the Kelvin-Voigt viscoelastic equations, which together represent the combined influence of residual stress relief, drying, crystallization, and thermal stresses on feedstock deformation.

If this is right

  • The model enables simulation of deposition paths to reduce manufacturing defects in robotic composite printing.
  • Validation against real printing data confirms the hybrid approach works outside laboratory conditions.
  • Generalization to higher temperatures supports use with different printing parameters without full retraining.
  • The framework can guide optimization of process variables such as speed and temperature to improve part quality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybrid structure could be adapted to model deformation in other temperature-sensitive additive manufacturing processes.
  • Incorporating real-time sensor feedback into the neural ODE might further improve online path correction during printing.
  • Extending the model to include fiber orientation changes or inter-layer bonding effects would address additional defect sources.

Load-bearing premise

Residual stress relief, drying, crystallization, and thermal stresses are the dominant drivers of deformation, and the hybrid model fitted to lab data captures them well enough to predict behavior in real robotic printing.

What would settle it

A robotic printing trial at a temperature substantially higher than the training range in which the measured feedstock deformation deviates markedly from the model's prediction would falsify the generalization claim.

Figures

Figures reproduced from arXiv: 2605.03186 by Chady Ghnatios, Kazem Fayazbakhsh.

Figure 1
Figure 1. Figure 1: Robotic 3D printing setup used in this work and the feedstock. view at source ↗
Figure 2

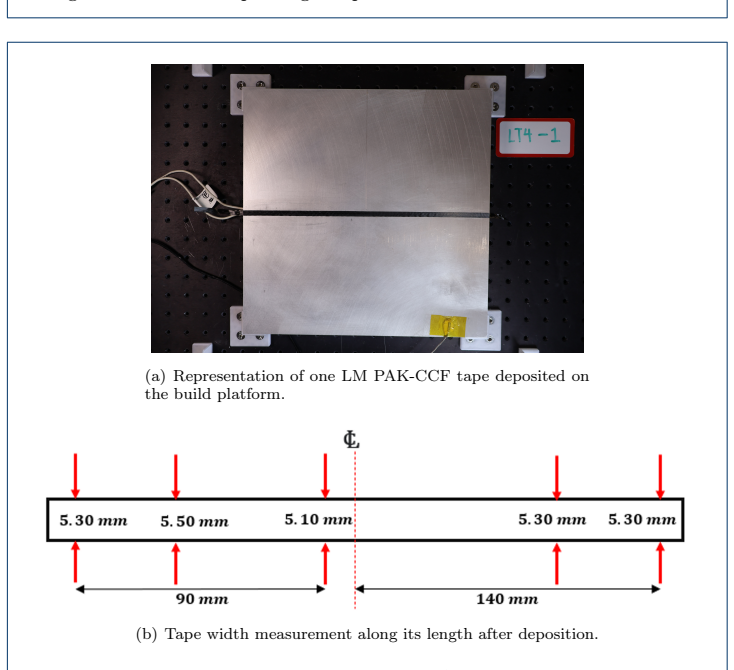

Figure 2. Figure 2: Robotic 3D printing of a single tape. tape width of 6.35 mm. While the nominal layer thickness for this feedstock is 0.14 mm, a thicker layer of 0.200 mm was used for the first layer. This is the general practice in 3D printing to have a high-quality first layer and better bonding to the subsequent one and have a direct impact on the tape width. Furthermore, residual view at source ↗
Figure 3
Figure 3. Figure 3: DSC thermograms for LM PAEK-CCF pre-processed feedstock. view at source ↗
Figure 4

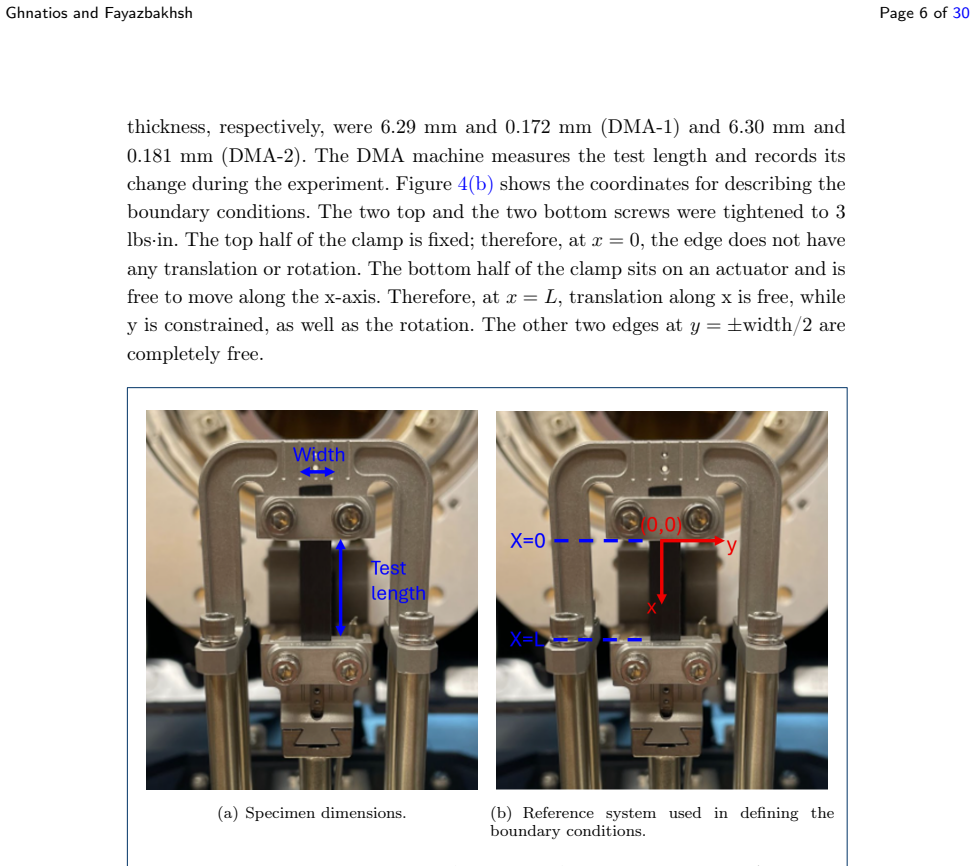

Figure 4. Figure 4: Prepreg tape inside the film tensile fixture inside the DMA testing view at source ↗
Figure 5
Figure 5. Figure 5: Strain VS temperature evolution in the performed DMA experiments. view at source ↗
Figure 6
Figure 6. Figure 6: Imposed air temperature T∞ in the DMA experiments as a function of time. The thermal simulation uses the Proper Generalized Decomposition (PGD) method to compute the solution of the differential equation provided in equation (1) [39, 40]. The thermal solution is therefore computed in a separate form using space-time and in-plane-out-of-plane decomposition: T(x, t) = Xn i=1 Fi(x, y) · Zi(z) · Gi(t) (4) The … view at source ↗
Figure 7
Figure 7. Figure 7: Solution of the thermal fields (in K) as a function of time for DMA-1. A view at source ↗
Figure 8
Figure 8. Figure 8: Solution of the thermal fields as a function of time for DMA-1, with view at source ↗
Figure 9
Figure 9. Figure 9: Solution of the mechanical deformation fields at the end of the first view at source ↗
Figure 10
Figure 10. Figure 10: Deformations’ magnitude (m) of the mechanical deformation fields at view at source ↗
Figure 11
Figure 11. Figure 11: Fitted strain in DMA-1 with a maximum temperature of view at source ↗
Figure 12
Figure 12. Figure 12: Solution of the mechanical deformation fields at the end of the first view at source ↗
Figure 13
Figure 13. Figure 13: Deformations’ magnitude (m) of the mechanical deformation fields at view at source ↗
Figure 14
Figure 14. Figure 14: Predicted strains in DMA-2 with a maximum heating temperature of view at source ↗
Figure 15
Figure 15. Figure 15: Neural networks are used to predict ϵ ini . The training of the neural network is performed over the first 80% of the time sequence data available from DMA-1. The remaining 20% are used to validate the results. The network prediction of the initial strain release is illustrated in view at source ↗
Figure 16

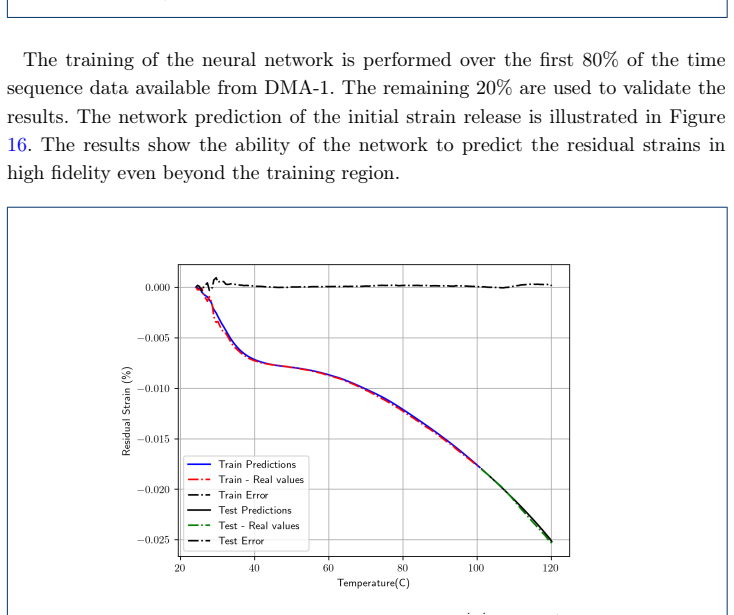

Figure 16. Figure 16: Results of the predicted ϵ ini in DMA-1 view at source ↗
Figure 17

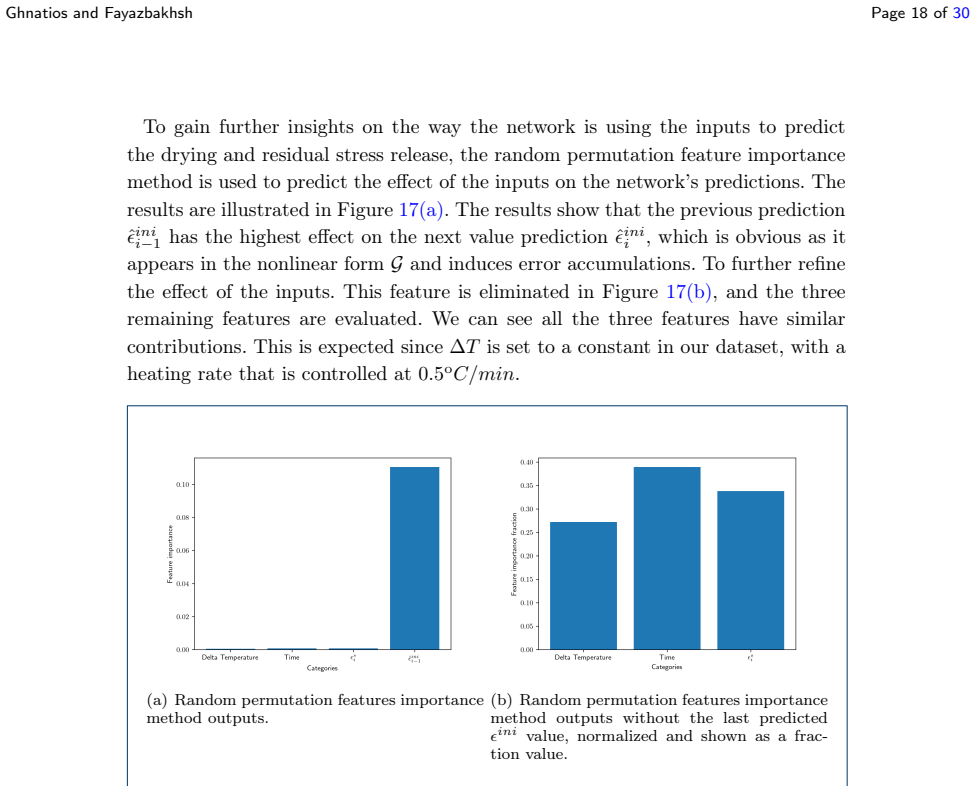

Figure 17. Figure 17: Random permutation features importance method on the surrogate view at source ↗
Figure 18
Figure 18. Figure 18: Results of the ϵˆ ini 2 prediction, with the experimental inputs taken from DMA-2. tallization onsets start to germinate just above the crystallization temperature in similar thermoplastics [51, 52, 53]. It is also shown that and a measure maximum in the heat of crystallization, of 22J/g, immediately above the glass transition region is emitted in PEEK [51]. For our LM PAEK-CF material, the glass transiti… view at source ↗
Figure 19
Figure 19. Figure 19: Neural network used for the prediction of the crystallization effect on view at source ↗
Figure 20
Figure 20. Figure 20: Results for the prediction ϵ crys 2 during the first onset of crystallization, with the inputs (∆T, t, ϵs ) from DMA-2 when reaching a temperature T > Tg and remaining above Tg during the first heating cycle. Beyond the first onset of crystallization, the mechanical and thermal properties of the composite prepreg change. Therefore, the surrogates Gc and Hc are trained beyond the first onset of crystalliza… view at source ↗
Figure 21
Figure 21. Figure 21: Predictions of ϵ crys 2 for the complete experiment beyond Tg, with the inputs (∆T, t, ϵs ). T1 is the first heating stage, T2 the first cooling one, T3 the second heating stage and T4 the second cooling one. The relative errors e crys a of the predictions are shown to be 1.65% for the train set and 2.43% for the test set, computed using the following equation: e crys a = 100 × X N i=1 |ϵ crys i − ϵˆ crys… view at source ↗
Figure 22
Figure 22. Figure 22: Comparison of strain as a summation of the three built models with view at source ↗
Figure 23
Figure 23. Figure 23: Top view of the 3D printed tape with the simulation boundary con view at source ↗
Figure 24
Figure 24. Figure 24: Through-thickness thermal fields in the 3D printed tape at the instant view at source ↗
Figure 25
Figure 25. Figure 25: Thermal fields through the thickness of the 3D printed tape at an view at source ↗
Figure 26
Figure 26. Figure 26: Deformed shape of the 3D printed tape, with the outline showing the view at source ↗
Figure 27
Figure 27. Figure 27: Lateral deformation (in meters) of the 3D printed tape as predicted by view at source ↗
read the original abstract

Feedstock deformation during 3D printing of continuous fiber composites is a critical challenge in path planning and a main driver in the generation of manufacturing defects. The proposed work addressed the feedstock deformation during the deposition through several experimental and numerical pathways. The experimental setups and numerical simulations are used to identify the main driving phenomena in the deformation of feedstock through residual stress relief and drying, crystallization, and thermal stresses. A hybrid physics-based and data-driven modeling effort is performed, using Kelvin-Voigt viscoelastic modeling of the composite prepregs and a stabilized neural ODE for the modeling of drying and crystallization. The identified hybrid models from DMA and DSC experiments are used in robotic 3D printing to validate the deposition of a composite prepreg in real printing settings. The results show the ability of the model to reproduce the prepreg behavior far above the temperature used in the training, showcasing its robustness and generalization capability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that a hybrid model combining Kelvin-Voigt viscoelasticity with a stabilized neural ODE (identified from DMA and DSC experiments on residual stress relief, drying, crystallization, and thermal stresses) can predict feedstock deformation during robotic 3D printing of continuous fiber thermoplastic composites, with validation showing reproduction of prepreg behavior at temperatures well above the training range, demonstrating robustness and generalization.

Significance. If the generalization claim holds with quantitative support, the work could provide a practical tool for defect reduction and path planning in composite additive manufacturing by bridging small-scale material characterization with process-scale predictions.

major comments (2)
  1. [Abstract] Abstract: the central claim of reproducing prepreg behavior 'far above the temperature used in the training' and demonstrating 'robustness and generalization capability' is presented without any quantitative error metrics, statistical measures, temperature deltas, or ablation studies against a pure physics baseline, leaving the evidence for extrapolation under robotic printing conditions (shear rates, time scales, nozzle constraints) weakly supported.
  2. [Validation] Validation section (implied by abstract description of 'used in robotic 3D printing to validate'): the manuscript states that DMA/DSC-derived parameters are applied directly to real printing trials but supplies no details on how residual stress relief, drying, crystallization, and thermal stresses were confirmed as dominant under high-speed deposition versus potential flow-induced or pressure-driven effects, nor any comparison of predicted vs. measured deformation.
minor comments (1)
  1. [Modeling] Notation for the stabilized neural ODE and its coupling to the Kelvin-Voigt model should be clarified with explicit equations and stability constraints to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback on our manuscript. We address each major comment below and have prepared revisions to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim of reproducing prepreg behavior 'far above the temperature used in the training' and demonstrating 'robustness and generalization capability' is presented without any quantitative error metrics, statistical measures, temperature deltas, or ablation studies against a pure physics baseline, leaving the evidence for extrapolation under robotic printing conditions (shear rates, time scales, nozzle constraints) weakly supported.

    Authors: We agree that the abstract would benefit from quantitative support for the generalization claim. We will revise the abstract to include a concise summary of the key error metrics, temperature ranges, and any baseline comparisons reported in the validation experiments. revision: yes

  2. Referee: [Validation] Validation section (implied by abstract description of 'used in robotic 3D printing to validate'): the manuscript states that DMA/DSC-derived parameters are applied directly to real printing trials but supplies no details on how residual stress relief, drying, crystallization, and thermal stresses were confirmed as dominant under high-speed deposition versus potential flow-induced or pressure-driven effects, nor any comparison of predicted vs. measured deformation.

    Authors: We acknowledge that the validation section requires additional detail to clarify the dominance of the modeled phenomena and to present direct comparisons. We will expand this section to explain the basis for identifying residual stress relief, drying, crystallization, and thermal stresses as primary drivers under the deposition conditions, and to include quantitative predicted-versus-measured deformation results from the robotic printing trials. revision: yes

Circularity Check

0 steps flagged

No significant circularity: hybrid model parameters identified from independent DMA/DSC data and validated on separate printing trials

full rationale

The paper identifies Kelvin-Voigt viscoelastic parameters and neural ODE terms for drying/crystallization directly from DMA and DSC experimental datasets. These fitted components are then applied without re-fitting to robotic 3D printing deposition trials as an external validation step. No equation in the provided abstract or reader's summary reduces a claimed prediction to the fitting inputs by algebraic identity, and no load-bearing uniqueness theorem or ansatz is imported via self-citation. The generalization claim (reproduction above training temperature) rests on the physical separation between calibration experiments and printing validation rather than on any self-referential construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides insufficient detail to enumerate specific free parameters, axioms, or invented entities; no equations or fitting procedures are shown.
