Revisiting the Stress Field Inside an Elastic Sphere Subjected to a Concentrated Load

Yosuke Mori , Kiwamu Yoshii , Satoshi Takada

Authors on Pith no claims yet

Pith reviewed 2026-05-09 16:47 UTC · model grok-4.3

classification ⚛️ physics.class-ph cond-mat.soft

keywords elastic sphereconcentrated loadstress fieldanalytical solutionspherical harmonicselastodynamicsstatic limitrotational transformation

0 comments

The pith

A complete analytical solution with closed-form expressions for every stress component is derived for an elastic sphere under a concentrated surface load.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a full analytical solution for the stress field throughout the interior of a homogeneous linearly elastic sphere when a concentrated normal load acts at one point on the surface. The derivation begins with the three-dimensional elastodynamic equations, expresses the displacement using scalar and vector potentials, expands in spherical harmonics, and fixes the coefficients from the surface traction conditions. The static solution is recovered exactly as the long-time limit of the dynamic problem, yielding explicit formulas for all stress-tensor components that can be evaluated directly at any interior point. These formulas also extend to loads at arbitrary surface locations through rotational transformations and to multiple loads by superposition. A reader would care because the result supplies exact principal stresses and stress differences without discretization, replacing approximate numerical methods for stress analysis inside spherical bodies.

Core claim

We present a complete analytical solution for the stress field inside a homogeneous, linearly elastic solid sphere subjected to a concentrated normal load applied on its surface. Starting from the three-dimensional linearized elastodynamic equations, the displacement and stress fields are derived using scalar and vector potential representations combined with spherical harmonic expansions. All expansion coefficients are determined explicitly by enforcing the traction boundary conditions. The static elastic solution is obtained rigorously as the long-time limit of the dynamical formulation. Closed-form expressions for all components of the stress tensor are provided, enabling direct evaluati

What carries the argument

Scalar and vector potential representations of the displacement field combined with spherical harmonic expansions, with all coefficients fixed by surface traction boundary conditions, followed by extraction of the static fields as the long-time limit of the dynamic solution.

Load-bearing premise

The sphere is homogeneous and linearly elastic, and the static solution is recovered exactly as the long-time limit of the elastodynamic formulation.

What would settle it

Numerical evaluation of the closed-form stress expressions at an interior point, followed by verification that they satisfy the elastostatic equilibrium equations and reproduce the applied concentrated traction on the surface.

read the original abstract

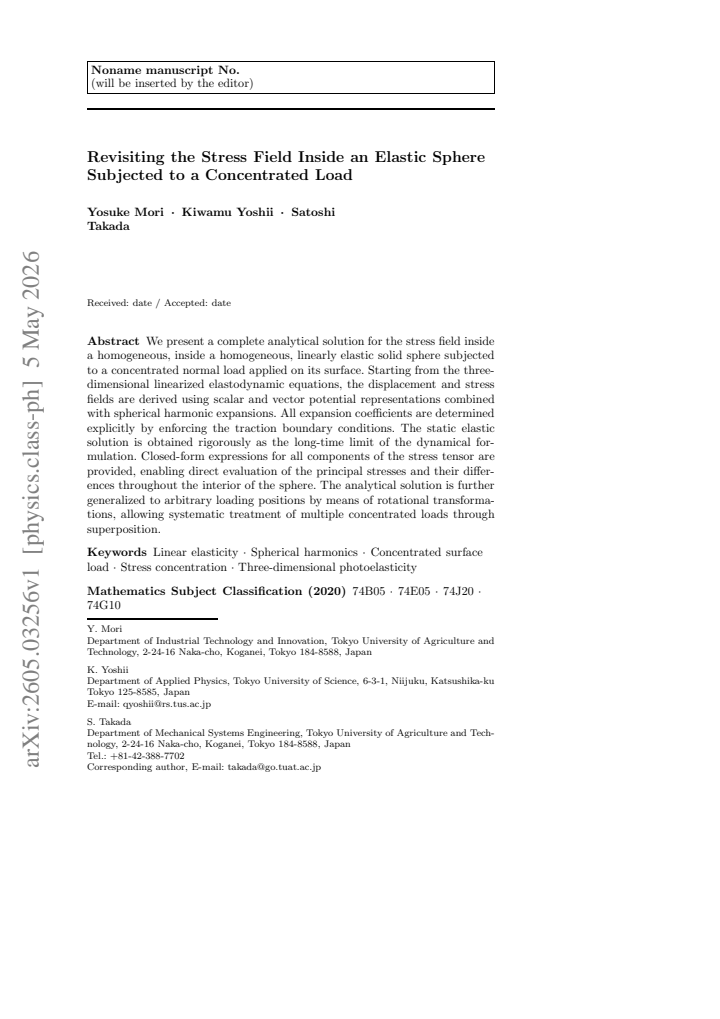

We present a complete analytical solution for the stress field inside a homogeneous, inside a homogeneous, linearly elastic solid sphere subjected to a concentrated normal load applied on its surface. Starting from the three-dimensional linearized elastodynamic equations, the displacement and stress fields are derived using scalar and vector potential representations combined with spherical harmonic expansions. All expansion coefficients are determined explicitly by enforcing the traction boundary conditions. The static elastic solution is obtained rigorously as the long-time limit of the dynamical formulation. Closed-form expressions for all components of the stress tensor are provided, enabling direct evaluation of the principal stresses and their differences throughout the interior of the sphere. The analytical solution is further generalized to arbitrary loading positions by means of rotational transformations, allowing systematic treatment of multiple concentrated loads through superposition.
