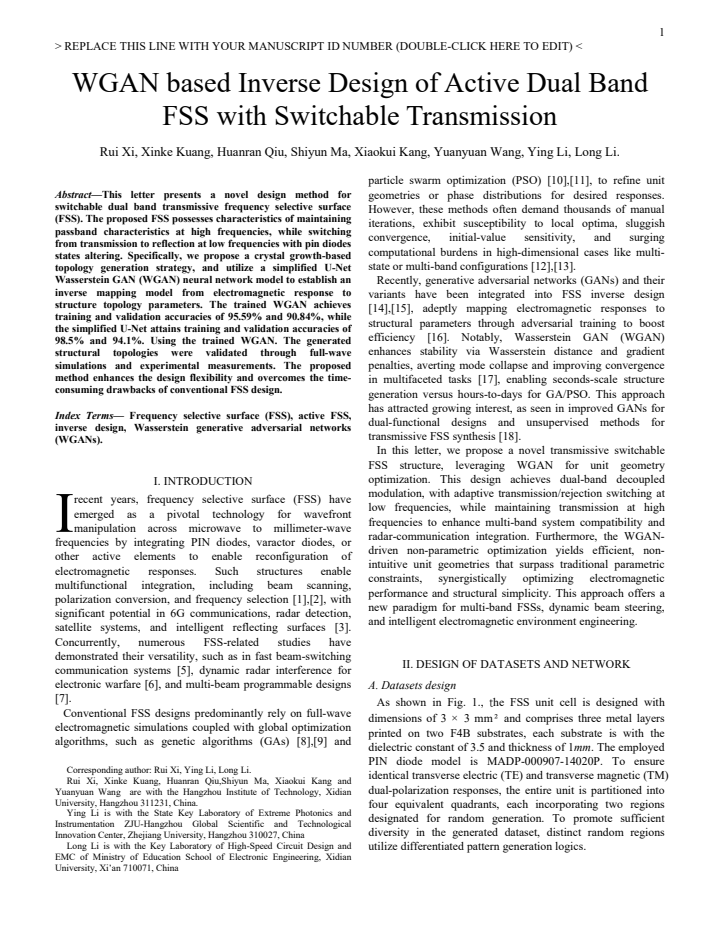

WGAN based Inverse Design of Active Dual Band FSS with Switchable Transmission

Huanran Qiu, Long Li, Rui Xi, Shiyun Ma, Xiaokui Kang, Xinke Kuang, Ying Li, Yuanyuan Wang

Pith reviewed 2026-05-07 12:40 UTC · model grok-4.3

classification ⚛️ physics.app-ph

keywords inverse designfrequency selective surfaceWGANactive FSSdual-bandpin diodestopology generationelectromagnetic response

0 comments

The pith

A WGAN learns to map target electromagnetic responses directly to fabricable topologies for active dual-band FSS with pin-diode switching.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to create an inverse design workflow for a switchable dual-band frequency selective surface that transmits at high frequencies but reflects at low frequencies when pin diodes change state. It introduces a crystal growth method to produce candidate topologies and trains a simplified U-Net Wasserstein GAN to turn a desired electromagnetic response into the corresponding structure parameters. A reader would care if this holds because conventional FSS design relies on slow manual tuning that restricts how complex the switching behavior can become. The model reports 95.59 percent training and 90.84 percent validation accuracy on the WGAN task, with the U-Net reaching 98.5 percent and 94.1 percent, and the outputs are checked against full-wave simulations plus physical measurements.

Core claim

The authors establish that a crystal growth-based topology generator combined with a simplified U-Net Wasserstein GAN can learn an inverse mapping from specified electromagnetic response to structure topology parameters, enabling the creation of an active dual-band FSS whose high-frequency passband remains stable while its low-frequency behavior switches from transmission to reflection according to pin-diode state. The trained model reaches 95.59 percent training accuracy and 90.84 percent validation accuracy for the WGAN component and 98.5 percent training and 94.1 percent validation for the U-Net, after which the generated topologies are shown to satisfy the target responses in full-wave电磁

What carries the argument

The simplified U-Net Wasserstein GAN model that learns the inverse mapping from electromagnetic response to structure topology parameters.

If this is right

Designers can specify a desired frequency response and receive candidate topologies without repeated manual optimization loops.
The resulting structures can be fabricated and will exhibit the intended high-frequency transmission together with diode-controlled low-frequency switching.
The approach reduces the time required for exploring complex active FSS geometries compared with conventional trial-and-error methods.
Design flexibility increases because the inverse model supports direct specification of both passband and switching characteristics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same inverse-mapping strategy could be tested on other reconfigurable surfaces whose behavior depends on different control elements such as varactors or MEMS switches.
Adding fabrication-tolerance constraints directly into the topology generator might further close the gap between simulated and measured performance.
If the accuracy holds across wider parameter ranges, the method points toward automated pipelines that generate entire families of related FSS designs from a single specification.

Load-bearing premise

The mapping learned from the training set will continue to produce physically realizable topologies whose measured electromagnetic behavior with added pin diodes matches the target response.

What would settle it

Fabricate one or more generated topologies, integrate the pin diodes, and measure the actual transmission and reflection spectra in both diode states to see whether they deviate beyond acceptable error from the specified dual-band switchable targets.

read the original abstract

This letter presents a novel design method for switchable dual band transmissive frequency selective surface (FSS). The proposed FSS possesses characteristics of maintaining passband characteristics at high frequencies, while switching from transmission to reflection at low frequencies with pin diodes states altering. Specifically, we propose a crystal growth-based topology generation strategy, and utilize a simplified U-Net Wasserstein GAN (WGAN) neural network model to establish an inverse mapping model from electromagnetic response to structure topology parameters. The trained WGAN achieves training and validation accuracies of 95.59% and 90.84%, while the simplified U-Net attains training and validation accuracies of 98.5% and 94.1%. Using the trained WGAN. The generated structural topologies were validated through full-wave simulations and experimental measurements. The proposed method enhances the design flexibility and overcomes the time- consuming drawbacks of conventional FSS design.
