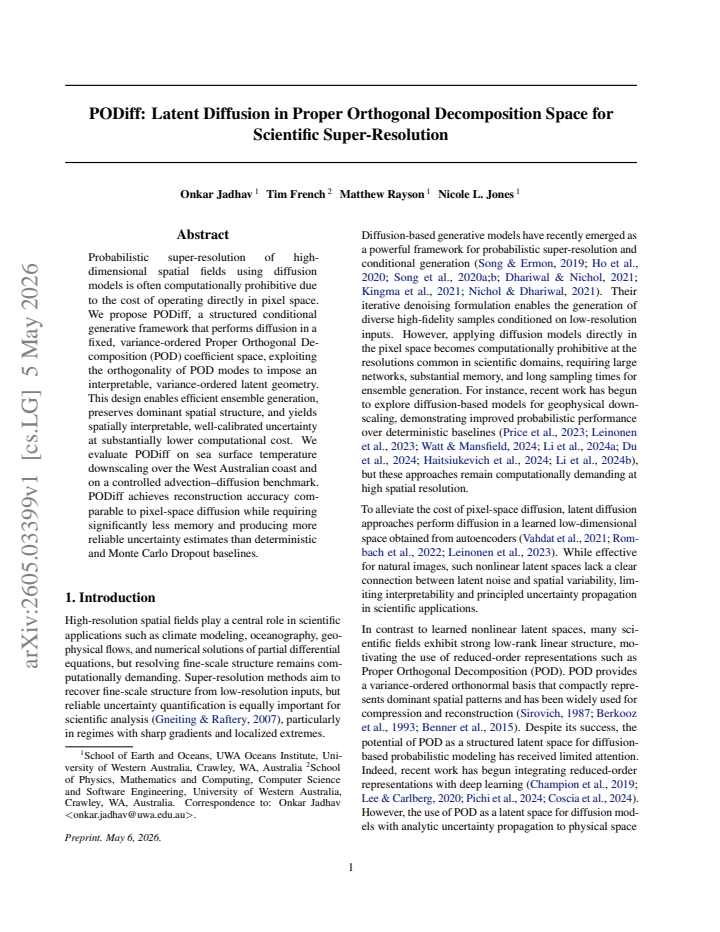

arxiv: 2605.03399 · v1 · submitted 2026-05-05 · 💻 cs.LG · physics.ao-ph

Recognition: unknown

PODiff: Latent Diffusion in Proper Orthogonal Decomposition Space for Scientific Super-Resolution

Onkar Jadhav , Tim French , Matthew Rayson , Nicole L. Jones

Authors on Pith no claims yet

Pith reviewed 2026-05-07 17:09 UTC · model grok-4.3

classification 💻 cs.LG physics.ao-ph

keywords latent diffusionproper orthogonal decompositionsuper-resolutionscientific computinguncertainty quantificationgenerative modelsspatial fields

0 comments

The pith

Diffusion models for super-resolution of scientific fields achieve comparable accuracy in a low-dimensional POD space while using far less memory and yielding better uncertainty estimates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

PODiff moves the diffusion process for generating super-resolved spatial fields from pixel space into the coefficient space of a fixed Proper Orthogonal Decomposition. This change exploits the orthogonality and variance ordering of POD modes to create an efficient and interpretable latent representation. The result is ensemble generation that preserves dominant structures and produces well-calibrated uncertainty at substantially lower computational cost than operating directly on pixels. A reader should care because many scientific applications require probabilistic outputs for high-resolution fields but are limited by the memory demands of full-resolution diffusion models.

Core claim

The central claim is that conditional diffusion performed in the space of a truncated, variance-ordered POD basis recovers fine-scale details in spatial fields with accuracy comparable to pixel-space diffusion, while enabling more reliable uncertainty quantification than deterministic or Monte Carlo Dropout approaches and requiring significantly less memory.

What carries the argument

The POD coefficient space as a latent geometry for diffusion, where the fixed POD basis provides an orthogonal, variance-ordered coordinate system that structures the generative process.

If this is right

Reconstruction of sea surface temperature fields achieves accuracy on par with pixel-space methods.
Memory usage drops substantially due to operating in a reduced-dimensional coefficient space.
Uncertainty estimates are more reliable than those from deterministic super-resolution or Monte Carlo Dropout.
Ensemble generation becomes practical for high-dimensional scientific data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method may extend naturally to other low-rank decompositions such as Fourier or wavelet bases for different data types.
Combining PODiff with input-dependent basis adaptation could handle non-stationary fields where a fixed basis falls short.
Interpretable uncertainty from the POD modes could inform targeted data collection in ocean modeling workflows.

Load-bearing premise

A fixed precomputed POD basis truncated to a modest number of modes is sufficient to capture the variability needed for the diffusion process to recover fine-scale structures and produce calibrated uncertainty estimates.

What would settle it

Demonstrating on a dataset where fine-scale features vary strongly outside the span of the initial POD modes and showing that PODiff then underperforms pixel-space diffusion in both accuracy and uncertainty calibration would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.03399 by Matthew Rayson, Nicole L. Jones, Onkar Jadhav, Tim French.

**Figure 1.** Figure 1: PODiff: conditional diffusion in a POD latent space. Low-resolution inputs are upsampled and projected onto a truncated POD basis to condition a diffusion model operating on POD coefficients. Reverse diffusion samples are reconstructed via the POD basis, yielding ensembles of high-resolution fields for uncertainty quantification. Let {λk} d k=1 denote the eigenvalues of the empirical covariance matrix (… view at source ↗

**Figure 2.** Figure 2: Qualitative comparison of SST downscaling methods for a representative test day (31 January 2011, randomly selected for visualization). Top row (a-d): reconstructed SST fields from U-Net, RandOrthDiff-K40, PODiff-K40, and ROMS ground truth. Bottom row (e-g): corresponding signed reconstruction errors (prediction minus truth). PODiff-K40 achieves the lowest reconstruction errors, particularly in regions of… view at source ↗

**Figure 3.** Figure 3: Reliability curves for PODiff showing empirical coverage as a function of nominal confidence level, computed using ensembles of 100 samples per day and averaged over 20 randomly selected test days. The thick curve denotes the mean reliability across days, while thin curves correspond to individual test days. is also visible in the reliability curves in view at source ↗

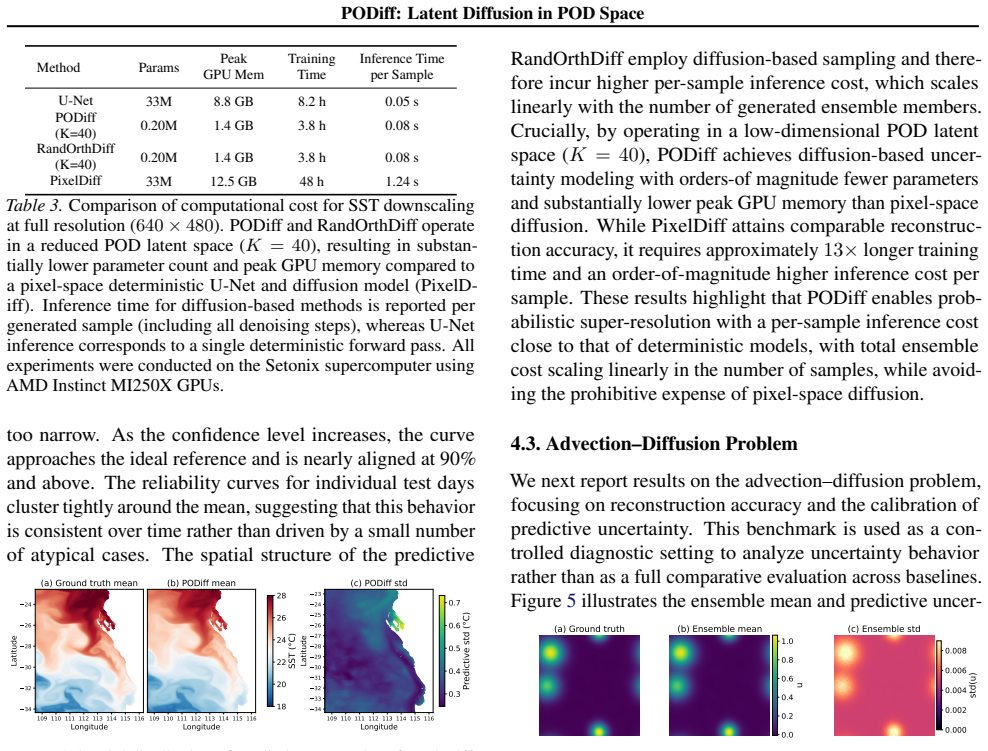

**Figure 4.** Figure 4: Spatial distribution of predictive uncertainty for PODiff, shown as the posterior standard deviation of ensemble predictions averaged over 20 randomly selected test days, with 100 samples generated per day. uncertainty is illustrated in view at source ↗

**Figure 6.** Figure 6: Temporal mean SST field (left), selected POD spatial modes (Modes 1, 5, 10, 20, and 40), and the associated explained-variance spectrum with cumulative variance. Lower-index modes capture dominant large-scale structure, while higher-index modes exhibit increasingly localized spatial variability. mean SST field together with selected POD spatial modes (Modes 1, 5, 10, 20, and 40) and the associated variance… view at source ↗

**Figure 7.** Figure 7: Spatial maps of empirical coverage minus nominal coverage for PODiff-K40 at the 50% and 90% confidence levels, averaged over the test set. Warm (cool) colors indicate overcoverage (undercoverage). B.2. Effect of ensemble size view at source ↗

**Figure 8.** Figure 8: Reliability curves for PODiff on the advection–diffusion test case. The solid line shows mean empirical coverage across test snapshots, while faint lines indicate individual realizations view at source ↗

read the original abstract

Probabilistic super-resolution of high-dimensional spatial fields using diffusion models is often computationally prohibitive due to the cost of operating directly in pixel space. We propose PODiff, a structured conditional generative framework that performs diffusion in a fixed, variance-ordered Proper Orthogonal Decomposition (POD) coefficient space, exploiting the orthogonality of POD modes to impose an interpretable, variance-ordered latent geometry. This design enables efficient ensemble generation, preserves dominant spatial structure, and yields spatially interpretable, well-calibrated uncertainty at substantially lower computational cost. We evaluate PODiff on sea surface temperature downscaling over the West Australian coast and on a controlled advection-diffusion benchmark. PODiff achieves reconstruction accuracy comparable to pixel-space diffusion while requiring significantly less memory and producing more reliable uncertainty estimates than deterministic and Monte Carlo Dropout baselines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

PODiff runs conditional diffusion inside a fixed POD coefficient space to cut memory for scientific super-resolution, but the truncation choice is left unexamined and could cap what fine scales it can actually recover.

read the letter

The paper's main move is to project high-resolution fields onto a precomputed, variance-ordered POD basis, run the diffusion process only on those coefficients, and reconstruct. This keeps the latent space small and orthogonal, which should make ensemble generation cheaper than pixel-space diffusion for things like sea-surface temperature downscaling or advection-diffusion problems. On the two benchmarks they test, the abstract says accuracy stays comparable while memory drops and uncertainty looks better calibrated than deterministic or Monte Carlo Dropout baselines. That structured geometry is the part that feels like a practical engineering step rather than a generic latent diffusion tweak. It gives a natural ordering for the noise schedule and might make the uncertainty maps easier to interpret spatially. For fields where the leading POD modes already hold most of the energy, this could be a useful route to probabilistic outputs without full-grid cost. The soft spot is exactly the one the stress-test flags. Because the basis is fixed and truncated ahead of time, every generated field is a linear combination of those modes only. If the discarded higher modes carry meaningful small-scale variability, the method cannot invent it; it can only smooth or interpolate within the retained subspace. The abstract gives no rank, no cumulative variance fraction, and no comparison against a fuller basis, so the accuracy claim rests on an untested assumption that the truncation is sufficient. Without those numbers or an ablation, it is hard to tell whether the results reflect genuine super-resolution or just good projection. The baseline comparisons also lack error bars or implementation details in what is shown. This is for people already working with POD or reduced-order models in oceanography, climate, or fluid dynamics who need cheap ensembles. A reader who wants to combine generative models with existing modal decompositions could extract the idea even if the experiments need more numbers. I would send it to review because the core construction is clear and the efficiency angle matters for the target applications, provided the full paper supplies the missing truncation diagnostics and quantitative tables.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces PODiff, a conditional generative framework that performs latent diffusion in the coefficient space of a fixed, precomputed, truncated Proper Orthogonal Decomposition (POD) basis for probabilistic super-resolution of high-dimensional spatial fields. It is evaluated on sea surface temperature downscaling over the West Australian coast and a controlled advection-diffusion benchmark, claiming reconstruction accuracy comparable to pixel-space diffusion, substantially lower memory usage, and more reliable uncertainty estimates than deterministic and Monte Carlo Dropout baselines.

Significance. If the empirical claims are substantiated with quantitative metrics and validation that the retained POD modes capture sufficient variability for fine-scale recovery, the work could provide a practical efficiency improvement for ensemble generation and uncertainty quantification in scientific machine learning applications involving large spatial fields.

major comments (3)

Abstract: The central claims of 'comparable' reconstruction accuracy and 'more reliable' uncertainty estimates are stated without any quantitative metrics, error bars, baseline implementation details, or description of POD truncation rank, leaving the performance assertions unsupported in the summary of results.
Methods (POD basis construction): The framework diffuses exclusively in coefficients of a fixed, variance-ordered, truncated POD basis derived from high-resolution training data. No truncation rank, cumulative variance fraction captured by retained modes, or comparison to full-basis reconstruction is reported, which is load-bearing for the accuracy and fine-scale recovery claims since generated fields are confined to the span of the leading modes.
Experiments section: The evaluation provides no details on how the POD truncation was chosen, the specific number of modes retained for each benchmark, or ablation studies varying the rank, making it impossible to verify whether the reported memory savings and uncertainty calibration hold beyond the particular low-rank regime tested.

minor comments (2)

Clarify in the methods how the conditional information (e.g., low-resolution input) is incorporated into the diffusion process in POD coefficient space.
Add explicit equations for the forward and reverse diffusion steps in the POD coefficient space to make the latent geometry explicit.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment point by point below. Revisions have been made to incorporate the requested clarifications and additional information.

read point-by-point responses

Referee: Abstract: The central claims of 'comparable' reconstruction accuracy and 'more reliable' uncertainty estimates are stated without any quantitative metrics, error bars, baseline implementation details, or description of POD truncation rank, leaving the performance assertions unsupported in the summary of results.

Authors: We acknowledge that the abstract, as a concise summary, does not contain the specific numerical results. The full manuscript reports quantitative metrics (RMSE, SSIM, CRPS, and coverage probabilities) with comparisons to pixel-space diffusion and Monte Carlo Dropout baselines in the Experiments section, along with memory usage figures. To address the concern, we will revise the abstract to include key quantitative highlights drawn from the results while respecting length constraints. revision: yes
Referee: Methods (POD basis construction): The framework diffuses exclusively in coefficients of a fixed, variance-ordered, truncated POD basis derived from high-resolution training data. No truncation rank, cumulative variance fraction captured by retained modes, or comparison to full-basis reconstruction is reported, which is load-bearing for the accuracy and fine-scale recovery claims since generated fields are confined to the span of the leading modes.

Authors: We agree that explicit reporting of the truncation details is necessary to support the claims. In the revised manuscript, the Methods section will be updated to state the specific truncation ranks employed for each benchmark, the cumulative variance fractions captured by the retained modes, and a direct comparison between the truncated POD reconstruction error and the full-basis reconstruction to confirm that the retained modes suffice for the super-resolution task. revision: yes
Referee: Experiments section: The evaluation provides no details on how the POD truncation was chosen, the specific number of modes retained for each benchmark, or ablation studies varying the rank, making it impossible to verify whether the reported memory savings and uncertainty calibration hold beyond the particular low-rank regime tested.

Authors: We will expand the Experiments section to describe the truncation selection procedure (based on a cumulative variance threshold), report the exact number of modes retained for the sea surface temperature and advection-diffusion cases, and add ablation experiments that vary the POD rank. These additions will show the sensitivity of accuracy, memory consumption, and uncertainty calibration to the choice of rank. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper defines PODiff as diffusion performed in the coefficient space of a fixed, precomputed, truncated POD basis and evaluates its accuracy and uncertainty against independent external baselines (pixel-space diffusion, deterministic methods, Monte Carlo Dropout) on held-out test data from SST downscaling and advection-diffusion benchmarks. No equations, claims, or performance metrics in the abstract or method description reduce by construction to fitted parameters, self-citations, or definitional equivalence with the inputs. The low-rank POD truncation is an explicit, stated modeling choice whose sufficiency is assessed empirically rather than presupposed.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The framework rests on the standard mathematical properties of Proper Orthogonal Decomposition and the usual assumptions of score-based diffusion models; the main design choice is the truncation of the POD basis, which functions as a free parameter selected from data variance.

free parameters (1)

POD truncation rank
Number of leading modes retained; chosen to balance compression against reconstruction fidelity and directly determines the dimensionality of the diffusion space.

axioms (1)

standard math POD modes obtained via singular value decomposition are mutually orthogonal and ordered by decreasing captured variance
Invoked when the paper states that diffusion occurs in a fixed, variance-ordered POD coefficient space.

pith-pipeline@v0.9.0 · 5436 in / 1364 out tokens · 73945 ms · 2026-05-07T17:09:02.579976+00:00 · methodology
