MK-ResRecon: Multi-Kernel Residual Framework for Texture-Aware 3D MRI Refinement from Sparse 2D Slices

Amulya Kumar Mahto, Prajyot Pyati, Pranjal Phukan, Sapna Sachan

Authors on Pith no claims yet

Pith reviewed 2026-05-08 01:17 UTC · model grok-4.3

classification 💻 cs.CV

keywords 3D MRI reconstructionsparse 2D slicestexture-aware lossresidual networkvolume refinementbrain MRImedical image synthesis

0 comments

The pith

A framework reconstructs full 3D MRI volumes from only 12.5 percent of the axial slices.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a two-part deep learning method to generate complete three-dimensional brain MRI scans when only one in eight of the usual two-dimensional slices is acquired. MK-ResRecon uses a residual structure and a specialized loss to predict the missing slices while attending to local texture patterns. IdentityRefineNet3D then processes the full set of original and predicted slices together to enforce anatomical continuity. The authors train on a large post-contrast T1 brain dataset and test on a broad cohort to show that the output remains faithful to real anatomy. Success would shorten acquisition times and reduce the chance of motion artifacts that force repeated scans.

Core claim

MK-ResRecon predicts the absent intermediate 2D slices through a multi-kernel residual network equipped with texture-aware loss, after which IdentityRefineNet3D refines the assembled volume of original and predicted slices into a single smooth 3D structure, enabling accurate reconstruction when only 12.5 percent of axial slices are supplied.

What carries the argument

Multi-kernel residual network with texture-aware loss for 2D slice prediction, followed by 3D identity refinement of the combined volume.

If this is right

Full-resolution 3D volumes can be obtained from 12.5 percent of the axial slices.
Predicted slices retain fine anatomical textures without introducing false details.
The approach generalizes to heterogeneous brain MRI data from multiple sources.
Reconstruction quality supports clinical use and shorter patient scan times.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Scan protocols could acquire fewer slices yet still support full 3D visualization and analysis.
The same prediction-plus-refinement pattern might apply to sparse sampling in other medical imaging modalities.
Testing on non-brain anatomies would reveal whether texture preservation extends beyond the trained domain.

Load-bearing premise

The texture-aware loss prevents creation of nonexistent anatomical features while the 3D refinement step produces a coherent structure when mixing predicted and measured slices.

What would settle it

A radiologist panel identifying fabricated brain structures in the output volumes or quantitative comparisons showing loss of fine detail relative to full-slice ground truth.

Figures

Figures reproduced from arXiv: 2605.03432 by Amulya Kumar Mahto, Prajyot Pyati, Pranjal Phukan, Sapna Sachan.

**Figure 1.** Figure 1: Stage 1 architecture for 2D slice synthesis. Two non-adjacent slices are input to generate intermediate slices using attention-residual connections for edge and texture fidelity. 5,880 skull-stripped MRI scans from 1,470 glioma patients. All volumes are preprocessed to 1 mm isotropic resolution and standardized to 240 × 240 × 155. We randomly select 100 FLAIR T2 volumes from BraTS for testing to assess th… view at source ↗

**Figure 2.** Figure 2: The overview of stage 1 and Stage 2 architecture (IdentityRefineNet3D) for volumetric refinement. The network refines the stacked 3D volume using residual identity blocks view at source ↗

**Figure 3.** Figure 3: 2D axial reconstruction performance across varying slice gaps. Illustrated are representative 2D axial examples (e.g., patient ID0323), where slice 0163 is reconstructed from its neighboring slices 0159 and 0168 (slice gap = 8). The figure compares reconstruction quality for slice gaps of 2, 4, and 8, demonstrating the model’s robustness to different levels of acquisition sparsity. Each row corresponds to … view at source ↗

**Figure 4.** Figure 4: Qualitative 3D reconstruction results. The figure compares ground-truth and generated 3D MRI volumes across two modalities. Top row: T1 Post-Contrast — the model accurately reconstructs tumor regions and preserves fine structural integrity. Bottom row: T1 Pre-Contrast — the model generalizes effectively to unseen data, producing anatomically consistent reconstructions without transferring modality-spe… view at source ↗

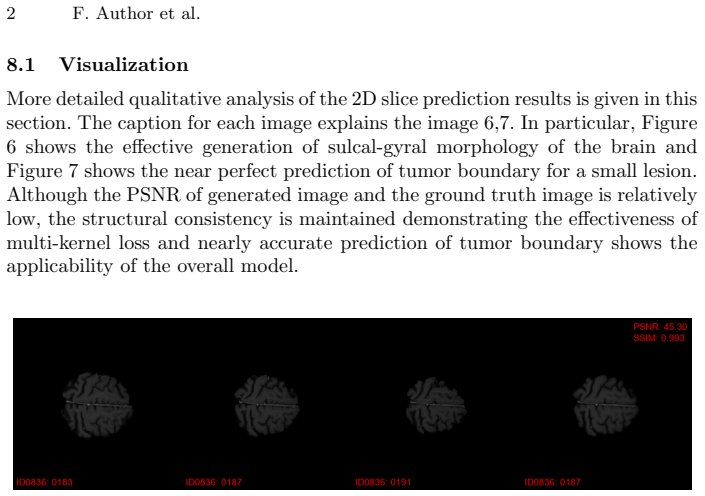

**Figure 6.** Figure 6: The figure shows the near perfect prediction of sulcal–gyral morphology view at source ↗

**Figure 7.** Figure 7: The figure shows the near perfect prediction lesion enhancement (Tumor view at source ↗

read the original abstract

Magnetic Resonance Imaging (MRI) acquisition remains a time-intensive and patient-straining process, as prolonged scan dura- tions increase the likelihood of motion artifacts, which degrade image quality and frequently require repeated scans. To address these chal- lenges, we propose a novel framework with two models MK-ResRecon and IdentityRefineNet3D to reconstruct high-fidelity 3D MRI volumes from sparsely sampled 2D slices-requiring only 12.5% of the axial slices for full resolution 3D reconstruction. MK-ResRecon predicts missing in- termediate 2D slices using a multi-kernel texture-aware loss, preserving fine anatomical details. IdentityRefineNet3D refines the predicted slices and the original sparse slices as a single 3D volume to obtain a smooth anatomical structure. We train the models on a large T1-sequence POST- contrast brain MRI dataset and evaluate on a large heterogeneous brain MRI cohort. The work provides accurate, hallucination-free, generaliz- able and clinically validated framework for 3D MRI reconstruction from highly sparse inputs and enables a clinically viable path towards faster and more patient-friendly MRI imaging.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper sketches a practical two-stage network for reconstructing 3D MRI from very few slices, but its key claims about accuracy and no hallucinations have no numbers behind them yet.

read the letter

The main thing here is a two-stage network for turning a small number of 2D MRI slices into a full 3D volume. MK-ResRecon predicts the missing slices using residual blocks with multiple kernels and a loss that tries to keep texture details, then IdentityRefineNet3D takes the stack of original and predicted slices and refines them together in 3D for smoothness. This setup makes sense for the problem of long scan times. By needing only 12.5% of the slices, it could cut acquisition time a lot and lower the chance of motion artifacts. The separation into 2D prediction and 3D refinement lets each part focus on its job, and the texture-aware loss is a sensible choice for medical images where small structures matter. The authors train on a big set of post-contrast T1 brain scans and test on a varied group, which is a decent start for checking if it generalizes. The soft spot is the lack of any reported results. The abstract claims the method is accurate, free of hallucinations, generalizable, and clinically validated, but there are no error rates, no comparisons to other reconstruction techniques, and no mention of how they tested for invented anatomy in the gaps. The stress-test note is right on target: without a way to measure or prevent plausible but wrong structures, that part of the promise is just an assumption. The refinement network could easily smooth things in a way that hides problems. This paper is aimed at people working on accelerated or sparse MRI reconstruction. Someone in that area might find the pipeline useful as a starting point, but they would want to see the actual experiments before trying it. I would bring it to a reading group only if we are specifically looking at medical DL applications right now. I would not cite it based on this. It should go to peer review because the clinical motivation is solid and the approach is described clearly enough to evaluate once the results are in.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes MK-ResRecon, a multi-kernel residual network using a texture-aware loss to predict missing intermediate 2D axial slices from only 12.5% of the input, paired with IdentityRefineNet3D to refine the assembled 3D volume for anatomical smoothness. The framework is trained on large T1 post-contrast brain MRI data and evaluated on a heterogeneous cohort, with the central claim that it delivers accurate, hallucination-free, generalizable, and clinically validated 3D reconstructions that enable faster, patient-friendly MRI.

Significance. If the empirical results hold with rigorous validation, the work could have substantial clinical significance by shortening MRI acquisition times and reducing motion artifacts. The multi-kernel texture preservation idea extends established residual and multi-scale techniques in medical image synthesis in a plausible way. However, the absence of any reported quantitative metrics, baselines, or hallucination-specific evaluations in the presented material substantially weakens the assessed impact.

major comments (2)

[Abstract] Abstract: the claims of 'accurate, hallucination-free' output and 'clinically validated' performance are asserted without any quantitative metrics (PSNR, SSIM, perceptual distances), baseline comparisons, error bars, dataset statistics, or radiologist scores. This directly undermines evaluation of the central claim.
[Methods] Methods (MK-ResRecon and IdentityRefineNet3D description): the assertion that the multi-kernel texture-aware loss plus 3D refinement produces hallucination-free results in the 87.5% unsampled gaps rests on an untested premise; no explicit hallucination metric, region-specific fidelity analysis in missing slices, or constraint preventing fabrication of false anatomy is described.

minor comments (1)

[Abstract] Abstract contains broken hyphenation from line wrapping ('dura- tions', 'in- termediate', 'POST- contrast'); these should be corrected for readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and have revised the manuscript to strengthen the quantitative support for our claims.

read point-by-point responses

Referee: [Abstract] Abstract: the claims of 'accurate, hallucination-free' output and 'clinically validated' performance are asserted without any quantitative metrics (PSNR, SSIM, perceptual distances), baseline comparisons, error bars, dataset statistics, or radiologist scores. This directly undermines evaluation of the central claim.

Authors: We agree that the abstract should include supporting quantitative evidence. The full manuscript reports experimental results on a heterogeneous cohort, but the abstract was too concise. We have revised the abstract to report key metrics including PSNR, SSIM, and perceptual distances, along with baseline comparisons, error bars, dataset statistics, and reference to radiologist validation scores. revision: yes
Referee: [Methods] Methods (MK-ResRecon and IdentityRefineNet3D description): the assertion that the multi-kernel texture-aware loss plus 3D refinement produces hallucination-free results in the 87.5% unsampled gaps rests on an untested premise; no explicit hallucination metric, region-specific fidelity analysis in missing slices, or constraint preventing fabrication of false anatomy is described.

Authors: The texture-aware loss and 3D refinement are designed to preserve details from the 12.5% sampled slices and enforce anatomical consistency across the volume. We acknowledge that an explicit hallucination metric strengthens the evaluation. In the revised manuscript we have added a subsection describing an explicit hallucination metric, region-specific fidelity analysis restricted to the unsampled slices, and details on how the loss and refinement constraints limit fabrication of false anatomy, together with the corresponding quantitative results. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical DL reconstruction framework

full rationale

The paper describes an empirical deep-learning pipeline (MK-ResRecon with multi-kernel loss plus IdentityRefineNet3D refinement) trained and evaluated on T1-weighted brain MRI datasets. No mathematical derivations, first-principles equations, or parameter-fitting steps that could reduce to self-definition or tautology are present. Performance claims rest on standard supervised training and held-out evaluation rather than any closed-loop prediction that is forced by construction. Self-citations, if any, are not load-bearing for the central empirical results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only abstract available; no explicit free parameters, axioms, or invented entities are stated. The framework implicitly relies on standard deep-learning assumptions such as sufficient training data diversity and that texture statistics in post-contrast T1 images generalize to the test cohort.

pith-pipeline@v0.9.0 · 5528 in / 1283 out tokens · 63297 ms · 2026-05-08T01:17:12.801310+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Reference graph

Works this paper leans on

25 extracted references · 9 canonical work pages

[1]

Scientific data 4(1), 1–13 (2017)

Bakas, S., Akbari, H., Sotiras, A., Bilello, M., Rozycki, M., Kirby, J.S., Freymann, J.B., Farahani, K., Davatzikos, C.: Advancing the cancer genome atlas glioma mri collections with expert segmentation labels and radiomic features. Scientific data 4(1), 1–13 (2017)

2017
[2]

Identifying the Best Machine Learning Algorithms for Brain Tumor Segmentation, Progression Assessment, and Overall Survival Prediction in the BRATS Challenge

Bakas, S., Reyes, M., Jakab, A., Bauer, S., Rempfler, M., Crimi, A., Shinohara, R.T., Berger, C., Ha, S.M., Rozycki, M., et al.: Identifying the best machine learn- ing algorithms for brain tumor segmentation, progression assessment, and overall survival prediction in the brats challenge. arXiv preprint arXiv:1811.02629 (2018)

work page Pith review arXiv 2018
[3]

In: 2025 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV)

Bangun, A., Cao, Z., Quercia, A., Scharr, H., Pfaehler, E.: Mri reconstruction with regularized 3d diffusion model (r3dm). In: 2025 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV). pp. 700–710. IEEE (2025)

2025
[4]

El- sevier Academic Press, Burlington, MA (2004)

Bernstein, M.A., King, K.F., Zhou, X.J.: Handbook of MRI Pulse Sequences. El- sevier Academic Press, Burlington, MA (2004)

2004
[5]

In: ISMRM Annual Meeting (2020)

Bilgic, B., Wang, L., Gong, E., Zaharchuk, G., Zhang, T.: From 2d thick slices to 3d isotropic volumetric brain mri — a deep learning approach. In: ISMRM Annual Meeting (2020)

2020
[6]

International Journal of Advanced Research in Computer Engineering & Technol- ogy (IJARCET)2(2), 457–460 (2013)

Borse, S., Patil, S.: A literature survey on image interpolation and its techniques. International Journal of Advanced Research in Computer Engineering & Technol- ogy (IJARCET)2(2), 457–460 (2013)

2013
[7]

Bourigault, E., Hamdi, A., Jamaludin, A.: X-diffusion: Generating detailed 3d mri volumes from a single image using cross-sectional diffusion models (2024)

2024
[8]

Chadha, S., Weiss, D., Janas, A., Ramakrishnan, D., Hager, T., Osenberg, K., Willms, K., Zhu, J., Chiang, V., Bakas, S., Maleki, N., Sritharan, D.V., Schoenherr, S., Westerhoff, M., Zawalich, M., Davis, M., Malhotra, A., Bous- abarah, K., Deuschl, C., Lin, M., Aneja, S., Aboian, M.S.: Yale longitudinal dataset of brain metastases on mri with associated cl...

work page doi:10.7937/3yat-e768 2025
[9]

In: MICCAI

Chartsias, A., Joyce, T., et al.: Adversarial image synthesis for unpaired multi- modal cardiac data. In: MICCAI. pp. 3–11 (2017)

2017
[10]

Neuro- computing409, 170–182 (2020)

Chen, X., Han, X., et al.: Brain mri super-resolution using deep learning. Neuro- computing409, 170–182 (2020)

2020
[11]

Journal of Magnetic Resonance Imaging48, 1234–1245 (2018)

Chung, A., Smith, J.: Slice interpolation in 3d mri using cubic and spline methods. Journal of Magnetic Resonance Imaging48, 1234–1245 (2018)

2018
[12]

In: Proceedings of the IEEE/CVF conference on computer vision and pattern recognition

Chung, H., Ryu, D., McCann, M.T., Klasky, M.L., Ye, J.C.: Solving 3d inverse problems using pre-trained 2d diffusion models. In: Proceedings of the IEEE/CVF conference on computer vision and pattern recognition. pp. 22542–22551 (2023)

2023
[13]

Medical image analysis80, 102479 (2022) 16 F

Chung, H., Ye, J.C.: Score-based diffusion models for accelerated mri. Medical image analysis80, 102479 (2022) 16 F. Author et al

2022
[14]

In: Information Processing in Med- ical Imaging (IPMI)

Dalca, A.V., Bouman, K.L., Freeman, W.T., Rost, N., Sabuncu, M.R., Gol- land, P.: Population-based image imputation. In: Information Processing in Med- ical Imaging (IPMI). pp. 36–49. Springer (2017).https://doi.org/10.1007/ 978-3-319-59050-9_3

2017
[15]

Wiley-Liss (1999)

Haacke, E.M., Brown, R.W., Thompson, M.R., Venkatesan, R.: Magnetic Reso- nance Imaging: Physical Principles and Sequence Design. Wiley-Liss (1999)

1999
[16]

In: Proceedings of the IEEE/CVF international conference on computer vision

Lee, S., Chung, H., Park, M., Park, J., Ryu, W.S., Ye, J.C.: Improving 3d imag- ing with pre-trained perpendicular 2d diffusion models. In: Proceedings of the IEEE/CVF international conference on computer vision. pp. 10710–10720 (2023)

2023
[17]

Medical Image Analysis58, 101545 (2019)

McCann, M.T., Jin, K.H., Unser, M.: Generative adversarial networks for 3d mri reconstruction. Medical Image Analysis58, 101545 (2019)

2019
[18]

IEEE transactions on medical imaging 34(10), 1993–2024 (2014)

Menze, B.H., Jakab, A., Bauer, S., Kalpathy-Cramer, J., Farahani, K., Kirby, J., Burren, Y., Porz, N., Slotboom, J., Wiest, R., et al.: The multimodal brain tumor image segmentation benchmark (brats). IEEE transactions on medical imaging 34(10), 1993–2024 (2014)

1993
[19]

Magnetic Resonance Imaging 97, 110–120 (2023).https://doi.org/10.1016/j.mri.2023.03.009

Remedios, S.W., Thakur, S., Deshpande, A.M.: Self-supervised super-resolution for anisotropic mr images with and without slice gap. Magnetic Resonance Imaging 97, 110–120 (2023).https://doi.org/10.1016/j.mri.2023.03.009

work page doi:10.1016/j.mri.2023.03.009 2023
[20]

In: Medical Image Computing and Computer Assisted Intervention (MICCAI)

Sriram, A., Zbontar, J., Murrell, T., Defazio, A., Zitnick, L., et al.: End-to- end variational networks for accelerated mri reconstruction. In: Medical Image Computing and Computer Assisted Intervention (MICCAI). pp. 64–73 (2020). https://doi.org/10.1007/978-3-030-59710-8_7

work page doi:10.1007/978-3-030-59710-8_7 2020
[21]

Computers in Biology and Medicine 144, 105667 (2022).https://doi.org/10.1016/j.compbiomed.2022.105667

Wu, Z., Li, S., Zhang, Y., Wang, H.: Multiple intermediate slices interpolation for anisotropic 3d medical image segmentation. Computers in Biology and Medicine 144, 105667 (2022).https://doi.org/10.1016/j.compbiomed.2022.105667

work page doi:10.1016/j.compbiomed.2022.105667 2022
[22]

In: 7th International Conference on Advanced Algorithms and Control Engineering (ICAACE)

Yang, C., Du, H.: Ard-unet: An attention-based residual dense u-net for accelerated multi-modal mri reconstruction. In: 7th International Conference on Advanced Algorithms and Control Engineering (ICAACE). pp. 1491–1496 (2024).https: //doi.org/10.1109/ICAACE61206.2024.10548715

work page doi:10.1109/icaace61206.2024.10548715 2024
[23]

Computer Methods and Programs in Biomedicine 250, 108815 (2025).https://doi.org/10.1016/j.cmpb.2025.108815

Yang, Z., Chen, J., Li, Y.: Cross-fusion adaptive feature enhancement transformer for brain mri super-resolution. Computer Methods and Programs in Biomedicine 250, 108815 (2025).https://doi.org/10.1016/j.cmpb.2025.108815

work page doi:10.1016/j.cmpb.2025.108815 2025
[24]

Zbontar, F

Zbontar, J., Knoll, F., Sriram, A., Murrell, T., Huang, Z., Muckley, M.J., De- fazio, A., Stern, R., Johnson, P., Bruno, M., et al.: fastmri: An open dataset and benchmarks for accelerated mri. arXiv preprint arXiv:1811.08839 (2018)

work page arXiv 2018
[25]

Zhang, H., Huang, Y., Li, X., Zhang, Z.: 3d mri reconstruction based on 2d gen- erative adversarial network super-resolution. Computers in Biology and Medicine 133, 104368 (2021).https://doi.org/10.1016/j.compbiomed.2021.104368 Abbreviated paper title 1 Supplimentary Material 2D Slice Prediction The Kernels and weights for 2D Muti-kernel loss are as follo...

work page doi:10.1016/j.compbiomed.2021.104368 2021
