Deep Graph-Language Fusion for Structure-Aware Code Generation

Mert Tiftikci , Amir Molzam Sharifloo , Mira Mezini
Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:47 UTC · model grok-4.3

classification 💻 cs.SE
keywords code generationgraph neural networkspre-trained language modelsstructure-aware code modelsdeep fusionabstract syntax treesdata-flow graphs
0
0 comments X

The pith

Fusing graph neural network features directly into language model intermediate layers improves code generation by preserving control flow and data dependencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that transformer-based language models for code generation fail to capture relational structure such as control flow and data dependencies because they treat input as token sequences. CGFuse addresses this by running a graph neural network on abstract syntax trees and data-flow graphs, then infusing the resulting features token-by-token into the model's hidden layers rather than only at the input or output. This deep integration is shown to yield measurable gains over prior extraction, retrieval, or prompt-based graph methods. A reader who accepts the premise would conclude that explicit structural fusion can make pre-trained models more faithful to code semantics without retraining from scratch.

Core claim

CGFuse combines a graph neural network with a pre-trained language model to enable token-level infusion of learned graph representations into the model's intermediate layers, thereby preserving fine-grained structural information from code graphs including abstract syntax trees and data-flow graphs and producing up to 10-16% BLEU and 6-11% CodeBLEU gains in generation tasks across multiple language models.

What carries the argument

CGFuse, the token-level graph-feature infusion mechanism that injects GNN outputs into PLM intermediate layers to retain relational attributes of code graphs.

If this is right

  • Code generation systems can retain control-flow and data-dependency information that sequential transformers normally discard.
  • The same deep-fusion pattern can be applied to other pre-trained models without requiring full retraining.
  • Performance improvements hold across multiple base language models, indicating the fusion is not tied to one architecture.
  • Tasks beyond generation, such as code repair or summarization, become candidates for the same structural infusion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the layer-wise fusion works, similar structural signals could be added to models for non-code sequence tasks that have latent graph structure.
  • The approach implies that information loss in graph-to-sequence conversion is the dominant bottleneck rather than model capacity.
  • Future variants might test whether fusion depth or graph type can be tuned per task without changing the base language model.

Load-bearing premise

Infusing learned graph features directly into the intermediate layers of pre-trained language models captures structured and relational attributes of code without the information loss of prior extraction or prompt methods.

What would settle it

An ablation that adds the same graph features only to the input embeddings or final output instead of intermediate layers and measures whether the BLEU and CodeBLEU gains disappear.

Figures

Figures reproduced from arXiv: 2605.03689 by Amir Molzam Sharifloo, Mert Tiftikci, Mira Mezini.

Figure 1

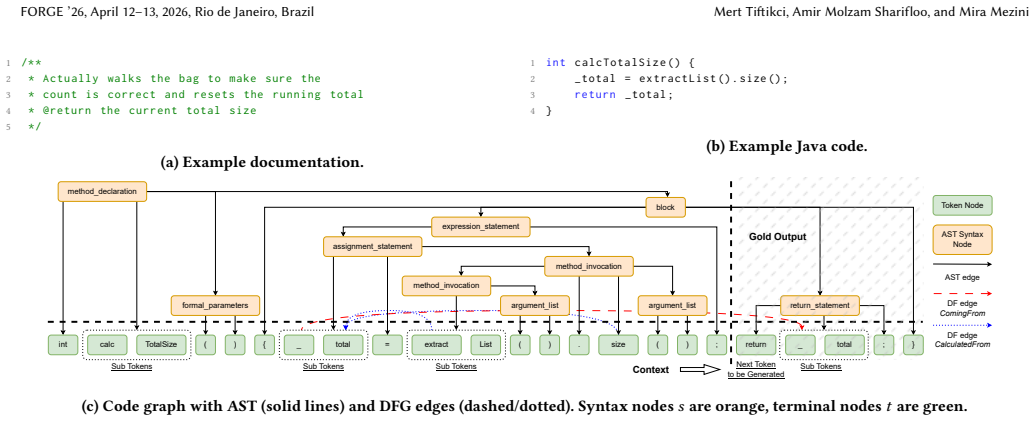

Figure 1. Figure 1: A sample Java snippet with documentation (a), code (b), and its augmented code graph (c). view at source ↗
Figure 2
Figure 2. Figure 2: Fusion of GNN features into a PLM layer. Only view at source ↗
read the original abstract

Pre-trained Language Models (PLMs) have the potential to transform software development tasks. However, despite significant advances, current PLMs struggle to capture the structured and relational attributes of code, such as control flow and data dependencies. This limitation is rooted in an architectural mismatch: whereas code structure is best represented by graphs, transformer-based LLMs process input as sequential token patterns and therefore lack explicit structural awareness. While recent research has explored integrating graph-based code representations using techniques like graph feature extraction, retrieval-augmented generation, and prompt engineering, existing approaches suffer from information loss during dense feature extraction or prompt encoding; notably, the potential of deep, token-level fusion of graph features within model internals has not been systematically explored. In this paper, we initiate such an exploration by introducing CGFuse, a novel framework that enables token-level integration of graph-derived representations by infusing learned graph features directly into the intermediate layers of pre-trained language models. CGFuse combines a graph neural network (GNN) with a language model to explicitly preserve and exploit fine-grained structural information from code graphs, including abstract syntax trees and data-flow graphs. We systematically evaluate CGFuse across multiple LLMs, demonstrating up to 10-16% BLEU and 6-11% CodeBLEU improvements in code generation performance. These results highlight the potential of deep graph-PLM integration to advance the field toward more robust, capable AI-driven software development.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces CGFuse, a novel framework that fuses a graph neural network (GNN) with pre-trained language models (PLMs) for code generation. It enables deep, token-level infusion of learned graph features derived from abstract syntax trees (ASTs) and data-flow graphs directly into the intermediate layers of the PLMs. The central claim is that this approach explicitly preserves fine-grained structural and relational information (control flow, data dependencies) that sequential transformers otherwise miss, outperforming prior methods based on feature extraction, retrieval, or prompting. Empirical results across multiple LLMs are reported as up to 10-16% BLEU and 6-11% CodeBLEU gains.

Significance. If the reported gains prove robust under rigorous controls, the work would meaningfully advance structure-aware code generation by demonstrating the viability of deep internal fusion rather than shallow external integration. This could influence future PLM architectures for code and related structured domains. The paper's strength lies in its systematic exploration of fusion points, though significance hinges on the quality and transparency of the experimental evidence.

major comments (2)
  1. [§4] §4 (Evaluation protocol): The abstract and manuscript claim consistent gains across multiple LLMs but provide no information on the specific datasets used, the choice of baselines, number of runs, statistical significance tests, or controls for confounding variables such as model scale and training details. These omissions make it impossible to assess whether the 10-16% BLEU deltas are attributable to the token-level fusion design or to other factors.
  2. [§3.2] §3.2 (Fusion mechanism): The central architectural claim that direct infusion into intermediate layers avoids the information loss of prior extraction/prompt methods is presented without supporting ablations on fusion depth, GNN layer count, or quantitative measures of structural information retention (e.g., graph reconstruction accuracy or dependency coverage). This leaves the weakest assumption untested.
minor comments (2)
  1. [Abstract] The abstract would be clearer if it named the concrete code generation tasks (e.g., function-level completion, full program synthesis) and the exact LLMs evaluated.
  2. [§3] Notation for the infusion operation (how graph embeddings are aligned to token positions) should be formalized with an equation in §3 to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's thorough review and constructive feedback on our manuscript. We address each of the major comments below and outline the revisions we plan to make to strengthen the paper.

read point-by-point responses

  1. Referee: [§4] §4 (Evaluation protocol): The abstract and manuscript claim consistent gains across multiple LLMs but provide no information on the specific datasets used, the choice of baselines, number of runs, statistical significance tests, or controls for confounding variables such as model scale and training details. These omissions make it impossible to assess whether the 10-16% BLEU deltas are attributable to the token-level fusion design or to other factors.

    Authors: We agree with the referee that the evaluation protocol requires more detailed reporting to allow proper assessment of the results. The manuscript in Section 4 describes the overall setup but does not provide exhaustive information on datasets, baselines, run counts, statistical tests, or confounding controls. We will revise the paper to include these details explicitly, ensuring that the reported gains can be properly attributed to the proposed token-level fusion approach. revision: yes

  2. Referee: [§3.2] §3.2 (Fusion mechanism): The central architectural claim that direct infusion into intermediate layers avoids the information loss of prior extraction/prompt methods is presented without supporting ablations on fusion depth, GNN layer count, or quantitative measures of structural information retention (e.g., graph reconstruction accuracy or dependency coverage). This leaves the weakest assumption untested.

    Authors: We agree that additional ablations and quantitative measures are needed to support the architectural claims. Section 3.2 introduces the fusion mechanism but lacks the suggested ablations on fusion depth, GNN layers, and structural retention metrics. We will incorporate these analyses in the revised manuscript to test the assumption that deep infusion avoids information loss. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical architecture evaluation

full rationale

The manuscript proposes CGFuse as a novel GNN-PLM fusion architecture for token-level graph feature infusion and supports its claims solely through empirical evaluation on code generation benchmarks, reporting BLEU and CodeBLEU gains. No equations, derivations, or load-bearing steps reduce by construction to fitted inputs, self-definitions, or self-citation chains; the architecture description and performance deltas are presented as outcomes of the design choice rather than tautological restatements of inputs. The work is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The claim rests on the domain assumption that graphs best represent code structure and that deep internal fusion avoids information loss; no free parameters or external benchmarks are specified in the abstract.

axioms (2)
  • domain assumption Code structure is best represented by graphs such as abstract syntax trees and data-flow graphs rather than sequential tokens
    Explicitly stated as the root limitation of current PLMs in the abstract.
  • ad hoc to paper Deep token-level infusion of graph features into intermediate model layers preserves fine-grained structural information
    Central premise of the CGFuse method described in the abstract.
invented entities (1)
  • CGFuse no independent evidence
    purpose: Framework for token-level integration of graph-derived representations into pre-trained language models
    Newly proposed architecture combining GNN and LM components.
