Ultra Low-Power SDM-based Circuit-Switching for Networks-on-Chip

Meysam Zaeemi , Mehdi Modarressi

Authors on Pith no claims yet

Pith reviewed 2026-05-08 15:37 UTC · model grok-4.3

classification 💻 cs.AR

keywords network-on-chipcircuit switchingspatial division multiplexinglow-power designmulticore systemstask mappingrouter architecture

0 comments

The pith

A circuit-switched NoC using spatial division multiplexing reduces power by 38 percent, area by 19 percent, and latency by 12 percent versus packet switching for predictable traffic.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a circuit-switched network-on-chip that builds dedicated communication paths at design time for multicore chips running applications with known traffic patterns. It applies spatial division multiplexing to allocate subsets of wires as fixed circuits and introduces a hybrid router that mixes hard-wired switches with programmable crossbars. An accompanying mapping algorithm assigns tasks to a mesh and sizes each circuit appropriately. These steps together lower NoC power, area, and packet delay compared with standard packet-switched networks. The approach targets energy-constrained AI and embedded systems where traffic predictability can be exploited before fabrication.

Core claim

For embedded applications whose inter-core communication can be characterized at design time, an SDM-based circuit-switched NoC with hybrid routers and a joint task-mapping and route-assignment algorithm establishes fixed circuits over subsets of wires and delivers approximately 38 percent lower power consumption, 19 percent smaller area, and 12 percent lower packet latency than a conventional packet-switched NoC.

What carries the argument

Spatial division multiplexing that carves dedicated wire subsets into circuits, paired with a hybrid router containing both hard-wired switches and programmable crossbars, plus a design-time algorithm that maps tasks and sizes the circuits.

If this is right

NoC power consumption falls by roughly 38 percent under the stated conditions.
The network occupies 19 percent less silicon area.
Average packet latency drops by about 12 percent.
The design becomes attractive for power-limited multicore AI accelerators that exhibit stable communication flows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same predictability assumption could support runtime circuit reconfiguration if traffic changes slowly enough.
Hybrid packet-circuit routers might appear in future chips that combine this technique with conventional switching for less predictable flows.
Wire-utilization gains from SDM could be tested against other multiplexing methods on the same mesh topology.

Load-bearing premise

Inter-core traffic patterns in the target applications remain stable enough to be fully known and fixed before the chip is fabricated.

What would settle it

Fabricate the proposed NoC and a packet-switched baseline on the same process, run a real application whose runtime traffic deviates from the design-time model, and compare measured power, area, and latency; the claimed savings would disappear if the measured differences fall near zero.

Figures

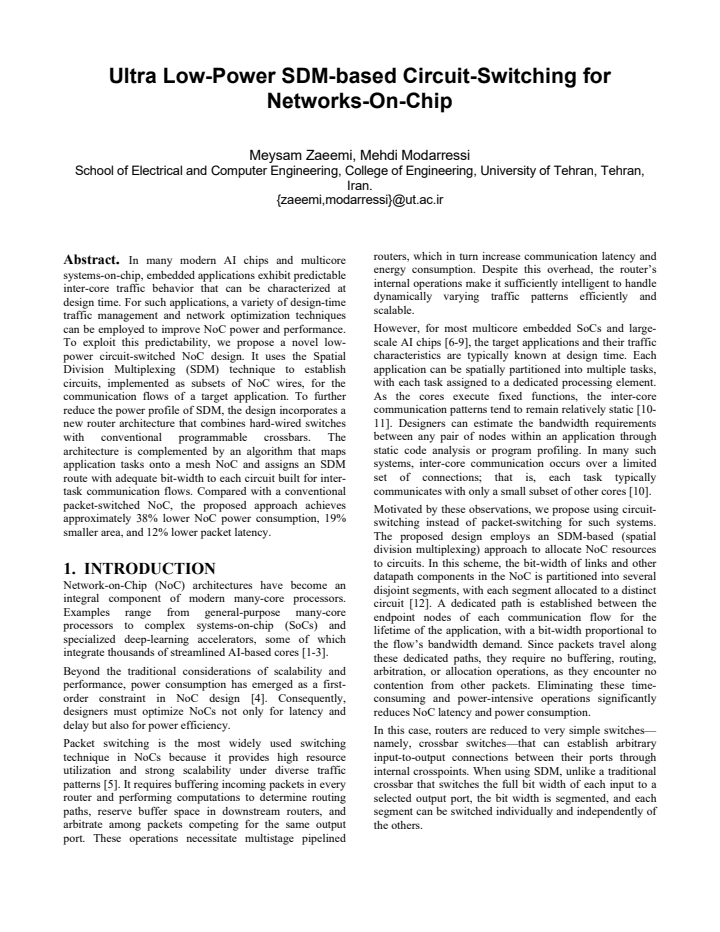

Figures reproduced from arXiv: 2605.04679 by Mehdi Modarressi, Meysam Zaeemi.
