Geometric Engineering of Flat Bands in a Single-layer Photonic Graphene

Dun Wang, Jia-chen Shi, Ritesh Agarwal, Shupeng Xu, Xuyang Li

Pith reviewed 2026-05-08 07:04 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords photonic flat bandsphotonic graphenegeometric perturbationtopological photonicsDirac massJackiw-Rebbi stateband inversionsingle-layer photonic crystal
0
0 comments X

The pith

A periodic displacement of air holes in a single-layer photonic crystal slab couples below-light-cone flat bands into the radiative regime and enables control over topological phases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a density-wave-like geometric perturbation, implemented as a spatially periodic shift of the lattice air holes, brings intrinsic flat band states from below the light cone into the radiative continuum in a simple honeycomb photonic crystal slab. This modulation produces a highly anisotropic dispersion featuring linear Dirac-like behavior in one direction and nearly flat dispersion in the orthogonal direction, along with an extended van Hove singularity. By adjusting the Fourier components of the perturbation, the Dirac mass term can be tuned to induce band inversion and switch between two topologically distinct phases. The work also shows that a Jackiw-Rebbi interface state appears at the boundary between domains of opposite mass, and that this state itself disperses flatly along the interface. A sympathetic reader would care because the approach replaces complex multilayer or aligned geometries with a single-layer fabrication-friendly method for creating radiative flat bands useful in light-matter interactions and topological devices.

Core claim

The authors demonstrate that applying a spatially periodic displacement to the air holes in a photonic graphene slab couples below-light-cone flat band states into the radiative continuum, resulting in highly anisotropic bands with linear dispersion in one direction and flat dispersion in the other, and that tuning the modulation allows manipulation of the Dirac mass term for band inversion between topologically distinct phases, as shown by the presence of a Jackiw-Rebbi interface state.

What carries the argument

The density-wave-like geometric perturbation, a spatially periodic displacement of the lattice air holes, that couples intrinsic flat bands into the light cone while controlling the Dirac mass term.

If this is right

  • Radiative flat bands become available in single-layer structures for enhanced light-matter coupling and nonlinear optics without requiring intricate fabrication.
  • The anisotropic band structure with extended van Hove singularities supports high density of states at band extrema for sensing or lasing applications.
  • Tuning the modulation Fourier components provides a direct handle to switch between topologically distinct photonic phases in the same device.
  • Jackiw-Rebbi interface states with flat dispersion along the boundary enable robust, localized light transport between domains.
  • The perturbation strategy offers a general route to program complex dispersions in photonic crystals from simple geometric changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hole-displacement method could be applied to other two-dimensional photonic lattices to engineer flat bands in different symmetries.
  • Interface states with flat dispersion might support low-threshold topological lasers or slow-light devices in a single slab layer.
  • Because the perturbation is defined by Fourier components, numerical optimization of the displacement pattern could target specific flat-band widths or topological invariants.
  • This geometric approach may reduce the need for multilayer stacking or precise alignment in practical flat-band photonic circuits.

Load-bearing premise

The chosen periodic displacement of air holes must couple the flat bands into the radiative regime while preserving the target anisotropy and topological character without introducing unmodeled losses or fabrication errors that would destroy the flat dispersion or interface states.

What would settle it

Fabricate a single-layer honeycomb slab with the proposed periodic hole displacements and measure its band structure; if the dispersion does not exhibit the predicted linear-flat anisotropy above the light line or if no flat-dispersing Jackiw-Rebbi state appears at the domain junction, the central claim is falsified.

Figures

Figures reproduced from arXiv: 2605.05690 by Dun Wang, Jia-chen Shi, Ritesh Agarwal, Shupeng Xu, Xuyang Li.

Figure 1
Figure 1. Figure 1: Design principle of our flat band with DW perturbation in a single layer photonic view at source ↗
Figure 2
Figure 2. Figure 2: Band structure of the photonic graphene lattice with a DW modulation. (a) SEM view at source ↗
Figure 3
Figure 3. Figure 3: Topological bandgap engineering from the DW modulation. (a-d) Simulated and view at source ↗
Figure 4

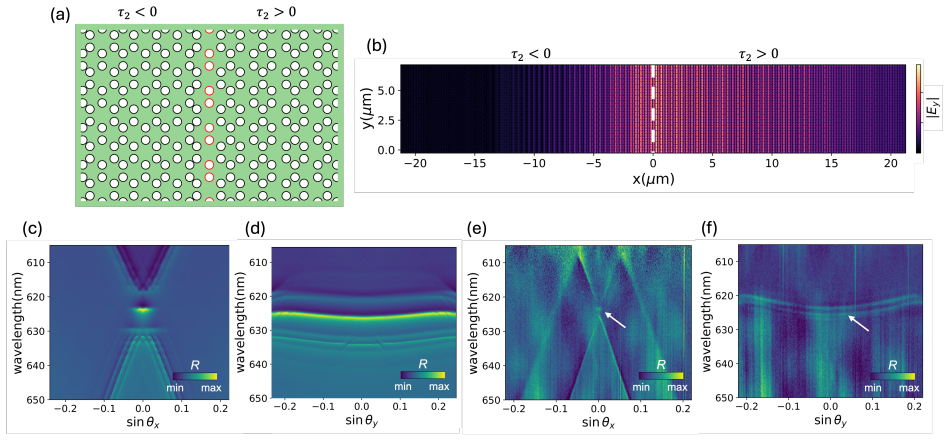

Figure 4. Figure 4: Schematic and characterization of the flat band Jackiw-Rebbi state. (a) Real space view at source ↗
read the original abstract

Photonic flat bands offer significant potential for strong light-matter interactions, nonlinear optics, and sensing thanks to their localization of light and high density of states. However, realizing these flat bands typically requires intricate fabrication, perfect alignment and/or specialized geometries, and a general design strategy is missing. In this work, we demonstrate a simple yet versatile strategy to engineer radiative flat bands above the light line, using only a single-layer honeycomb photonic crystal slab. By applying a density wave like geometric perturbation-a spatially periodic displacement of the lattice air holes-we couple intrinsic flat band states from below the light cone into the radiative continuum. This structural modulation creates a highly anisotropic band structure that exhibits linear, Dirac-like dispersion in one direction and nearly flat dispersion in the orthogonal direction, forming an extended van Hove singularity at band extrema. Furthermore, by tuning the Fourier components of the modulation, we can manipulate the Dirac mass term to realize band inversion and switch between two topologically distinct phases. As an application, we demonstrate a Jackiw-Rebbi interface state positioned at the junction of two domains with opposite Dirac mass, that also shows flat band dispersion along the interface. This density-wave perturbation approach provides a conceptually clear and fabrication friendly platform for programming complex photonic band dispersions, opening new avenues for both topological photonics and practical flat-band optoelectronic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper claims that a density-wave-like geometric perturbation, implemented as a spatially periodic displacement of air holes in a single-layer honeycomb photonic crystal slab, couples intrinsic flat bands from below the light cone into the radiative continuum. This produces a highly anisotropic dispersion (Dirac-like linear in one direction, nearly flat in the orthogonal direction) with an extended van Hove singularity, allows tuning of the Dirac mass term via Fourier components of the modulation to achieve band inversion and topological phase switching, and yields a Jackiw-Rebbi interface state at the boundary between domains of opposite mass sign that itself supports flat dispersion along the interface.

Significance. If the results hold, the work supplies a conceptually clear and fabrication-friendly route to radiative flat bands and topological interface states in standard single-layer photonic-crystal slabs, avoiding the need for intricate multi-layer or specialized geometries. The central construction is internally consistent: the effective model for the modulated lattice aligns with the simulated band structures, the anisotropy is preserved, and the Jackiw-Rebbi state follows directly from the sign change in the Dirac mass. The stress-test concern about unmodeled losses or fabrication imperfections destroying the flat dispersion does not land on the reported simulations, which show the desired features intact. This provides a programmable platform that could advance both topological photonics and practical flat-band devices.

minor comments (2)
  1. [Abstract] The abstract states that the approach 'demonstrates' the interface state and flat dispersion but does not indicate whether these results are obtained from numerical band-structure calculations, effective-model derivations, or both; adding this clarification would improve precision.
  2. [Main text] Reproducibility would be aided by including explicit values or functional forms for the modulation amplitude, period, and the specific Fourier components used to tune the Dirac mass in the main text or a dedicated methods section.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of our work on density-wave geometric perturbations in single-layer photonic graphene slabs. The recognition that our approach provides a fabrication-friendly route to radiative flat bands, anisotropic dispersion, band inversion, and Jackiw-Rebbi states is appreciated. No specific major comments were provided in the report, so we have no points to address point-by-point. We will incorporate any minor editorial suggestions in the revised manuscript.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The manuscript presents a geometric perturbation strategy on a honeycomb photonic crystal slab to fold below-light-cone flat bands into the radiative regime, control anisotropy, and tune the Dirac mass term via Fourier components of the displacement. Band structures and interface states are obtained from direct numerical computation of the Maxwell equations on the modulated lattice, with the effective Dirac description serving as a post-hoc interpretation rather than a load-bearing input. No predictions are fitted to subsets of the same data, no self-citations supply uniqueness theorems or ansatzes that close the loop, and the Jackiw-Rebbi state follows from the standard sign-change argument in the effective model without reducing to the paper's own fitted values. The construction therefore rests on independent electromagnetic simulation and standard topological photonics rather than self-referential reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the approach appears to rely on standard Maxwell-equation solutions for photonic crystals and geometric design rules.
