The pith

A piezoelectric micropipette launcher loads nano- and microparticles into optical traps in vacuum with up to 93% efficiency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how a compact device using a pulled glass capillary and piezoelectric drive can deliver particles directly into optical traps while everything is in vacuum. The goal is to provide a localized and efficient way to introduce particles without the contamination or scattering issues common in other methods. It succeeds with silica spheres of 170 nm to 3 μm, 6 μm by 0.2 μm hexagonal prisms, and 100 nm nanodiamonds. Readers interested in levitated particle experiments would value this because it simplifies setup and maintains clean vacuum conditions for sensitive measurements.

Core claim

We demonstrate a compact piezoelectric-driven micropipette launcher for localized in-vacuum delivery of nano- and microparticles into optical traps. The launcher has been integrated into single-beam, non-interfering dual beam, and standing-wave dual beam traps. Using the micropipette launcher, we have successfully trapped silica spheres of 170 nm, 300 nm, 3 μm diameter, as well as 6 μm × 0.2 μm β-NaYF hexagonal prisms and ~100 nm diameter high-purity nanodiamonds, with trapping efficiency as high as 93%. Performance is characterized by peak acceleration, angular distribution of emitted particles, and dependence on vertical displacement between the pipette tip and optical trap.

What carries the argument

Piezoelectric-driven pulled glass micropipette launcher that propels particles from the capillary tip toward the optical trap.

If this is right

Silica spheres of 170 nm, 300 nm, and 3 μm diameters can be trapped in vacuum.
Plate-like 6 μm × 0.2 μm β-NaYF hexagonal prisms and ~100 nm nanodiamonds can be trapped.
The launcher works in single-beam, non-interfering dual-beam, and standing-wave dual-beam traps.
Performance metrics such as peak acceleration, angular distribution, and displacement dependence are quantified.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The localized nature of the launch may enable more repeatable single-particle experiments by reducing stray particles in the chamber.
The reported angular distribution and displacement data could guide design of similar launchers for new particle sizes or shapes.
Integration across multiple trap geometries indicates the method can be added to existing vacuum setups with limited redesign.

Load-bearing premise

Particles launched from the capillary reach the trap without significant contamination, fragmentation, or alteration of the vacuum environment.

What would settle it

Repeated trials in which trapping efficiency for the tested particles falls well below 93% or in which launched particles show clear fragmentation or vacuum contamination.

Figures

Figures reproduced from arXiv: 2605.05720 by Alexey Grinin, Andrew A. Geraci, Andrew Dana, George Winstone, Katarina Boskovic Guy, Mark Nguyen, Sam Borden, Scott Grudichak, Shafaq Gulzar Elahi, Shelby Klomp, Zhiyuan Wang.

**Figure 1.** Figure 1: ) needs to be minimized. High oscillation frequencies also necessitate low effective capacitance C to avoid limiting the high-frequency drive amplitude (voltage V and current I) of the high-voltage amplifier which drives the piezoelectric transducer (I ∝ 2π fCV for a capacitive load). On the other hand, the amplitude (free stroke) of a piezoelectric actuator increases with length. Piezoelectric tube ac… view at source ↗

**Figure 2.** Figure 2: shows the measured spectrum of the vertical motion (d) of the micropipette, the inferred acceleration spectrum (c), peak acceleration for different driving voltages (b) and the measurement setup (a). We placed the pipette tip into the center of a 2 mm diameter collimated 1560 nm beam and swept the frequency of the high-voltage piezo drive (20 Vpk, 100 V offset, A.A.Lab Systems A-301 HS) from 1 kHz to 510… view at source ↗

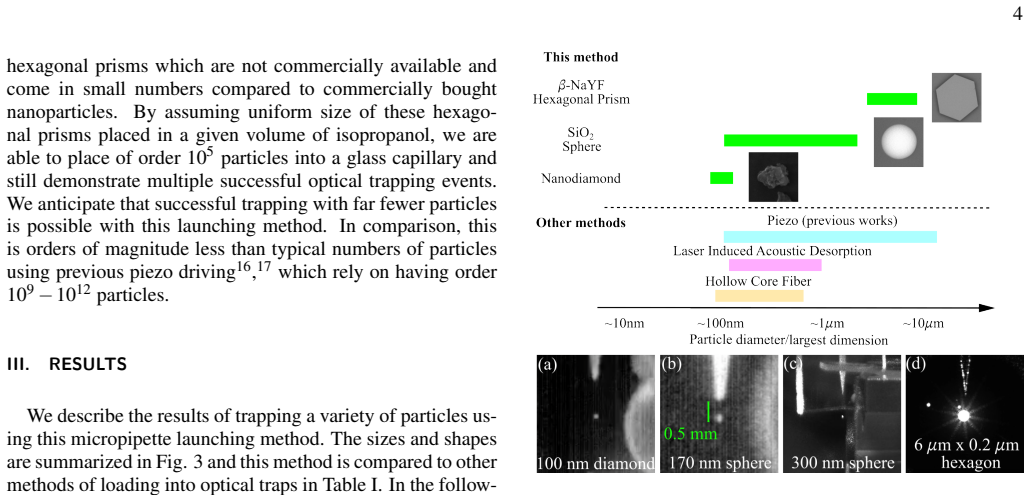

**Figure 3.** Figure 3: FIG. 3 view at source ↗

**Figure 4.** Figure 4: FIG. 4: Trapping efficiency for 300 nm SiO view at source ↗

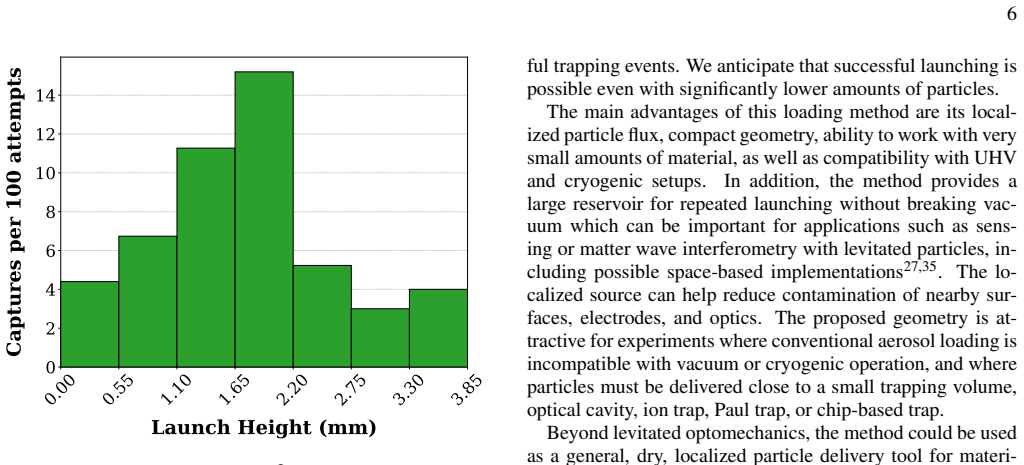

**Figure 5.** Figure 5: FIG. 5: Vertical capture profile of view at source ↗

read the original abstract

We demonstrate a compact piezoelectric-driven micropipette launcher for localized in-vacuum delivery of nano- and microparticles into optical traps. The launcher has been integrated into multiple optical trapping setups, including a single-beam trap, a non-interfering dual beam trap, and a standing-wave dual beam trap, showcasing the versatility and ease of integration of the setup. Using the micropipette launcher, we have successfully trapped silica spheres of $170\text{ nm}$, $300\text{ nm}$, 3 $\mu\text{m}$ diameter, as well as 6 $\mu\text{m}\times$ 0.2 $\mu\text{m}$ $\beta$-NaYF hexagonal prisms and $\sim 100$ nm diameter high-purity nanodiamonds. We characterize the performance of the device including the peak acceleration, angular distribution of emitted particles, and the dependence on vertical displacement between the pipette tip and optical trap. Trapping efficiency as high as 93\% is achieved.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

read the letter

This paper shows a working piezoelectric micropipette launcher that loads a range of particles into vacuum optical traps at up to 93% efficiency, with data that supports the claims across three trap geometries. The authors pulled glass capillaries, mounted them on a piezo actuator, and integrated the whole thing into single-beam, dual-beam, and standing-wave traps without obvious loss of stability. They give numbers for peak acceleration, angular spread of the launched particles, and how success drops with vertical offset from the trap focus. That characterization is the useful part for anyone who wants to copy the setup. They trapped 170 nm, 300 nm, and 3 μm silica spheres, 6 μm × 0.2 μm β-NaYF prisms, and ~100 nm nanodiamonds, which covers the sizes and shapes that matter in levitated optomechanics. The before-and-after trap stability data is a reasonable check that the launcher does not add mechanical noise. The evidence in the experimental sections lines up with the abstract claims, so the central result holds without needing extra assumptions about vacuum integrity. The softer spots are minor: the efficiency numbers come from a finite set of trials with no extended discussion of contamination buildup over hours or days, and the angular distribution data is presented but not modeled in detail. These are normal limitations for an instrumentation paper rather than fatal gaps. Experimental groups working on precision measurements or quantum optomechanics will find the method directly usable and will want the technical details. It is the kind of practical contribution that deserves referee time to verify the numbers and suggest clearer figures or error bars. I would send it out for peer review.

Referee Report

0 major / 2 minor

Summary. The manuscript presents a compact piezoelectric-driven micropipette launcher for localized in-vacuum delivery of nano- and microparticles into optical traps. It demonstrates successful trapping of silica spheres (170 nm, 300 nm, 3 μm diameters), 6 μm × 0.2 μm β-NaYF hexagonal prisms, and ~100 nm high-purity nanodiamonds across single-beam, non-interfering dual-beam, and standing-wave dual-beam trap geometries. Performance is characterized via peak acceleration, angular distribution of emitted particles, and vertical-displacement dependence, with reported trapping efficiencies reaching 93%.

Significance. If the results hold, this provides a practical, integrable solution to the longstanding challenge of efficient particle loading in vacuum optical trapping experiments, particularly relevant to levitated optomechanics. The explicit documentation of integration into three distinct trap types, before/after stability metrics, and quantitative launch characterization (acceleration, angular spread, position dependence) strengthens its utility as a methodological advance. Direct experimental evidence of trapping across the claimed size/shape range, tied to launch counts and occupancy observations, supports the central demonstration.

minor comments (2)

[Abstract] Abstract: the 93% efficiency figure is stated without a brief parenthetical on the number of trials or success definition; adding this would improve immediate readability even if full details appear in the main text.
Figure captions (throughout): ensure consistent inclusion of scale bars, particle-size labels, and trap-position references to facilitate direct comparison with the reported size range and displacement dependence.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, including the summary of our results on the piezoelectric-driven micropipette launcher and its integration across multiple trap geometries, as well as the recommendation to accept.

Circularity Check

0 steps flagged

No significant circularity in experimental demonstration

full rationale

This paper is a purely experimental report on the design, integration, and performance of a piezoelectric micropipette launcher for delivering nano- and microparticles into optical traps in vacuum. No derivation chain, theoretical model, fitted parameters, or predictions exist in the manuscript. Reported outcomes such as 93% trapping efficiency, particle acceleration, angular distribution, and successful trapping of specific sizes and shapes (170 nm to 3 μm spheres, prisms, nanodiamonds) are direct experimental measurements tied to explicit counts and observations across three trap geometries. No self-citations, ansatzes, or uniqueness claims are invoked to support any result; the work stands as self-contained technical validation without reduction of outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental instrumentation paper; no mathematical derivations, free parameters, or postulated entities are present. All reported outcomes are direct measurements of device performance.
