arxiv: 2605.05845 · v1 · submitted 2026-05-07 · 🧮 math.NA · cs.NA

Recognition: unknown

Mathematical and experimental validation of the bifocusing method tailored for bistatic measurement

Won-Kwang Park

Authors on Pith no claims yet

Pith reviewed 2026-05-08 06:49 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords bifocusing methodbistatic measurementBessel functionsdielectric inhomogeneitiesimaging resolutioninverse scatteringFresnel dataset

0 comments

The pith

Bifocusing imaging for small dielectric targets loses all resolution at exactly 180-degree bistatic angle.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a bifocusing imaging strategy for locating small penetrable dielectric inhomogeneities from two-dimensional bistatic measurements. Analysis of the indicator function's infinite Bessel series expansion reveals an explicit dependence on the bistatic angle and material contrast, proving that resolution steadily worsens as the angle grows toward 180 degrees. At precisely 180 degrees the indicator function degenerates and target identification becomes impossible, while angles near 0 degrees yield comparatively sharp images. Numerical tests on the Fresnel experimental dataset confirm the predicted behavior for both dielectric and metallic scatterers.

Core claim

By expressing the bifocusing indicator function as an infinite series of Bessel functions that incorporates the material characteristics and the bistatic angle, the authors rigorously establish that imaging resolution degrades as the bistatic angle approaches 180 degrees and that target identification is impossible when the angle equals 180 degrees, while high-resolution images are obtained when the angle is close to 0 degrees.

What carries the argument

The bifocusing indicator function constructed from the infinite Bessel series expansion, whose value encodes the bistatic angle and material properties to control imaging performance.

If this is right

High-resolution imaging is obtained only when the bistatic angle remains close to 0 degrees.
Target identification fails completely once the bistatic angle reaches 180 degrees.
The same indicator function works for both dielectric and metallic objects in experimental data.
Resolution decreases monotonically as the bistatic angle increases from 0 toward 180 degrees.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Measurement setups should deliberately avoid bistatic angles near 180 degrees if reliable localization is required.
The Bessel-series analysis supplies a quantitative criterion for choosing transmitter-receiver pairs in other inverse-scattering configurations.
The observed degeneration at 180 degrees may appear in related linear sampling or MUSIC-type methods that rely on similar far-field expansions.

Load-bearing premise

The targets are small penetrable dielectric inhomogeneities whose scattering is accurately described by the infinite Bessel series inside the indicator function for the chosen two-dimensional bistatic geometry.

What would settle it

Apply the bifocusing indicator function to data collected at a bistatic angle of exactly 180 degrees with a known small dielectric target and check whether any localized peak appears at the true target location.

read the original abstract

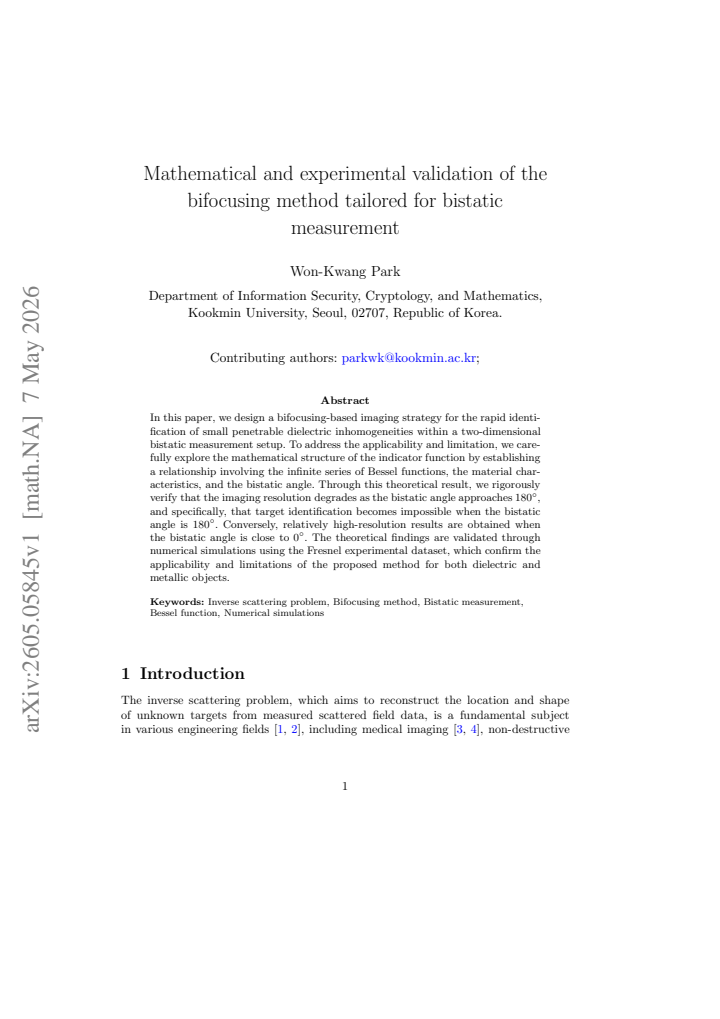

In this paper, we design a bifocusing-based imaging strategy for the rapid identification of small penetrable dielectric inhomogeneities within a two-dimensional bistatic measurement setup. To address the applicability and limitation, we carefully explore the mathematical structure of the indicator function by establishing a relationship involving the infinite series of Bessel functions, the material characteristics, and the bistatic angle. Through this theoretical result, we rigorously verify that the imaging resolution degrades as the bistatic angle approaches $\SI{180}{\degree}$, and specifically, that target identification becomes impossible when the bistatic angle is $\SI{180}{\degree}$. Conversely, relatively high-resolution results are obtained when the bistatic angle is close to $\SI{0}{\degree}$. The theoretical findings are validated through numerical simulations using the Fresnel experimental dataset, which confirm the applicability and limitations of the proposed method for both dielectric and metallic objects.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper derives an explicit Bessel-series form for the bistatic bifocusing indicator and shows resolution collapses at 180 degrees, with matching Fresnel simulations, but the limit step inside the sum lacks a convergence justification.

read the letter

The core contribution is a direct expansion of the bifocusing indicator function in terms of Bessel functions of the first kind, weighted by the material contrast and the bistatic phase factor. This yields an explicit dependence on the bistatic angle that makes the indicator independent of target location exactly at 180 degrees. The authors then run the same indicator on the public Fresnel dataset for both dielectric and metallic small objects and obtain images that line up with the predicted degradation near 180 degrees and improvement near 0 degrees. That combination of closed-form series and real-data check is the useful part; it gives practitioners a concrete reason to avoid or favor certain bistatic angles without having to rerun full forward simulations each time. The derivation itself follows the standard far-field expansion, so it is not inventing new scattering theory, but the tailoring to the bifocusing functional and the angle limit is new relative to the cited prior work. The numerical section is straightforward and uses an established benchmark, which is a plus for reproducibility. The soft spot is the passage to the limit inside the infinite sum. The paper states that the indicator becomes constant when the angle is exactly 180 degrees, but does not supply a uniform-convergence or dominated-convergence argument that would let one interchange the limit and the summation. If the remainder term retains a weak target dependence near 180 degrees, the “impossible to identify” claim would need qualification. The assumption that targets are small and penetrable is stated up front, so the scope is clear, but it does mean the result does not immediately extend to larger or highly conducting scatterers. Overall this is a focused, incremental piece that sits comfortably in the inverse-scattering literature. It is aimed at readers who already work with MUSIC-type or bifocusing indicators in 2D electromagnetic or acoustic settings and want a quick way to assess bistatic geometry choices. The math is accessible, the numerics are honest, and the topic is narrow enough that a referee could finish it in a day. I would send it to review rather than desk-reject; the central claim is testable and the data are public, so any convergence gap can be addressed in revision without starting over.

Referee Report

2 major / 2 minor

Summary. The paper designs a bifocusing-based imaging strategy for rapid identification of small penetrable dielectric inhomogeneities in a 2D bistatic measurement setup. It derives a relationship for the indicator function I(x) connecting an infinite Bessel series (weighted by material contrast and the bistatic phase factor e^{i n θ_b}) to the bistatic angle, and uses this to claim that imaging resolution degrades as the bistatic angle approaches 180°, with target identification becoming impossible exactly at 180°. The theoretical result is validated numerically on the public Fresnel experimental dataset for both dielectric and metallic targets, showing higher resolution near 0°.

Significance. If the central derivation holds, the work supplies a concrete mathematical explanation for resolution limits in bistatic inverse scattering, which is useful for choosing measurement geometries in applications such as radar or microwave imaging. The use of an explicit Bessel-series representation and validation against real experimental data (rather than only synthetic examples) adds practical value; the absence of free parameters in the core relation is a positive feature.

major comments (2)

[Theoretical derivation of indicator function] § on mathematical structure of the indicator function (the derivation connecting I(x) to the infinite Bessel series J_n(k|x-y|) and the limit θ_b → 180°): the claim that the indicator becomes independent of target location at exactly 180° requires interchanging the limit and the infinite sum. No uniform-convergence argument, dominated-convergence estimate, or remainder bound independent of θ_b is supplied. This interchange is load-bearing for the central statement that identification is impossible at 180°; without it the indicator could retain a weak target-dependent term.
[Numerical validation] Numerical experiments section (Fresnel data validation): the reported results are visual only; no quantitative error metrics (e.g., localization error versus bistatic angle, or L^2 discrepancy between reconstructed and true contrast) are given to substantiate the claimed monotonic degradation of resolution. This weakens the experimental support for the theoretical prediction.

minor comments (2)

[Abstract and Introduction] The abstract and introduction should explicitly restate the small-target, Born-approximation-type assumption on the scatterers (penetrable dielectric inhomogeneities whose scattering is captured by the infinite Bessel expansion) so that the scope of the rigorous result is clear to readers.
[Setup and notation] Notation for the bistatic angle θ_b and the phase factor e^{i n θ_b} is introduced without a diagram; a simple schematic of the bistatic geometry would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and describe the revisions planned for the next version.

read point-by-point responses

Referee: [Theoretical derivation of indicator function] the claim that the indicator becomes independent of target location at exactly 180° requires interchanging the limit and the infinite sum. No uniform-convergence argument, dominated-convergence estimate, or remainder bound independent of θ_b is supplied. This interchange is load-bearing for the central statement that identification is impossible at 180°; without it the indicator could retain a weak target-dependent term.

Authors: We appreciate the referee highlighting the need for a rigorous justification of the limit-sum interchange. The indicator I(x) is derived from the Jacobi-Anger expansion of the phase factor in the bistatic Green's function, yielding an infinite series weighted by the contrast and e^{i n θ_b}. At θ_b = 180°, this factor becomes (-1)^n. To justify the interchange, we will add in the revised manuscript a dominated-convergence argument: the series tail is bounded using |J_n(z)| ≤ (z/2)^|n| / |n|! , which is summable independently of θ_b on compact domains, allowing application of the Weierstrass M-test for uniform convergence. A remainder estimate uniform in a neighborhood of 180° will also be included to confirm that I(x) is exactly constant (independent of target location y) at θ_b = 180°. revision: yes
Referee: [Numerical validation] the reported results are visual only; no quantitative error metrics (e.g., localization error versus bistatic angle, or L^2 discrepancy between reconstructed and true contrast) are given to substantiate the claimed monotonic degradation of resolution.

Authors: We agree that quantitative metrics would provide stronger substantiation of the theoretical prediction. In the revised manuscript we will augment the numerical experiments section with explicit error measures computed on the Fresnel dataset. Specifically, we will report the localization error (Euclidean distance from the peak of I(x) to the known target center) as a function of bistatic angle for each target, together with an L^2 discrepancy between the computed indicator and its theoretical limiting form. These will be presented in additional tables or plots to quantify the monotonic degradation as θ_b approaches 180°. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation uses independent standard Bessel expansion

full rationale

The paper derives the indicator function's dependence on bistatic angle from the standard far-field scattering amplitude expansion in Bessel functions J_n, which is a classical identity in 2D scattering theory and does not reduce to any fitted parameter, self-definition, or prior result by the same authors. The claimed degradation at 180° follows directly from the phase factor e^{i n θ_b} in that expansion without requiring the target identification result as input. No load-bearing self-citation or ansatz smuggling is present; the relationship is mathematically self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard properties of Bessel functions in 2D scattering theory for small inhomogeneities and the assumption that the measurement configuration is far-field bistatic; no free parameters or new entities are introduced.

axioms (1)

standard math Far-field asymptotic expansion of the scattered field for small dielectric inhomogeneities can be expressed via infinite series of Bessel functions
Invoked to relate the bifocusing indicator function to bistatic angle and material contrast.

pith-pipeline@v0.9.0 · 5441 in / 1286 out tokens · 36937 ms · 2026-05-08T06:49:47.373110+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

43 extracted references

[1]

(ed.): Encyclopedia of RF and Microwave Engineering

Chang, K. (ed.): Encyclopedia of RF and Microwave Engineering. W iley- Interscience, Hoboken, NJ (2005)

2005
[2]

John Wiley & Sons, Ho boken, NJ (2011)

Pozar, D.M.: Microwave Engineering, 4th edn. John Wiley & Sons, Ho boken, NJ (2011)

2011
[3]

Mathematics and Applications Series, vol

Ammari, H.: An Introduction to Mathematics of Emerging Biomedica l Imaging. Mathematics and Applications Series, vol. 62. Springer, Berlin (2008 ) 15

2008
[4]

Lecture Notes in Mathe matics, vol

Ammari, H.: Mathematical Modeling in Biomedical Imaging II: Optical, Ultra- sound, and Opto-Acoustic Tomographies. Lecture Notes in Mathe matics, vol
[5]

Springer, Berlin (2011)

2011
[6]

NDT & E Int

Taillet, E., Lataste, J.F., Rivard, P., Denis, A.: Non-destructive ev aluation of cracks in massive concrete using normal dc resistivity logging. NDT & E Int. 63, 11–20 (2014)

2014
[7]

NDT & E Int

Wu, X., Wei, X., Xu, H., He, W., Sun, C., Zhang, L., Li, Y., Fang, Y.: Rada r- absorbing materials damage detection through microwave images us ing one-stage object detectors. NDT & E Int. 127, 102604 (2022)

2022
[8]

CRC Press, Routledge (1998)

Chernyak, V.S.: Fundamentals of Multisite Radar Systems: Multist atic Radars and Multiradar Systems. CRC Press, Routledge (1998)

1998
[9]

Wiley-I EEE Press, Hoboken, NJ (2014)

Persico, R.: Introduction to Ground Penetrating Radar. Wiley-I EEE Press, Hoboken, NJ (2014)

2014
[10]

John Wiley & Sons, Chichester, UK (2007)

Cherniakov, M.: Bistatic Radar: Principles and Practice. John Wiley & Sons, Chichester, UK (2007)

2007
[11]

In: Inst,

Griﬃths, H.D.: Bistatic and multistatic radar. In: Inst,. Elect. En g. Military Radar Seminar (2004)

2004
[12]

´A., Garc ´ ıa-Fern´ andez, M.,´Alvarez-Narciandi, G., Andr´ es, F.L.-H.: Unmanned aerial vehicle-based ground-penetrating radar syste ms: A review

L´ opez, Y. ´A., Garc ´ ıa-Fern´ andez, M.,´Alvarez-Narciandi, G., Andr´ es, F.L.-H.: Unmanned aerial vehicle-based ground-penetrating radar syste ms: A review. IEEE Geosci. Remote Sens. Mag. 10(2), 66–86 (2022)

2022
[13]

(eds.): Ground Penetrating Radar

Serhir, M., Lesselier, D. (eds.): Ground Penetrating Radar. Wile y-ISTE, London, UK (2024)

2024
[14]

Baranoski, E.J.: Through-wall imaging: Historical perspective a nd future direc- tions. J. Franklin Inst. 345, 556–569 (2008)

2008
[15]

IEEE Tran s

Cicchetti, R., Pisa, S., Piuzzi, E., Pittella, E., D’Atanasio, P., Testa, O.: Numerical and experimental comparison among a new hybrid FT-MUSIC techniq ue and existing algorithms for through-the-wall radar imaging. IEEE Tran s. Microw. Theory Techn. 69(7), 3372–3387 (2021)

2021
[16]

IEEE Trans

Chew, W.C., Wang, Y.M.: Reconstruction of two-dimensional perm ittivity distri- bution using the distorted Born iterative method. IEEE Trans. Med . Imag. 9(2), 218–225 (1990)

1990
[17]

I nverse Probl

Berg, P.M., Kleinman, R.E.: A contrast source inversion method. I nverse Probl. 13, 1607–1620 (1997)

1997
[18]

IEEE Antennas Propag

Mojabi, P., LoVetri, J.: Microwave biomedical imaging using the mult iplicative regularized Gauss-Newton inversion. IEEE Antennas Propag. Let t. 8, 645–648 16 (2009)

2009
[19]

IEEE Trans

Joachimowicz, N., Pichot, C., Hugonin, J.P.: Inverse scattering: an iterative numerical method for electromagnetic imaging. IEEE Trans. Anten nas Propag. 39(12), 1742–1753 (1991)

1991
[20]

Inverse Probl

Dorn, O., Lesselier, D.: Level set methods for inverse scatter ing. Inverse Probl. 22, 67–131 (2006)

2006
[21]

(eds.) Why it is Diﬃcult to Solve Helmholtz Problems with Classical Iterat ive Methods

Ernst, O.G., Gander, M.J.: In: Graham, I.G., Hou, T.Y., Lakkis, O., S cheichl, R. (eds.) Why it is Diﬃcult to Solve Helmholtz Problems with Classical Iterat ive Methods. Lecture Notes in Computational Science and Engineering , pp. 325–363. Springer, Berlin, Heidelberg (2012)

2012
[22]

Kwon, O., Seo, J.K., Yoon, J.-R.: A real-time algorithm for the locat ion search of discontinuous conductivities with one measurement. Comm. Pur. Appl. Math. 55, 1–29 (2002)

2002
[23]

Inverse Probl

Park, W.-K., Lesselier, D.: Reconstruction of thin electromagne tic inclusions by a level set method. Inverse Probl. 25, 085010 (2009)

2009
[24]

Inverse Probl

Ito, K., Jin, B., Zou, J.: A direct sampling method to an inverse med ium scattering problem. Inverse Probl. 28(2), 025003 (2012)

2012
[25]

Inverse Prob l

Potthast, R.: A study on orthogonality sampling. Inverse Prob l. 26, 074015 (2010)

2010
[26]

http://www.ece.neu.edu/faculty/devaney/ajd/preprints.htm

Deveney, A.J.: Super-resolution processing of multi- static data using time-reversal and MUSIC (2002). http://www.ece.neu.edu/faculty/devaney/ajd/preprints.htm

2002
[27]

Park, W.-K.: Application and analysis of MUSIC algorithm for anoma ly detection in microwave imaging without a switching device. Mech. Syst. Signal Pr oc. 243, 113705 (2026)

2026
[28]

Inverse Probl

Leem, K.H., Liu, J., Pelekanos, G.: An extended direct factorizat ion method for inverse scattering with limited aperture data. Inverse Probl. Sci. E ng. 28(6), 754–776 (2020)

2020
[29]

IEEE Trans

Monk, P., Pena, M., Selgas, V.: Multifrequency linear sampling meth od on experimental datasets. IEEE Trans. Antennas Propag. 71(11), 8788–8798 (2023)

2023
[30]

Ammari, H., Iakovleva, E., Moskow, S.: Recovery of small inhomog eneities from the scattering amplitude at a ﬁxed frequency. SIAM J. Math. Anal. 34, 882–900 (2003)

2003
[31]

Rondi, L.: A variational approach to the reconstruction of cra cks by boundary measurements. J. Math. Pures Appl. 87, 324–342 (2007) 17

2007
[32]

IEEE Trans

Kim, Y.J., Jofre, L., Flaviis, F.D., Feng, M.Q.: Microwave reﬂection to mographic array for damage detection of civil structures. IEEE Trans. Ant ennas Propag. 51, 3022–3032 (2003)

2003
[33]

Jofre, L., Broquetas, A., Romeu, J., Blanch, S., Toda, A.P., Fabr egas, X., Car- dama, A.: UWB tomographic radar imaging of penetrable and impenetr able objects. Proc. IEEE 97(2), 451–464 (2009)

2009
[34]

IEE E Trans

Jofre, L., Toda, A.P., Montana, J.M.J., Carrascosa, P.C., Romeu, J., Blanch, S., Cardama, A.: UWB short-range bifocusing tomographic imaging. IEE E Trans. Instrum. Meas. 57(11), 2414–2420 (2008)

2008
[35]

IEEE Trans

Kang, S., Lee, M., Park, W.-K., Son, S.-H.: Bifocusing-based imagin g of small penetrable dielectric objects from Fresnel dataset. IEEE Trans . Antennas Propag. 73(7), 4795–4803 (2025)

2025
[36]

AIMS Math

Kang, S., Park, W.-K.: A novel study on the bifocusing method in t wo- dimensional inverse scattering problem. AIMS Math. 8(11), 27080–27112 (2023)

2023
[37]

Kang, S., Lee, M., Park, W.-K., Son, S.-H.: Application of the bifocu sing method in microwave imaging by converting unknown measurement da ta into the constant. J. Korean Soc. Ind. Appl. Math. 28(3), 96–108 (2024)

2024
[38]

Kang, S., Park, W.-K., Son, S.-H.: A qualitative analysis of the bifoc using method for a real-time anomaly detection in microwave imaging. Comput. Math . Appl. 137(1), 93–101 (2023)

2023
[39]

Son, S.-H., Park, W.-K.: Application of the bifocusing method in micr owave imag- ing without background information. J. Korean Soc. Ind. Appl. Mat h. 27(2), 109–122 (2023)

2023
[40]

Interdisciplinary Applied Math ematics, vol

Bleistein, N., Cohen, J., Stockwell Jr, J.S.: Mathematics of Multidim ensional Seis- mic Imaging, Migration, and Inversion. Interdisciplinary Applied Math ematics, vol. 13. Springer, New York (2001)

2001
[41]

Mathematics and Applications Series, vol

Colton, D., Kress, R.: Inverse Acoustic and Electromagnetic Sc attering Problems. Mathematics and Applications Series, vol. 93. Springer, New York (1 998)
[42]

IEEE Geosci

Kang, S., Lambert, M., Park, W.-K.: Analysis and improvement of d irect sam- pling method in the mono-static conﬁguration. IEEE Geosci. Remote Sens. Lett. 16(11), 1721–1725 (2019)

2019
[43]

Inverse Probl

Belkebir, K., Saillard, M.: Special section: Testing inversion algorit hms against experimental data. Inverse Probl. 17, 1565–1571 (2001) 18

2001
