Investigation of Wound Field Synchronous Machines using Soft Magnetic Composites for Automotive Applications

Andreas Carlsson , Christian Sandstr\"om , Viktor Josefsson , Lisa Kjell\'en , Taha El Hajji , Marcus Lenberg

Authors on Pith no claims yet

Pith reviewed 2026-05-08 07:09 UTC · model grok-4.3

classification 📡 eess.SY cs.SY

keywords soft magnetic compositeswound field synchronous machineselectrically excited synchronous machinesautomotive tractionrare-earth free motorselectric drive unitWLTP drive cyclestator materials

0 comments

The pith

Soft magnetic composites in the stator of a wound-field synchronous machine raise drive-unit efficiency to 89.7 percent over the WLTP cycle without rare-earth magnets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests soft magnetic composites in the stators of radial-flux wound-field synchronous machines meant for electric cars. It identifies one combination—an SMC stator paired with 0.35 mm NO35 laminated steel in the rotor—that improves both torque and efficiency over earlier designs. When the motor is placed inside a complete electric drive unit, the system reaches 89.7 percent efficiency across the WLTP drive cycle. This figure is 1.4 percentage points higher than the efficiency of a comparable permanent-magnet machine. The change removes all rare-earth content and allows thicker rotor laminations that lower material cost.

Core claim

The investigation shows that the material pairing of a soft magnetic composite stator with 0.35 mm NO35 laminated steel in the rotor produces higher torque and efficiency than conventional lamination stacks in radial-flux electrically excited synchronous machines. When this motor is integrated into a full electric drive unit, the resulting system delivers 89.7 percent efficiency over the WLTP drive cycle, an improvement of 1.4 percentage points relative to a reference permanent-magnet synchronous machine EDU. The configuration eliminates rare-earth magnets, permits thicker rotor laminations, and yields environmental advantages from SMC use.

What carries the argument

The optimal stator-rotor material pair consisting of soft magnetic composite in the stator and 0.35 mm NO35 laminated steel in the rotor, which improves torque density and reduces losses in a radial-flux electrically excited synchronous machine.

If this is right

The motor reaches 89.7 percent efficiency over the WLTP drive cycle when placed in a complete electric drive unit.
This efficiency is 1.4 percentage points higher than that of a reference permanent-magnet synchronous machine EDU.
The design removes all rare-earth materials from the machine.
Thicker laminations become usable in the rotor, lowering material expense.
SMC utilization supplies environmental benefits compared with traditional permanent-magnet machines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Automotive suppliers could substitute this material combination for permanent-magnet motors to reduce exposure to rare-earth price volatility.
The same stator-rotor pairing might be evaluated in other radial-flux machine types beyond passenger vehicles.
A life-cycle assessment comparing the SMC-based motor to a permanent-magnet motor would quantify the claimed environmental gains.

Load-bearing premise

The finite-element models and material data inputs correctly forecast the torque, losses, and drive-cycle efficiency that a physical motor built with the chosen SMC and lamination pair would actually achieve.

What would settle it

Construct a prototype motor using the selected SMC stator and 0.35 mm NO35 rotor laminations, then measure its efficiency over the WLTP cycle on a dynamometer and compare the result to the reported 89.7 percent figure.

Figures

Figures reproduced from arXiv: 2605.05853 by Andreas Carlsson, Christian Sandstr\"om, Lisa Kjell\'en, Marcus Lenberg, Taha El Hajji, Viktor Josefsson.

**Figure 1.** Figure 1: PMSM motor 2U topology. The reference PMSM is a state-of-the-art traction motor designed for automotive applications, delivering 270 kW of peak power, as shown in view at source ↗

**Figure 2.** Figure 2: WFSM outline and topology. 7 view at source ↗

**Figure 3.** Figure 3: WLTP EDU energy consumption map over the full cycle. Color bar represents the view at source ↗

read the original abstract

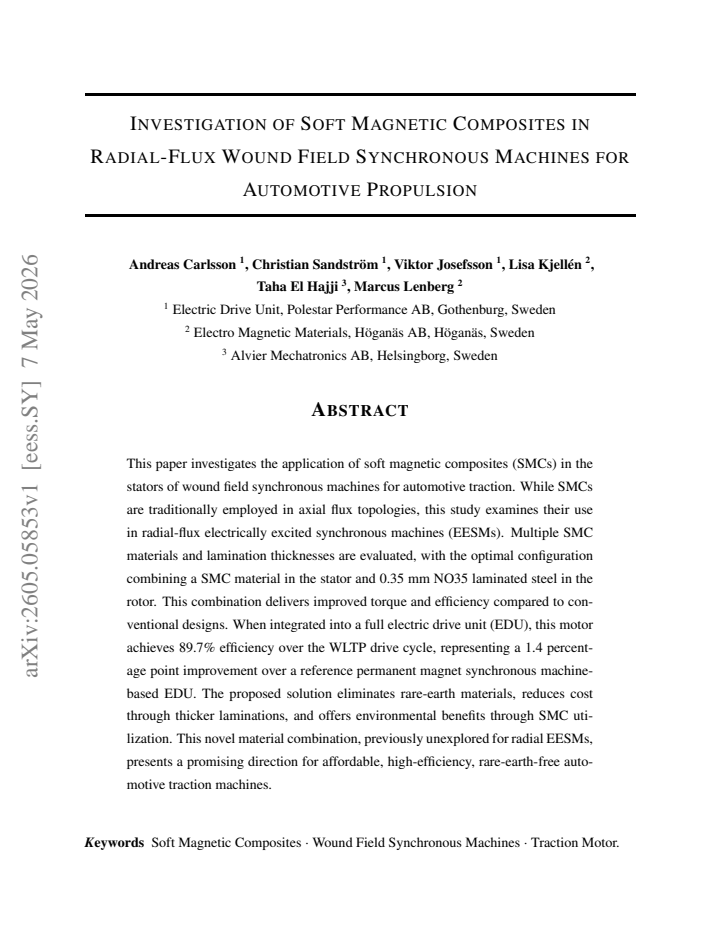

This paper investigates the application of soft magnetic composites (SMCs) in the stators of wound field synchronous machines for automotive traction. While SMCs are traditionally employed in axial flux topologies, this study examines their use in radial-flux electrically excited synchronous machines (EESMs). Multiple SMC materials and lamination thicknesses are evaluated, with the optimal configuration combining a SMC material in the stator and 0.35 mm NO35 laminated steel in the rotor. This combination delivers improved torque and efficiency compared to conventional designs. When integrated into a full electric drive unit (EDU), this motor achieves 89.7% efficiency over the WLTP drive cycle, representing a 1.4 percentage point improvement over a reference permanent magnet synchronous machine-based EDU. The proposed solution eliminates rare-earth materials, reduces cost through thicker laminations, and offers environmental benefits through SMC utilization. This novel material combination, previously unexplored for radial EESMs, presents a promising direction for affordable, high-efficiency, rare-earth-free automotive traction machines.
