arxiv: 2605.06889 · v1 · submitted 2026-05-07 · 💻 cs.CV

Recognition: 2 theorem links

· Lean Theorem

TriDE: Triangle-Consistent Translation Directions for Global Camera Pose Estimation

Francisco Chen , Yiran Wang , Yunpeng Shi

Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:10 UTC · model grok-4.3

classification 💻 cs.CV

keywords translation directionscamera pose estimationstructure from motiontriangle consistencymessage passingphase transitionglobal SfMdirection refinement

0 comments

The pith

TriDE refines pairwise translation directions by passing messages through consistent camera triangles, enabling exact recovery with a phase-transition bound.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes TriDE to address inconsistencies in pairwise translation directions used for global camera location estimation. It treats directions as nodes that exchange information with the weighted triangles they form, using consistency as a verification signal to correct unreliable estimates. This replaces heavy global nonlinear optimization with local propagation. The strategy also yields a theoretical phase-transition guarantee for recovering the correct directions under a random corruption model. Real-image experiments confirm gains in direction accuracy and in the quality of the resulting camera poses.

Core claim

TriDE exploits camera-triangle consistency as an efficient higher-order verification signal. It refines unreliable pairwise directions through message passing between directions and their incident weighted triangles. This information propagation strategy enables a strong phase-transition bound for exact recovery under a realistic random corruption model. Experiments on real image graphs show that TriDE improves direction accuracy by a large margin and yields better downstream camera locations.

What carries the argument

Message passing on the viewing graph that propagates consistency checks from weighted camera triangles back to their incident pairwise directions.

If this is right

Refined directions produce more accurate global camera poses without requiring initialization-sensitive nonlinear optimization.
The viewing graph can be processed by local message passing rather than a single costly global solve.
Exact recovery becomes possible once the fraction of corrupted directions drops below the identified phase-transition threshold.
Local pairwise estimators can be post-processed to satisfy global geometric consistency at low extra cost.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same triangle-based propagation might stabilize other graph estimation tasks where higher-order geometric constraints exist, such as rotation averaging.
If triangles are reliably consistent in practice, many existing pipelines could replace their global bundle adjustment step with this lighter refinement.
The phase-transition result suggests a way to predict when adding more images will suddenly make the entire pose graph recoverable.

Load-bearing premise

Camera-triangle consistency acts as a reliable higher-order signal that can correct errors in pairwise direction estimates, and real-world errors follow the assumed random corruption pattern closely enough for the bound to apply.

What would settle it

If, on graphs with known ground-truth directions, increasing the fraction of corrupted pairs does not produce the predicted sharp phase transition in exact recovery rate, or if the refined directions fail to improve final camera location error on real data, the central claim would be falsified.

Figures

Figures reproduced from arXiv: 2605.06889 by Francisco Chen, Yiran Wang, Yunpeng Shi.

**Figure 2.** Figure 2: Synthetic keypoint-corruption stress test. TriDE reduces error growth under corruption, [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗

**Figure 3.** Figure 3: Sensitivity to candidate budget ncand. Accuracy improves from very small pools to moderate budgets and is stable around the default ncand = 25. 0 15 30 50 80 β 6.8 7.0 7.2 7.4 7.6 7.8 8.0 ̄ e 0 15 30 50 80 β 1.8 1.9 2.0 2.1 2.2 2.3 ̃ e 0 15 30 50 80 β 21.0 21.5 22.0 22.5 23.0 23.5 24.0 24.5 25.0 e90 Sensitivity to triangle-weight sharpness β [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗

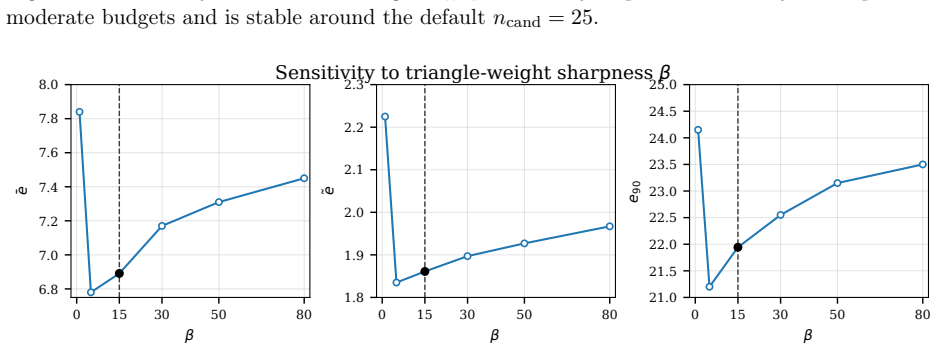

**Figure 4.** Figure 4: Sensitivity to triangle-weight sharpness [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗

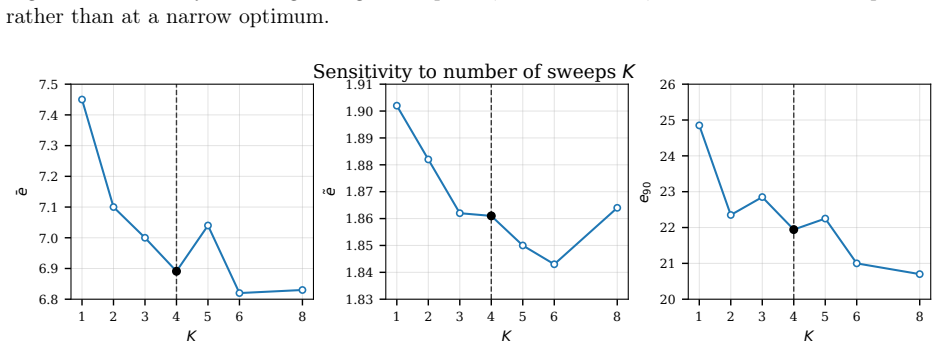

**Figure 5.** Figure 5: Sensitivity to estimation sweeps kmax. Most gains appear in the first few sweeps, and the default kmax = 4 is on the stable plateau. The three sensitivity studies support the same qualitative conclusion: moderate changes in the main hyperparameters preserve the direction-error profile, so the reported setting is not a finely tuned isolated optimum. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗

**Figure 6.** Figure 6: Random-initialization diagnostic on synthetic graphs. The standard initialized pipeline is [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗

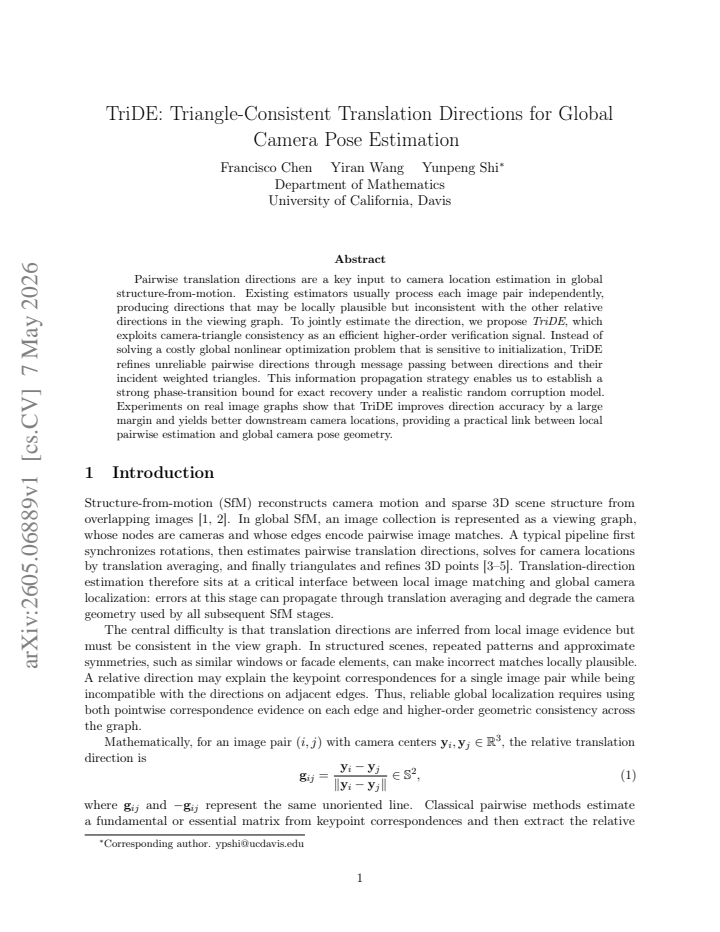

read the original abstract

Pairwise translation directions are a key input to camera location estimation in global structure-from-motion. Existing estimators usually process each image pair independently, producing directions that may be locally plausible but inconsistent with the other relative directions in the viewing graph. To jointly estimate the direction, we propose TriDE, which exploits camera-triangle consistency as an efficient higher-order verification signal. Instead of solving a costly global nonlinear optimization problem that is sensitive to initialization, TriDE refines unreliable pairwise directions through message passing between directions and their incident weighted triangles. This information propagation strategy enables us to establish a strong phase-transition bound for exact recovery under a realistic random corruption model. Experiments on real image graphs show that TriDE improves direction accuracy by a large margin and yields better downstream camera locations, providing a practical link between local pairwise estimation and global camera pose geometry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

TriDE refines pairwise translation directions through triangle message passing and claims a phase-transition bound under a random corruption model, with experiments showing accuracy gains on real graphs.

read the letter

The core of this paper is a message-passing scheme that cleans up unreliable pairwise translation directions by enforcing consistency on weighted triangles in the viewing graph. Instead of jumping straight to global nonlinear optimization, it propagates information locally to improve the input directions before pose estimation. That is the practical contribution, and the experiments on real image sets show noticeable improvements in direction accuracy and downstream camera locations. The phase-transition bound for exact recovery is the theoretical part, tied to a random corruption model on the directions. If the model holds, this gives a clean link between local estimates and global consistency without expensive initialization-sensitive solvers. The approach is straightforward to implement and targets exactly the kind of noisy pairwise data that appears in large-scale SfM. The main soft spot is the corruption model itself. The paper calls it realistic, but the bound's usefulness depends on how well the assumed error distribution matches actual failures in pairwise direction estimators. If real corruptions are correlated or have heavier tails than the model, the exact-recovery guarantee may not carry over. The derivation steps and parameter choices need close checking to see whether the bound is tight or mostly asymptotic. This paper is for people building or improving global SfM pipelines who already work with pairwise directions and want a lightweight consistency step. It is worth a serious referee because the combination of a concrete algorithm, a stated theoretical threshold, and real-data validation is the right level for review, even if the bound requires tightening or more ablation. I would send it to peer review.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes TriDE, a message-passing refinement procedure that propagates information across weighted triangles in the viewing graph to enforce consistency among pairwise translation directions. It claims that this higher-order verification yields a phase-transition bound guaranteeing exact recovery under a realistic random corruption model, and reports large empirical gains in direction accuracy that translate to improved global camera pose estimates on real image graphs.

Significance. If the phase-transition bound is rigorously established and the experimental gains hold under standard SfM benchmarks, the work would provide a useful theoretical and algorithmic bridge between local pairwise direction estimation and global consistency constraints. The explicit use of triangle consistency as an efficient verification signal, together with the claimed parameter-free or low-parameter recovery guarantee, could influence subsequent global SfM pipelines.

major comments (3)

[§4, Theorem 1] §4, Theorem 1 (phase-transition bound): the statement of the bound is given for a 'realistic random corruption model', yet the precise parameters of that model (corruption probability, error distribution, and how they relate to the triangle weights) are not supplied in the derivation; without these the claimed transition threshold cannot be reproduced or stress-tested.
[§5.2] §5.2, experimental protocol: the reported accuracy improvements lack error bars, the exact baseline implementations (including any re-implemented competitors), and the precise definition of the 'realistic' corruption model used in synthetic tests; these omissions make it impossible to assess whether the gains are statistically significant or sensitive to modeling choices.
[§3.2] §3.2, message-passing update rule: the convergence analysis assumes that triangle consistency acts as an independent verification signal, but the paper does not quantify the dependence between overlapping triangles or provide a counter-example showing when this assumption fails under realistic graph topologies.

minor comments (2)

Notation for the weighted triangles and the message variables is introduced without a compact summary table; a single table listing symbols, domains, and update equations would improve readability.
[Abstract] The abstract claims 'large margin' improvements; the main text should replace this with quantitative deltas (e.g., median angular error reduction) and cite the corresponding table or figure.

Simulated Author's Rebuttal

3 responses · 0 unresolved

Thank you for the detailed review and the recommendation for minor revision. We appreciate the suggestions for improving clarity, reproducibility, and the analysis. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [§4, Theorem 1] §4, Theorem 1 (phase-transition bound): the statement of the bound is given for a 'realistic random corruption model', yet the precise parameters of that model (corruption probability, error distribution, and how they relate to the triangle weights) are not supplied in the derivation; without these the claimed transition threshold cannot be reproduced or stress-tested.

Authors: We agree that the precise parameters of the random corruption model must be explicitly stated for the bound to be reproducible. In the revised manuscript, we will update the statement of Theorem 1 to include the full model specification (corruption probability, error distribution, and relation to triangle weights) and clarify the derivation in the appendix. revision: yes
Referee: [§5.2] §5.2, experimental protocol: the reported accuracy improvements lack error bars, the exact baseline implementations (including any re-implemented competitors), and the precise definition of the 'realistic' corruption model used in synthetic tests; these omissions make it impossible to assess whether the gains are statistically significant or sensitive to modeling choices.

Authors: We acknowledge these omissions. In the revision, we will add error bars (standard deviations over multiple runs) to all reported accuracy metrics. We will provide detailed descriptions of baseline implementations, including any re-implementations. The corruption model in the synthetic tests will be precisely defined with parameters matching the theoretical analysis. revision: yes
Referee: [§3.2] §3.2, message-passing update rule: the convergence analysis assumes that triangle consistency acts as an independent verification signal, but the paper does not quantify the dependence between overlapping triangles or provide a counter-example showing when this assumption fails under realistic graph topologies.

Authors: The analysis relies on the random corruption model, which incorporates dependencies in expectation. However, we agree that explicit quantification and discussion of failure cases would improve the section. We will add a paragraph in Section 3.2 quantifying the dependence structure and include a brief counter-example for sparse graph topologies where the assumption weakens. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's core chain proposes TriDE as a message-passing procedure that refines pairwise directions using weighted triangle consistency, then states that this procedure yields a phase-transition bound for exact recovery under an explicitly defined random corruption model. No equation or step in the provided description reduces the bound to a fitted parameter, a self-citation that is itself unproven, or a renaming of an input; the model and updates are presented as independent inputs from which the bound follows. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review is abstract-only; the central claim rests on the domain assumption of triangle consistency and an unspecified random corruption model whose realism is asserted but not derived.

axioms (2)

domain assumption Camera-triangle consistency provides a reliable higher-order verification signal for pairwise translation directions
Invoked to justify message passing between directions and incident triangles.
domain assumption A realistic random corruption model governs errors in pairwise direction estimates
Used to derive the phase-transition bound for exact recovery.

pith-pipeline@v0.9.0 · 5435 in / 1203 out tokens · 31253 ms · 2026-05-11T01:10:07.984496+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking (SphereAdmitsCircleLinking D ↔ D = 3) echoes

?

echoes
ECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.

For any nondegenerate camera triangle (i,j,k), the noiseless directions gij,gjk, and gik are coplanar up to orientation; equivalently, their absolute scalar triple product vanishes. Triangle coplanarity directly couples adjacent translation directions...

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

29 extracted references · 29 canonical work pages

[1]

Cambridge university press, 2003

Richard Hartley and Andrew Zisserman.Multiple view geometry in computer vision. Cambridge university press, 2003

work page 2003
[2]

Structure-from-motionrevisited

JohannesLSchonbergerandJan-MichaelFrahm. Structure-from-motionrevisited. InProceedings of the IEEE conference on computer vision and pattern recognition, pages 4104–4113, 2016

work page 2016
[3]

Robust rotation and translation estimation in multiview reconstruction

Daniel Martinec and Tomas Pajdla. Robust rotation and translation estimation in multiview reconstruction. In2007 IEEE conference on computer vision and pattern recognition, pages 1–8. IEEE, 2007

work page 2007
[4]

Global structure-from-motion by similarity averaging

Zhaopeng Cui and Ping Tan. Global structure-from-motion by similarity averaging. InProceed- ings of the IEEE international conference on computer vision, pages 864–872, 2015

work page 2015
[5]

Global structure- from-motion revisited

Linfei Pan, Dániel Baráth, Marc Pollefeys, and Johannes L Schönberger. Global structure- from-motion revisited. InEuropean Conference on Computer Vision, pages 58–77. Springer, 2024

work page 2024
[6]

In defense of the eight-point algorithm.IEEE Transactions on pattern analysis and machine intelligence, 19(6):580–593, 1997

Richard I Hartley. In defense of the eight-point algorithm.IEEE Transactions on pattern analysis and machine intelligence, 19(6):580–593, 1997

work page 1997
[7]

An efficient solution to the five-point relative pose problem.IEEE transactions on pattern analysis and machine intelligence, 26(6):756–770, 2004

David Nistér. An efficient solution to the five-point relative pose problem.IEEE transactions on pattern analysis and machine intelligence, 26(6):756–770, 2004

work page 2004
[8]

Robust camera location estimation by convex programming

Onur Ozyesil and Amit Singer. Robust camera location estimation by convex programming. InProceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 2674–2683, 2015. 11

work page 2015
[9]

Fast, robust and non-convex subspace recovery.Information and Inference: A Journal of the IMA, 7(2):277–336, 2018

Gilad Lerman and Tyler Maunu. Fast, robust and non-convex subspace recovery.Information and Inference: A Journal of the IMA, 7(2):277–336, 2018

work page 2018
[10]

A subspace-constrained tyler’s estimator and its applications to structure from motion

Feng Yu, Teng Zhang, and Gilad Lerman. A subspace-constrained tyler’s estimator and its applications to structure from motion. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, pages 14575–14584, 2024

work page 2024
[11]

Robust global translations with 1dsfm

Kyle Wilson and Noah Snavely. Robust global translations with 1dsfm. InEuropean conference on computer vision, pages 61–75. Springer, 2014

work page 2014
[12]

Estimation of camera locations in highly corrupted scenarios: All about that base, no shape trouble

Yunpeng Shi and Gilad Lerman. Estimation of camera locations in highly corrupted scenarios: All about that base, no shape trouble. InProceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 2868–2876, 2018

work page 2018
[13]

View-graph selection framework for sfm

Rajvi Shah, Visesh Chari, and PJ Narayanan. View-graph selection framework for sfm. In Proceedings of the European Conference on Computer Vision (ECCV), pages 535–550, 2018

work page 2018
[14]

Correspondence reweighted translation averaging

Lalit Manam and Venu Madhav Govindu. Correspondence reweighted translation averaging. In European Conference on Computer Vision, pages 56–72. Springer, 2022

work page 2022
[15]

Random sample consensus: a paradigm for model fitting with applications to image analysis and automated cartography.Communications of the ACM, 24(6):381–395, 1981

Martin A Fischler and Robert C Bolles. Random sample consensus: a paradigm for model fitting with applications to image analysis and automated cartography.Communications of the ACM, 24(6):381–395, 1981

work page 1981
[16]

Magsac: Marginalizing sample consensus

Daniel Barath, Jiri Matas, and Jana Noskova. Magsac: Marginalizing sample consensus. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, pages 10197–10205, 2019

work page 2019
[17]

Magsac++, a fast, reliable and accurate robust estimator

Daniel Barath, Jana Noskova, Maksym Ivashechkin, and Jiri Matas. Magsac++, a fast, reliable and accurate robust estimator. InProceedings of the IEEE/CVF conference on computer vision and pattern recognition, pages 1304–1312, 2020

work page 2020
[18]

Exact camera location recovery by least unsquared deviations.SIAM Journal on Imaging Sciences, 11(4):2692–2721, 2018

Gilad Lerman, Yunpeng Shi, and Teng Zhang. Exact camera location recovery by least unsquared deviations.SIAM Journal on Imaging Sciences, 11(4):2692–2721, 2018

work page 2018
[19]

Message passing least squares framework and its application to rotation synchronization

Yunpeng Shi and Gilad Lerman. Message passing least squares framework and its application to rotation synchronization. InInternational conference on machine learning, pages 8796–8806. PMLR, 2020

work page 2020
[20]

Robust group synchronization via cycle-edge message passing

Gilad Lerman and Yunpeng Shi. Robust group synchronization via cycle-edge message passing. Foundations of Computational Mathematics, 22(6):1665–1741, 2022

work page 2022
[21]

Robust group synchronization via quadratic programming

Yunpeng Shi, Cole M Wyeth, and Gilad Lerman. Robust group synchronization via quadratic programming. InInternational Conference on Machine Learning, pages 20095–20105. PMLR, 2022

work page 2022
[22]

Efficient and robust large-scale rotation averaging

Avishek Chatterjee and Venu Madhav Govindu. Efficient and robust large-scale rotation averaging. InProceedings of the IEEE international conference on computer vision, pages 521–528, 2013

work page 2013
[23]

Baseline desensitizing in translation averaging

Bingbing Zhuang, Loong-Fah Cheong, and Gim Hee Lee. Baseline desensitizing in translation averaging. InProceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 4539–4547, 2018. 12

work page 2018
[24]

Fusing directions and displacements in translation averaging

Lalit Manam and Venu Madhav Govindu. Fusing directions and displacements in translation averaging. In2024 International Conference on 3D Vision (3DV), pages 75–84. IEEE, 2024

work page 2024
[25]

A method for the solution of certain non-linear problems in least squares

Kenneth Levenberg. A method for the solution of certain non-linear problems in least squares. Quarterly of applied mathematics, 2(2):164–168, 1944

work page 1944
[26]

An algorithm for least-squares estimation of nonlinear parameters

Donald W Marquardt. An algorithm for least-squares estimation of nonlinear parameters. Journal of the society for Industrial and Applied Mathematics, 11(2):431–441, 1963

work page 1963
[27]

A multi-view stereo benchmark with high-resolution images and multi-camera videos

Thomas Schops, Johannes L Schonberger, Silvano Galliani, Torsten Sattler, Konrad Schindler, Marc Pollefeys, and Andreas Geiger. A multi-view stereo benchmark with high-resolution images and multi-camera videos. InProceedings of the IEEE conference on computer vision and pattern recognition, pages 3260–3269, 2017

work page 2017
[28]

Cycle-sync: Robust global camera pose estimation through enhanced cycle-consistent synchronization

Shaohan Li, Yunpeng Shi, and Gilad Lerman. Cycle-sync: Robust global camera pose estimation through enhanced cycle-consistent synchronization. InThe Thirty-ninth Annual Conference on Neural Information Processing Systems, 2025. 13 A Diagnostic Gauss-Newton and Levenberg-Marquardt Implemen- tations This appendix records the determinant-enforcement route us...

work page arXiv 2025
[29]

For smallσ0 in radians, bσ0 = r π 2 σ0 +O(σ 3 0), and atσ 0 = 1◦,b σ0 ≈0.022

cosα dα. For smallσ0 in radians, bσ0 = r π 2 σ0 +O(σ 3 0), and atσ 0 = 1◦,b σ0 ≈0.022. If a clean edge has an exact-inlier fractionπcl, exact inliers satisfy(g⋆ e)⊤x = 0and contribute one toA e(g⋆ e). Under uniform background outliers, the population support of the true direction is A+ =π cl + (1−π cl)bσ0. A generic wrong initialized direction has populat...

work page
