EDA-Schema-V2 supplies a multimodal schema and large open datasets from the full digital design flow to support machine learning research in physical design.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

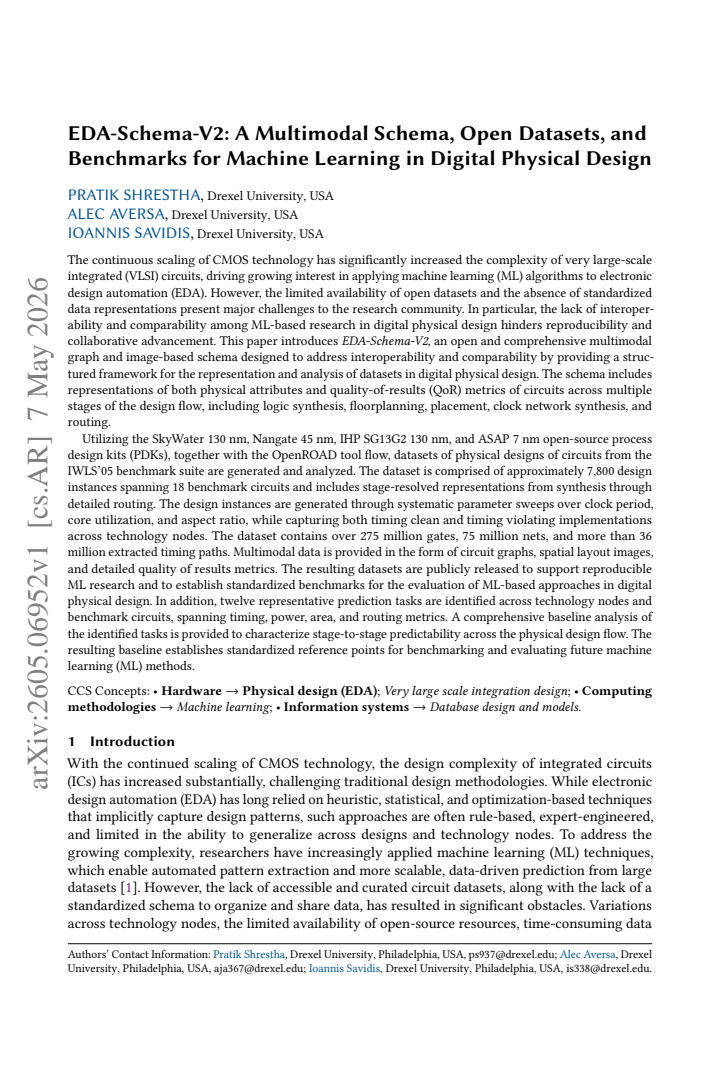

The paper introduces an open schema called EDA-Schema-V2 to structure multimodal data for machine learning in digital physical design. It generates large datasets covering the entire flow from synthesis to routing using open benchmarks and tools. By defining twelve prediction tasks and providing baseline results, it aims to create standardized evaluation points for ML methods. This matters because open data can reduce barriers to applying ML to optimize chip layouts for better performance and efficiency.

Core claim

The authors present EDA-Schema-V2 as an open multimodal schema that organizes physical attributes and quality-of-results metrics across logic synthesis, floorplanning, placement, clock network synthesis, and routing. Using SkyWater 130nm, Nangate 45nm, IHP SG13G2 130nm, and ASAP 7nm process design kits with the OpenROAD flow, they generate 7776 design instances from the IWLS'05 benchmark suite through sweeps of clock period, core utilization, and aspect ratio. The resulting collection contains over 275 million gates, 75 million nets, and more than 36 million timing paths. They further identify twelve representative prediction tasks for timing, power, area, and routing metrics, supply initial

What carries the argument

EDA-Schema-V2 is the multimodal schema that supplies structured representations of physical attributes and quality-of-results metrics across the stages of the design flow from logic synthesis through detailed routing.

If this is right

  • Machine learning models can be trained and compared on consistent stage-resolved data spanning synthesis to routing.
  • The public dataset of 7776 instances supplies over 275 million gates and 75 million nets for developing predictors of timing, power, area, and routing.
  • Twelve defined prediction tasks with baseline analyses create standardized points for measuring progress in ML-based physical design methods.
  • Releasing both the schema and the data supports direct reproducibility across different research groups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If adopted by others, the schema could allow merging datasets across tool flows to create larger combined training collections.
  • Models built on these open instances could be tested for how well they transfer to proprietary industrial netlists.
  • Adding sweeps over additional variables such as cell library choices or power-grid densities would test whether the current parameter space is sufficient.

Load-bearing premise

That datasets generated from the IWLS'05 circuits with the specified open PDKs and OpenROAD parameter sweeps will prove representative for training ML models that generalize to industrial designs and other tools.

What would settle it

Train models on the released dataset and evaluate prediction accuracy on designs produced with a commercial EDA tool or different process technologies; substantially lower accuracy than on the original data would show the benchmarks lack broad utility.

Figures

Figures reproduced from arXiv: 2605.06952 by Alec Aversa, Ioannis Savidis, Pratik Shrestha.

Figure 1
Figure 1. Figure 1: Block representation of the automated physical design flow. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: EDA-Schema-V2 entity relationship diagram. Entities in yellow represent the Design Flow Hierarchy [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Sample circuit represented as a netlist graph [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Image attributes associated with the netlist entity for the [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

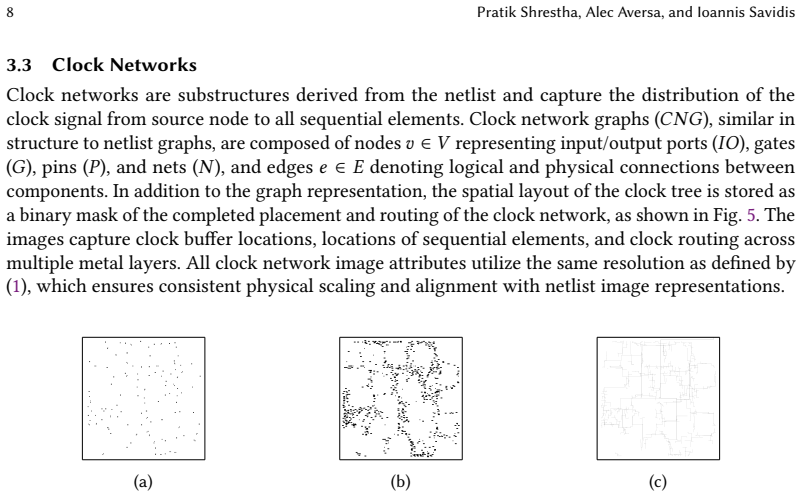

Figure 5. Figure 5: Binary spatial maps associated with the clock network entity for the [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Image attributes associated with the power delivery network (PDN) entity after the completion of the [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Timing path graphs 𝑇 𝑃𝐺 extracted from the netlist graph 𝑁 𝐿𝐺 of the circuit shown in [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

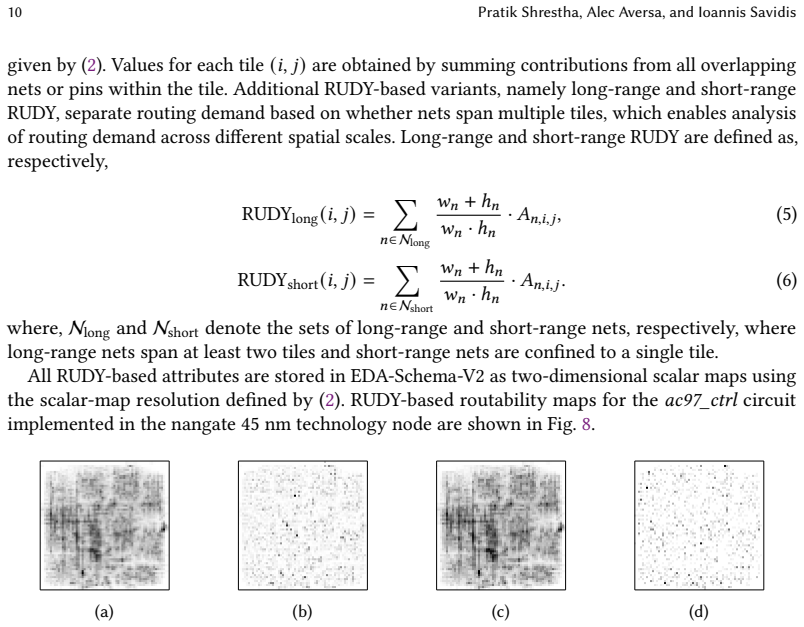

Figure 8. Figure 8: Routability metrics represented as scalar-valued RUDY maps at the final design stage for the [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9

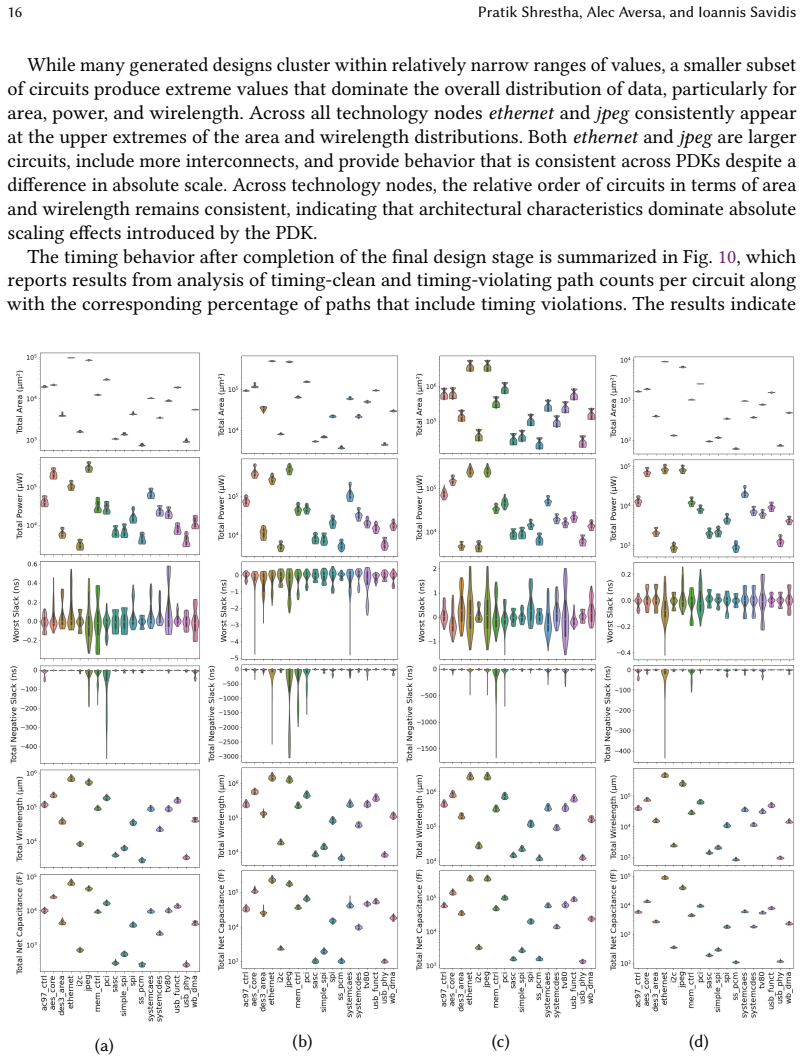

Figure 9. Figure 9: Distribution of post-routing quality-of-results (QoR) metrics across benchmark circuits for each [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Analysis of timing-clean and timing-violating path distributions after completion of the final design [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Distribution of final-stage quality-of-results metrics for total area, total power consumption, worst [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Distribution of Pearson correlation coefficients between quality-of-results metrics and design param [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Change in the distribution of (a) total area, (b) total power, (c) worst slack, (d) total negative slack, (e) [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Inter-design stage correlation of QoR and timing metrics across all benchmark circuits in the NG45 [PITH_FULL_IMAGE:figures/full_fig_p027_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Distribution of final-stage QoR metrics for total area, total power, worst-case slack, total negative [PITH_FULL_IMAGE:figures/full_fig_p032_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Distribution of Pearson correlation coefficients between QoR metrics and design parameters across [PITH_FULL_IMAGE:figures/full_fig_p033_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Distribution of final-stage QoR metrics for total area, total power, worst-case slack, total negative [PITH_FULL_IMAGE:figures/full_fig_p033_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Distribution of Pearson correlation coefficients between QoR metrics and design parameters across [PITH_FULL_IMAGE:figures/full_fig_p034_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Distribution of final-stage QoR metrics for total area, total power, worst-case slack, total negative [PITH_FULL_IMAGE:figures/full_fig_p034_19.png] view at source ↗
Figure 20

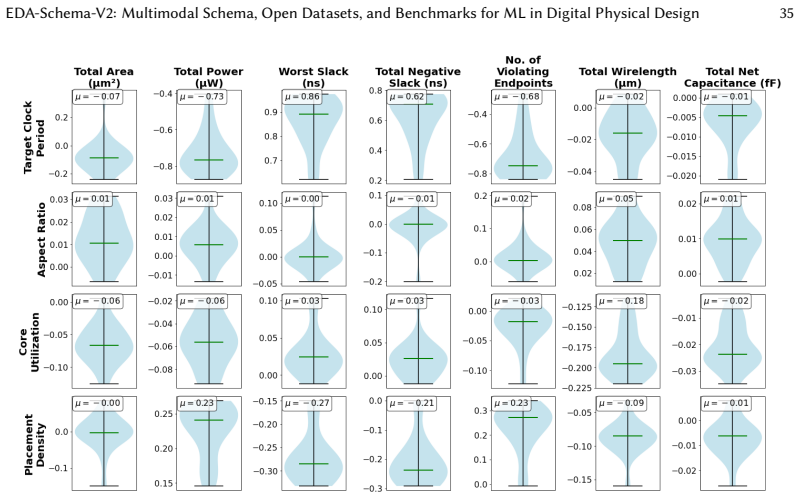

Figure 20. Figure 20: Distribution of Pearson correlation coefficients between QoR metrics and design parameters across all [PITH_FULL_IMAGE:figures/full_fig_p035_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Change in the distribution of (a) total area, (b) total power, (c) worst slack, (d) total negative slack, (e) [PITH_FULL_IMAGE:figures/full_fig_p035_21.png] view at source ↗
Figure 22

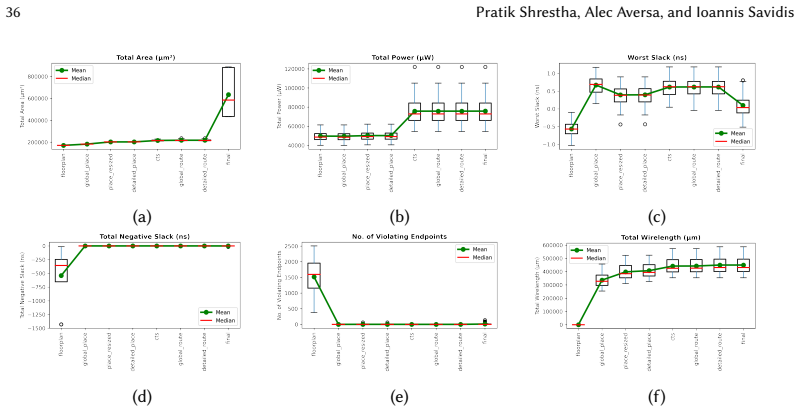

Figure 22. Figure 22: Change in the distribution of (a) total area, (b) total power, (c) worst slack, (d) total negative slack, (e) [PITH_FULL_IMAGE:figures/full_fig_p036_22.png] view at source ↗
