Dislocations in (011)-oriented vertical Bridgman β-Ga₂O₃ substrates

Yongzhao Yao , Daiki Katsube , Hirotaka Yamaguchi , Yukari Ishikawa

Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:45 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords β-Ga2O3dislocationsX-ray topographydomain boundariesvertical Bridgmansubstrate defectsGa2O3
0
0 comments X

The pith

Transmission X-ray topography shows dislocations in (011)-oriented β-Ga₂O₃ substrates lie on the (001) plane, extend along [010], and align with domain boundaries.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the arrangement of dislocations inside (011)-oriented β-Ga₂O₃ crystals grown by the vertical Bridgman process. Transmission X-ray topography images reveal dislocations that sit on the (001) plane, run parallel to the [010] direction, and cluster into arrays that coincide with domain boundaries. Reflection topography yields matching images and distinguishes dislocation types by their contrast, while reticulography measures the small angular misorientations at those boundaries. These observations separate the imaged defects from the dislocations that produce line-shaped pits in overlying epitaxial layers. The work supplies concrete defect maps that matter for predicting how substrates will behave during epitaxial growth and in finished devices.

Core claim

Transmission X-ray topography reveals dislocations lying on the (001) plane and extending along [010], forming arrays associated with domain boundaries. Dislocations on the (011) plane were also identified but differ from those responsible for line-shaped pits on (001) epilayers. Reflection X-ray topography shows good agreement with transmission results and enables classification of dislocation types based on contrast features. X-ray reticulography confirms domain boundaries with misorientation on the order of 1E-5 rad.

What carries the argument

Transmission and reflection X-ray topography combined with X-ray reticulography, which detect contrast features produced by dislocations on specific planes and the minute misorientations at associated domain boundaries.

If this is right

  • The dislocations on the (001) plane are distinct from those that produce line-shaped pits on (001) epilayers.
  • Reflection XRT contrast patterns allow classification of the different dislocation types present.
  • Domain boundaries carry misorientations of order 1E-5 rad and are spatially linked to the dislocation arrays.
  • These defect structures supply direct information on how substrates influence subsequent epi-growth and device performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Growth-parameter adjustments that suppress the formation of these domain boundaries would be expected to lower overall defect density in vertical Bridgman crystals.
  • The same XRT and reticulography protocol could be applied to screen (011) substrates before epitaxial deposition to flag regions likely to affect device yield.
  • Comparable dislocation arrays aligned with small-angle boundaries may occur in other orientations or in crystals of related wide-bandgap oxides grown by similar melt techniques.

Load-bearing premise

Contrast features in the X-ray images directly and unambiguously correspond to particular dislocation types and misorientation angles without significant experimental artifacts or misinterpretation.

What would settle it

High-resolution transmission electron microscopy images that fail to locate dislocation lines on the (001) plane along [010] at the exact positions mapped by transmission XRT would falsify the defect identification.

read the original abstract

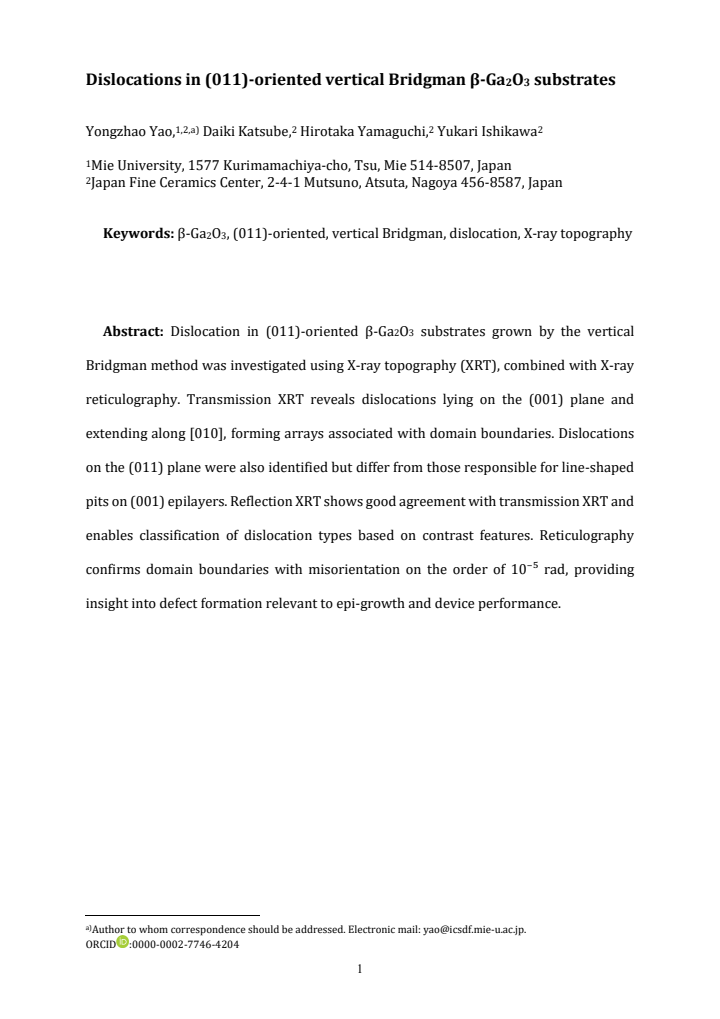

Dislocation in (011)-oriented $\beta$-Ga$_2$O$_3$ substrates grown by the vertical Bridgman method was investigated using X-ray topography (XRT), combined with X-ray reticulography. Transmission XRT reveals dislocations lying on the (001) plane and extending along [010], forming arrays associated with domain boundaries. Dislocations on the (011) plane were also identified but differ from those responsible for line-shaped pits on (001) epilayers. Reflection XRT shows good agreement with transmission XRT and enables classification of dislocation types based on contrast features. Reticulography confirms domain boundaries with misorientation on the order of 1E-5 rad, providing insight into defect formation relevant to epi-growth and device performance.
