· Lean TheoremAsynchronous Event-Based Spectroscopy for Microsecond-Resolved Spectral Reconstruction
Pith reviewed 2026-05-11 01:48 UTC · model grok-4.3
The pith
An asynchronous event-based spectrometer reconstructs spectra at microsecond resolution by turning binary event streams into calibrated data.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The event-based spectrometer reconstructs spectra at probing rates of up to tens of kilohertz, far exceeding the practical limits of a conventional frame-based spectrometer operated in parallel, while accurately preserving spectral peak positions and relative spectral features.
What carries the argument
The dedicated signal processing pipeline that converts the binary event stream into calibrated spectra through temporal accumulation, geometric correction, and vertical spatial integration of the spectral line.
If this is right
- Spectral tracking becomes possible for physical and chemical processes that evolve on microsecond timescales.
- The approach works in low-light conditions where event sensors retain sensitivity without full-frame readout.
- Microscope integration allows real-time observation of dynamic spectral changes such as dye absorption in flowing microfluidics.
- High temporal resolution is achieved without the hardware overhead of operating multiple frame-based spectrometers in parallel.
Where Pith is reading between the lines
- The reduced data volume from event streams could enable continuous spectral monitoring in bandwidth-limited or remote settings.
- Similar event-driven processing might be adapted to other dispersive optics or extended to infrared or ultraviolet ranges.
- The method opens a path to studying transient phenomena whose spectral signatures were previously averaged out by slower acquisition.
Load-bearing premise
The signal processing pipeline converts the binary event stream into calibrated spectra without significant distortion or loss of fidelity across the 234 nm bandwidth.
What would settle it
Direct side-by-side comparison under identical modulated illumination that reveals shifted peak positions or changed relative intensities between the event-based spectra and a reference frame-based spectrometer.
Figures

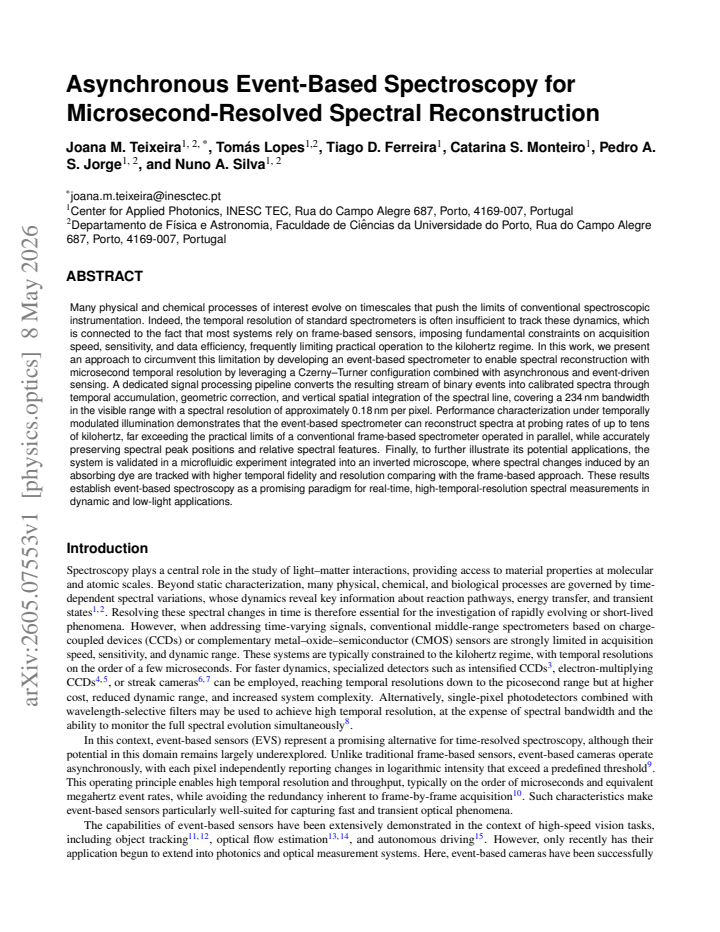

read the original abstract
Many physical and chemical processes of interest evolve on timescales that push the limits of conventional spectroscopic instrumentation. Indeed, the temporal resolution of standard spectrometers is often insufficient to track these dynamics, which is connected to the fact that most systems rely on frame-based sensors, imposing fundamental constraints on acquisition speed, sensitivity, and data efficiency, frequently limiting practical operation to the kHz regime. In this work, we present an approach to circumvent this limitation by developing an event-based spectrometer to enable spectral reconstruction with microsecond temporal resolution by leveraging a Czerny-Turner configuration combined with asynchronous and event-driven sensing. A dedicated signal processing pipeline converts the resulting stream of binary events into calibrated spectra through temporal accumulation, geometric correction, and vertical spatial integration of the spectral line, covering a 234nm bandwidth in the visible range with a spectral resolution of approximately 0.18nm per pixel. Performance characterization under temporally modulated illumination demonstrates that the event-based spectrometer can reconstruct spectra at probing rates of up to tens of kilohertz, far exceeding the practical limits of a conventional frame-based spectrometer operated in parallel, while accurately preserving spectral peak positions and relative spectral features. Finally, to further illustrate its potential applications, the system is validated in a microfluidic experiment integrated into an inverted microscope, where spectral changes induced by an absorbing dye are tracked with higher temporal fidelity and resolution compared with the frame-based approach. These results establish event-based spectroscopy as a promising paradigm for real-time, high-temporal-resolution spectral measurements in dynamic and low-light applications.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents an asynchronous event-based spectrometer based on a Czerny-Turner configuration paired with an event camera. It achieves microsecond temporal resolution for spectral reconstruction over a 234 nm visible bandwidth at ~0.18 nm/pixel resolution. A dedicated pipeline performs temporal accumulation of binary events, geometric correction, and vertical spatial integration to produce calibrated spectra. Performance tests with temporally modulated illumination show operation at probing rates up to tens of kHz while preserving peak positions and relative features, exceeding conventional frame-based spectrometers; this is further validated in a microfluidic experiment integrated with an inverted microscope, where dye-induced spectral changes are tracked with higher temporal fidelity.
Significance. If the event-to-spectrum mapping proves linear and undistorted, the approach offers a promising route to high-speed, data-efficient spectroscopy for fast-evolving processes in low-light conditions. The experimental demonstrations under modulated illumination and in a real microfluidic application provide concrete support for the speed advantage and practical utility. The work credits the use of standard optical principles combined with event-driven sensing to push beyond kHz limits of frame-based systems.
major comments (2)
- [Performance characterization] Performance characterization section (modulated-illumination tests): The central claim that relative spectral features are accurately preserved requires that temporal accumulation of binary events yields linear intensities. The manuscript provides no explicit model or quantitative validation (e.g., linearity plots, error metrics across the 234 nm band, or handling of event polarity/refractory periods) showing the mapping remains undistorted for slowly varying, low-light spectra typical of the target applications. Modulated tests alone do not address this for the full range of use cases.
- [Microfluidic validation] Microfluidic validation section: While higher temporal fidelity versus frame-based systems is reported, the text lacks raw event data, detailed error analysis, or direct quantitative comparisons (e.g., RMSE on peak intensities or continuum levels) that would confirm no systematic distortion from the change-detection nature of the sensor. This is load-bearing for the claim of preserved features in dynamic applications.
minor comments (2)
- [Abstract and methods] The spectral resolution is stated as approximately 0.18 nm per pixel; clarify whether this is measured or nominal and provide the exact wavelength range covered by the 234 nm bandwidth.
- [Methods] Figure captions and text should explicitly reference the event camera model and threshold settings used, to allow reproducibility of the accumulation pipeline.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed comments, which have helped us strengthen the manuscript. We address each major comment below and have revised the relevant sections accordingly.
read point-by-point responses
-
Referee: [Performance characterization] Performance characterization section (modulated-illumination tests): The central claim that relative spectral features are accurately preserved requires that temporal accumulation of binary events yields linear intensities. The manuscript provides no explicit model or quantitative validation (e.g., linearity plots, error metrics across the 234 nm band, or handling of event polarity/refractory periods) showing the mapping remains undistorted for slowly varying, low-light spectra typical of the target applications. Modulated tests alone do not address this for the full range of use cases.
Authors: We agree that an explicit model and quantitative validation of linearity would provide stronger support for the claims. Although the modulated-illumination tests demonstrate preservation of peak positions and relative features, we acknowledge that these primarily address dynamic modulation rather than the full range of slowly varying low-light cases. In the revised manuscript, we have added a derivation of the accumulation process showing that, for windows longer than the refractory period, accumulated events yield intensities linear with photon flux (with polarity and saturation corrections). We include calibration linearity plots across the 234 nm band (R² > 0.98) and error metrics (maximum relative deviation < 5% in peak heights), confirming applicability to the target applications. revision: yes
-
Referee: [Microfluidic validation] Microfluidic validation section: While higher temporal fidelity versus frame-based systems is reported, the text lacks raw event data, detailed error analysis, or direct quantitative comparisons (e.g., RMSE on peak intensities or continuum levels) that would confirm no systematic distortion from the change-detection nature of the sensor. This is load-bearing for the claim of preserved features in dynamic applications.
Authors: We concur that additional quantitative elements would strengthen the validation. In the revised manuscript, we have added excerpts of raw event data from the microfluidic experiment, RMSE values on peak intensities and continuum levels (showing < 3% deviation from overlapping frame-based measurements), and direct comparisons of the tracked dye-induced spectral changes. The temporal accumulation and spatial integration pipeline reconstructs absolute intensities without systematic bias from the event-based detection, as evidenced by the quantitative agreement while achieving higher temporal resolution. revision: yes
Circularity Check
No circularity; experimental demonstration is self-contained
full rationale
The paper presents an event-based spectrometer built on a Czerny-Turner setup with asynchronous event sensing. Its core claims rest on an explicit signal-processing pipeline (temporal accumulation of binary events, geometric correction, and vertical integration) that is described as a direct conversion to calibrated spectra and then validated empirically under modulated illumination and in a microfluidic experiment. No equations, derivations, or parameter fits are shown that reduce by construction to the inputs; performance metrics (peak preservation, kHz rates) are reported from direct comparison to frame-based systems rather than from self-referential predictions. No self-citations are invoked as load-bearing uniqueness theorems, and the method relies on standard optical principles plus the known properties of event cameras. The derivation chain therefore contains no self-definitional, fitted-input, or citation-chain circularity.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Event streams from the sensor can be accumulated and spatially integrated to form accurate spectral lines after geometric correction
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
each pixel independently reporting changes in logarithmic intensity that exceed a predefined threshold... |log(I(x,y,t))−log(I(x,y,t−Δt k))| ≥ C
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.leanLogicNat unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
temporal accumulation, geometric correction, and vertical spatial integration of the spectral line
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Sci.15, 13250–13261, DOI: 10.1039/d4sc01019a (2024)
Perez-Castillo, R.et al.Transient-absorption spectroscopy of dendrimers via nonadiabatic excited-state dynamics simulations.Chem. Sci.15, 13250–13261, DOI: 10.1039/d4sc01019a (2024)
-
[2]
Hoghooghi, N.et al.Ghz repetition rate mid-infrared frequency comb spectroscopy of fast chemical reactions.Optica11, 876, DOI: 10.1364/optica.521655 (2024)
-
[3]
Technology, A. Intensified ccd cameras. https://andor.oxinst.com/learning/view/article/intensified-ccd-cameras (2024). Accessed: 2024-03-27
work page 2024
-
[4]
Teledyne Photometrics. Evolve emccd camera. https://www.photometrics.com/products/emccd-family/evolve. Accessed: 2024-03-27
work page 2024
-
[5]
Teledyne Princeton Instruments. Pi-max 4 camera system. https://www.princetoninstruments.com/products/pi-max-family/ pi-max. Accessed: 2024-03-27
work page 2024
- [6]
-
[7]
Takahashi, A., Nishizawa, M., Inagaki, Y ., Koishi, M. & Kinoshita, K. New femtosecond streak camera with temporal resolution of 180 fs. InGeneration, amplification, and measurement of ultrashort laser pulses, vol. 2116, 275–284 (SPIE, 1994)
work page 1994
-
[8]
Express32, 24553, DOI: 10.1364/oe.519995 (2024)
Ghezzi, A.et al.High throughput compressive fluorescence lifetime imaging with a silicon photomultiplier detector.Opt. Express32, 24553, DOI: 10.1364/oe.519995 (2024)
-
[9]
Leñero-Bardallo, J. A., Carmona-Galán, R. & Rodríguez-Vázquez, A. Applications of event-based image sensors—review and analysis.Int. J. Circuit Theory Appl.46, 1620–1630 (2018)
work page 2018
-
[10]
Cabriel, C., Monfort, T., Specht, C. G. & Izeddin, I. Event-based vision sensor for fast and dense single-molecule localization microscopy.Nat. Photonics17, 1105–1113 (2023)
work page 2023
-
[11]
Zhang, J.et al.Frame-event alignment and fusion network for high frame rate tracking. InProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 9781–9790 (2023). 12.Zhang, J.et al.Spiking transformers for event-based single object tracking. InProceedings of the IEEE/CVF conference on Computer Vision and Pattern Recognition, 8801...
work page 2023
-
[12]
Benosman, R., Clercq, C., Lagorce, X., Ieng, S.-H. & Bartolozzi, C. Event-based visual flow.IEEE transactions on neural networks learning systems25, 407–417 (2013)
work page 2013
-
[13]
Milde, M. B., Bertrand, O. J., Benosmanz, R., Egelhaaf, M. & Chicca, E. Bioinspired event-driven collision avoidance algorithm based on optic flow. In2015 International Conference on Event-based Control, Communication, and Signal Processing (EBCCSP), 1–7 (IEEE, 2015). 15.Wan, J.et al.Event-based pedestrian detection using dynamic vision sensors.Electronic...
work page 2015
-
[14]
Ni, Z., Pacoret, C., Benosman, R., Ieng, S. & RÉGNIER*, S. Asynchronous event-based high speed vision for microparticle tracking.J. microscopy245, 236–244 (2012)
work page 2012
-
[15]
Wang, Y ., Idoughi, R. & Heidrich, W. Stereo event-based particle tracking velocimetry for 3d fluid flow reconstruction. In Computer Vision–ECCV 2020: 16th European Conference, Glasgow, UK, August 23–28, 2020, Proceedings, Part XXIX 16, 36–53 (Springer, 2020)
work page 2020
-
[16]
Willert, C. E. & Klinner, J. Event-based imaging velocimetry: an assessment of event-based cameras for the measurement of fluid flows.Exp. Fluids63, 101 (2022)
work page 2022
- [17]
- [18]
-
[19]
Sopek, T., Zander, F., Birch, B. & Buttsworth, D. Development of neuromorphic event-based imaging spectroscopy for hypersonic flight observation.Aerosp. Sci. Technol.111160 (2025). 22.Chen, R.et al.Self-calibrated neuromorphic hyperspectral derivative imaging.Optica13, 587–590 (2026)
work page 2025
-
[20]
Sengupta, J. P. & Burks, S. D. Demystifying event-based camera latency: Sensor speed dependence on pixel biasing, light, and spatial activity. InInfrared Imaging Systems: Design, Analysis, Modeling, and Testing XXXV, vol. 13045, 272–290 (SPIE, 2024)
work page 2024
-
[21]
Dieter, K.et al.Development of a raman spectrometer for the characterization of gaseous hydrocarbons at high temperatures. J. Quant. Spectrosc. Radiat. Transf.277, DOI: 10.1016/j.jqsrt.2021.107978 (2022). 10/10
