Electric Axle and Wheel Module Driveline Concepts for Self-propelled Agricultural Machinery and Equipment Carriers

Timo Oksanen , Karl Th. Renius

Authors on Pith no claims yet

Pith reviewed 2026-05-11 02:04 UTC · model grok-4.3

classification 📡 eess.SY cs.SY

keywords electric drivelineagricultural machineryaxle modulewheel moduleself-propelled vehiclesmechatronic unitsvehicle designfour-wheel drive

0 comments

The pith

Electric axle modules and wheel modules present different trade-offs in freedom, cost, and rigidity for agricultural vehicle drivelines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper explores how direct electric drivelines without power-split mechanisms create new options for designing frames and suspensions in self-propelled agricultural machinery such as harvesters and equipment carriers. It defines two main ways to package the electric motors: as two axle modules or as four wheel modules, where each is a complete unit including power electronics, control systems, and steering capability. These are evaluated against practical needs like handling loads, energy efficiency, steering ability, braking, and production costs. Understanding these options matters because electric systems can cut energy losses and allow more flexible vehicle layouts compared to conventional mechanical drivetrains.

Core claim

The authors establish that for a typical four-wheel driven vehicle, the wheel module concept delivers the highest levels of design freedom, built-in redundancy, and precise controllability. In contrast, the axle module approach delivers advantages in lower manufacturing costs, greater structural stiffness, automatic load distribution via the differential, and straightforward integration into vehicles that already exist. Both module types incorporate distributed intelligence and steering functions internally, so the rest of the vehicle needs only to supply DC power and a communication link.

What carries the argument

Axle module and wheel module driveline concepts defined as self-contained mechatronic units that combine electric motors, power electronics, distributed control intelligence, and steering for use in agricultural machinery.

If this is right

Direct electric drivelines enable greater freedom in vehicle frame and suspension design.
Wheel modules support higher redundancy and better individual wheel control in four-wheel drive agricultural vehicles.
Axle modules can be fitted into existing vehicle designs while providing automatic load sharing.
Both module types require only a DC power bus and communication interface from the main vehicle controller.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Vehicle designers could combine axle modules on standard platforms with wheel modules on custom high-maneuverability machines.
Independent wheel control from modules may improve traction and reduce soil compaction in variable field conditions.
Over time these modular electric units might standardize across different types of self-propelled farm equipment.

Load-bearing premise

Qualitative judgments about loads, efficiency, steerability, controllability, braking, suspension, structural support, asymmetric loading, and manufacturing cost provide a sufficient basis for comparing the two module concepts.

What would settle it

Building and testing physical prototypes of both axle-module and wheel-module equipped vehicles, then measuring and comparing their real-world performance in energy use, handling, durability, and total cost under agricultural operating conditions.

Figures

Figures reproduced from arXiv: 2605.07657 by Karl Th. Renius, Timo Oksanen.

**Figure 1.** Figure 1: Hydraulic pressure distribution measured on a Claas combine harvester over 1,124 hours of operation to test alternative hydraulic oils [6]. The combined distribution reflects a superposition of typical working conditions (50–200 bar, broken curve) and high-pressure events up to about 450 bar, however, 450 bar during less than 0.1% of total operating time [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: Full load efficiency target (axle output/gearbox input) for tractor CVTs of nominal engine power above about 100 kW, details see Renius [1] 3 6 12 4 5 10 20 km/h 40 Vehicle speed (at rated engine speed ) Full load transaxle efficiency ( Axle output/ gearbox input ) 75 80 85 % 90 0 82 80 84 8 © Re nius [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

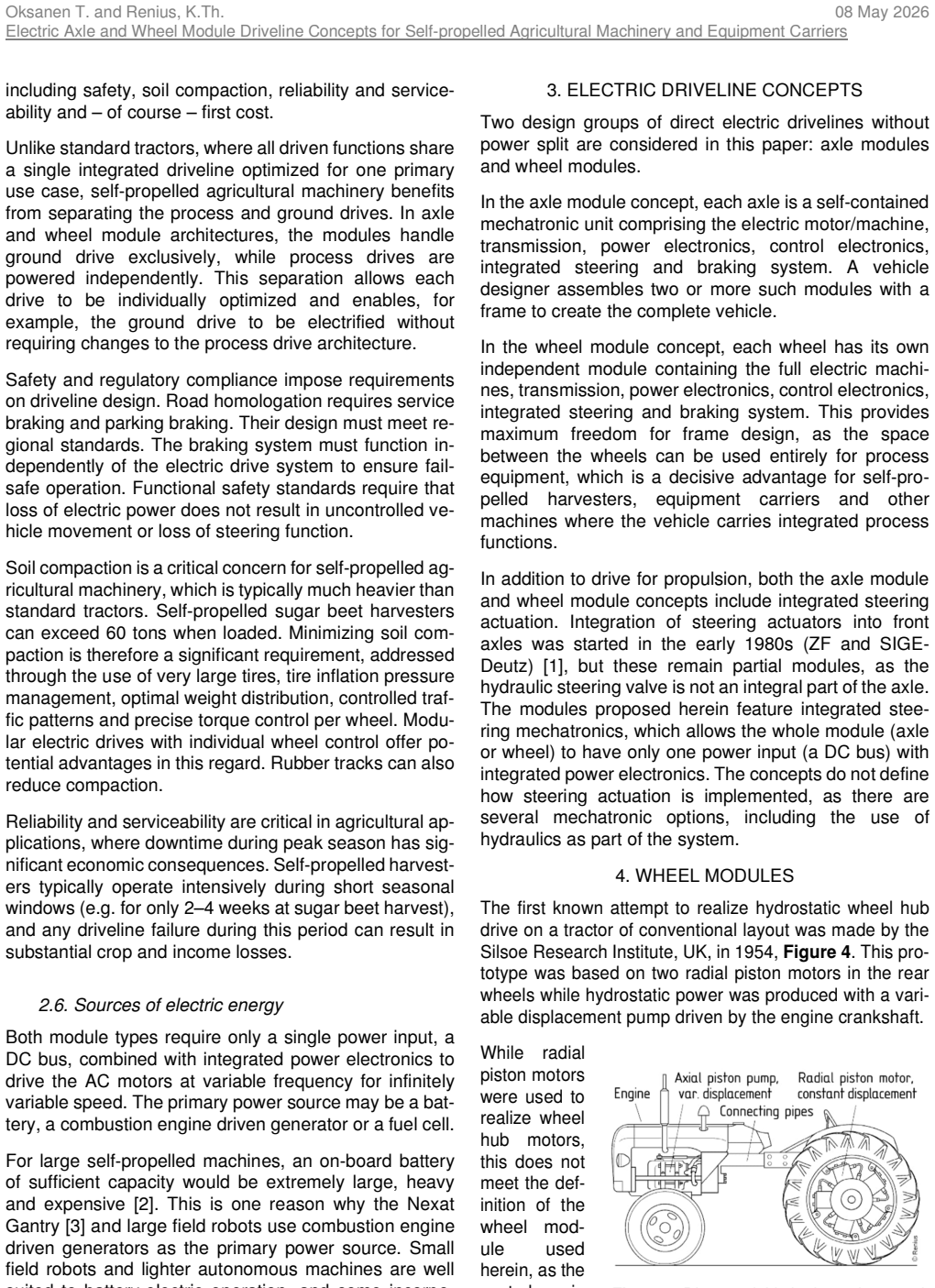

**Figure 4.** Figure 4: Direct variable hydrostatic ground drive by NIAE at Silsoe in 1954 [1] [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 6.** Figure 6: Electric wheel drive with two power-shifted ranges. Proposal of Karl Th. Renius in 2020 [1] [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗

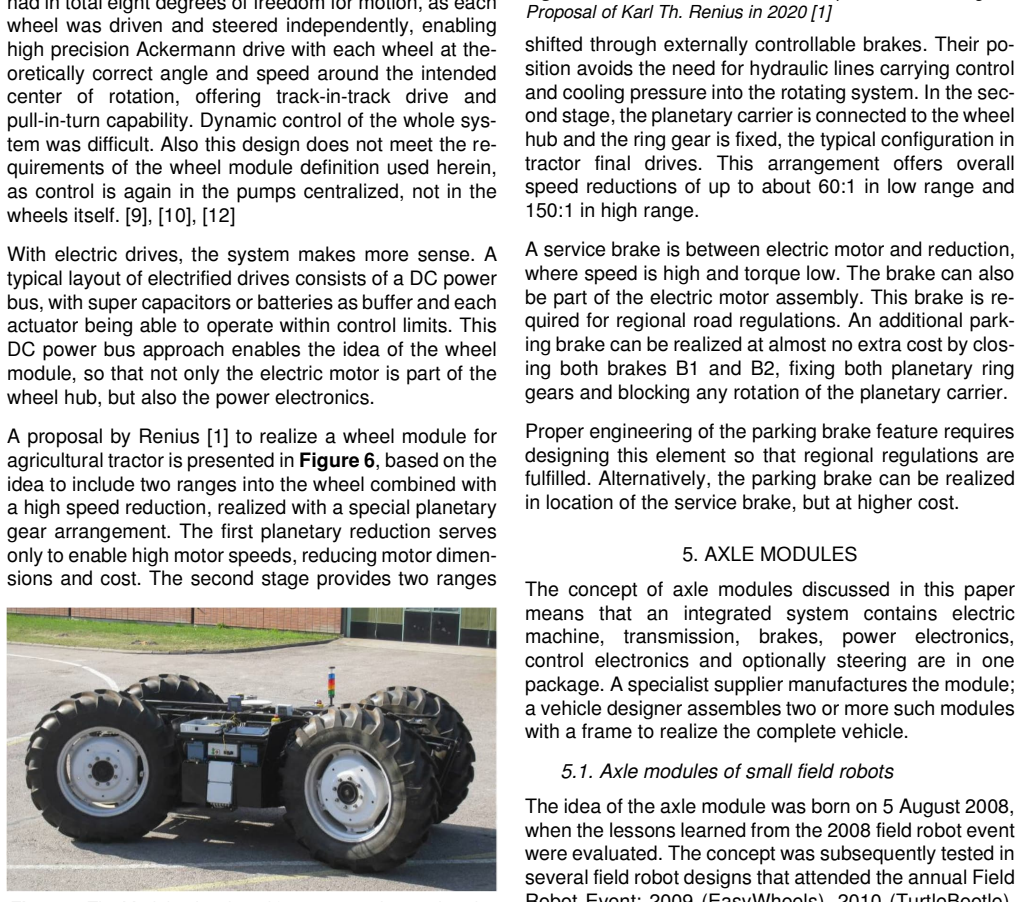

**Figure 5.** Figure 5: The Module, developed for unmanned operations by Modulaire in 1990; later refurbished and automated by Oksanen [11],[12]. This tractor prototype has fixed displacement radial piston motors in each wheel hubs and driven by four variable displacement pumps, each separately controllable. Radial piston motors are the hydrostatic realisation of wheel hub motors [9] [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

**Figure 7.** Figure 7: Axle module 2009 [13] [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

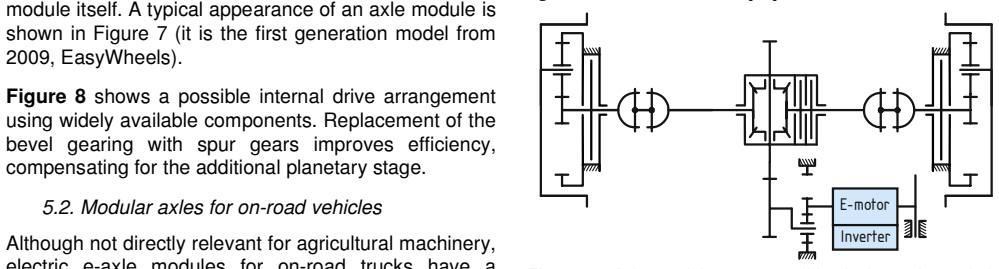

**Figure 8.** Figure 8: shows a possible internal drive arrangement using widely available components. Replacement of the bevel gearing with spur gears improves efficiency, compensating for the additional planetary stage. 5.2. Modular axles for on-road vehicles Although not directly relevant for agricultural machinery, electric e-axle modules for on-road trucks have a structure that is architecturally similar to possible solution… view at source ↗

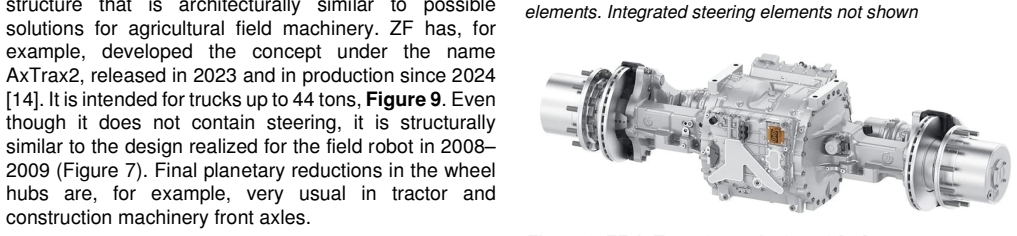

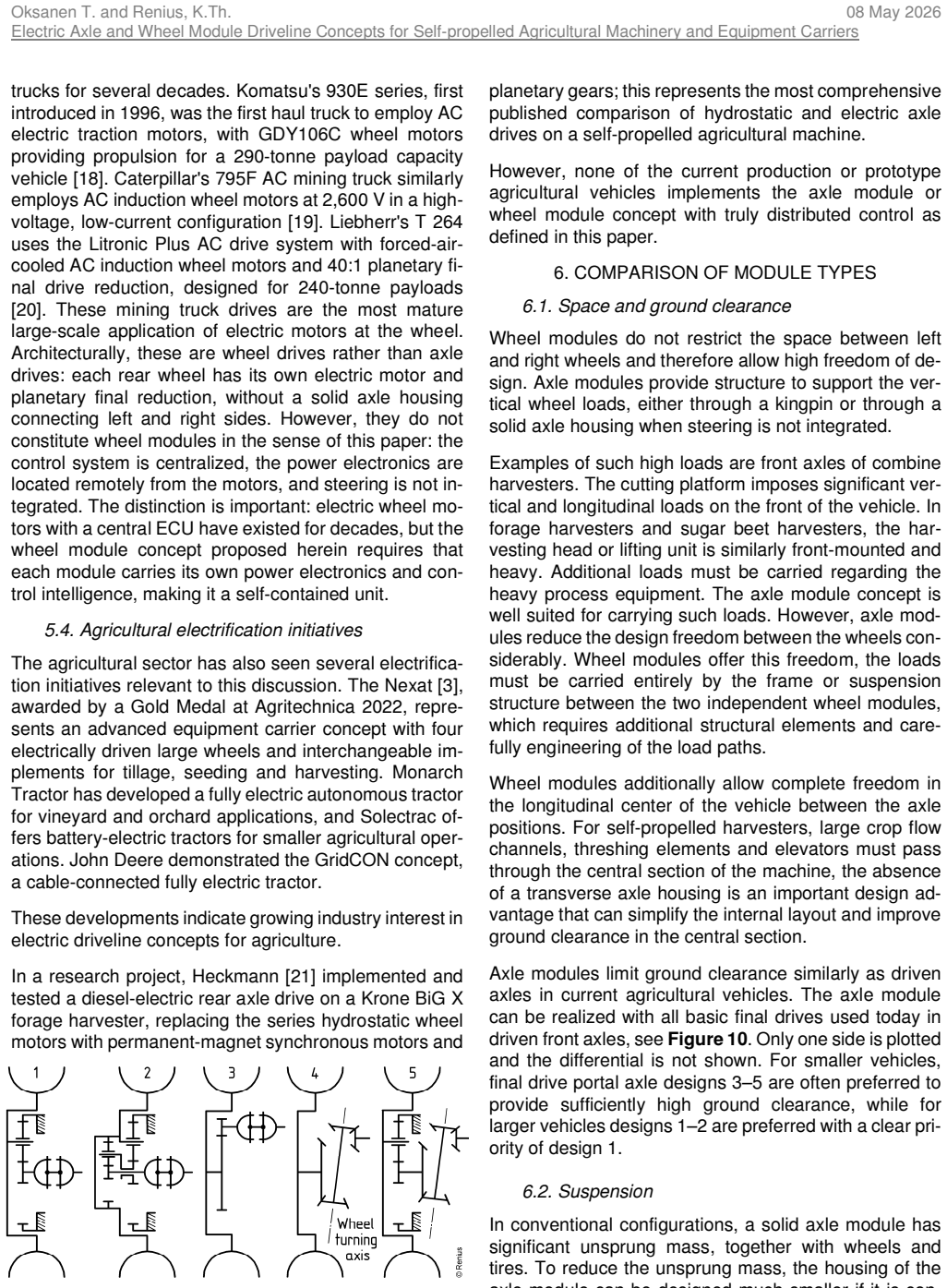

**Figure 9.** Figure 9: ZF AxTrax2 for trucks (2023) [14] [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
