· Lean TheoremCoherent {γ}-ray Generation By Partially Stripped Ion Beams
Pith reviewed 2026-05-11 02:52 UTC · model grok-4.3
The pith
Partially stripped ion beams can generate coherent tunable gamma rays when a collective instability microbunches them for laser backscattering.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Backscattering intense visible laser light from a beam of partially stripped ions generates coherent gamma rays once a collective instability microbunches the ions, in direct analogy to the high-gain free-electron laser mechanism. The scheme therefore supplies a potential route to a tunable coherent gamma-ray source, although the required laser intensity and beam current exceed those proposed for the Gamma Factory.
What carries the argument
The collective instability that microbunches the partially stripped ions, allowing the backscattered laser light to become coherent.
If this is right
- A source of tunable coherent gamma rays becomes available for new applications.
- The process requires significantly higher pump laser intensity than incoherent schemes.
- Ion beam current may also need to be increased beyond current Gamma Factory targets.
- The mechanism extends FEL-style physics from electrons to partially stripped ions.
Where Pith is reading between the lines
- The same microbunching instability could be tested at lower energies to map its threshold before gamma-ray operation.
- Integration with existing ion storage rings might allow compact coherent gamma sources without new large facilities.
- Similar collective effects could be sought in other heavy-particle beams to produce coherent radiation at different wavelengths.
Load-bearing premise
A collective instability will microbunch the partially stripped ions enough to turn the gamma-ray scattering coherent, and the needed laser intensities and beam currents can be reached.
What would settle it
An experiment at the stated laser intensity and ion current that shows no measurable microbunching or only incoherent gamma-ray output.
Figures
read the original abstract

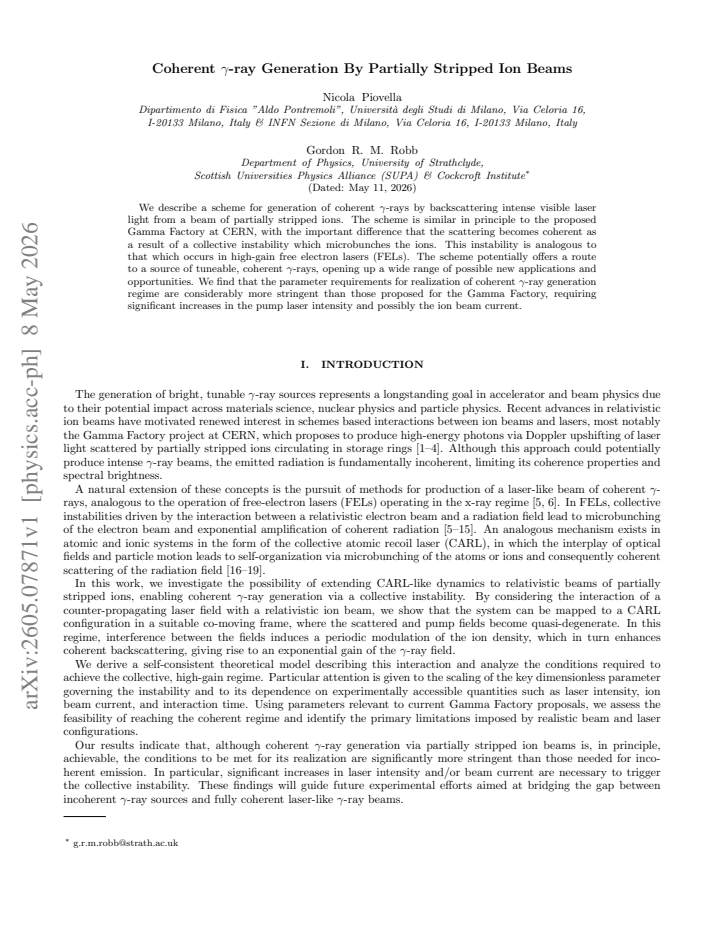

We describe a scheme for generation of coherent $\gamma$-rays by backscattering intense visible laser light from a beam of partially stripped ions. The scheme is similar in principle to the proposed Gamma Factory at CERN, with the important difference that the scattering becomes coherent as a result of a collective instability which microbunches the ions. This instability is analogous to that which occurs in high-gain free electron lasers (FELs). The scheme potentially offers a route to a source of tuneable, coherent $\gamma$-rays, opening up a wide range of possible new applications and opportunities. We find that the parameter requirements for realization of coherent $\gamma$-ray generation regime are considerably more stringent than those proposed for the Gamma Factory, requiring significant increases in the pump laser intensity and possibly the ion beam current.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a scheme for generating coherent γ-rays by backscattering intense visible laser light from a beam of partially stripped ions. Coherence is achieved through a collective instability that microbunches the ions on the scale of the γ-ray wavelength, analogous to the high-gain FEL mechanism. The authors find that realizing this regime requires substantially higher pump laser intensity and possibly higher ion beam current than the baseline parameters proposed for the Gamma Factory at CERN, while highlighting potential applications for a tunable coherent γ-ray source.
Significance. If the FEL-like instability analysis holds under realistic conditions and the required microbunching is achieved, the scheme could provide a new route to tunable coherent γ-rays with applications in nuclear physics and beyond. The work usefully quantifies the gap between incoherent Gamma Factory parameters and the coherent regime, serving as a benchmark for future studies. However, the reliance on linear analytical estimates without nonlinear verification limits the immediate impact.
major comments (3)
- [Collective Instability Analysis] In the section on the collective instability (analogous to FEL microbunching), the linear gain calculation does not incorporate beam energy spread, emittance, or space-charge effects. These factors typically increase the gain length and could prevent the instability from developing within the interaction region, directly affecting the central claim that coherence is achievable.
- [Parameter Requirements and Feasibility] The parameter estimates for the coherent regime (compared to Gamma Factory baselines) are based solely on linear theory without self-consistent nonlinear simulations or particle tracking to confirm saturation bunching levels. This leaves open whether the required coherence factor is reached before other effects dominate.
- [Laser-Ion Interaction Parameters] No analysis is provided of the ionization threshold for partially stripped ions at the elevated laser intensities needed. Further stripping would detune the resonance condition for γ-ray backscattering, undermining the scheme's viability.
minor comments (2)
- [Abstract] The abstract states that parameters are 'considerably more stringent' but would benefit from a brief quantitative indication of the intensity increase factor.
- [Theoretical Model] Notation for the instability growth rate and bunching factor should be defined more explicitly on first use to aid readability for readers outside the FEL community.
Simulated Author's Rebuttal
We thank the referee for the careful review and constructive comments on our manuscript. We have revised the paper to address the major points raised, strengthening the analysis while acknowledging the limitations of the current linear treatment. Our point-by-point responses follow.
read point-by-point responses
-
Referee: In the section on the collective instability (analogous to FEL microbunching), the linear gain calculation does not incorporate beam energy spread, emittance, or space-charge effects. These factors typically increase the gain length and could prevent the instability from developing within the interaction region, directly affecting the central claim that coherence is achievable.
Authors: We agree that these effects must be considered for a realistic assessment. In the revised manuscript we have extended the linear gain length formula to include the contributions from energy spread and emittance, following the standard FEL formalism adapted to the ion-beam case. The updated estimates show that the instability can still develop within the interaction length provided the relative energy spread remains below approximately 10^{-4}. Space-charge effects are discussed qualitatively, with the observation that they can be controlled by appropriate beam focusing; a quantitative estimate is added as a caveat. These additions clarify the parameter window in which coherence remains feasible. revision: yes
-
Referee: The parameter estimates for the coherent regime (compared to Gamma Factory baselines) are based solely on linear theory without self-consistent nonlinear simulations or particle tracking to confirm saturation bunching levels. This leaves open whether the required coherence factor is reached before other effects dominate.
Authors: The estimates are derived from linear theory, which correctly identifies the threshold for exponential growth. We have added a discussion of saturation by direct analogy with high-gain FELs, providing an order-of-magnitude estimate of the saturated bunching factor. We acknowledge that this remains an extrapolation and that full nonlinear verification would be desirable. The revised text now explicitly states this limitation and identifies self-consistent particle tracking as a necessary next step. revision: partial
-
Referee: No analysis is provided of the ionization threshold for partially stripped ions at the elevated laser intensities needed. Further stripping would detune the resonance condition for γ-ray backscattering, undermining the scheme's viability.
Authors: We thank the referee for identifying this critical issue. In the revised manuscript we have included a quantitative estimate of the ionization probability using the Ammosov-Delone-Krainov (ADK) model for the ion species and laser intensities under consideration. The calculation shows that the additional stripping probability remains below a few percent over the relevant interaction time, preserving the resonance condition. This analysis is now presented in a dedicated subsection. revision: yes
Circularity Check
No circularity: derivation applies standard FEL instability analysis to new ion-beam context without self-referential reduction.
full rationale
The paper's central claim is that a collective instability (analogous to high-gain FEL microbunching) can produce sufficient ion microbunching for coherent gamma-ray backscattering, with parameter requirements stricter than the Gamma Factory proposal. No equations, parameter fits, or predictions are shown that reduce by construction to the inputs; the analysis consists of order-of-magnitude estimates derived from established FEL theory applied externally to the ion-beam scenario. No self-citations, ansatzes smuggled via prior work, or uniqueness theorems are invoked in the provided text. The derivation chain remains self-contained against external benchmarks and does not exhibit any of the enumerated circularity patterns.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
In the laboratory reference frame,S, the ions interact with a strong counter-propagating pump field E2 =E 02ˆ xexp[i(k2z+ω 2t)], wherek 2 =ω 2/c, and by a weak co-propagating probe field E1 =E 01ˆ xexp[i(k1z−ω 1t)]. We consider a reference frameS ′ moving at a velocityv r =cβ r =c(ω 1 −ω 2)/(ω1 +ω 2) where the two frequencies coincide, as shown in Fig. 1....
-
[2]
For times much larger than 1/Γ the time derivative can be neglected, ˙σ j ≈0, 4 and we obtainσ j ≈g ′a′ 2/∆′ and dθ′ j dt′ = 2k ′ p′ j m ,(12) dp′ j dt′ =−¯hk ′ g′2a′ 2 ∆′ h a′eiθ′ j +a ′†e−iθ′ j i ,(13) da′ dt′ = g′2a′ 2 ∆′ NX j=1 e−iθ′ j .(14) where we have definedθ ′ = 2k′z′ anda ′ =ia ′
-
[3]
These are the CARL equations in the moving frameS ′. D. T ransformation to the laboratory frame (S) We now transform Eqs.(12)-(14) into the laboratory frameS. The phaseθ ′ j transforms as θ′ j = 2k′z′ =k 1(zj −ct) +k 2(zj +ct) = (k 1 +k 2)(zj −cβ rt) =θ j (15) The momentump ′ j transforms as p′ j =γ r(pj −β rEj/c) =mγ rγj(vj −v r) (16) sincep j =mγ jvj an...
-
[4]
Let now consider the transformations fora ′ anda ′
We do not write it in the laboratory values, since it refers to the detuning with respect to the proper transition frequencyω ′ 0. Let now consider the transformations fora ′ anda ′
-
[5]
Sincea †a=ϵ 0E2 0 V /2¯hω, and sinceE ′ 1 =γ r(1−β r)E1 and E′ 2 =γ r(1 +β r)E2, we have a′†a′ =a †aγ2 r(1−β r) (19) a′† 2a′ 2 =a † 2a2γ2 r(1 +β r) (20) (21) so that a′ = a√1 +β r (22) a′ 2 = a2√1−β r =a 2γr p 1 +β r (23) Then, Eqs.(12)-(14) transform into: dθj dt = 2ω 2(1 +β r)ηj (24) dηj dt =− ¯hω2 mc2 g2 2a2(1 +β r)2γr ∆′ aeiθj +a †e−iθj ,(25) da dt = ...
-
[6]
We assumeβ ∗ =l g and the beam currenti beam =ecβ rnπr2 b
This condition in the laboratory frame brings to P2 ≫ 1−β r 1 +β r 2 Pout.(43) About the particle beam, we take the radius of the beam asr b = (β∗ϵn/γr)1/2, whereβ ∗ is the beta function andϵ n is the normalized emittance. We assumeβ ∗ =l g and the beam currenti beam =ecβ rnπr2 b. Hence, n= ibeamγr ecβrπϵnβ∗ = ibeamγr ecβrπϵn 2 √ 3ω′ρ cβrγr = 2 √ 3ibeamω′...
- [7]
-
[8]
D. Budker, J. R. Crespo L´ opez-Urrutia, A. Derevianko, V. V. Flambaum, M. W. Krasny, A. Petrenko, S. Pustelny, A. Surzhykov, V. A. Yerokhin, and M. Zolotorev, Atomic Physics Studies at the Gamma Factory at CERN, Annalen Phys. 532, 2000204 (2020), arXiv:2003.03855 [physics.atom-ph]
-
[9]
D. Budkeret al., Expanding Nuclear Physics Horizons with the Gamma Factory, arXiv:2106.06584 [nucl-ex] (2021)
-
[10]
D. Budker, M. W. Krasny, and Y. Dutheil, Gamma factory: The light into the future, International Journal of Modern Physics A0, 2649003 (0), https://doi.org/10.1142/S0217751X26490035
-
[11]
B. W. J. McNeil and N. R. Thompson, X-ray free-electron lasers, Nature Photonics4, 814 (2010)
work page 2010
-
[12]
C. Pellegrini, A. Marinelli, and S. Reiche, The physics of x-ray free-electron lasers, Rev. Mod. Phys.88, 015006 (2016)
work page 2016
-
[13]
A. Kondratenko and E. Saldin, Generating of coherent radiation by a relativistic electron beam in an ondulator, Part. Accel.10, 207 (1980)
work page 1980
-
[14]
R. Bonifacio, C. Pellegrini, and L. Narducci, Collective instabilities and high-gain regime in a free electron laser, Optics Communications50, 373 (1984)
work page 1984
-
[15]
P. Emmaet al., First lasing and operation of an ˚ angstrom-wavelength free-electron laser, Nature Photonics4, 641 (2010)
work page 2010
-
[16]
M. Altarelli, R. Brinkmann, and M. Chergui, The european x-ray free-electron laser, Technical design report (2007)
work page 2007
- [17]
-
[18]
T. Shintake, H. Tanaka, T. Hara, T. Tanaka, K. Togawa, M. Yabashi, Y. Otake, Y. Asano, T. Bizen, T. Fukui,et al., A compact free-electron laser for generating coherent radiation in the extreme ultraviolet region, Nature Photonics2, 555 (2008)
work page 2008
-
[19]
T. Shintakeet al., Status report on japanese xfel construction project at spring-8, inProceedings of the 2010 International Particle Accelerator Conference(IEEE, 2010)
work page 2010
-
[20]
B. D. Pattersonet al., Coherent science at the swissfel x-ray laser, New Journal of Physics12, 035012 (2010)
work page 2010
-
[21]
C. Kimet al., Review of technical achievements in pal-xfel, AAPPS Bulletin 10.1007/s43673-022-00045-4 (2022)
-
[22]
R. Bonifacio and L. De Salvo, Collective atomic recoil laser (carl) optical gain without inversion by collective atomic recoil and self-bunching of two-level atoms, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment341, 360 (1994)
work page 1994
-
[23]
R. Bonifacio, L. De Salvo, L. M. Narducci, and E. J. D’Angelo, Exponential gain and self-bunching in a collective atomic recoil laser, Phys. Rev. A50, 1716 (1994)
work page 1994
-
[24]
R. Bonifacio, G. R. M. Robb, and B. W. J. McNeil, Propagation, cavity, and doppler-broadening effects in the collective atomic recoil laser, Phys. Rev. A56, 912 (1997)
work page 1997
-
[25]
N. Piovella, R. Bonifacio, B. McNeil, and G. Robb, Superradiant light scattering and grating formation in cold atomic vapours, Optics Communications187, 165 (2001)
work page 2001
-
[26]
C. von Cube, S. Slama, D. Kruse, C. Zimmermann, P. W. Courteille, G. R. M. Robb, N. Piovella, and R. Bonifacio, Self- synchronization and dissipation-induced threshold in collective atomic recoil lasing, Phys. Rev. Lett.93, 083601 (2004)
work page 2004
-
[27]
A. T. Gisbert and N. Piovella, Multimode collective atomic recoil lasing in free space, Atoms8, 93 (2020)
work page 2020
- [28]
-
[29]
H. Tomczyk, D. Schmidt, C. Georges, S. Slama, and C. Zimmermann, Stability diagram of the collective atomic recoil laser with thermal atoms, Phys. Rev. A91, 063837 (2015)
work page 2015
-
[30]
R. Bonifacio, L. De Salvo, and W. Barletta, Relativistic theory of the collective atomic recoil laser, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment384, 337 (1997)
work page 1997
