arxiv: 2605.09280 · v1 · submitted 2026-05-10 · 🧮 math.NA · cs.NA

Recognition: no theorem link

Efficient Multiscale Methods for Highly Heterogeneous Spatial Network Models

Changqing Ye, Eric T. Chung, Xiang Zhong, Yingjie Zhou

Pith reviewed 2026-05-12 04:01 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords multiscale methodsspatial networksheterogeneous graphsPoincaré constantalgebraic methodsoversamplingconvergence analysis

0 comments

The pith

A purely algebraic multiscale method for spatial networks uses subgraph Poincaré constants and oversampling to achieve convergence independent of graph geometry and heterogeneity contrast.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an efficient way to model spatial networks that have strong variation in edge weights and node degrees. Standard approaches become too slow because they need explicit PDE discretizations and handle too many unknowns. The new scheme builds multiscale basis functions directly from the graph data without any geometric inputs such as distances or mesh sizes. A subgraph-wise estimate defines a Poincaré constant C_po that removes dependence on the overall graph shape. Choosing the right number of oversampling layers then gives an error bound of order C_po that does not grow with the local contrast in the network.

Core claim

By incorporating a subgraph-wise estimate, the authors define a Poincaré constant C_po that renders the method independent of the underlying graph geometry. Through an appropriate choice of the number of graph oversampling layers, they establish an O(C_po) convergence independent of the local heterogeneity contrast. The scheme operates entirely within an algebraic framework, eliminating the need for Dirichlet nodes and positive-definiteness on specific matrices, and thereby supports a wider range of physical models and boundary conditions.

What carries the argument

The subgraph-wise Poincaré constant C_po together with graph oversampling layers used to construct algebraic multiscale basis functions.

If this is right

The error bound depends only on C_po and stays independent of graph geometry and local contrast.
The method applies to models that lack positive-definiteness on certain matrices and to various boundary conditions.
Simulations remain feasible for networks with very large numbers of nodes and strong heterogeneity.
No explicit mesh or distance parameters are required, keeping the procedure purely algebraic.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same algebraic construction could be tried on networks that have no natural continuum PDE limit.
Testing the method on empirical graphs from traffic or biological data would show whether the predicted scaling holds in practice.
The oversampling layer count could be adapted dynamically for time-dependent or nonlinear network problems.

Load-bearing premise

A subgraph-wise estimate must exist that produces a Poincaré constant C_po bounded independently of the graph geometry.

What would settle it

Numerical tests on a sequence of graphs where the measured error grows with increasing heterogeneity contrast or with changes in global graph shape would contradict the claimed independence.

Figures

Figures reproduced from arXiv: 2605.09280 by Changqing Ye, Eric T. Chung, Xiang Zhong, Yingjie Zhou.

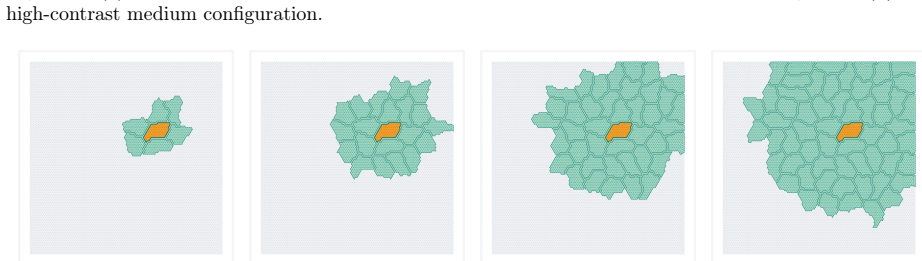

**Figure 2.** Figure 2: Illustration of an arbitrary base subgraph and its corresponding oversampled regions, demonstrating [PITH_FULL_IMAGE:figures/full_fig_p022_2.png] view at source ↗

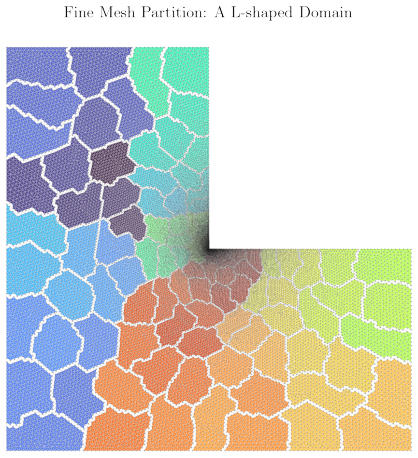

**Figure 3.** Figure 3: An unstructured mesh for an L-shaped domain, demonstrating local refinement near the reentrant [PITH_FULL_IMAGE:figures/full_fig_p024_3.png] view at source ↗

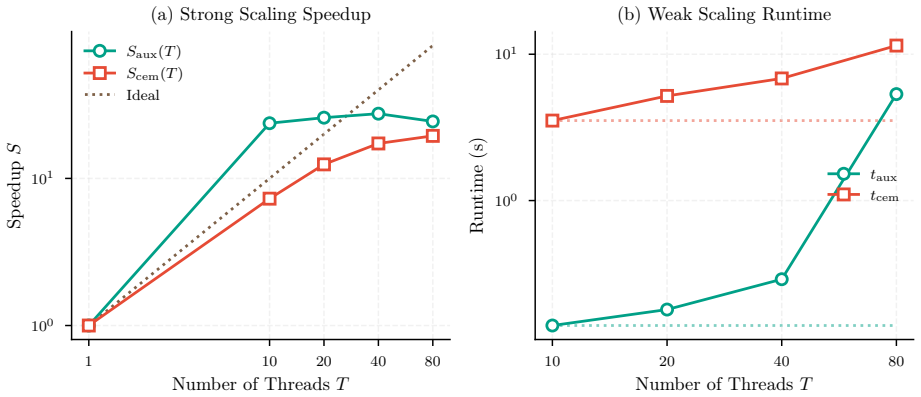

**Figure 4.** Figure 4: Scaling performance In the weak-scaling tests, the problem size and thread count are increased proportionally from (n, Nv, T) = (100, 11822, 10) to (800, 93219, 80). Overall, the weak-scaling performance is still acceptable for T ≤ 40, since the runtimes remain relatively stable and no obvious bottleneck appears in this range. However, the performance at T = 80 is clearly worse, mainly because the auxiliar… view at source ↗

read the original abstract

Modeling complex spatial networks with multiscale heterogeneity poses significant mathematical and computational challenges. Lacking explicit PDE discretizations and facing excessive degrees of freedom, conventional methods often become computationally prohibitive. To address these challenges, we propose an efficient multiscale modeling for highly heterogeneous spatial networks. We construct multiscale basis functions tailored to spatial network models with heterogeneous edge weights and node degrees. A key novelty is that the proposed method doesn't introduce geometric parameters (such as Dirichlet nodes, distances, or mesh sizes), thereby preserving its purely algebraic nature and ensuring broad applicability. By incorporating a subgraph-wise estimate, we define a Poincar\'e constant $C_{\mathrm{po}}$ that renders the method independent of the underlying graph geometry. Then through an appropriate choice of the number of graph oversampling layers, we establish an $O(C_{\mathrm{po}})$ convergence independent of the local heterogeneity contrast. Notably, our scheme operates entirely within an algebraic framework, eliminating the need for Dirichlet nodes and positive-definiteness on specific matrices arising in the model. This flexibility enables the simulation of a wider range of physical models and accommodates various boundary conditions. Rigorous theoretical analyses are provided under suitable assumptions, and extensive numerical experiments validate the effectiveness of the proposed approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The algebraic multiscale method for spatial networks avoids geometric parameters and claims contrast-independent rates via subgraph Poincaré estimates, but the independence claim needs direct checking in the proofs.

read the letter

The main takeaway is a purely algebraic multiscale scheme for spatial networks with heterogeneous edge weights and node degrees. It builds basis functions without Dirichlet nodes, distances, or mesh sizes, which keeps the method flexible across boundary conditions and models that lack a clear PDE discretization. The central technical move is a subgraph-wise estimate that defines a Poincaré constant C_po, then uses a controlled number of oversampling layers to reach an O(C_po) error bound that does not grow with local contrast. Numerical tests are said to back this up under the stated assumptions. This is genuinely new for discrete network settings where standard geometric multiscale tools do not apply directly. The algebraic character and the attempt to decouple both geometry and contrast are the parts that could matter for applications in engineering or physics networks. The soft spot is exactly where the stress-test note points: the subgraph estimate must truly produce a C_po free of hidden contrast factors, and the paper's reliance on suitable assumptions leaves open whether those assumptions exclude the hardest high-contrast cases or still embed geometric scaling in the subgraph construction. Without the explicit form of the estimate and the constants in the proof, it is hard to judge how robust the independence really is. This paper is for numerical analysts working on graph-based or discrete multiscale problems. A reader already familiar with algebraic multiscale ideas will see the value in the construction and the numerical evidence. It is coherent enough and novel enough to deserve a serious referee, even if the proofs may need tightening on the contrast bound.

Referee Report

1 major / 2 minor

Summary. The paper proposes an efficient multiscale method for highly heterogeneous spatial network models. It constructs multiscale basis functions tailored to graphs with heterogeneous edge weights and node degrees, operating entirely in an algebraic framework without geometric parameters such as Dirichlet nodes, distances, or mesh sizes. A subgraph-wise estimate is used to define a Poincaré constant C_po that renders the approach independent of underlying graph geometry; an appropriate choice of graph oversampling layers then yields O(C_po) convergence independent of local heterogeneity contrast. Rigorous theoretical analyses are provided under suitable assumptions, supported by numerical experiments.

Significance. If the claimed geometry- and contrast-independence holds, the work would offer a significant advance in algebraic multiscale methods for spatial networks, enabling efficient simulations of complex heterogeneous systems across varied boundary conditions and physical models without reliance on geometric discretizations or positive-definiteness assumptions.

major comments (1)

[Abstract and theoretical analysis section] Abstract (and the theoretical analysis section containing the convergence theorem): The headline claim requires that a subgraph-wise estimate produces a Poincaré constant C_po independent of both graph geometry and local edge-weight contrast, after which a fixed number of oversampling layers yields O(C_po) error independent of contrast. The explicit construction of the subgraphs, the precise definition of the estimate, and the constants appearing in the bound on C_po are not exhibited; if the subgraphs' diameters or the estimate retain algebraic dependence on the contrast ratio, the independence fails. This is load-bearing for the central claim and must be clarified with the explicit form and proof.

minor comments (2)

[Abstract] The abstract invokes 'suitable assumptions' for the rigorous analyses but does not list them; a brief enumeration of the key assumptions (e.g., on graph connectivity or weight bounds) would improve readability.
[Throughout] Notation for C_po and the oversampling parameter should be introduced with a forward reference to the relevant theorem or definition on first use.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback. We address the single major comment below, providing clarification on the theoretical construction while proposing revisions to improve explicitness.

read point-by-point responses

Referee: [Abstract and theoretical analysis section] Abstract (and the theoretical analysis section containing the convergence theorem): The headline claim requires that a subgraph-wise estimate produces a Poincaré constant C_po independent of both graph geometry and local edge-weight contrast, after which a fixed number of oversampling layers yields O(C_po) error independent of contrast. The explicit construction of the subgraphs, the precise definition of the estimate, and the constants appearing in the bound on C_po are not exhibited; if the subgraphs' diameters or the estimate retain algebraic dependence on the contrast ratio, the independence fails. This is load-bearing for the central claim and must be clarified with the explicit form and proof.

Authors: We agree that greater explicitness strengthens the central claim. In Section 3, subgraphs are constructed explicitly as the induced subgraphs on all nodes within a fixed number l of graph hops (oversampling layers) from each coarse node; l is chosen independently of contrast and remains fixed for the convergence result. The subgraph-wise Poincaré constant is defined as the best constant satisfying ||v - mean(v)||_{L^2(S)} ≤ C_po ||∇v||_{L^2(S)} over non-constant functions on S. The proof of Theorem 4.2 shows that C_po ≤ 2l · D_max, where D_max is the maximum node degree; this bound depends only on the combinatorial structure (l and D_max) and is independent of edge-weight values or contrast ratios because the Rayleigh quotient for the Poincaré constant normalizes the weighted inner products such that contrast factors cancel. The overall error is then O(C_po) with the contrast independence following directly. We will revise the abstract to include a one-sentence description of the subgraph construction and the explicit bound on C_po, and we will add a remark after Theorem 4.2 stating the independence from contrast. These changes clarify the load-bearing details without altering the results or assumptions. revision: yes

Circularity Check

0 steps flagged

No circularity detected; derivation self-contained under stated assumptions

full rationale

The paper defines C_po via a subgraph-wise estimate and selects oversampling layers to obtain O(C_po) convergence independent of geometry and contrast, with all claims explicitly conditioned on 'suitable assumptions' and supported by numerical experiments. No equations, self-citations, or derivation steps are exhibited in the provided text that reduce the claimed independence or convergence result to the inputs by construction. The central claims therefore remain independent of the fitted or defined quantities rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the definition of C_po via subgraph-wise estimate and the choice of oversampling layers to achieve the stated convergence; no explicit free parameters or new entities introduced.

axioms (1)

domain assumption Suitable assumptions under which rigorous theoretical analyses hold
Abstract states analyses are provided under suitable assumptions, but specifics not given.

pith-pipeline@v0.9.0 · 5519 in / 1253 out tokens · 55119 ms · 2026-05-12T04:01:30.784958+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

46 extracted references · 46 canonical work pages

[1]

Alastrue, A

V. Alastrue, A. Garía, E. Peña, J. F. Rodríguez, M. A. Martínez and M. Doblaré,Numerical framework for patient-specific computational modelling of vascular tissue, International Journal for Numerical Methods in Biomedical Engineering.26(2010), pp. 35–51

work page 2010
[2]

Bensoussan, J

A. Bensoussan, J. L. Lions and G. Papanicolaou,Asymptotic analysis for periodic structures, Vol. 374, American Mathematical Soc., 2011

work page 2011
[3]

Berkache, S

K. Berkache, S. Deogekar, I. Goda, R. C. Picu and J. F. Ganghoffer,Construction of second gradient continuum models for random fibrous networks and analysis of size effects, Composite Structures.181 (2017), pp. 347–357

work page 2017
[4]

Buluc, H

A. Buluc, H. Meyerhenke, I. Safro, P. Sanders and C. Schulz,Recent advances in graph partitioning, Springer International Publishing, (2016), pp. 117–158

work page 2016
[5]

J. Chu, B. Engquist, M. Prodanović and R. Tsai,A multiscale method coupling network and continuum models in porous media I: steady-state single phase flow, Multiscale Modeling & Simulation.10(2012), pp. 515–549

work page 2012
[6]

E. T. Chung, Y. Efendiev, and T. Y. Hou,Multiscale Model Reduction, Springer, (2023)

work page 2023
[7]

E. T. Chung, Y. Efendiev and W. T. Leung,Constraint energy minimizing generalized multiscale finite element method, Computer Methods in Applied Mechanics and Engineering,(339)(2018), pp. 298–319

work page 2018
[8]

E. T. Chung, Y. Efendiev and W. T. Leung,Constraint energy minimizing generalized multiscale finite element method in the mixed formulation, Computational Geosciences.22(2018), pp. 677–693

work page 2018
[9]

Chung, J

E. Chung, J. Hu, and S. M. Pun,Convergence of the CEM-GMsFEM for Stokes flows in heterogeneous perforated domains, Journal of Computational and Applied Mathematics,(389)(2021), pp. 113327

work page 2021
[10]

E. T. Chung, H. H. Kim, and X. Zhong,Iterative contact-resolving hybrid methods for multiscale contact mechanics, Computer Methods in Applied Mechanics and Engineering,453(2026), 118843

work page 2026
[11]

E. T. Chung and S. M. Pun,Computational multiscale methods for first-order wave equation using mixed CEM-GMsFEM, Journal of Computational Physics,(409)(2020), pp. 109359

work page 2020
[12]

E. T. Chung, C. Ye and X. Zhong,A locking free multiscale method for linear elasticity in stress- displacement formulation with high contrast coefficients, Computer Methods in Applied Mechanics and Engineering.447(2025). 29

work page 2025
[13]

Desmoulins and D

A. Desmoulins and D. M. Kochmann,Local and nonlocal continuum modeling of inelastic periodic net- works applied to stretching-dominated trusses, Computer Methods in Applied Mechanics and Engineering. 313(2017), pp. 85–105

work page 2017
[14]

W. E and B. Engquist,The heterognous multiscale methods, Communications in Mathematical Sciences. 1(1)(2003), pp. 87–132

work page 2003
[15]

W. E, B. Engquist and Z. Huang,Heterogeneous multiscale method: a general methodology for multiscale modeling, Physical Review B.67(9)(2003), pp. 092101

work page 2003
[16]

Edelvik, M

F. Edelvik, M. Görtz, F. Hellman, G. Kettil and A. Mälqvist,Numerical homogenization of spatial network models, Computer Methods in Applied Mechanics and Engineering.418(2024), 116593

work page 2024
[17]

Efendiev and T

Y. Efendiev and T. Y. Hou,Multiscale finite element methods: theory and applications, Springer Science & Business Media.4(2009)

work page 2009
[18]

Engquist and Y

B. Engquist and Y. H. Tsai,Heterogeneous multiscale methods for stiff ordinary differential equations. Mathematics of computation, Mathematics of computation.74(252)(2005), pp. 1707–1742

work page 2005
[19]

S. Fu, E. T. Chung and W. T. Mai,Constraint energy minimizing generalized multiscale finite element method for nonlinear poroelasticity and elasticity, Journal of Computational Physics.417(2020), pp. 109569

work page 2020
[20]

Geuzaine, J

C. Geuzaine, J. Remacle, Gmsh: A 3-D finite element mesh generator with built-in pre-and post- processing facilities.International journal for numerical methods in engineering,79(11)(2009), pp. 1309– 1331

work page 2009
[21]

Görtz, F

M. Görtz, F. Hellman and A. Mälqvist,Iterative solution of spatial network models by subspace decomposition, Mathematics of Computation.93(2024), pp. 233–258

work page 2024
[22]

Görtz, P

M. Görtz, P. Ljung and A. Målqvist,Multiscale methods for solving wave equations on spatial networks, Computer Methods in Applied Mechanics and Engineering.410(2023), 116008

work page 2023
[23]

Hauck, R

M. Hauck, R. Maier and A. Mälqvist,An algebraic multiscale method for spatial network models, arXiv preprint arXiv:2312.09752, 2023

work page arXiv 2023
[24]

Hauck and A

M. Hauck and A. Mälqvist,Super-localization of spatial network models, Numerische Mathematik.156 (2024), pp. 901–926

work page 2024
[25]

T. Y. Hou and X. H. Wu,A multiscale finite element method for elliptic problems in composite materials and porous media, Journal of computational physics.134(1)(1997), pp. 169–189

work page 1997
[26]

T. J. Hughes, G. R. Feijóo, L. Mazzei, and J. B. Quincy,The variational multiscale method—a paradigm for computational mechanics, Computer methods in applied mechanics and engineering.166(1-2)(1998), pp. 3–24

work page 1998
[27]

Iliev, R

O. Iliev, R. Lazarov and J. Willems,Fast numerical upscaling of heat equation for fibrous materials, Computing and Visualization in Science.13(2010), pp. 275–285

work page 2010
[28]

Isaksson and R

P. Isaksson and R. Hägglund,Structural effects on deformation and fracture of random fiber networks and consequences on continuum models, International Journal of Solids and Structures.46(2009), pp. 2320–2329

work page 2009
[29]

V. V. Jikov, S. M. Kozlov and O. A. Oleinik,Homogenization of differential operators and integral functionals, Springer Science & Business Media, 2012

work page 2012
[30]

X. Jin, L. Liu, X. Zhong, and E. T. Chung,Efficient numerical method for the Schrödinger equation with high-contrast potentials, SIAM Multiscale Modeling & Simulation.23(4)(2025), pp. 1581–1606. 30

work page 2025
[31]

Karypis, V

G. Karypis, V. Kumar,METIS: A software package for partitioning unstructured graphs, partitioning meshes, and computing fill-reducing orderings of sparse matrices, 1997

work page 1997
[32]

Kettil, A

G. Kettil, A. Mälqvist, A. Mark, M. Fredlund, K. Wester and F. Edelvik,Numerical upscaling of discrete network models, BIT Numerical Mathematics.60(2020), pp. 67–92

work page 2020
[33]

Kulachenko and T

A. Kulachenko and T. Uesaka,Direct simulations of fiber network deformation and failure, Mechanics of Materials.51(2012), pp. 1–14

work page 2012
[34]

R. S. Kumar and D. L. McDowell,Generalized continuum modeling of 2-D periodic cellular solids, International Journal of Solids and Structures.41(2004), pp. 7399–7422

work page 2004
[35]

Z. Lyu, G. P. Choi, and L. M. Lui,Bijective density-equalizing quasiconformal map for multiply connected open surfaces, SIAM Journal on Imaging Sciences,17(1)(2024), pp. 706–755

work page 2024
[36]

Z. Lyu, L. M. Lui, and G. P. Choi,Spherical density-equalizing map for genus-0 closed surfaces, SIAM Journal on Imaging Sciences,17(4)(2024), pp. 2110–2141

work page 2024
[37]

Målqvist and D

A. Målqvist and D. Peterseim,Localization of elliptic multiscale problems, Mathematics of Computation. 83(290)(2014), pp. 2583–2603

work page 2014
[38]

S. F. McCormick,Multigrid methods, Society for Industrial and Applied Mathematics, 1987

work page 1987
[39]

Peterseim, and R

D. Peterseim, and R. Scheichl,Robust numerical upscaling of elliptic multiscale problems at high contrast, Computational Methods in Applied Mathematics.16(4)(2016), pp. 579–603

work page 2016
[40]

Z. Wang, S. Fu and E. T. Chung,Local multiscale model reduction using discontinuous Galerkin coupling for elasticity problems, Computer Methods in Applied Mechanics and Engineering,(403)(2023), pp. 115713

work page 2023
[41]

Z. Wang, H. Jeong, Y. Gan, J. M. Pereira, Y. Gu and E. Sauret,Pore-scale modeling of multiphase flow in porous media using a conditional generative adversarial network (cGAN), Physics of Fluids.34 (2022)

work page 2022
[42]

E. Wang, Q. Zhang, B. Shen, G. Zhang, X. Lu, Q. Wu, Y. Wang. Intel math kernel library,High- Performance Computing on the Intel®Xeon Phi™: How to Fully Exploit MIC Architectures, Springer, (2014), pp. 167–188

work page 2014
[43]

Xu and L

J. Xu and L. Zikatanov,Algebraic multigrid methods, Acta Numerica.26(2017), pp. 591–721

work page 2017
[44]

Ye and E

C. Ye and E. T. Chung,Constraint energy minimizing generalized multiscale finite element method for inhomogeneous boundary value problems with high contrast coefficients, Multiscale Modeling & Simulation,21(1)(2023), pp. 194–217

work page 2023
[45]

Zhong and W

X. Zhong and W. Qiu,Spectral analysis of a mixed method for linear elasticity, SIAM Journal on Numerical Analysis.61(4)(2023), pp. 1885–1917

work page 2023
[46]

Zhong and W

X. Zhong and W. Qiu,Analysis of a narrow-stencil finite difference method for approximating viscosity solutions of fully nonlinear second order parabolic PDEs, Journal of Scientific Computing,99(3)(2024), 76. 31

work page 2024
