arxiv: 2605.09578 · v1 · submitted 2026-05-10 · ❄️ cond-mat.mtrl-sci

Recognition: no theorem link

Molecular Nitrogen Formation in Nitrogen-Implanted (100) β-Ga₂O₃ Revealed by Temperature-Dependent N K-edge XANES

A. Derkachova, A. Dro\'zdziel, A. Shokri, E. Grzanka, F. Munnik, I.N. Demchenko, J. Krajczewski, J.Z. Domagala, M. Chernyshova, M. Turek, M. Zaj\k{a}c, R. Jakie{\l}a, R. Minikayev, Y. Melikhov, Y. Syryanyy, Z.Galazka

Pith reviewed 2026-05-12 03:48 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords nitrogen implantationbeta-Ga2O3XANES spectroscopymolecular nitrogenp-type dopingion implantationgallium oxide

0 comments

The pith

Implanted nitrogen in β-Ga₂O₃ forms N₂-like molecules rather than substitutional acceptors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper investigates the configuration of nitrogen atoms implanted into (100) β-Ga₂O₃ crystals. Temperature-dependent N K-edge x-ray absorption spectra reveal a pronounced π* resonance that matches molecular nitrogen and grows stronger upon annealing. First-principles calculations and multiple-scattering simulations show that nitrogen atoms preferentially form N-N bonds inside the defect-rich, damaged lattice created by implantation. The same simulations reproduce the measured spectra and indicate that the near-surface region develops local β-to-γ structural motifs. These results supply a microscopic reason for the long-standing inability of nitrogen to produce hole conductivity in this wide-band-gap oxide.

Core claim

The central claim is that implanted nitrogen preferentially forms molecular N₂-like configurations rather than substitutional acceptor sites in (100) β-Ga₂O₃. This preference is revealed by the dominant π* resonance in temperature-dependent N K-edge XANES spectra, which intensifies with thermal annealing, and is reproduced by first-principles and multiple-scattering calculations that find N-N bonding favored inside the nonequilibrium, defect-rich environment produced by ion implantation.

What carries the argument

The N K-edge XANES π* resonance together with first-principles calculations and multiple-scattering simulations that model N-N bonded configurations inside the implantation-induced defect-rich Ga₂O₃ matrix.

If this is right

Nitrogen implantation cannot produce p-type conductivity in β-Ga₂O₃ because the atoms form N₂ molecules instead of acting as acceptors.
Thermal annealing increases the fraction of molecular nitrogen rather than activating substitutional sites.
The implantation damage creates a near-surface layer with altered local structure that favors molecularization.
Effective acceptor doping will require incorporation routes that avoid high defect densities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same molecularization tendency may appear in other wide-band-gap oxides when dopants are introduced by ion implantation.
Growth-time nitrogen incorporation that keeps the lattice more perfect could avoid the defect-rich conditions that drive N-N pairing.
The local β-to-γ structural transition near the surface may affect additional properties such as carrier mobility or optical absorption in implanted layers.

Load-bearing premise

The π* resonance is produced exclusively by molecular nitrogen and the computational models accurately represent the complex, nonequilibrium defect structures without major fitting adjustments.

What would settle it

Observation of clear substitutional nitrogen signatures or measurable hole conductivity in nitrogen-implanted β-Ga₂O₃ samples in which the molecular π* resonance is absent or strongly suppressed.

read the original abstract

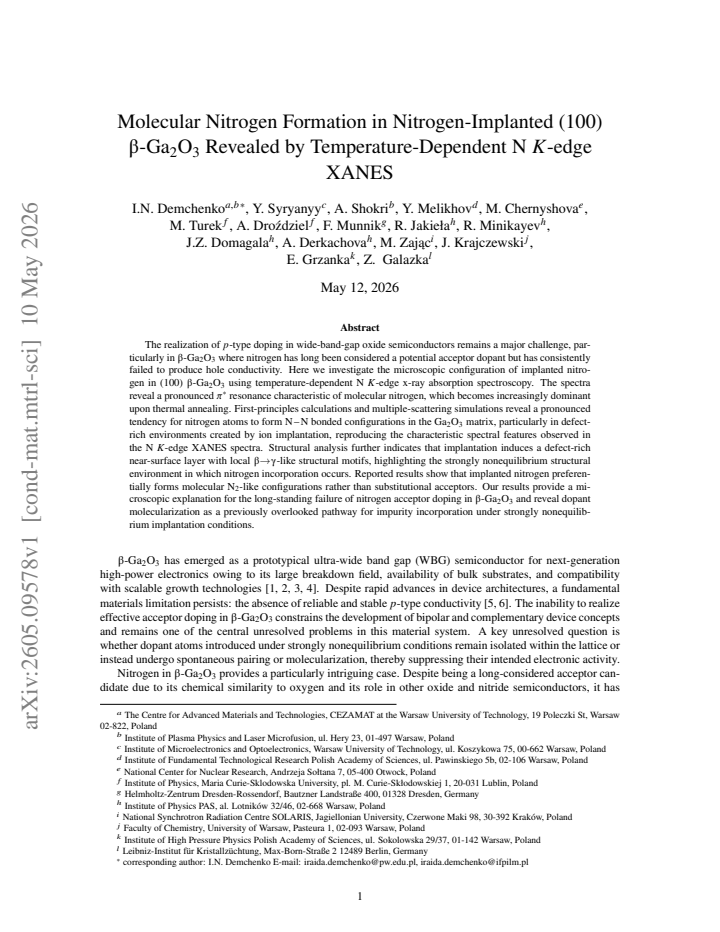

The realization of $p$-type doping in wide-band-gap oxide semiconductors remains a major challenge, particularly in $\beta-Ga_2O_3$ where nitrogen has long been considered a potential acceptor dopant but has consistently failed to produce hole conductivity. Here we investigate the microscopic configuration of implanted nitrogen in (100) $\beta-Ga_2O_3$ using temperature-dependent $N$ $K$-edge x-ray absorption spectroscopy. The spectra reveal a pronounced $\pi^*$ resonance characteristic of molecular nitrogen, which becomes increasingly dominant upon thermal annealing. First-principles calculations and multiple-scattering simulations reveal a pronounced tendency for nitrogen atoms to form $N-N$ bonded configurations in the $Ga_2O_3$ matrix, particularly in defect-rich environments created by ion implantation, reproducing the characteristic spectral features observed in the $N$ $K$-edge XANES spectra. Structural analysis further indicates that implantation induces a defect-rich near-surface layer with local $\beta$-to-$\gamma$-like structural motifs, highlighting the strongly nonequilibrium structural environment in which nitrogen incorporation occurs. Reported results show that implanted nitrogen preferentially forms molecular $N_2$-like configurations rather than substitutional acceptors. Our results provide a microscopic explanation for the long-standing failure of nitrogen acceptor doping in $\beta-Ga_2O_3$ and reveal dopant molecularization as a previously overlooked pathway for impurity incorporation under strongly nonequilibrium implantation conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

XANES spectra and simulations indicate implanted N in β-Ga2O3 forms N2 molecules in the damaged layer rather than substitutional acceptors, which fits the doping failure pattern but needs tighter checks on whether the π* feature is unique.

read the letter

The paper's main finding is that nitrogen implanted into (100) β-Ga2O3 ends up in N-N bonded configurations inside the defect-rich near-surface region instead of on oxygen sites as acceptors. The N K-edge XANES spectra show a π* resonance that grows with annealing temperature, and the first-principles plus multiple-scattering models reproduce the feature when N2-like pairs are placed in the local γ-Ga2O3 motifs created by implantation. This supplies a direct spectroscopic reason for why N doping has never produced p-type conductivity in this material and ties the outcome to the strongly nonequilibrium conditions right after the implant step. The temperature series and the structural link to implantation damage are the parts that feel fresh compared with earlier N-incorporation attempts. They also do a reasonable job showing how the damaged layer favors molecularization over isolated substitutional placement. The soft spot is the exclusivity of the π* assignment. In a highly defective matrix, other N arrangements such as interstitial clusters or bonds to under-coordinated Ga could produce intensity near 401 eV, and the work does not report side-by-side simulations of those alternatives or quantitative residuals that would show how much better the N2 model fits. Data-reduction steps are also described lightly, so it is hard to judge how clean the resonance really is. This is aimed at the Ga2O3 power-electronics group and anyone using XANES to track dopant behavior under implantation. A reader focused on oxide doping barriers or defect spectroscopy would pick up useful spectra and the nonequilibrium angle. The experimental observation is solid enough that the paper deserves a serious referee, even if the interpretation would benefit from more alternative models.

Referee Report

2 major / 3 minor

Summary. The paper claims that nitrogen implanted into (100) β-Ga₂O₃ forms molecular N₂-like configurations preferentially over substitutional acceptors, as evidenced by a temperature-dependent π* resonance in N K-edge XANES spectra that intensifies upon annealing. First-principles calculations and multiple-scattering simulations support this by showing N-N bonding tendency in defect-rich, implantation-induced environments with local β-to-γ-like motifs, providing an explanation for the lack of p-type conductivity from N doping.

Significance. If the result holds, it would be significant for understanding dopant incorporation in wide-bandgap oxides under nonequilibrium conditions, offering a microscopic rationale for the failure of nitrogen as an acceptor in β-Ga₂O₃. The clear experimental observation of the resonance and its annealing dependence, combined with theoretical modeling, is a strength; however, the interpretation requires further validation to fully impact the field.

major comments (2)

[XANES Results] The pronounced π* resonance is attributed to molecular nitrogen, but given the implantation-induced defect-rich near-surface layer with local β-to-γ-like motifs (as noted in the structural analysis), the manuscript should demonstrate that this feature cannot arise from other N environments such as N interstitial clusters or N bonded to under-coordinated Ga. No comparison spectra or fit residuals for these alternatives are provided, which is load-bearing for the 'preferential' claim.
[Simulation and Modeling] The first-principles and multiple-scattering simulations reproduce the spectral features, but without reporting χ² residuals or exhaustive comparisons to alternative defect models, the conclusion that N2-like configurations dominate remains under-constrained.

minor comments (3)

[Experimental Methods] Full details on XANES data reduction, background subtraction, and quantitative fit metrics are missing, which would help assess the reliability of the observed intensity changes.
[Figure Presentation] Ensure that all figures have clear labels and legends distinguishing experimental and simulated spectra.
[Discussion] A brief mention of potential limitations in the model assumptions for the nonequilibrium environment would be helpful.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback on our manuscript. We address each major comment below and will revise the manuscript to incorporate additional simulations and quantitative metrics as suggested.

read point-by-point responses

Referee: [XANES Results] The pronounced π* resonance is attributed to molecular nitrogen, but given the implantation-induced defect-rich near-surface layer with local β-to-γ-like motifs (as noted in the structural analysis), the manuscript should demonstrate that this feature cannot arise from other N environments such as N interstitial clusters or N bonded to under-coordinated Ga. No comparison spectra or fit residuals for these alternatives are provided, which is load-bearing for the 'preferential' claim.

Authors: We agree that explicit comparisons to alternative N environments would strengthen the uniqueness of the molecular N2 assignment. Our first-principles results already show a strong energetic preference for N-N dimer formation over isolated interstitial or substitutional N in the defect-rich, β-to-γ-like local structure induced by implantation. In the revised manuscript we will add multiple-scattering simulations for N interstitial clusters and N bonded to under-coordinated Ga; these will demonstrate that such configurations produce broader or shifted spectral features that do not match the sharp, annealing-intensified π* resonance. We will also include fit residuals (χ²) to quantify the superior agreement of the N2-like models. This addition directly addresses the load-bearing aspect of the preferential-formation claim. revision: yes
Referee: [Simulation and Modeling] The first-principles and multiple-scattering simulations reproduce the spectral features, but without reporting χ² residuals or exhaustive comparisons to alternative defect models, the conclusion that N2-like configurations dominate remains under-constrained.

Authors: We acknowledge that the original submission did not report χ² residuals or exhaustive alternative-model comparisons. In the revision we will provide χ² values for the agreement between the N2-like simulated spectra and the experimental data, together with direct comparisons to the alternative defect models noted above. The thermodynamic preference for N-N bonding from DFT calculations will be presented alongside these spectral fits to support the conclusion that N2-like configurations dominate. These quantitative additions will make the modeling section more robust and better constrain the interpretation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental XANES spectra and independent first-principles modeling drive the central claim

full rationale

The paper's derivation rests on direct observation of a temperature-dependent π* resonance in N K-edge XANES spectra of implanted β-Ga₂O₃, which is a standard spectroscopic signature of molecular nitrogen. First-principles calculations and multiple-scattering simulations are invoked only to interpret this experimental feature by showing that N-N bonded configurations in defect-rich (β-to-γ-like) environments can reproduce the observed lineshape. No equation or result is obtained by fitting a parameter to a subset of the same data and then relabeling it a prediction; no load-bearing premise is justified solely by self-citation; and no uniqueness theorem or ansatz is smuggled in from prior author work. The chain is therefore self-contained against external benchmarks (the measured spectra themselves) and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on the abstract alone, no explicit free parameters, ad-hoc axioms, or new invented entities are stated; the work relies on standard assumptions of DFT and multiple-scattering theory plus the interpretation that the π* resonance uniquely identifies molecular nitrogen.

pith-pipeline@v0.9.0 · 5674 in / 1229 out tokens · 53291 ms · 2026-05-12T03:48:44.449839+00:00 · methodology

discussion (0)

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

Vacancy-Enhanced $N-N$ Bonding and Deep Level Complex Defect Formation in $\beta-Ga_2O_3$
cond-mat.mtrl-sci 2026-05 unverdicted novelty 4.0

Nitrogen-vacancy defect complexes in β-Ga₂O₃ form deep trapping centers that limit carrier transport and promote semi-insulating properties.

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages · cited by 1 Pith paper

[1]

Ghadi, E

H. Ghadi, E. Cornuelle, J. F. Mcglone, A. Senckowski, S. Sharma, M. H. Wong, U. Singisetti, and S. A. Ringel. Comprehensive characterization of nitrogen-related defect states inβ-Ga 2O3 using quantitative optical and thermal defect spectroscopy methods.APL Materials, 12(9):091111, 2024

work page 2024
[2]

S. Luan, L. Dong, X. Ma, and R. Jia. The further investigation of N-dopedβ-Ga 2O3 thin films with native defects for Schottky-barrier diode.Journal of Alloys and Compounds, 812:152026, 2020

work page 2020
[3]

Nikolskaya, E

A. Nikolskaya, E. Okulich, D. Korolev, A. Stepanov, D. Nikolichev, A. Mikhaylov, D. Tetelbaum, A. Al- maev, C. A. Bolzan, A. Buaczik, Jr., R. Giulian, P. L. Grande, A. Kumar, M. Kumar, and D. Gogova. Ion implantation inβ-Ga 2O3: physics and technology.Journal of Vacuum Science & Technology A, 39(3):030802, 2021

work page 2021
[4]

Nakanishi, M

M. Nakanishi, M. H. Wong, T. Yamaguchi, T. Honda, M. Higashiwaki, and T. Onuma. Effect of thermal annealing on photoexcited carriers in nitrogen-ion-implantedβ-Ga 2O3 crystals detected by photocurrent measurement.AIP Advances, 11(3):035237, 2021

work page 2021
[5]

Azarov, A

A. Azarov, A. Galeckas, U. Bektas, G. Hlawacek, and A. Kuznetsov. Optical absorption and emis- sion in nitrogen-implanted Ga 2O3 controlled by dynamic defect annealing.Advanced Optical Materials, 14:e03595, 2026

work page 2026
[6]

Peelaers, J

H. Peelaers, J. L. Lyons, J. B. Varley, and C. G. Van de Walle. Deep acceptors and their diffusion in Ga2O3.APL Materials, 7(2):022519, 2019

work page 2019
[7]

Shokri, Y

A. Shokri, Y . Melikhov, Y . Syryanyy, and I. N. Demchenko. Hybrid density functional theory study on the formation energies of donor and acceptor N impurities in𝛽-Ga 2O3".Physica Status Solidi (b), 262:2400448, 2025

work page 2025
[8]

M. Wang, S. Mu, J. B. Varley, J. Hwang, and C. G. Van de Walle. Chapter 5: Defects in𝛽-Ga 2O3: theory and microscopic studies. In J.S. Speck and E. Farzana, editors,Ultrawide Bandgap𝛽-Ga 2O3 Semiconductor: Theory and Applications. AIP Publishing LLC, 2023

work page 2023
[9]

J. B. Varley, C. G. Van de Walle, and E. Farzana. Chapter 6: Dopants in𝛽-Ga 2O3: from theory to experiments. In J.S. Speck and E. Farzana, editors,Ultrawide Bandgap𝛽-Ga 2O3 Semiconductor: Theory and Applications. AIP Publishing LLC, 2023

work page 2023
[10]

M. H. Wong et al. Acceptor doping ofβ-Ga 2O3 by Mg and N ion implantations.Applied Physics Letters, 113(10):102103, 2018

work page 2018
[11]

De Santi, M

C. De Santi, M. Fregolent, M. Buffolo, M. Higashiwaki, G. Meneghesso, E. Zanoni, and M. Meneghini. Deep levels and conduction processes in nitrogen-implanted Ga 2O3 Schottky barrier diodes. InOxide- based Materials and Devices XIII, volume 12002 ofProc. SPIE, page 1200209, 2022

work page 2022
[12]

P. Fons, H. Tampo, A. V . Kolobov, M. Ohkubo, S. Niki, J. Tominaga, R. Carboni, F. Boscherini, and S. Friedrich. Direct observation of nitrogen location in molecular beam epitaxy grown nitrogen-doped ZnO.Physical Review Letters, 96(4):045504, 2006

work page 2006
[13]

Schauries, V

D. Schauries, V . Ney, S. K. Nayak, P. Entel, A. A. Guda, A. V . Soldatov, F. Wilhelm, A. Rogalev, K. Kum- mer, F. Yakhou, and A. Ney. Incorporation of nitrogen in Co:ZnO studied by x-ray absorption spectroscopy and x-ray linear dichroism.Physical Review B, 87(12):125206, 2013

work page 2013
[14]

Bazioti, A

C. Bazioti, A. Azarov, K. M. Johansen, B. G. Svensson, L. Vines, A. Y . Kuznetsov, and Ø. Prytz. Role of nitrogen in defect evolution in zinc oxide: STEM-EELS nanoscale investigations.The Journal of Physical Chemistry Letters, 10:4725–4730, 2019

work page 2019
[15]

Y . Kato, M. Yamamoto, A. Ozawa, Y . Kawaguchi, A. Miyoshi, T. Oshima, K. Maeda, and T. Yoshida. Analysis of optical properties and structures of nitrogen doped gallium oxide.e-Journal of Surface Science and Nanotechnology, 16:262–266, 2018

work page 2018
[16]

Galazka, R

Z. Galazka, R. Uecker, D. Klimm, K. Irmscher, M. Naumann, M. Pietsch, A. Kwasniewski, R. Bertram, S. Ganschow, and M. Bickermann. Scaling-up of bulk𝛽-Ga 2O3 single crystals by the czochralski method. ECS Journal of Solid State Science and Technology, 6:Q3007, 2017. 7

work page 2017
[17]

Z. Galazka. Growth of bulk𝛽-Ga 2O3 single crystals by the czochralski method.Journal of Applied Physics, 131:031103, 2022

work page 2022
[18]

Turek, S

M. Turek, S. Prucnal, A. Dro´ zdziel, and K. Pyszniak. Arc discharge ion source for europium and other refractory metals implantation.Review of Scientific Instruments, 80:043304, 2009

work page 2009
[19]

Turek, A

M. Turek, A. Drozdziel, K. Pyszniak, and S. Prucnal. Versatile plasma ion source with an internal evapo- rator.Nuclear Instruments and Methods in Physics Research Section B, 269:700, 2011

work page 2011
[20]

Kresse and J

G. Kresse and J. Hafner.Ab initiomolecular-dynamics simulation of the liquid-metal-amorphous- semiconductor transition in germanium.Physical Review B, 49:14251, 1994

work page 1994
[21]

Kresse and J

G. Kresse and J. Furthmüller. Efficiency ofab-initiototal energy calculations for metals and semiconduc- tors using a plane-wave basis set.Computational Materials Science, 6:15, 1996

work page 1996
[22]

Kresse and J

G. Kresse and J. Furthmüller. Efficient iterative schemes forab initiototal-energy calculations using a plane-wave basis set.Physical Review B, 54:11169, 1996

work page 1996
[23]

Kresse and D

G. Kresse and D. Joubert. From ultrasoft pseudopotentials to the projector augmented-wave method. Physical Review B, 59:1758, 1999

work page 1999
[24]

J. Heyd, G. E. Scuseria, and M. Ernzerhof. Hybrid functionals based on a screened Coulomb potential. The Journal of Chemical Physics, 118:8207, 2003

work page 2003
[25]

Xiao, L.-L

W.-Z. Xiao, L.-L. Wang, L. Xu, Q. Wan, and A.-L. Pan. Electronic structure and magnetic properties in nitrogen-doped𝛽-Ga 2O3 from density functional calculations.Solid State Communications, 150:852, 2010

work page 2010
[26]

M. A. Blanco, M. B. Sahariah, H. Jiang, A. Costales, and R. Pandey. Energetics and migration of point defects in Ga2O3.Physical Review B, 72:184103, 2005

work page 2005
[27]

Kyrtsos, M

A. Kyrtsos, M. Matsubara, and E. Bellotti. On the feasibility of𝑝-type Ga 2O3.Applied Physics Letters, 112:032108, 2018

work page 2018
[28]

Shokri, Y

A. Shokri, Y . Melikhov, Y . Syryanyy, and I. N. Demchenko. Point defects in silicon-doped𝛽-Ga 2O3: Hybrid-DFT calculations.ACS Omega, 8(46):43732–43738, 2023

work page 2023
[29]

Y . Joly. X-ray absorption near-edge structure calculations beyond the muffin-tin approximation.Physical Review B, 63:125120, 2001

work page 2001
[30]

A. P. Hitchcock and C. E. Brion.𝐾-shell excitation spectra of CO, N 2 and O 2.Journal of Electron Spectroscopy and Related Phenomena, 18:1–21, 1980

work page 1980
[31]

Syryanyy, J

Y . Syryanyy, J. Z. Domagala, A. Azarov, Y . Melikhov, A. Shokri, R. Minikayev, O. Liubchenko, M. Zaj ˛ ac, F. Munnik, M. Chernyshova, Z. Galazka, J. Krajczewski, M. Zi˛ etala, A. Kuznetsov, and I. N. Demchenko. Silicon implantation as a route to polymorph engineering in Ga2O3 (100). Submitted to J. of Phys. Chem. Lett., 2026

work page 2026
[32]

Ghadi, J.F

H. Ghadi, J.F. McGlone, C.M. Jackson, E. Farzana, Z. Feng, A.F.M. Anhar Uddin Bhuiyan, H. Zhao, A.R. Arehart, and S.A. Ringel. Full bandgap defect state characterization ofβ-Ga 2O3 grown by metal organic chemical vapor deposition.APL Materials, 8:021111, 2020. 8 Supplementary Material 9 DFT Computational Details and Auxiliary Results First-principles DFT ...

work page 2020
