arxiv: 2605.09687 · v1 · submitted 2026-05-10 · 💻 cs.CV

Recognition: 2 theorem links

· Lean Theorem

Spatial-Frequency Gated Swin Transformer for Remote Sensing Single-Image Super-Resolution

Md Aminur Hossain , Parekh Valkesh , Ayush V. Patel , Yogesh Jethani , Sanjay K. Singh , Biplab Banerjee

Authors on Pith no claims yet

Pith reviewed 2026-05-12 03:40 UTC · model grok-4.3

classification 💻 cs.CV

keywords remote sensingimage super-resolutionSwin transformerspatial-frequency gatingfeed-forward networkhigh-frequency detailssingle-image super-resolution

0 comments

The pith

Replacing the feed-forward network inside Swin transformer blocks with a spatial-frequency gated module improves detail recovery in remote sensing super-resolution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces SFG-SwinSR to reconstruct higher-resolution remote sensing images from low-resolution inputs while keeping fine spatial structures intact. It modifies each Swin2SR block by swapping the standard feed-forward network for a Spatial-Frequency Gated Feed-Forward Network that isolates low-frequency content through blurring, pulls out high-frequency residuals by subtraction, refines those residuals spatially, and uses a bottleneck gate to add them back selectively. This change targets the generic channel mixing that previous transformer designs used without separating frequency bands. Experiments on SpaceNet and SEN2VENμS datasets report higher PSNR and SSIM values than the baseline, with the SpaceNet run reaching 45.19 dB PSNR and 0.9852 SSIM. A reader would care because remote sensing applications depend on accurate high-frequency textures for tasks such as mapping and monitoring.

Core claim

SFG-SwinSR modifies the original Swin2SR attention block by replacing each transformer block's standard feed-forward network with a lightweight Spatial-Frequency Gated Feed-Forward Network (SFG-FFN). The module estimates low-frequency content via a depthwise-blur branch, extracts high-frequency residuals by subtraction, refines them with a lightweight spatial branch, and adaptively injects detail through a bottleneck gate. Experiments on SpaceNet and SEN2VENμS show that SFG-SwinSR improves reconstruction quality under the evaluated settings. On SpaceNet, it achieves 45.19 dB PSNR and 0.9852 SSIM, indicating effective enhancement of high-frequency details.

What carries the argument

The Spatial-Frequency Gated Feed-Forward Network (SFG-FFN) that separates low-frequency structure from high-frequency residuals inside each Swin transformer block and uses a gate to control their re-injection.

If this is right

Reaches 45.19 dB PSNR and 0.9852 SSIM on the SpaceNet dataset.
Improves reconstruction quality on both SpaceNet and SEN2VENμS under the tested conditions.
Enhances high-frequency detail recovery in remote sensing super-resolution.
Shows that inserting spatial-frequency transformation inside the transformer feed-forward network aids detail reconstruction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same gating module could be dropped into other transformer backbones for image restoration tasks outside remote sensing.
If the frequency separation proves stable across scales, it may allow shallower networks to match deeper generic transformers on detail-heavy imagery.
Testing the module on additional remote sensing datasets with different sensors would clarify how far the gains generalize.

Load-bearing premise

The measured PSNR and SSIM gains arise specifically from the frequency separation and gating rather than from other training details or dataset characteristics.

What would settle it

Re-training the model after removing only the depthwise-blur and subtraction steps for frequency separation while keeping every other change and observing whether the PSNR and SSIM on SpaceNet fall back to Swin2SR levels.

Figures

Figures reproduced from arXiv: 2605.09687 by Ayush V. Patel, Biplab Banerjee, Md Aminur Hossain, Parekh Valkesh, Sanjay K. Singh, Yogesh Jethani.

**Figure 1.** Figure 1: Architecture of the proposed SFG-SwinSR. Each transformer block replaces the FFN with an SFG-FFN that performs low-pass estimation, high-frequency residual gating, and detail refinement for enhanced SR. 3.2 Spatial-Frequency Gated Feed-Forward Network (SFG-FFN) Given the input token sequence x ∈ R B×H.W×C , the module first applies a linear projection to expand the channel dimension using GELU (Gaussian Er… view at source ↗

**Figure 2.** Figure 2: shows a sensor-inspired degradation pipeline [4] to synthesize lowresolution images from original high-resolution WorldView-2 imagery at 30 cm resolution, following standard single-image super-resolution protocols. A series of degradation steps that emulate the properties of the WorldView-2 sensor in order to obtain the realistic LR sample. Let the original high-resolution image be denoted by IHR. The sim… view at source ↗

**Figure 3.** Figure 3: Visual comparison on the SpaceNet dataset. From left to right: Ground Truth (HR), Bicubic, Swin2SR, Swin2-MoSE, and SFG-SwinSR. Green and red bounding boxes highlight the regions of interest for qualitative evaluation. atmospheric, geometric, and radiometric distortions present in operational scenarios. Third, although SFG-SwinSR achieves the best PSNR and SSIM on SEN2VENµS under the evaluated settings, t… view at source ↗

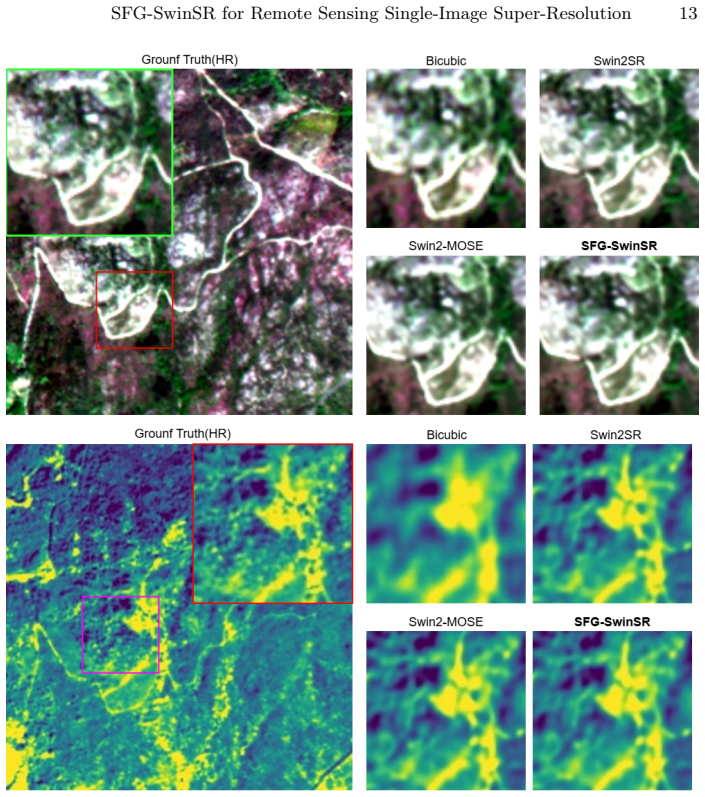

**Figure 4.** Figure 4: Visual comparison on the SEN2VENµS dataset. From left to right: Ground Truth (HR), Bicubic, Swin2SR, Swin2-MoSE, and SFG-SwinSR. Bounding boxes highlight the regions of interest for qualitative evaluation. 6 Conclusion This paper introduced SFG-SwinSR, a novel Spatial-Frequency Gated Swin Transformer designed for remote sensing image super-resolution. Our approach preserves the original Swin2SR attention m… view at source ↗

read the original abstract

Remote Sensing (RS) single-image super-resolution aims to reconstruct high-resolution imagery from low-resolution observations while preserving fine spatial structures. Recent Swin Transformer-based models, including Swin2SR, provide strong spatial context modeling throughshifted-window self-attention, but their feed-forward networks remain generic channel-mixing modules and do not separate low-frequency structural content from high-frequency residual detail. To address this limitation, we propose SFG-SwinSR, a Spatial-Frequency Gated Swin Transformer for single-image super-resolution in remote sensing. SFG-SwinSR modifies the original Swin2SR attention block by replacing each transformer block's standard feed-forward network with a lightweight Spatial-Frequency Gated Feed-Forward Network (SFG-FFN). The module estimates low-frequency content via a depthwise-blur branch, extracts high-frequency residuals by subtraction, refines them with a lightweight spatial branch, and adaptively injects detail through a bottleneck gate. Experiments on SpaceNet and SEN2VEN{\mu}S show that SFG-SwinSR improves reconstruction quality under the evaluated settings. On SpaceNet, it achieves 45.19 dB PSNR and 0.9852 SSIM, indicating effective enhancement of high-frequency details. This demonstrates that spatial-frequency transformation within the transformer feed-forward network improves detail reconstruction in RS super-resolution.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

SFG-FFN is a concrete frequency-aware replacement for the standard FFN in Swin2SR, but the abstract gives no baseline numbers or ablations to show the module drives the reported PSNR lift.

read the letter

The paper replaces the generic feed-forward network inside each Swin2SR block with a Spatial-Frequency Gated FFN. The module runs a depthwise blur to capture low-frequency structure, subtracts to isolate high-frequency residuals, refines those residuals with a spatial branch, and uses a bottleneck gate to control how much detail gets added back. That is the actual new piece, and it directly addresses the point that standard transformer FFNs do not explicitly separate frequencies for remote-sensing detail recovery.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes SFG-SwinSR, a modification of Swin2SR for remote sensing single-image super-resolution. It replaces the standard feed-forward network in each Swin Transformer block with a Spatial-Frequency Gated Feed-Forward Network (SFG-FFN) that computes low-frequency content via a depthwise-blur branch, derives high-frequency residuals by subtraction, refines them with a lightweight spatial branch, and adaptively gates the detail injection through a bottleneck. Experiments on SpaceNet and SEN2VENμS report a peak performance of 45.19 dB PSNR and 0.9852 SSIM on SpaceNet, with the claim that the spatial-frequency transformation improves high-frequency detail reconstruction under the evaluated settings.

Significance. If the reported gains can be shown to arise specifically from the SFG-FFN rather than training or optimization differences, the module offers a lightweight, interpretable way to inject frequency-aware processing into transformer FFNs for remote-sensing SR. This could be useful for preserving fine spatial structures without large increases in parameter count. The work correctly identifies a limitation in generic channel-mixing FFNs but currently provides insufficient evidence to establish the mechanism's causal role.

major comments (3)

[Abstract] Abstract: the central claim that SFG-SwinSR 'improves reconstruction quality' and 'indicates effective enhancement of high-frequency details' rests on the 45.19 dB PSNR / 0.9852 SSIM figures, yet no matched baseline metrics for Swin2SR (or any other model) are supplied under identical data, optimizer, and schedule conditions.
[Abstract] Abstract / experimental description: no ablation is described that keeps the Swin2SR backbone, training protocol, and data fixed while swapping only the FFN for SFG-FFN, so the contribution of the depthwise-blur + subtraction + spatial-refinement + bottleneck-gate design cannot be isolated from other implementation choices.
[Abstract] Abstract: the manuscript reports concrete metric values without error bars, multiple random seeds, or statistical tests, making it impossible to judge whether the observed lift exceeds typical variance from hyperparameter or initialization differences.

minor comments (2)

[Abstract] Abstract: 'throughshifted-window' is missing a space and should read 'through shifted-window'.
[Abstract] Abstract: the dataset notation 'SEN2VENμS' appears with a LaTeX artifact; provide the standard name and citation.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that the experimental validation requires strengthening to better isolate the contribution of the proposed SFG-FFN and to demonstrate robustness. We will revise the manuscript accordingly.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that SFG-SwinSR 'improves reconstruction quality' and 'indicates effective enhancement of high-frequency details' rests on the 45.19 dB PSNR / 0.9852 SSIM figures, yet no matched baseline metrics for Swin2SR (or any other model) are supplied under identical data, optimizer, and schedule conditions.

Authors: We acknowledge the concern. The full manuscript contains quantitative comparisons to Swin2SR on SpaceNet, but these are not explicitly restated in the abstract with confirmation of identical training conditions. In the revised version we will add the matched Swin2SR baseline metrics to the abstract and ensure the experimental section explicitly states that all models were trained with the same data splits, optimizer, and schedule. revision: yes
Referee: [Abstract] Abstract / experimental description: no ablation is described that keeps the Swin2SR backbone, training protocol, and data fixed while swapping only the FFN for SFG-FFN, so the contribution of the depthwise-blur + subtraction + spatial-refinement + bottleneck-gate design cannot be isolated from other implementation choices.

Authors: The primary comparison in Section 4 is precisely this controlled replacement: SFG-SwinSR differs from Swin2SR only in the FFN module while sharing the identical backbone, data, and training protocol. However, we agree that a dedicated ablation subsection would make the isolation clearer. We will add an explicit ablation study that reports performance when only the FFN is swapped, keeping all other factors fixed. revision: yes
Referee: [Abstract] Abstract: the manuscript reports concrete metric values without error bars, multiple random seeds, or statistical tests, making it impossible to judge whether the observed lift exceeds typical variance from hyperparameter or initialization differences.

Authors: We agree that variance reporting is necessary for reliable claims. In the revised manuscript we will rerun the key experiments with multiple random seeds, report mean and standard deviation in the tables, and include error bars where appropriate. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical architecture proposal with reported metrics on public datasets

full rationale

The paper proposes replacing the FFN in Swin2SR with a custom SFG-FFN module (depthwise blur for low frequencies, subtraction for high-frequency residuals, spatial refinement, and bottleneck gating) and reports PSNR/SSIM numbers on SpaceNet and SEN2VENμS. No equations, derivations, or first-principles claims appear in the provided text. The central result is an empirical performance number rather than any quantity that reduces by construction to fitted inputs, self-citations, or renamed ansatzes. The reader's score of 2.0 is consistent with possible minor self-citation that is not load-bearing; the derivation chain contains no self-definitional, fitted-prediction, or uniqueness-imported steps.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the unproven design assumption that frequency separation inside the FFN is the right inductive bias for RS super-resolution, plus standard deep-learning training assumptions.

free parameters (1)

SFG-FFN hyperparameters (blur kernel, gate bottleneck ratio, spatial branch width)
Chosen to make the module work; values not reported in abstract.

axioms (1)

domain assumption Subtracting the low-frequency blur estimate cleanly isolates high-frequency residuals without introducing artifacts.
Invoked in the module description; no proof or prior validation cited.

invented entities (1)

Spatial-Frequency Gated Feed-Forward Network (SFG-FFN) no independent evidence
purpose: To adaptively inject high-frequency detail inside each transformer block.
New module introduced by the paper; no independent evidence outside this work.

pith-pipeline@v0.9.0 · 5567 in / 1394 out tokens · 41414 ms · 2026-05-12T03:40:33.114379+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/AbsoluteFloorClosure reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Experiments on SpaceNet and SEN2VENµS show that SFG-SwinSR improves reconstruction quality under the evaluated settings. On SpaceNet, it achieves 45.19 dB PSNR and 0.9852 SSIM

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages · 1 internal anchor

[1]

Layer Normalization

Ba, J.L., Kiros, J.R., Hinton, G.E.: Layer normalization. arXiv preprint arXiv:1607.06450 (2016)

work page internal anchor Pith review Pith/arXiv arXiv 2016
[2]

In: European Conference on Computer Vision Workshops (ECCVW) (2022)

Conde, M.V., Choi, U.J., Burchi, M., Timofte, R.: Swin2sr: Swinv2 transformer for compressed image super-resolution and restoration. In: European Conference on Computer Vision Workshops (ECCVW) (2022)

work page 2022
[3]

In: European Conference on Computer Vision

Dong, C., Loy, C.C., He, K., Tang, X.: Learning a deep convolutional network for image super-resolution. In: European Conference on Computer Vision. pp. 184–

work page
[4]

ISPRS Journal of Photogrammetry and Remote Sensing191, 155–170 (2022)

Dong, R., Mou, L., Zhang, L., Fu, H., Zhu, X.X.: Real-world remote sensing image super-resolution via a practical degradation model and a kernel-aware network. ISPRS Journal of Photogrammetry and Remote Sensing191, 155–170 (2022)

work page 2022
[5]

International Journal of Remote Sensing 38(1), 314–354 (2017)

Fernández-Beltrán, R., Latorre-Carmona, P., Pla, F.: Single-frame super-resolution in remote sensing: A practical overview. International Journal of Remote Sensing 38(1), 314–354 (2017)

work page 2017
[6]

Prentice Hall, 2nd edn

Gonzalez, R.C., Woods, R.E.: Digital Image Processing. Prentice Hall, 2nd edn. (2002)

work page 2002
[7]

He,K.,Zhang,X.,Ren,S.,Sun,J.:Deepresiduallearningforimagerecognition.In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (2016)

work page 2016
[8]

In: 2025 IEEE 7th International Conference on Computing, Communication and Automa- tion (ICCCA)

Hossain, M.A., Ray, A., Patel, A.V., Singh, S.K., Banerjee, B.: A weightedℓ1 reg- ularization method for stripe noise removal in remote sensing images. In: 2025 IEEE 7th International Conference on Computing, Communication and Automa- tion (ICCCA). pp. 1–5. IEEE (2025)

work page 2025
[9]

In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (2018)

Hu, J., Shen, L., Sun, G.: Squeeze-and-excitation networks. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (2018)

work page 2018
[10]

In: European conference on computer vision

Huang, G., Sun, Y., Liu, Z., Sedra, D., Weinberger, K.Q.: Deep networks with stochastic depth. In: European conference on computer vision. pp. 646–661. Springer (2016) SFG-SwinSR for Remote Sensing Single-Image Super-Resolution 15

work page 2016
[11]

IEEE Transactions on IP33, 6367–6379 (2024)

Kang, X., Duan, P., Li, J., Li, S.: Efficient swin transformer for remote sensing image super-resolution. IEEE Transactions on IP33, 6367–6379 (2024)

work page 2024
[12]

In: Proceedings of the IEEE conference on computer vision and pattern recognition

Kim, J., Lee, J.K., Lee, K.M.: Accurate image super-resolution using very deep convolutional networks. In: Proceedings of the IEEE conference on computer vision and pattern recognition. pp. 1646–1654 (2016)

work page 2016
[13]

ISPRS Journal of Photogrammetry and Remote Sensing146, 305–319 (2018)

Lanaras, C., Bioucas-Dias, J., Galliani, S., Baltsavias, E., Schindler, K.: Super- resolution of sentinel-2 images: Learning a globally applicable deep neural network. ISPRS Journal of Photogrammetry and Remote Sensing146, 305–319 (2018)

work page 2018
[14]

IEEE GRSL14(8), 1243–1247 (2017)

Lei, S., Shi, Z., Zou, Z.: Super-resolution for remote sensing images via local–global combined network. IEEE GRSL14(8), 1243–1247 (2017)

work page 2017
[15]

Liang, J., Cao, J., Sun, G., Zhang, K., Van Gool, L., Timofte, R.: Swinir: Image restorationusingswintransformer.In:ProceedingsoftheIEEE/CVFInternational Conference on Computer Vision Workshops. pp. 1833–1844 (2021)

work page 2021
[16]

In: Proceedings of the IEEE conference on computer vision and pattern recognition workshops

Lim,B.,Son,S.,Kim,H.,Nah,S.,MuLee,K.:Enhanceddeepresidualnetworksfor single image super-resolution. In: Proceedings of the IEEE conference on computer vision and pattern recognition workshops. pp. 136–144 (2017)

work page 2017
[17]

In: ICLR (2019)

Loshchilov, I., Hutter, F.: Decoupled weight decay regularization. In: ICLR (2019)

work page 2019
[18]

Data7(7), 96 (2022)

Michel, J., Vinasco-Salinas, J., Inglada, J., Hagolle, O.: Sen2venµs, a dataset for the training of sentinel-2 super-resolution algorithms. Data7(7), 96 (2022)

work page 2022
[19]

ISPRS Journal of Pho- togrammetry and Remote Sensing231, 68–100 (2026)

Qi,Y.,Lou,M.,Liu,Y.,Li,L.,Yang,Z.,Nie,W.:Advancingimagesuper-resolution techniques in remote sensing: A comprehensive survey. ISPRS Journal of Pho- togrammetry and Remote Sensing231, 68–100 (2026)

work page 2026
[20]

Knowledge-Based Systems 222, 107013 (2021)

Ren, C., He, X., Qing, L., Wu, Y., Pu, Y.: Remote sensing image recovery via enhanced residual learning and dual-luminance scheme. Knowledge-Based Systems 222, 107013 (2021)

work page 2021
[21]

IET Image Processing19(1), e13303 (2025)

Rossi, L., Bernuzzi, V., Fontanini, T., Bertozzi, M., Prati, A.: Swin2-MoSE: A new single image supersolution model for remote sensing. IET Image Processing19(1), e13303 (2025)

work page 2025
[22]

In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (2016)

Shi, W., Caballero, J., Huszár, F., Totz, J., Aitken, A.P., Bishop, R., Rueckert, D., Wang, Z.: Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (2016)

work page 2016
[23]

IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sens- ing15, 5662–5673 (2022)

Tu, J., Mei, G., Ma, Z., Piccialli, F.: SWCGAN: Generative adversarial network combining swin transformer and CNN for remote sensing image super-resolution. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sens- ing15, 5662–5673 (2022)

work page 2022
[24]

SpaceNet: A Remote Sensing Dataset and Challenge Series

Van Etten, A., Lindenbaum, D., Bacastow, T.M.: Spacenet: A remote sensing dataset and challenge series. CoRRabs/1807.01232(2018)

work page Pith review arXiv 2018
[25]

Digital Signal Processing159, 105026 (2025)

Zhang, J., Tu, Y.: Swinfr: Combining swinir and fast fourier for super-resolution reconstruction of remote sensing images. Digital Signal Processing159, 105026 (2025)

work page 2025
[26]

In: Computer Vision – ECCV 2018

Zhang, Y., Li, K., Li, K., Wang, L., Zhong, B., Fu, Y.: Image super-resolution using very deep residual channel attention networks. In: Computer Vision – ECCV 2018. pp. 294–310. Springer (2018)

work page 2018
[27]

In: Proceedings of the IEEE conference on computer vision and pattern recognition

Zhang, Y., Tian, Y., Kong, Y., Zhong, B., Fu, Y.: Residual dense network for image super-resolution. In: Proceedings of the IEEE conference on computer vision and pattern recognition. pp. 2472–2481 (2018)

work page 2018
