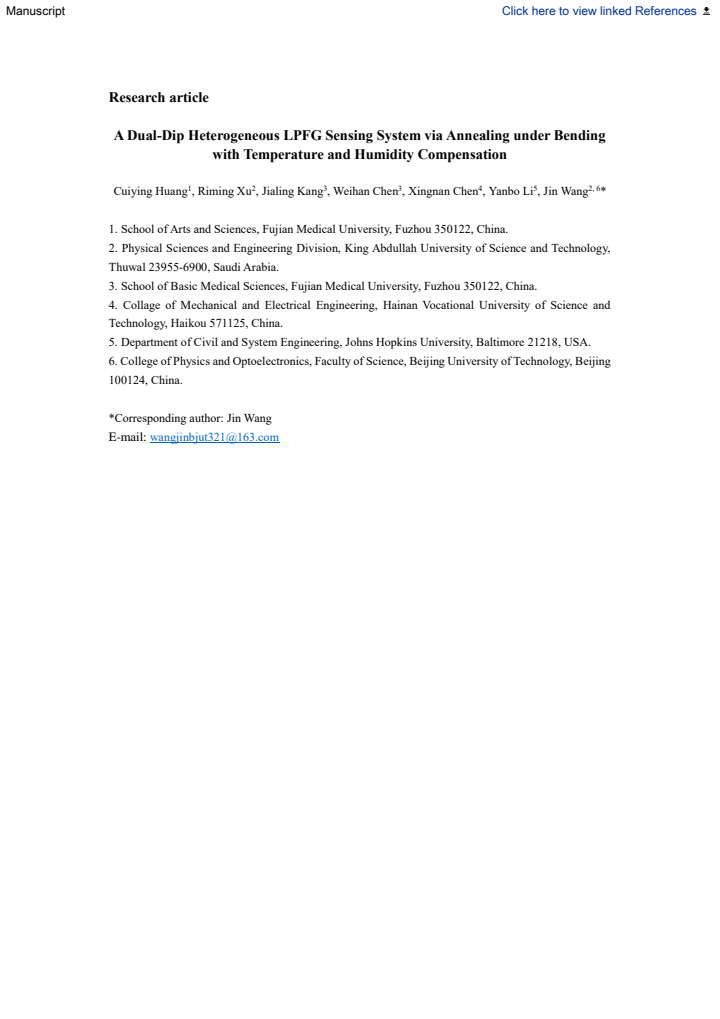

A Dual-Dip Heterogeneous LPFG Sensing System via Annealing under Bending with Temperature and Humidity Compensation

Cuiying Huang , Riming Xu , Jialing Kang , Weihan Chen , Xingnan Chen , Yanbo Li , Jin Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-12 02:38 UTC · model grok-4.3

classification ⚛️ physics.optics eess.SP

keywords long-period fiber gratingmulti-parameter sensingbending sensitivityhumidity compensationPDMS encapsulationPAAm functionalizationfiber optic sensortemperature compensation

0 comments

The pith

Bending-assisted annealing of long-period fiber gratings creates dual resonance dips with opposite responses that support decoupled multi-parameter sensing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how annealing an LPFG while bent produces anisotropic refractive index changes and mode-dependent coupling that split the spectrum into two dips with opposite shifts. This heterogeneity is combined with a cascaded LPFG-FBG structure encapsulated in PDMS to isolate bending from temperature while raising bending sensitivity. Functionalization with PAAm then adds a humidity response that remains orthogonal to the other two channels. The combined system extracts temperature, curvature, and relative humidity from a single fiber without requiring separate sensors. The approach is presented as a compact route to multi-parameter fiber sensing for structural monitoring.

Core claim

Bending-assisted annealing introduces spectral heterogeneity in an LPFG by redistributing the refractive index anisotropically and strengthening selected mode couplings, yielding two dips with opposite spectral responses; when this element is cascaded with an FBG and coated first with PDMS then with PAAm, the orthogonal spectral features allow the three measurands to be recovered independently.

What carries the argument

The dual-dip heterogeneous LPFG created by annealing under bending, which supplies intrinsic spectral orthogonality through anisotropic index redistribution and mode-dependent coupling enhancement.

If this is right

Bending sensitivity rises from -3.44 nm per cm to -8.97 nm per cm and the detection limit improves from 0.017 cm to 0.006 cm once PDMS encapsulation is added.
The dual-dip LPFG plus FBG cascade supplies temperature compensation without sacrificing the bending signal.
Addition of the PAAm layer completes a three-parameter sensor that extracts temperature, bending, and humidity from one fiber spectrum.
The architecture is presented as scalable for structural health monitoring because it avoids separate sensors or complex demodulation hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same annealing-under-bending step might be used to create additional orthogonal dips for a fourth parameter by choosing a different coating.
Because the method relies on standard fiber and polymer steps, it could be retrofitted onto existing fiber networks already deployed in harsh settings.
If the opposite-dip property holds across a wider wavelength range, the same grating could support wavelength-division multiplexing of multiple sensing points.

Load-bearing premise

That the PDMS layer transfers bending stress uniformly without adding new temperature or humidity cross-sensitivities and that the PAAm layer affects only humidity.

What would settle it

Simultaneous independent variation of temperature, bending radius, and humidity while checking whether the demodulated values remain accurate to within the stated detection limits.

read the original abstract

Optical fiber multi parameter sensing is fundamentally constrained by cross-sensitivity and the complexity of multi sensor integration. Here, we present a dual-dip heterogeneous long-period fiber grating (LPFG) sensing platform enabled by bending assisted annealing, which introduces anisotropic refractive index redistribution and mode dependent coupling enhancement. This process yields enhanced sensitivity, improved dip contrast, and opposite spectral responses between dual resonance dips, providing intrinsic spectral heterogeneity. To overcome temperature cross sensitivity, a polymer-encapsulated cascaded LPFG-FBG architecture is developed, where the LPFG serves as the microbending sensitive element and the FBG acts as a reference channel. PDMS encapsulation enhances stress transfer and suppresses interfacial slippage, improving linearity and repeatability. As a result, the bending sensitivity increases from -3.44 to -8.97 nm per cm, and the detection limit improves from 0.017 to 0.006 cm. Building on this, a multi parameter sensing paradigm is established by integrating dual dip heterogeneity with LPFGFBG spectral orthogonality. With PAAm functionalization, the platform enables simultaneous and decoupled sensing of temperature, bending, and humidity, demonstrating scalable and versatile multi parameter capability. Overall, this work establishes a minimalistic yet robust paradigm for multi-parameter fiber-optic sensing, offering a scalable strategy for high-performance sensing in structural health monitoring and harsh environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper's bending-assisted annealing creates dual-dip LPFG heterogeneity with opposite responses that helps multi-parameter decoupling, but the PDMS and PAAm claims rest on unverified assumptions about no new cross-sensitivities.

read the letter

The main point is that annealing the fiber while bent produces a long-period grating with two dips that shift in opposite directions under bending. They combine this with a cascaded FBG, PDMS encapsulation to raise bending sensitivity from -3.44 to -8.97 nm per cm, and PAAm for humidity response, then use the spectral differences to claim simultaneous temperature, bending, and humidity sensing with compensation. The fabrication step looks like the actual new piece compared with standard LPFG work. The reported sensitivity gain and detection limit improvement are presented as measured outcomes, which is straightforward enough for an applied optics paper. The approach is practical for reducing the number of separate sensors in structural monitoring setups. The soft spot is that the decoupling performance depends on PDMS giving uniform stress transfer without adding temperature or humidity cross-effects, and on PAAm affecting only humidity. The abstract supplies no control data on coated versus bare responses, no cross-sensitivity matrices, and no repeatability or error statistics. Without those, it is difficult to confirm the coatings behave as assumed once applied. This is the kind of experimental report that readers working on fiber sensors for harsh environments or civil monitoring would look at for fabrication ideas. It is coherent on its own terms and shows honest engagement with the practical problem of cross-sensitivity. A serious referee should see the full methods, figures, and any additional controls to check whether the numbers hold. I would send it to peer review rather than desk reject.

Referee Report

4 major / 1 minor

Summary. The manuscript presents a dual-dip heterogeneous long-period fiber grating (LPFG) platform fabricated via bending-assisted annealing to induce anisotropic refractive index redistribution and mode-dependent coupling, yielding opposite spectral responses and enhanced sensitivity. This is combined with a cascaded LPFG-FBG architecture encapsulated in PDMS for temperature compensation and bending sensitivity enhancement, followed by PAAm functionalization to enable simultaneous, decoupled sensing of temperature, bending, and humidity.

Significance. If the reported performance metrics are validated with controls, the work could advance compact multi-parameter fiber-optic sensing by exploiting intrinsic spectral heterogeneity and polymer coatings, offering a minimalistic approach relevant to structural health monitoring.

major comments (4)

[Abstract] Abstract: The bending sensitivity increase from -3.44 to -8.97 nm/cm and detection limit improvement from 0.017 to 0.006 cm are presented without error bars, repeatability statistics, or sample size information, preventing assessment of whether these values are robust or influenced by post-fabrication selection.
[Abstract] Abstract: The claim that PDMS encapsulation enhances stress transfer and suppresses interfacial slippage while introducing zero additional temperature or humidity cross-sensitivity lacks supporting control data comparing bare versus encapsulated LPFG-FBG responses.
[Abstract] Abstract: The assumption that PAAm functionalization adds humidity response without altering the LPFG mechanical or thermal coefficients is unverified; no cross-sensitivity matrices or pre/post-functionalization comparisons are described to confirm spectral orthogonality suffices for decoupling.
[Abstract] Abstract: Details on the exact mechanism of dual-dip heterogeneity (anisotropic RI redistribution) and how it combines with LPFG-FBG orthogonality for three-parameter decoupling after coating are not elaborated, leaving the multi-parameter paradigm's robustness unclear.

minor comments (1)

[Abstract] The abstract refers to 'improved dip contrast' and 'opposite spectral responses' without specifying the resonance wavelengths or quantitative contrast values.

Simulated Author's Rebuttal

4 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We agree that the abstract would benefit from additional statistical details, control comparisons, and mechanistic elaboration to better support the claims. We will revise the manuscript to address these points and provide the following point-by-point responses.

read point-by-point responses

Referee: [Abstract] Abstract: The bending sensitivity increase from -3.44 to -8.97 nm/cm and detection limit improvement from 0.017 to 0.006 cm are presented without error bars, repeatability statistics, or sample size information, preventing assessment of whether these values are robust or influenced by post-fabrication selection.

Authors: We acknowledge that the abstract omits these details. The full manuscript reports measurements from five independent samples with error bars and repeatability statistics shown in Figure 3 and Table 2; the quoted values are averages without post-fabrication selection. In revision we will update the abstract to reference the sample size and statistical robustness. revision: yes
Referee: [Abstract] Abstract: The claim that PDMS encapsulation enhances stress transfer and suppresses interfacial slippage while introducing zero additional temperature or humidity cross-sensitivity lacks supporting control data comparing bare versus encapsulated LPFG-FBG responses.

Authors: We agree that explicit control data strengthens the claim. The manuscript already notes improved linearity and repeatability after encapsulation, but we will add a comparative figure in the revision (or supplementary material) showing bare versus PDMS-encapsulated responses to temperature and humidity, confirming negligible added cross-sensitivity. The bending sensitivity gain is directly tied to enhanced stress transfer. revision: yes
Referee: [Abstract] Abstract: The assumption that PAAm functionalization adds humidity response without altering the LPFG mechanical or thermal coefficients is unverified; no cross-sensitivity matrices or pre/post-functionalization comparisons are described to confirm spectral orthogonality suffices for decoupling.

Authors: Pre- and post-functionalization spectra are provided in the supplementary information and indicate that bending and temperature coefficients remain essentially unchanged. We will move a cross-sensitivity matrix into the main text, explicitly discuss preservation of orthogonality, and clarify how the dual-dip LPFG plus FBG reference enables three-parameter decoupling after coating. revision: partial
Referee: [Abstract] Abstract: Details on the exact mechanism of dual-dip heterogeneity (anisotropic RI redistribution) and how it combines with LPFG-FBG orthogonality for three-parameter decoupling after coating are not elaborated, leaving the multi-parameter paradigm's robustness unclear.

Authors: We will expand the introduction and results sections to describe the bending-assisted annealing process that produces anisotropic refractive-index redistribution and opposite dip responses. A schematic will be added to illustrate how this intrinsic heterogeneity, combined with LPFG-FBG spectral orthogonality, enables robust decoupling of bending, temperature, and humidity even after polymer coatings. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental report with measured outcomes only

full rationale

The manuscript is an experimental optics paper reporting fabrication, annealing, encapsulation, and functionalization steps for an LPFG-FBG sensor. All reported sensitivities (e.g., bending sensitivity increase from -3.44 to -8.97 nm/cm), detection limits, and decoupling performance are presented as direct experimental measurements rather than outputs of any equations, fitted models, or derivations. No mathematical chain, self-citation of uniqueness theorems, ansatzes, or renaming of known results appears in the provided text or abstract. The platform's claims rest on empirical data and physical assumptions about coatings, which are not circular by construction but are instead subject to standard experimental validation concerns.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper is experimental and rests on standard assumptions about light propagation in optical fibers and polymer material behavior; no new entities are postulated and no free parameters are fitted in the abstract.

axioms (2)

domain assumption Refractive index changes in the fiber core and cladding follow standard photosensitivity and stress-optic effects under annealing and bending.
Invoked implicitly when describing anisotropic refractive index redistribution from bending-assisted annealing.
domain assumption PDMS encapsulation provides mechanical coupling without significant optical loss or additional cross-sensitivity.
Stated as improving stress transfer and suppressing slippage.

pith-pipeline@v0.9.0 · 5563 in / 1476 out tokens · 55124 ms · 2026-05-12T02:38:35.845706+00:00 · methodology
