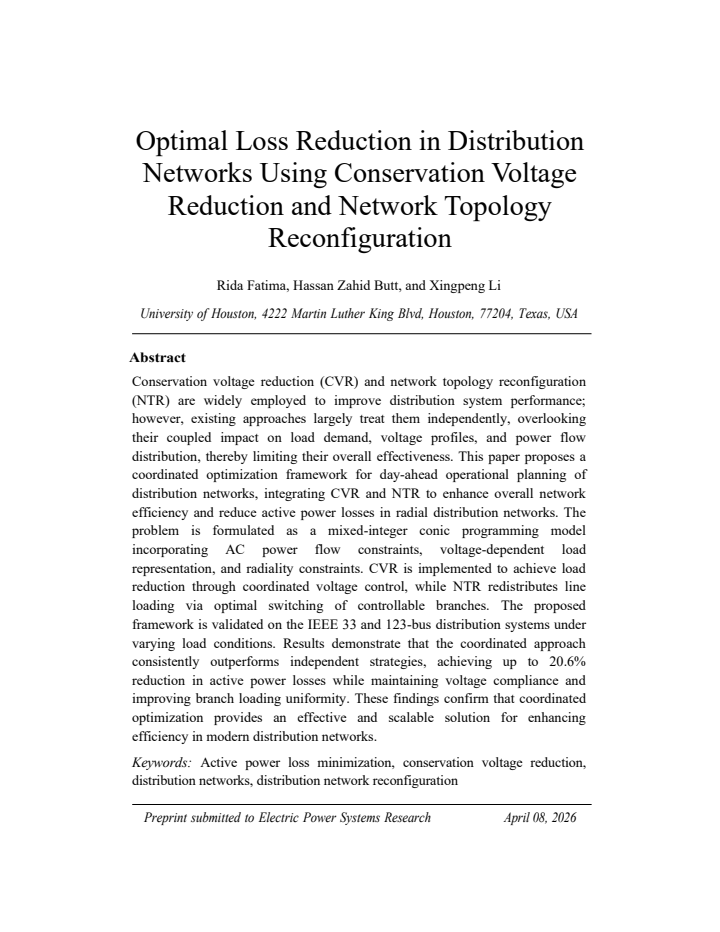

Optimal Loss Reduction in Distribution Networks Using Conservation Voltage Reduction and Network Topology Reconfiguration

Hassan Zahid Butt, Rida Fatima, Xingpeng Li

Pith reviewed 2026-05-12 04:09 UTC · model grok-4.3

classification 📡 eess.SY cs.SY

keywords distribution networksloss reductionconservation voltage reductionnetwork reconfigurationmixed-integer conic programmingvoltage-dependent loadspower flow optimization

0 comments

The pith

Coordinating conservation voltage reduction with network topology reconfiguration cuts active power losses by up to 20.6% in radial distribution networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a day-ahead optimization model that jointly applies conservation voltage reduction and network topology reconfiguration to lower losses in radial distribution systems. CVR reduces load by lowering voltage setpoints while NTR adjusts switch positions to balance flows. The formulation is cast as mixed-integer conic programming that enforces AC power flow equations, voltage-dependent load models, and radiality constraints. Tests on the IEEE 33-bus and 123-bus systems under varying loads show the joint approach outperforms using either technique alone. Voltage limits stay satisfied and branch loadings become more uniform.

Core claim

Integrating CVR and NTR into one mixed-integer conic program yields up to 20.6% active power loss reduction on the IEEE 33- and 123-bus systems, outperforming independent application of either method while preserving voltage compliance and improving loading uniformity.

What carries the argument

Mixed-integer conic programming model that couples voltage-dependent load representations with optimal branch switching decisions under AC power flow and radiality constraints.

If this is right

Joint CVR-NTR planning produces larger loss savings than separate application of each technique.
The conic relaxation maintains feasibility and radiality on standard IEEE test systems.
Voltage profiles remain within limits while branch loading becomes more uniform.
The framework supports scalable day-ahead scheduling for radial networks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Utilities could embed this model in existing distribution management systems to reduce energy costs without new hardware.
Extending the formulation to include distributed generation would test interactions with voltage control.
Real-world unbalanced feeders may require additional constraints beyond the radial test cases used here.

Load-bearing premise

Accurate knowledge of voltage-dependent load models and reliable day-ahead load forecasts are available.

What would settle it

Running the model on measured data from an operating distribution feeder and observing loss reductions well below 20% or voltage violations would falsify the performance claim.

Figures

Figures reproduced from arXiv: 2605.09912 by Hassan Zahid Butt, Rida Fatima, Xingpeng Li.

read the original abstract

Conservation voltage reduction (CVR) and network topology reconfiguration (NTR) are widely employed to improve distribution system performance; however, existing approaches largely treat them independently, overlooking their coupled impact on load demand, voltage profiles, and power flow distribution, thereby limiting their overall effectiveness. This paper proposes a coordinated optimization framework for day-ahead operational planning of distribution networks, integrating CVR and NTR to enhance overall network efficiency and reduce active power losses in radial distribution networks. The problem is formulated as a mixed-integer conic programming model incorporating AC power flow constraints, voltage-dependent load representation, and radiality constraints. CVR is implemented to achieve load reduction through coordinated voltage control, while NTR redistributes line loading via optimal switching of controllable branches. The proposed framework is validated on the IEEE 33 and 123-bus distribution systems under varying load conditions. Results demonstrate that the coordinated approach consistently outperforms independent strategies, achieving up to 20.6% reduction in active power losses while maintaining voltage compliance and improving branch loading uniformity. These findings confirm that coordinated optimization provides an effective and scalable solution for enhancing efficiency in modern distribution networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper integrates CVR and NTR into one mixed-integer conic program and reports better loss cuts on IEEE cases, but the relaxation gap is unverified.

read the letter

The paper's real step is treating conservation voltage reduction and network topology reconfiguration as coupled decisions inside a single mixed-integer second-order cone program instead of handling them sequentially. It adds ZIP load models, AC power flow constraints, and binary variables for switch status and radiality, then tests the joint version against separate CVR-only and NTR-only runs on the IEEE 33-bus and 123-bus systems. The coordinated runs reach up to 20.6 percent lower active power losses while voltages stay inside limits and branch loading looks more even. That integration is the useful part and the test systems are the right benchmarks for this kind of planning work. The formulation itself follows standard branch-flow modeling and looks reproducible from the description. The soft spot is exactly the one the stress test flags. Once switches change the topology and loads vary with voltage, the conic relaxation can open a gap, yet the paper gives no post-optimization AC power flow check or duality-gap numbers on the reconfigured cases. If the gap is material, the reported savings are optimistic and the direct comparison to the independent strategies loses force. The assumption that the relaxation stays tight under these conditions is load-bearing but unshown. This is aimed at distribution planners who already run day-ahead optimization and want to combine two existing controls. A reader who needs a ready model will get value from the joint formulation, though they will have to add their own tightness validation before trusting the numbers. It is incremental rather than foundational, but the coupling is a practical improvement over prior separate treatments. I would bring it to a reading group to walk through the relaxation step. I would not cite it in my own work until the gap is quantified. It deserves peer review so referees can require the missing validation runs on the switched networks.

Referee Report

2 major / 2 minor

Summary. The paper proposes a mixed-integer conic programming (MISOCP) framework that jointly optimizes Conservation Voltage Reduction (CVR) through voltage setpoints on voltage-dependent ZIP loads and Network Topology Reconfiguration (NTR) via binary switch decisions to minimize active power losses in radial distribution networks. The model incorporates a second-order cone relaxation of the branch-flow equations, radiality constraints, and voltage limits, and is solved for day-ahead planning. Validation on the IEEE 33-bus and 123-bus test systems under varying loads shows the coordinated strategy outperforming independent CVR or NTR, with a maximum reported active-power-loss reduction of 20.6% while satisfying voltage compliance and improving branch loading uniformity.

Significance. If the reported loss reductions are confirmed under exact AC power flow, the work is significant because it quantifies the benefit of treating CVR and NTR as coupled decisions rather than sequential or separate optimizations, which is a practical advance for distribution-system efficiency. The use of a tractable conic relaxation on standard IEEE benchmarks supports reproducibility and direct comparison with prior single-strategy methods. Explicit modeling of voltage-dependent loads and multi-objective consideration of losses, voltages, and loading uniformity are strengths.

major comments (2)

[§3] §3 (MISOCP formulation): The second-order cone relaxation of the branch-flow model is applied to the reconfigured networks with voltage-dependent ZIP loads, yet no duality-gap bound, tightness certificate, or post-hoc AC power-flow validation of the recovered solutions is reported for the IEEE 33-bus and 123-bus cases. Because the 20.6% loss-reduction figure and the superiority claim over independent strategies are computed directly from the relaxed objective, any positive gap would inflate the savings and invalidate the performance comparison.
[Results] Results (IEEE 33/123-bus cases): The coordinated model is compared against independent CVR and NTR runs, but the manuscript does not quantify the relaxation gap or perform AC recovery for the optimal switch configurations; this is load-bearing for the central claim because the reported outperformance rests on the relaxed loss values being representative of the true AC losses.

minor comments (2)

[Abstract] The abstract states 'up to 20.6%' without identifying the specific test case, load level, or objective-weight setting that produces this value; this detail should be added to the results section for clarity.
[§3] Notation for the binary switch variables and the radiality constraint formulation could be cross-referenced more explicitly to standard spanning-tree or cycle-elimination techniques used in the literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which identify a key aspect of rigor for the conic relaxation. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [§3] §3 (MISOCP formulation): The second-order cone relaxation of the branch-flow model is applied to the reconfigured networks with voltage-dependent ZIP loads, yet no duality-gap bound, tightness certificate, or post-hoc AC power-flow validation of the recovered solutions is reported for the IEEE 33-bus and 123-bus cases. Because the 20.6% loss-reduction figure and the superiority claim over independent strategies are computed directly from the relaxed objective, any positive gap would inflate the savings and invalidate the performance comparison.

Authors: We acknowledge the validity of this observation. While the SOC relaxation of the branch-flow model is known to be exact for radial networks under loss-minimization objectives (per established results such as those in Farivar and Low, 2013), the manuscript indeed omits explicit post-hoc validation. In the revised version we will add AC power-flow recovery for the optimal switch and voltage solutions on both test systems, report the resulting duality gaps (expected to be zero), and recompute the loss reductions and strategy comparisons using the exact AC losses to confirm the claims. revision: yes
Referee: [Results] Results (IEEE 33/123-bus cases): The coordinated model is compared against independent CVR and NTR runs, but the manuscript does not quantify the relaxation gap or perform AC recovery for the optimal switch configurations; this is load-bearing for the central claim because the reported outperformance rests on the relaxed loss values being representative of the true AC losses.

Authors: This point is closely related to the previous comment. We agree that the central performance claims require verification under the exact AC model. The revision will include a dedicated subsection quantifying the relaxation gap and presenting AC-validated losses for the coordinated, CVR-only, and NTR-only cases. Any minor adjustments to the reported percentages will be noted, while preserving the demonstration that coordination yields superior results. revision: yes

Circularity Check

0 steps flagged

No circularity: optimization outputs computed on external IEEE benchmarks

full rationale

The paper formulates a mixed-integer conic program incorporating branch-flow relaxation, ZIP load models, and radiality constraints, then solves it on standard IEEE 33-bus and 123-bus test systems under varying loads. Reported loss reductions (up to 20.6%) are numerical solutions of this externally validated model rather than quantities defined in terms of themselves or obtained by fitting parameters to the target metric. No self-definitional equations, fitted-input predictions, or load-bearing self-citations appear in the derivation chain. The framework remains self-contained against independent network data.

Axiom & Free-Parameter Ledger

1 free parameters · 3 axioms · 0 invented entities

The model rests on standard AC power-flow equations, voltage-dependent load models, and radiality constraints; a small number of tunable weights or reduction factors are expected in the objective but are not quantified in the abstract.

free parameters (1)

Objective-function weights
Weights balancing loss minimization against voltage deviation or switching costs are typically present in such models and must be chosen or tuned.

axioms (3)

standard math AC power flow equations and conic relaxation are valid
The problem is formulated as mixed-integer conic programming incorporating AC power flow constraints.
domain assumption Loads vary with voltage according to a known model
CVR is implemented through voltage-dependent load representation.
domain assumption Reconfigured network remains radial
Radiality constraints are enforced.

pith-pipeline@v0.9.0 · 5500 in / 1411 out tokens · 54926 ms · 2026-05-12T04:09:02.443471+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
The problem is formulated as a mixed-integer conic programming model incorporating AC power flow constraints, voltage-dependent load representation, and radiality constraints.
IndisputableMonolith/Foundation/DimensionForcing.lean alexander_duality_circle_linking unclear
CVR is implemented to achieve load reduction through coordinated voltage control, while NTR redistributes line loading via optimal switching of controllable branches.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

[1]

Power output fluctuations in large scale PV plants: One year observations with one second resolution and a derived analytic model,

J. Marcos, L. Marroyo, E. Lorenzo, D. Alvira, and E. Izco , “Power output fluctuations in large scale PV plants: One year observations with one second resolution and a derived analytic model,” Progress Photovoltaics: Res. Appl., vol. 19, no. 2, pp. 218–227, 2011

work page 2011
[2]

On the path to sunshot: Emerging issues and challenges in integrating solar with the distribution system,

B. Palmintier et al., “On the path to sunshot: Emerging issues and challenges in integrating solar with the distribution system,” Nat. Renew. Energy Lab. [Online]. Available: http://www.nrel.gov/docs/fy16osti/65331. pdf 25

work page
[3]

Distribution voltage control considering the impact of PV generation on tap changers and autonomous regulators,

Y. P. Agalgaonkar, B. C. Pal, and R. A. Jabr, “Distribution voltage control considering the impact of PV generation on tap changers and autonomous regulators,” IEEE Trans. Power Syst., vol. 29, no. 1, pp. 182–192, Jan. 2014

work page 2014
[4]

Investigation of voltage stability for residential customers due to high photovoltaic penetrations,

R. Yan and T. K. Saha, “Investigation of voltage stability for residential customers due to high photovoltaic penetrations,” IEEE Trans. Power Syst., vol. 27, no. 2, pp. 651–662, May 2012

work page 2012
[5]

Impacts of residential photovoltaic power fluctuation on on -load tap changer operation and a solution using DSTATCOM,

R. Yan, B. Marais, and T. K. Saha, “Impacts of residential photovoltaic power fluctuation on on -load tap changer operation and a solution using DSTATCOM,” Electric Power Syst. Res., vol. 111, pp. 185 –193, 2014. [Online]. Available: http://dx.doi.org/10.1016/j.epsr.2014.02.020

work page doi:10.1016/j.epsr.2014.02.020 2014
[6]

Do it locally: Local voltage support by distributed generation -A management summary,

M. Kraiczy, A. L. Fakhri, T. Stetz, and M. Braun, “Do it locally: Local voltage support by distributed generation -A management summary,” Int. Energy Agency, Paris, France, Tech. Rep. IEA-PVPS T14-08, vol. 2017, 2017

work page 2017
[7]

Coordinated voltage control in distribution networks including several distributed energy resources,

A. Kulmala, S. Repo, and P. Jarventausta, “Coordinated voltage control in distribution networks including several distributed energy resources,” IEEE Trans. Smart Grid, vol. 5, no. 4, pp. 2010–2020, Jul. 2014

work page 2010
[8]

Coordinated active power curtailment of grid connected PV inverters for overvoltage prevention,

R. Tonkoski, L. A. Lopes, and T. H. El -Fouly, “Coordinated active power curtailment of grid connected PV inverters for overvoltage prevention,” IEEE Trans. Sustain. Energy, vol. 2, no. 2, pp. 139–147, Apr. 2011

work page 2011
[9]

A smart strategy for voltage control ancillary service in distribution networks,

V. Calderaro, V. Galdi, F. Lamberti, and A. Piccolo, “A smart strategy for voltage control ancillary service in distribution networks,” IEEE Trans. Power Syst., vol. 30, no. 1, pp. 494–502, Jan. 2015

work page 2015
[10]

Management scheme for increasing the connectivity of small -scale renewable DG,

A. B. Eltantawy and M. M. Salama, “Management scheme for increasing the connectivity of small -scale renewable DG,” IEEE Trans. Sustain. Energy, vol. 5, no. 4, pp. 1108–1115, Oct. 2014

work page 2014
[11]

Network reconfiguration in distribution systems for loss reduction and load balancing,

M. E. Baran and F. F.Wu, “Network reconfiguration in distribution systems for loss reduction and load balancing,” IEEE Trans. Power Del., vol. 4, no. 2, pp. 1401–1407, Apr. 1989

work page 1989
[12]

Minimum loss network reconfiguration using mixed-integer convex programming,

R. A. Jabr, R. Singh, and B. C. Pal, “Minimum loss network reconfiguration using mixed-integer convex programming,” IEEE Trans. Power Syst., vol. 27, no. 2, pp. 1106–1115, May 2012

work page 2012
[13]

Convex models of distribution system reconfiguration,

J. A. Taylor and F. S. Hover, “Convex models of distribution system reconfiguration,” IEEE Trans. Power Syst., vol. 27, no. 3, pp. 1407 –1413, Aug. 2012

work page 2012
[14]

An AIS -ACO hybrid approach for multi - objective distribution system reconfiguration,

A. Ahuja, S. Das, and A. Pahwa, “An AIS -ACO hybrid approach for multi - objective distribution system reconfiguration,” IEEE Trans. Power Syst., vol. 22, no. 3, pp. 1101–1111, Aug. 2007

work page 2007
[15]

Reconfiguration of smart distribution systems with time varying loads using parallel computing,

A. Asrari, S. Lotfifard, and M. Ansari, “Reconfiguration of smart distribution systems with time varying loads using parallel computing,” IEEE Trans. Smart Grid, vol. 7, no. 6, pp. 2713–2723, Nov. 2016. 26

work page 2016
[16]

Optimal distribution feeder reconfiguration for reliability improvement considering uncertainty,

A. Kavousi-Fard and T. Niknam, “Optimal distribution feeder reconfiguration for reliability improvement considering uncertainty,” IEEE Trans. Power Del., vol. 29, no. 3, pp. 1344–1353, Jun. 2014

work page 2014
[17]

Mixed -integer second -order cone programing model for VAR optimisation and network reconfiguration in active distribution networks,

Z. Tian, W. Wu, B. Zhang, and A. Bose, “Mixed -integer second -order cone programing model for VAR optimisation and network reconfiguration in active distribution networks,” IET Gener. Transm. Distrib., vol. 10, no. 8, pp. 1938 – 1946, May 2016

work page 1938
[18]

Options for control of reactive power by distributed photovoltaic generators,

K. Turitsyn, P. Sulc, S. Backhaus, and M. Chertkov, “Options for control of reactive power by distributed photovoltaic generators,” Proc. IEEE, vol. 99, no. 6, pp. 1063–1073, Jun. 2011

work page 2011
[19]

Novel linearized power flow and linearized OPF models for active distribution networks with application in distribution LMP,

H. Yuan, F. Li, Y. Wei, and J. Zhu, “Novel linearized power flow and linearized OPF models for active distribution networks with application in distribution LMP,” IEEE Trans. Smart Grid, vol. 9, no. 1, pp. 438 –448, Jan. 2016

work page 2016
[20]

Optimal Dynamic Reconfiguration of Distribution Networks

Rida Fatima, Hassan Zahid Butt, and Xingpeng Li, “Optimal Dynamic Reconfiguration of Distribution Networks”, 55th North American Power Symposium, Asheville, NC, USA, Oct. 2023

work page 2023
[21]

Network Reconfiguration Impact on Renewable Energy System and Energy Storage System in Day -Ahead Scheduling,

Arun Venkatesh Ramesh and Xingpeng Li, “Network Reconfiguration Impact on Renewable Energy System and Energy Storage System in Day -Ahead Scheduling,” IEEE PES General Meeting 2021, (Virtually), Washington, DC, USA, Jul. 2021

work page 2021
[22]

American National Standard for Electric Power Systems and Equipment Voltage Ratings (60 Hertz), Amer. Nat. Stand. Inst., New York, NY, USA, 2016

work page 2016
[23]

Review on implementation and assessment of conservation voltage reduction,

Z. Wang and J. Wang, “Review on implementation and assessment of conservation voltage reduction,” IEEE Trans. Power Syst., vol. 29, no. 3, pp. 1306–1315, May 2014

work page 2014
[24]

Implementation of conservation voltage reduction at commonwealth edison,

D. Kirshner, “Implementation of conservation voltage reduction at commonwealth edison,” IEEE Trans. Power Syst., vol. 5, no. 4, pp. 1178 –1182, Nov. 1990

work page 1990
[25]

Analysis of conservation voltage reduction effects based on multistage SVR and stochastic process,

Z. Wang, M. Begovic, and J. Wang, “Analysis of conservation voltage reduction effects based on multistage SVR and stochastic process,” IEEE Trans. Smart Grid, vol. 5, no. 1, pp. 431–439, Jan. 2014

work page 2014
[26]

Guidelines for implementing advanced distribution management systems -requirements for DMS integration with DERMS and microgrids,

J. Wang, C. Chen, and X. Lu, “Guidelines for implementing advanced distribution management systems -requirements for DMS integration with DERMS and microgrids,” Argonne Nat. Lab., Argonne, IL, USA, Rep. ANL/ESO-15/15, 2015

work page 2015
[27]

Overvoltage mitigation through volt -var control of distributed PV systems,

Q. Shi, W. Feng, Q. Zhang, X. Wang, and F. Li, “Overvoltage mitigation through volt -var control of distributed PV systems,” in Proc. IEEE Power Energy Soc. Tranm. Distrib. (T&D), 2020, pp. 1–5

work page 2020
[28]

Photovoltaic impact assessment of smart inverter volt -var control on distribution system conservation voltage reduction and power 27 quality,

F. Ding et al., “Photovoltaic impact assessment of smart inverter volt -var control on distribution system conservation voltage reduction and power 27 quality,” Nat. Renew. Energy Lab., Golden, CO, USA, Rep. NREL/TP5D00 - 67296, 2016

work page 2016
[29]

A Reliability -Cost Optimization Framework for EV and DER Integration in Standard and Reconfigurable Distribution Network Topologies

Rida Fatima, Linhan Fang, and Xingpeng Li, “A Reliability -Cost Optimization Framework for EV and DER Integration in Standard and Reconfigurable Distribution Network Topologies”, arXiv, Nov. 2025

work page 2025
[30]

Analytic Considerations and Design Basis for the IEEE Distribution Test Feeders,

K. P. Schneider, B. A. Mather, B. C. Pal, C. W. Ten, G. J. Shirek, H. Zhu, J. C. Fuller, J. L. R. Pereira, L. F. Ochoa, L. R. de Araujo, R. C. Dugan, S. Matthias, S. Paudyal, T. E. McDermott, and W Kersting, “Analytic Considerations and Design Basis for the IEEE Distribution Test Feeders,” IEEE Transactions on Power Systems, vol. PP, no. 99, pp. 1-1, 2017

work page 2017
