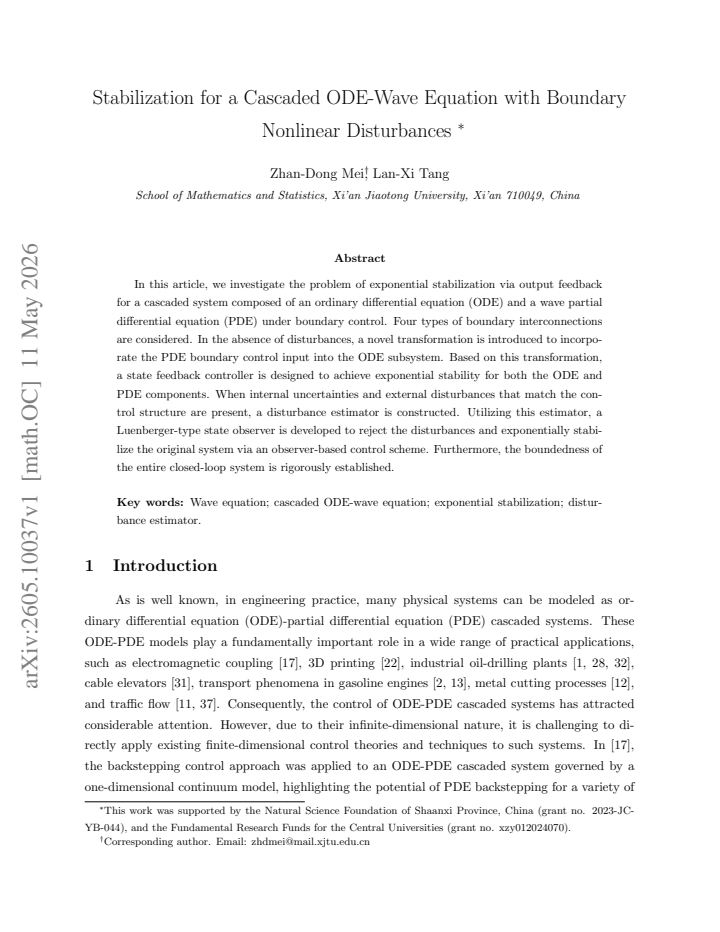

Stabilization for a Cascaded ODE-Wave Equation with Boundary Nonlinear Disturbances

Lan-Xi Tang, Zhan-Dong Mei

Pith reviewed 2026-05-12 02:45 UTC · model grok-4.3

classification 🧮 math.OC

keywords cascaded ODE-wave systemboundary controldisturbance estimatorLuenberger observerexponential stabilizationoutput feedbackwave equationnonlinear disturbances

0 comments

The pith

A novel transformation and disturbance estimator enable exponential stabilization of a cascaded ODE-wave system with boundary nonlinear disturbances via observer-based output feedback.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses stabilization of a cascaded system consisting of an ordinary differential equation connected to a wave partial differential equation, with control and disturbances applied at the boundary. It examines four possible boundary interconnection types between the ODE and wave components. In the absence of disturbances, a new transformation folds the wave equation's boundary input directly into the ODE dynamics, after which a state feedback controller is designed to drive both subsystems to zero exponentially. When matching internal uncertainties and external disturbances appear, the authors build a disturbance estimator that supports a Luenberger-type observer; the resulting observer-based scheme rejects the disturbances, stabilizes the full system exponentially, and guarantees boundedness of all closed-loop signals.

Core claim

By introducing a novel transformation that incorporates the PDE boundary control input into the ODE subsystem for the four types of boundary interconnections, exponential stability is achieved for the undisturbed cascaded system through state feedback. When internal uncertainties and external disturbances matching the control structure are present, a disturbance estimator is constructed to develop a Luenberger-type state observer, which rejects the disturbances and exponentially stabilizes the original system via an observer-based control scheme, with the boundedness of the entire closed-loop system rigorously established.

What carries the argument

The novel transformation that maps the PDE boundary control input into the ODE subsystem, together with the disturbance estimator and Luenberger observer for the disturbed case.

Load-bearing premise

The disturbances must enter through the same boundary channel as the control, and the boundary interconnections must be one of the four types that permit the transformation to map the PDE input into the ODE subsystem.

What would settle it

Numerical trajectories or analytic counter-examples showing that the states fail to converge exponentially or become unbounded when the boundary interconnections lie outside the four permitted types or when disturbances enter through a different channel.

read the original abstract

In this article, we investigate the problem of exponential stabilization via output feedback for a cascaded system composed of an ordinary differential equation (ODE) and a wave partial differential equation (PDE) under boundary control. Four types of boundary interconnections are considered. In the absence of disturbances, a novel transformation is introduced to incorporate the PDE boundary control input into the ODE subsystem. Based on this transformation, a state feedback controller is designed to achieve exponential stability for both the ODE and PDE components. When internal uncertainties and external disturbances that match the control structure are present, a disturbance estimator is constructed. Utilizing this estimator, a Luenberger-type state observer is developed to reject the disturbances and exponentially stabilize the original system via an observer-based control scheme. Furthermore, the boundedness of the entire closed-loop system is rigorously established. Numerical simulations are provided to illustrate the theoretical results.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a concrete transformation to fold wave PDE boundary inputs into the ODE for four interconnection cases, then adds a matched-disturbance estimator and observer to get exponential stability plus boundedness.

read the letter

The main thing to know is that this work supplies a transformation that incorporates the PDE boundary control input directly into the ODE subsystem across four different boundary interconnection types. From there they design a state feedback for the clean case and, when matched nonlinear disturbances appear, they build a disturbance estimator plus a Luenberger observer that rejects them and keeps the whole closed loop exponentially stable and bounded. Numerical simulations are included to check the behavior. That combination for these specific cascaded setups is the actual new piece; it is not just a routine copy of earlier ODE-PDE cascade results. The paper handles the matched-disturbance case cleanly enough on paper and gives explicit controller forms that readers can try to replicate. The proofs are claimed to be rigorous, and the simulations back up the claims without obvious red flags. The soft spots are proportionate: the method stays within standard transformation and observer techniques rather than introducing a new paradigm, and the results are restricted to disturbances that enter through the same boundary channel as the control. Without the full Lyapunov derivations it is hard to judge how tightly the nonlinear terms are controlled, but nothing in the structure suggests circularity or hidden fitting. This paper is for control theorists who work on boundary stabilization of wave-ODE cascades and need to handle matched disturbances. A reader already familiar with backstepping-style methods for hyperbolic systems will get the most out of the four interconnection cases and the estimator construction. It deserves a serious referee because the technical steps are specific enough to be checked and the simulations give something concrete to evaluate.

Referee Report

2 major / 3 minor

Summary. The manuscript investigates exponential stabilization via output feedback for a cascaded ODE-wave PDE system subject to boundary nonlinear disturbances, considering four types of boundary interconnections. In the disturbance-free case, a novel transformation incorporates the PDE boundary control input into the ODE subsystem to enable state-feedback design achieving exponential stability of both components. With matched internal uncertainties and external disturbances, a disturbance estimator is constructed, followed by a Luenberger-type observer and observer-based controller that rejects disturbances to exponentially stabilize the system; boundedness of the full closed-loop system is rigorously proved, with numerical simulations provided to illustrate the results.

Significance. If the central claims hold, the work provides a systematic extension of transformation-based and observer-design techniques to cascaded hyperbolic systems with matched boundary disturbances. The handling of four distinct interconnection types and the explicit boundedness result alongside exponential stability constitute a useful contribution for applications in mechanical and fluid systems. The combination of a novel boundary transformation with standard Luenberger estimation yields a practical framework whose reproducibility is supported by the provided simulations.

major comments (2)

[§3] §3 (Transformation technique): the novel mapping that folds the PDE boundary input into the ODE subsystem must be shown to preserve the matched structure of the nonlinear disturbances for all four interconnection cases; otherwise the subsequent estimator design rests on an unverified assumption.
[§5.2] §5.2 (Observer-based controller): the Lyapunov analysis establishing exponential stability of the closed-loop system under the observer-based law needs an explicit bound on the nonlinear disturbance terms to confirm that they do not destroy the negative-definiteness of the derivative; the current sketch leaves this step implicit.

minor comments (3)

[Abstract] The abstract states that boundedness is 'rigorously established' but does not specify the function space or norm; this should be stated explicitly in the introduction and theorem statements.
[§2] Notation for the four interconnection types is introduced only in the abstract; a clear table or enumerated list in §2 would improve readability.
[Simulations] The numerical simulations section would benefit from reporting the specific parameter values used for the wave speed and disturbance amplitude to allow direct reproduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of the manuscript and the constructive comments. We address each major comment below and will revise the manuscript to incorporate the suggested clarifications.

read point-by-point responses

Referee: [§3] §3 (Transformation technique): the novel mapping that folds the PDE boundary input into the ODE subsystem must be shown to preserve the matched structure of the nonlinear disturbances for all four interconnection cases; otherwise the subsequent estimator design rests on an unverified assumption.

Authors: We agree that an explicit verification is needed. In the revised version we will add a short lemma in Section 3 that substitutes the transformed state into the disturbance terms for each of the four boundary interconnection cases and shows that the disturbances remain matched with the control channel in the resulting ODE subsystem. The argument relies only on the linearity of the transformation and the fact that the disturbances enter through the same boundary ports as the control input. revision: yes
Referee: [§5.2] §5.2 (Observer-based controller): the Lyapunov analysis establishing exponential stability of the closed-loop system under the observer-based law needs an explicit bound on the nonlinear disturbance terms to confirm that they do not destroy the negative-definiteness of the derivative; the current sketch leaves this step implicit.

Authors: We accept the remark. The revised proof in Section 5.2 will explicitly bound the nonlinear disturbance contributions by invoking the assumed growth condition on the nonlinear functions together with Young's inequality. The resulting cross terms will be absorbed into the negative-definite quadratic form provided the observer and controller gains are chosen sufficiently large, which is already permitted by the existing gain-selection conditions. The expanded derivation will be inserted immediately after the current Lyapunov derivative expression. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The derivation proceeds from the cascaded ODE-wave system equations via an explicitly constructed boundary transformation that maps the PDE input into the ODE subsystem for the four interconnection cases, followed by standard state-feedback design, matched-disturbance estimator construction, and Luenberger observer synthesis. Exponential stability and closed-loop boundedness are then proved by direct Lyapunov or semigroup analysis on the resulting closed-loop system. None of these steps reduce by construction to their own inputs, fitted parameters renamed as predictions, or load-bearing self-citations; the transformation and observer are defined from the plant dynamics and standard control-theoretic tools without circular re-use of the target stability result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard well-posedness and existence results for linear wave equations under boundary control, plus the assumption that disturbances enter in a form compatible with the control channel; no free parameters or new entities are introduced in the abstract.

axioms (1)

domain assumption The cascaded ODE-wave system is well-posed and the wave equation admits solutions under the given boundary conditions and interconnections.
Invoked implicitly when claiming exponential stability and boundedness of the closed-loop system.

pith-pipeline@v0.9.0 · 5443 in / 1255 out tokens · 78694 ms · 2026-05-12T02:45:33.809342+00:00 · methodology
