The paper proposes an integrated magnetics design for an isolated zero-voltage-switching Cuk converter in which all six magnetic components are placed as windings on a single U-core. Winding locations are chosen to set coupling coefficients that fully cancel DC flux while reducing AC flux only to the point where input and output inductor currents retain the minimum ripple needed for ZVS on every switch. This arrangement is claimed to shrink core volume and losses. Experimental validation is provided by a 0.5 kW prototype running at 150 kHz that reaches 97.25 percent peak efficiency.

Core claim

The central claim is that placing six windings on a simple U-core and selecting their positions to achieve particular coupling coefficients allows complete DC flux cancellation together with controlled partial AC flux cancellation, so that the resulting inductor current ripples are exactly large enough to produce ZVS conditions on all switches while keeping the magnetic core small and low-loss.

What carries the argument

Coupling coefficients set by the physical locations and arrangement of the six windings on the U-core, which govern the amount of AC flux cancellation while preserving the ripple required for ZVS.

Load-bearing premise

Winding placements on the U-core can produce coupling coefficients that leave precisely the minimum AC ripple needed for ZVS on all switches without introducing extra losses or instability.

What would settle it

Prototype waveforms or efficiency measurements showing inductor current ripples too small for full ZVS or core losses higher than predicted due to incomplete cancellation would disprove the design.

read the original abstract

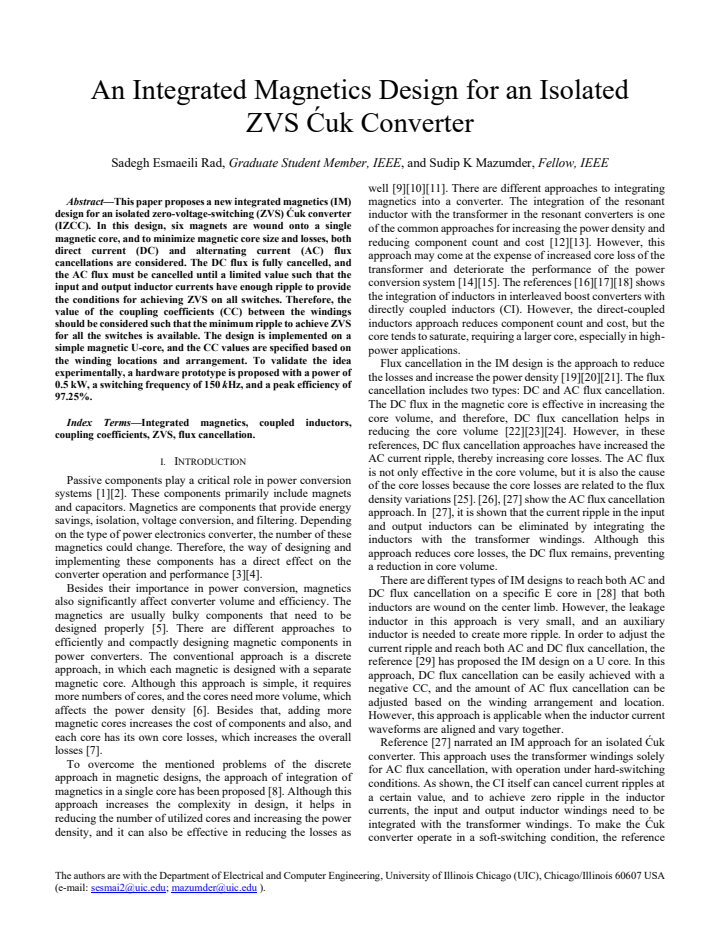

This paper proposes a new integrated magnetics (IM) design for an isolated zero-voltage-switching (ZVS) Cuk converter (IZCC). In this design, six magnets are wound onto a single magnetic core, and to minimize magnetic core size and losses, both direct current (DC) and alternating current (AC) flux cancellations are considered. The DC flux is fully cancelled, and the AC flux must be cancelled until a limited value such that the input and output inductor currents have enough ripple to provide the conditions for achieving ZVS on all switches. Therefore, the value of the coupling coefficients (CC) between the windings should be considered such that the minimum ripple to achieve ZVS for all the switches is available. The design is implemented on a simple magnetic U-core, and the CC values are specified based on the winding locations and arrangement. To validate the idea experimentally, a hardware prototype is proposed with a power of 0.5 kW, a switching frequency of 150 kHz, and a peak efficiency of 97.25%.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes an integrated magnetics design for an isolated ZVS Cuk converter in which six windings are placed on a single U-core. Full DC flux cancellation is achieved while AC flux is cancelled only to the minimum level required for ZVS on all switches; the required coupling coefficients are set by winding locations and arrangement. Experimental validation is provided by a 0.5 kW, 150 kHz hardware prototype that reaches 97.25% peak efficiency.

Significance. If the claimed flux cancellations can be realized without excess core loss or loss of ZVS, the approach offers a compact, low-loss magnetic solution for isolated converters using only a simple U-core. The reported prototype efficiency supplies a concrete performance benchmark that strengthens the practical claim.

major comments (2)
  1. [Abstract] Abstract: the statement that 'the value of the coupling coefficients (CC) between the windings should be considered such that the minimum ripple to achieve ZVS for all the switches is available' is load-bearing for the central claim, yet no explicit expressions, numerical values, or reluctance-model equations for the six CCs are supplied. Without these, it is impossible to verify that winding placement simultaneously nulls all DC components while leaving precisely the AC ripple needed for ZVS.
  2. [Design description] Proposed U-core implementation: because all six windings share the same two legs and air gaps, the coupling coefficients are interdependent. The manuscript must demonstrate, via a reluctance network or equivalent circuit, that a single placement geometry can achieve complete DC cancellation while limiting AC flux to the ZVS minimum without driving any leg into saturation or producing excess core loss; the current description does not address this interdependence.
minor comments (1)
  1. [Abstract] The abstract would be strengthened by a one-sentence comparison to prior integrated-magnetics Cuk or SEPIC designs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and have revised the manuscript to strengthen the presentation of the coupling coefficient design and reluctance analysis.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that 'the value of the coupling coefficients (CC) between the windings should be considered such that the minimum ripple to achieve ZVS for all the switches is available' is load-bearing for the central claim, yet no explicit expressions, numerical values, or reluctance-model equations for the six CCs are supplied. Without these, it is impossible to verify that winding placement simultaneously nulls all DC components while leaving precisely the AC ripple needed for ZVS.

    Authors: We agree that explicit expressions are required to substantiate the central claim. The revised manuscript now includes a new subsection deriving the six coupling coefficients from the reluctance model of the U-core, with closed-form expressions and numerical values computed from the winding locations, turns, and air-gap geometry. These confirm full DC cancellation while retaining the minimum AC ripple needed for ZVS on all switches. revision: yes

  2. Referee: [Design description] Proposed U-core implementation: because all six windings share the same two legs and air gaps, the coupling coefficients are interdependent. The manuscript must demonstrate, via a reluctance network or equivalent circuit, that a single placement geometry can achieve complete DC cancellation while limiting AC flux to the ZVS minimum without driving any leg into saturation or producing excess core loss; the current description does not address this interdependence.

    Authors: The original text specified the winding arrangement but did not present the full reluctance network. We have added a complete reluctance-network diagram and equations that explicitly solve for the interdependent couplings. The analysis shows that the chosen geometry nulls all DC fluxes, limits AC flux to the ZVS threshold, and keeps peak flux density below saturation on both legs, consistent with the measured 97.25 % efficiency and absence of thermal runaway in the prototype. revision: yes

Circularity Check

0 steps flagged

No circularity: design rests on physical winding placement and experimental validation

full rationale

The paper proposes an integrated magnetics arrangement on a U-core where coupling coefficients are set by explicit winding locations to achieve full DC flux cancellation and controlled AC ripple for ZVS. This is a first-principles physical construction followed by hardware prototype validation at 0.5 kW / 150 kHz. No equations, fitted parameters, or self-citations are shown that reduce any claimed result to a tautology or to the inputs by construction. The derivation chain is self-contained against external benchmarks (core geometry and measured efficiency).

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides insufficient technical detail to enumerate free parameters, axioms, or invented entities; the central claim rests on standard magnetic circuit principles and an unelaborated assumption that winding placement can achieve the required coupling coefficients.
