Probability of Root Cause: A Counterfactual Definition and Its Identification

Min Xie, Wei Li, Zhi Geng, Zitong Lu

Pith reviewed 2026-05-13 05:22 UTC · model grok-4.3

classification 📊 stat.ME

keywords root cause analysiscounterfactualspotential outcomescausal inferenceidentifiabilitymediation analysisprobability of causation

0 comments

The pith

A formal counterfactual definition makes the probability that a variable set is a root cause identifiable from observed data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper supplies a precise individual-level definition of root cause inside the potential outcomes framework, built from the idea of an individual cause and a counterfactual root condition drawn from mediation analysis. It then defines the probability of root cause as the chance that a candidate variable set is the root cause of an observed outcome given evidence. Existing root-cause methods either stop at graph roots or favor nearby causes, so this definition fills the gap by targeting the actual origin. Under standard assumptions the probability is identifiable, and the authors give an explicit formula that can be computed from data. Two numerical examples show how the measure works in practice for diagnosis tasks.

Core claim

We introduce a formal definition of a root cause as the variable set satisfying a counterfactual root condition, in which the outcome would change if that set were altered while holding other paths fixed. From this we define the probability of root cause (PRC) as the conditional probability that a given candidate set is the root cause of the observed outcome. Under the standard assumptions of the potential outcomes framework we prove that the PRC is identifiable and derive the explicit identification formula that expresses it in terms of observed quantities.

What carries the argument

The probability of root cause (PRC), the conditional probability that a candidate variable set satisfies the counterfactual root condition for an observed outcome.

If this is right

Root causes can be separated from proximate causes when attributing an outcome.
The PRC can be calculated directly from observed data without reconstructing the full causal graph.
The same formula applies across medical diagnosis and engineering fault-finding tasks.
Different candidate sets can be ranked by their PRC values on the same evidence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The definition could be used to audit existing root-cause tools by checking whether they recover high-PRC sets.
Applications to sequential or time-varying outcomes would require extending the counterfactual root condition to paths across time.
When multiple root-cause sets are possible, the PRC supplies a natural way to allocate responsibility among them.

Load-bearing premise

The standard potential-outcomes assumptions of consistency, positivity, and no unmeasured confounding hold for the variables and outcome in question.

What would settle it

In a controlled setting where the true root cause is known by direct intervention, compute the PRC from observational data alone and verify whether it assigns substantially higher probability to the known root cause than to other candidates.

Figures

Figures reproduced from arXiv: 2605.11776 by Min Xie, Wei Li, Zhi Geng, Zitong Lu.

**Figure 1.** Figure 1: A general causal diagram for our model. For 𝑖 = 1, . . . , 𝑝, each 𝑋𝑖 has a similar structure to the figure. In this paper, we suppose the consistency assumption holds, i.e., for any variable set 𝑊 and 𝑉, we have 𝑊𝑣 = 𝑊 if 𝑉 = 𝑣. We also make a composition assumption, i.e., for any variable sets 𝑊, 𝑉, and 𝑈, we have 𝑊𝑢𝑣 = 𝑊𝑢 if 𝑉𝑢 = 𝑣. These two assumptions connect the potential outcomes of a complex inter… view at source ↗

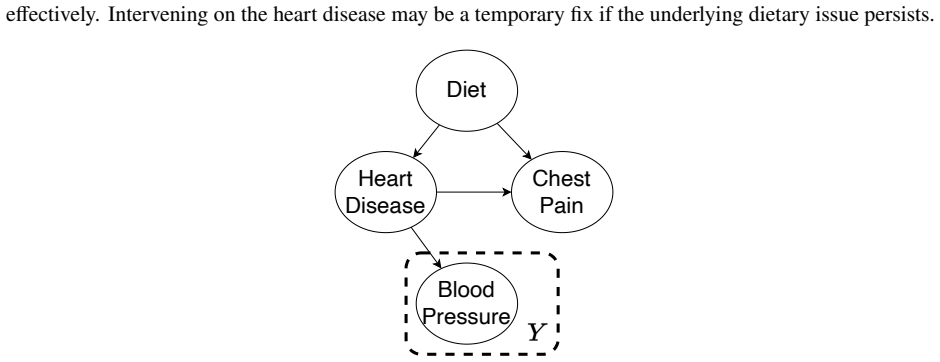

**Figure 2.** Figure 2: A simplified causal network representing hypertension and its risk factors. A more detailed diagram will be given in Section 5. These distinctions motivate our framework. A proper definition of a root cause must be based on individual-level causality and must be able to look beyond proximate causes to identify the origin of the causal chain, without being restricted to root nodes. 3.2 Cause at the individu… view at source ↗

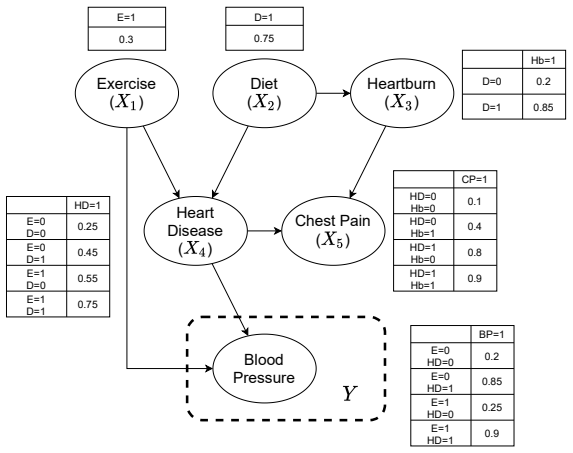

**Figure 3.** Figure 3: A causal network representing hypertension and its risk factors [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗

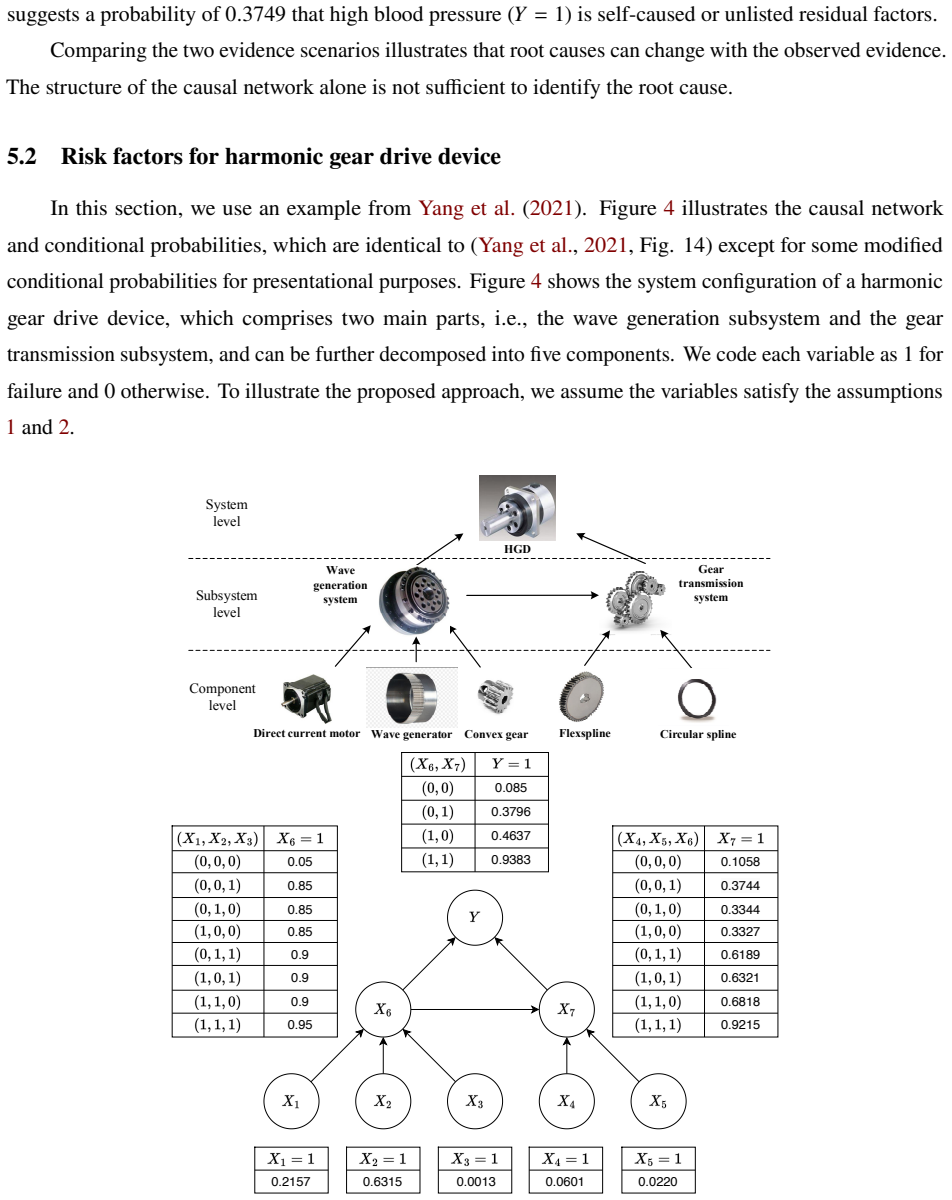

**Figure 4.** Figure 4: A causal network for the harmonic gear drive device [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗

read the original abstract

Attributing an observed outcome to its root cause is a central task in domains ranging from medical diagnosis to engineering fault diagnosis. Existing approaches either equate the root cause with a root node of the causal graph, as in causal-discovery-based root cause analysis, or target causes more broadly and thereby favour proximate ones, as with the probability of causation and posterior causal effects. We argue that this issue stems from the absence of a formal definition of a root cause, which has led to methods designed for other purposes being applied to root cause attribution by default. We address this by giving a formal, individual-level definition of a root cause within the potential outcomes framework, based on the notion of an individual cause and a counterfactual root condition motivated by mediation analysis. Building on this definition, we propose the probability of root cause (PRC), which quantifies how probable it is that a candidate variable set is the root cause of a given outcome, conditional on observed evidence. Under standard assumptions, we establish the identifiability of the PRC and derive an explicit identification formula. Two numerical examples illustrate the approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper defines root cause counterfactually at the individual level and identifies the PRC with a clean formula, though the examples stay too simple to show real utility.

read the letter

The main takeaway is that this paper gives a formal individual-level definition of root cause based on counterfactuals and derives an explicit identification formula for the probability of root cause under standard assumptions. The two examples check out with the formula. What is new is the distinction from existing approaches: it does not reduce root cause to a root node in a causal graph or to the probability of causation, which can favor proximate causes. Instead it uses a counterfactual root condition inspired by mediation analysis to target the root specifically. The paper handles the formal part well. The identifiability result is direct from the definition plus consistency, positivity, and no unmeasured confounding. No circularity or invented quantities appear in the setup. The soft spots are in the validation. The numerical examples are basic and do not involve real data, estimation from samples, or complex graphs, so they leave open questions about practical performance and sensitivity to assumption violations. The abstract and description do not include any discussion of how to estimate the PRC in finite samples. This is aimed at causal inference researchers working on root cause attribution in applied areas like medicine or fault diagnosis. Readers interested in precise quantification of root causes will get a usable definition and formula from it. The work shows clear thinking on its own terms and deserves a serious referee. I would recommend sending it for peer review.

Referee Report

0 major / 3 minor

Summary. The paper introduces a formal individual-level definition of a root cause within the potential outcomes framework, based on an individual cause and a counterfactual root condition motivated by mediation analysis. It defines the Probability of Root Cause (PRC) to quantify the probability that a candidate variable set is the root cause of an observed outcome given evidence. Under standard assumptions (consistency, positivity, no unmeasured confounding), the authors claim the PRC is identifiable and derive an explicit identification formula, illustrated with two numerical examples.

Significance. If the identification result holds, the work supplies a principled, individual-level quantity for root cause attribution that distinguishes root from proximate causes, addressing a gap between causal discovery methods and existing measures like the probability of causation. The derivation builds directly on the potential outcomes framework without introducing free parameters or self-referential quantities, and the numerical examples provide concrete verification consistent with the formula.

minor comments (3)

The abstract invokes 'standard assumptions' without enumerating them; a brief parenthetical list (consistency, positivity, no unmeasured confounding) would improve immediate readability.
In the numerical examples, ensure that the observed evidence and candidate variable sets are explicitly tabulated alongside the computed PRC values for direct comparison with the identification formula.
Notation for the counterfactual root condition should be introduced with a dedicated display equation before its use in the identification derivation.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our manuscript, as well as for recommending acceptance. We are pleased that the work is viewed as supplying a principled individual-level quantity for root cause attribution that addresses a gap in the literature.

Circularity Check

0 steps flagged

No significant circularity detected in derivation

full rationale

The paper defines an individual-level root cause using the potential outcomes framework and a counterfactual root condition drawn from mediation analysis, then derives an identification formula for the probability of root cause (PRC) under the standard external assumptions of consistency, positivity, and no unmeasured confounding. No step reduces by construction to a fitted parameter, self-referential quantity, or load-bearing self-citation; the derivation proceeds directly from the new definition plus these pre-existing assumptions. Numerical examples illustrate the formula without introducing internal validation loops. This is the expected non-circular outcome for a paper that extends an established framework with an explicit, falsifiable identification result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The claim rests on the newly introduced counterfactual root condition definition and standard causal inference assumptions for identifiability; no free parameters are mentioned, and the PRC is a defined quantity rather than an invented physical entity.

axioms (1)

domain assumption Standard causal inference assumptions including consistency, positivity, and no unmeasured confounding
Invoked to establish identifiability of PRC as stated in the abstract.

invented entities (1)

Probability of Root Cause (PRC) no independent evidence
purpose: Quantifies the probability that a candidate variable set is the root cause conditional on observed evidence
Newly defined measure based on the counterfactual root condition; no independent evidence provided beyond the definition itself.
