A Fast and Energy-Efficient Latch-Based Memristive Analog Content-Addressable Memory

Aishwarya Natarajan, Jim Ignowski, John Paul Strachan, Luca Buonanno, Paul-Philipp Manea

Authors on Pith no claims yet

Pith reviewed 2026-05-13 04:27 UTC · model grok-4.3

classification 💻 cs.ET cs.LG

keywords analog content-addressable memorymemristorenergy efficiencyedge AIcompute-in-memorydecision-tree inferencelatch sharing

0 comments

The pith

A latched memristor cell cuts read energy by 33 percent while removing the scaling barriers of prior analog search designs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a new memristor-based analog content-addressable memory cell to support efficient associative computing in edge AI systems. It replaces static voltage division with a dynamic current-race comparator inside the SALM cell, which delivers high gain, built-in latching, and near-zero static power. This change matters because it removes the gain and crosstalk problems that previously limited array size and precision, while also opening explicit energy-latency tradeoffs that can reach 50 percent energy savings at tripled latency on real workloads.

Core claim

The paper introduces the strong-arm latched memristor (SALM) aCAM cell, which uses a dynamic current-race comparator instead of static voltage division. This provides high regenerative gain, intrinsic result latching, and near-zero static search power. Compared to the 6T2M architecture, it reduces read energy by 33 percent at identical latency, eliminates gain and crosstalk limitations that block large arrays, supports scalable sequential and parallel latch sharing, and includes a dataset-aware optimization framework that achieves up to 50 percent energy reduction at 3x latency. A circuit-accurate behavioral model derived from SPICE lookup tables in 22 nm FD-SOI technology confirms that SALM

What carries the argument

The SALM aCAM cell, which replaces static voltage division with a dynamic current-race comparator to deliver high regenerative gain and near-zero static power during analog search.

Load-bearing premise

The SPICE-derived behavioral model correctly predicts match-line dynamics and crosstalk when the design is scaled to large fabricated arrays.

What would settle it

Fabricate a multi-row SALM array, run it on a high-dimensional decision-tree workload, and compare measured energy, latency, and accuracy against the model's predictions.

Figures

Figures reproduced from arXiv: 2605.11847 by Aishwarya Natarajan, Jim Ignowski, John Paul Strachan, Luca Buonanno, Paul-Philipp Manea.

**Figure 1.** Figure 1: (a) Conceptual aCAM operation. Each cell stores a lower and upper bound and compares an input query against this interval. A match is returned if the query lies within the boundaries indicated as the green area, otherwise a mismatch is produced. (b) Conventional 6T2M aCAM cell implementing the window comparison with separate low-bound and high-bound branches that share a common match-line discharge path. (… view at source ↗

**Figure 2.** Figure 2: (a) Proposed SALM analog CAM architecture featuring N sequential and M parallel memory compartments. (b) Transient control signals for an SALM aCAM cell with one sequential element. (c) Output ML current for eight intervals, illustrating the gain difference (match–mismatch separation) between the proposed SALM design and the 6T2M baseline. (d) Experiment showing an input sweep applied to two SALM aCAM cell… view at source ↗

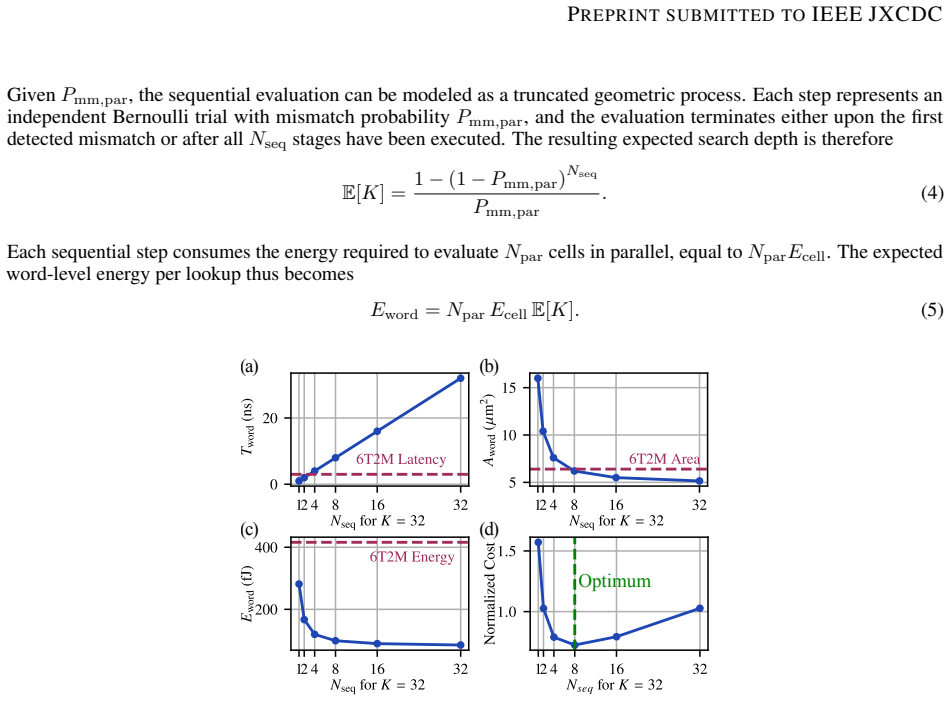

**Figure 3.** Figure 3: Impact of sequential to parallel architectural partitioning on the performance of a single [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: (a) Flow diagram of the behavioral model, including the use of lookup tables (LUTs) and the iterative loop [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

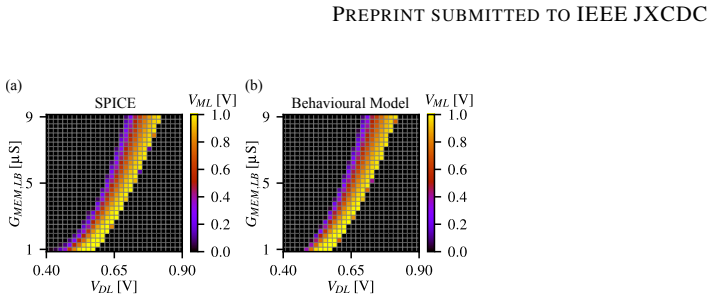

**Figure 5.** Figure 5: Comparison of match-line discharge between (a) transistor-level SPICE and (b) the circuit-accurate behavioral [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

**Figure 6.** Figure 6: (a) Comparison of inference accuracy between an ideal [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

read the original abstract

Analog content-addressable memories (aCAMs) based on memristors provide a promising pathway toward energy-efficient large-scale associative computing for Edge AI and embedded intelligence applications. They have been successfully applied to decision-tree inference and extend the capabilities of compute-in-memory (CIM) architectures beyond conventional vector-matrix multiplication. However, conventional designs such as the 6T2M architecture suffer from static search power, limited voltage gain, and pronounced match-line crosstalk, constraining analog precision and scalability. We introduce a strong-arm latched memristor (SALM) aCAM cell that replaces static voltage division with a dynamic current-race comparator, enabling high regenerative gain, intrinsic result latching, and near-zero static search power. Compared to 6T2M, SALM reduces read energy by 33% at identical latency while eliminating the gain and crosstalk limitations that prevent 6T2M from scaling to large arrays. SALM further enables scalable sequential and parallel latch sharing, and a dataset-aware optimization framework exposes an explicit energy-latency tradeoff, achieving up to 50% energy reduction at 3x latency across representative workloads. To enable architectural exploration, we develop a circuit-accurate behavioral model derived from SPICE lookup tables in 22 nm FD-SOI technology, capturing match-line dynamics and crosstalk. Integrated into the X-TIME decision-tree compiler, this framework demonstrates that SALM maintains near-software accuracy for high-dimensional datasets, whereas baseline designs degrade due to limited gain and cumulative crosstalk.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

SALM gives a workable circuit fix for aCAM energy and scaling limits, but the gains sit on an unverified behavioral model.

read the letter

The main takeaway is that this paper replaces the static voltage divider in the usual 6T2M aCAM cell with a dynamic current-race comparator inside a strong-arm latch. That change cuts static search power, raises regenerative gain, and removes the crosstalk that stops the baseline from growing to large arrays. The authors also add latch sharing that scales sequentially or in parallel and a dataset-aware optimizer that surfaces an energy-latency knob, reaching 33% lower read energy at matched speed and up to 50% savings at 3x latency on the workloads they tested.

Referee Report

1 major / 2 minor

Summary. The paper introduces a strong-arm latched memristor (SALM) aCAM cell that replaces static voltage division in conventional 6T2M designs with a dynamic current-race comparator. This enables high regenerative gain, intrinsic latching, near-zero static power, and reduced crosstalk. The work reports a 33% read-energy reduction versus 6T2M at iso-latency, scalable sequential/parallel latch sharing, and a dataset-aware optimization framework that achieves up to 50% energy savings at 3x latency. A circuit-accurate behavioral model derived from SPICE lookup tables in 22 nm FD-SOI technology is integrated with the X-TIME decision-tree compiler to demonstrate maintained near-software accuracy on high-dimensional datasets while baseline designs degrade.

Significance. If the behavioral model is shown to be accurate, the SALM approach could meaningfully advance scalable analog CAMs for edge-AI decision-tree inference by removing key gain and crosstalk barriers that limit prior memristive aCAMs. The manuscript earns credit for constructing a reusable SPICE-derived behavioral model, exposing an explicit energy-latency tradeoff via dataset-aware optimization, and providing direct comparisons to an external 6T2M baseline.

major comments (1)

[Behavioral model description and simulation results] The headline claims (33% energy reduction at iso-latency, elimination of crosstalk scaling barriers, up to 50% energy reduction at 3x latency, and preserved accuracy) are generated exclusively by feeding the SPICE-derived behavioral model into the X-TIME compiler. The manuscript asserts that this model captures match-line dynamics and cumulative crosstalk for large arrays, yet provides no explicit large-array SPICE validation, sensitivity analysis, or error bars on the reported metrics. This validation gap is load-bearing for the central scalability and accuracy assertions.

minor comments (2)

[Abstract] The abstract states specific quantitative claims (33% energy reduction, 50% energy reduction) without accompanying error bars, number of Monte-Carlo runs, or statistical details on the underlying simulations.
Clarify the exact definition and sizing of the 6T2M baseline used for comparison, including whether the same memristor technology and array dimensions were employed.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and positive assessment of the SALM aCAM approach. We address the single major comment below and will revise the manuscript to strengthen the behavioral model validation section.

read point-by-point responses

Referee: [Behavioral model description and simulation results] The headline claims (33% energy reduction at iso-latency, elimination of crosstalk scaling barriers, up to 50% energy reduction at 3x latency, and preserved accuracy) are generated exclusively by feeding the SPICE-derived behavioral model into the X-TIME compiler. The manuscript asserts that this model captures match-line dynamics and cumulative crosstalk for large arrays, yet provides no explicit large-array SPICE validation, sensitivity analysis, or error bars on the reported metrics. This validation gap is load-bearing for the central scalability and accuracy assertions.

Authors: We agree that the manuscript would benefit from more explicit validation details. The behavioral model was constructed from SPICE lookup tables generated via cell-level and small-array (up to 32x32) simulations that directly capture the strong-arm latch dynamics, regenerative gain, match-line discharge, and cumulative crosstalk. Full SPICE simulation of large arrays is computationally prohibitive, which is the motivation for developing the reusable behavioral model. In the revision we will add: (1) quantitative comparisons of the behavioral model versus SPICE for all feasible array sizes, including RMS error on energy and latency; (2) a sensitivity analysis sweeping memristor variability, supply voltage, and temperature; and (3) error bars on the headline metrics obtained from Monte Carlo runs inside the model. These additions will directly support the scalability and accuracy claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent SPICE-derived simulations

full rationale

The paper derives performance numbers (33% energy reduction, scalability claims, energy-latency tradeoffs) from a behavioral model built on SPICE lookup tables in 22 nm FD-SOI, then feeds those into the external X-TIME compiler for workload evaluation. No equation, parameter fit, or self-citation reduces any headline result to the claimed output by construction; the model is presented as an independent abstraction of circuit dynamics, benchmarked against a distinct 6T2M baseline, and the accuracy assertion is externally falsifiable via SPICE. This is a standard simulation-based evaluation chain with no self-definitional, fitted-prediction, or load-bearing self-citation steps.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claims rest on the accuracy of SPICE-based modeling of memristor and interconnect behavior plus standard assumptions about 22 nm FD-SOI device physics; the optimization framework introduces workload-dependent parameters whose exact fitting procedure is not detailed in the abstract.

free parameters (1)

Energy-latency tradeoff parameters
Dataset-aware optimizer selects operating points that trade latency for energy savings up to 50 percent; these points are workload-specific and not derived from first principles.

axioms (1)

domain assumption SPICE lookup tables in 22 nm FD-SOI faithfully reproduce match-line dynamics and crosstalk for large arrays
The behavioral model used for architectural exploration and accuracy predictions is built directly from these tables.

invented entities (1)

SALM aCAM cell no independent evidence
purpose: Dynamic current-race comparator with intrinsic latching for low static power and high gain
New circuit topology proposed to replace static voltage division in prior 6T2M cells.

pith-pipeline@v0.9.0 · 5593 in / 1669 out tokens · 165563 ms · 2026-05-13T04:27:23.000643+00:00 · methodology
