arxiv: 2605.12277 · v1 · submitted 2026-05-12 · 🧮 math.DG

Recognition: 2 theorem links

· Lean Theorem

Tangential limits of stable minimal capillary surfaces

Michael Eichmair, Thomas Koerber

Pith reviewed 2026-05-13 03:47 UTC · model grok-4.3

classification 🧮 math.DG
keywords minimal capillary surfacesstabilitycapillary anglecurvature estimatestangential limitsfinite total curvaturemean curvature
0
0 comments X

The pith

Compact embedded stable minimal capillary surfaces with angles near 0 or π are characterized on given supporting surfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that every compact embedded stable minimal capillary surface whose capillary angle is close to 0 or π and whose support is a complete embedded minimal surface of finite total curvature (not a plane) belongs to an explicit list of model surfaces. It gives a parallel classification for weakly stable examples whose support is a closed surface of positive mean curvature with no degenerate maxima. The proofs rest on curvature estimates that bound sequences of weakly stable capillary surfaces as their angles approach the extremes and thereby control the tangential limits of these sequences at appropriate scales. A reader would care because the results restrict the possible equilibrium shapes that can arise in capillarity problems when stability and near-tangency are imposed.

Core claim

All compact embedded stable minimal capillary surfaces with capillary angle close to either 0 or π that are supported on a complete embedded minimal surface with finite total curvature that is not an affine plane are characterized. All compact embedded weakly stable minimal capillary surfaces with capillary angle close to either 0 or π that are supported on a closed surface whose mean curvature is positive and has no degenerate maxima are likewise characterized. Curvature estimates for sequences of weakly stable minimal capillary surfaces with angles tending to 0 or π allow the tangential limits of such sequences to be analyzed at suitable scales.

What carries the argument

Curvature estimates for sequences of weakly stable minimal capillary surfaces whose capillary angles tend to 0 or π, which control the geometry of their tangential limits at chosen scales.

If this is right

  • No exotic compact stable capillary surfaces exist under the stated support and angle conditions.
  • The tangential limits of sequences with angles approaching 0 or π are completely determined by the geometry of the support.
  • Weak stability suffices for the classification when the support is closed and mean-convex without degenerate maxima.
  • The curvature estimates prevent uncontrolled blow-up or oscillation in the limit process.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same curvature estimates could be applied to study limits of capillary surfaces under weaker stability assumptions or on supports with additional symmetries.
  • The classification supplies a concrete list that can be used to test numerical approximations of capillary equilibria near tangent contact.

Load-bearing premise

The supporting surface must be either a complete embedded minimal surface of finite total curvature that is not a plane or a closed surface of positive mean curvature with no degenerate maxima, while the capillary surfaces themselves remain compact, embedded, and at least weakly stable.

What would settle it

The discovery of a single compact embedded stable minimal capillary surface with capillary angle close to 0 or π, supported on a complete embedded minimal surface of finite total curvature that is not a plane, yet falling outside the explicit list produced by the characterization.

Figures

Figures reproduced from arXiv: 2605.12277 by Michael Eichmair, Thomas Koerber.

Figure 1
Figure 1. Figure 1: An illustration of a complete embedded minimal surface S ⊂ R 3 with four ends outside the ball Bλ(0) and the minimal capillary surface Σ = Σ1 (θ)∪Σ m(θ) ⊂ R 3 supported on S. The shaded region indicates the domain D(S) bounded by S. The dotted line on the right indicates the wetting surface of Σ Remark 4. The assumption that Σ ⊂ R 3 is stable for the free energy in Theorem 3 cannot be dropped. Indeed, in t… view at source ↗
Figure 2

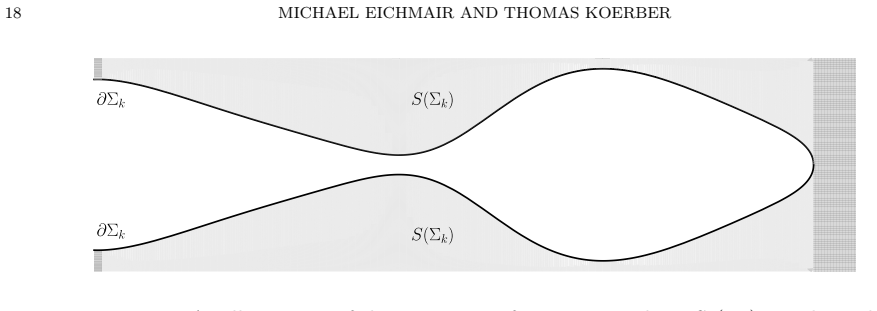

Figure 2. Figure 2: An illustration of the statement of Lemma 18 where Sk(Σk) is indicated by the shaded region. In the depicted example, the reach of ∂Σk ⊂ S tends to zero while the collar radius of ∂Σk ⊂ Sk(Σk) is bounded from below by a positive constant. Proof. Suppose not. Passing to a subsequence, there are sk ∈ (0,∞) with sk = o(1) and xk ∈ Uℓ ∩ ∂Σk such that zk = expSk xk (−sk µ(Sk(Σk))(xk)) ∈ Uℓ+1 ∩ ∂Σk and, for all … view at source ↗
Figure 3
Figure 3. Figure 3: An illustration of the balls B|y i j | (y i j ) and B|y˜ i j | (˜y i j ), i = 0, 1, 2, 3, 4. For each i = 1, 2, 3, 4, there holds y i j ∈ cl B|y i−1 j |/2 (y i−1 j ) and y˜ i j ∈ cl B|y˜ i−1 j |/2 (˜y i−1 j ). More￾over, the union of these balls contains a centered ball with a puncture at the origin. Note that 2 |y i j − y i−1 j | = |y i−1 j | and 2 |y˜ i j − y˜ i−1 j | = |y˜ i−1 j |, i = 1, 2, 3, 4, and t… view at source ↗
Figure 4

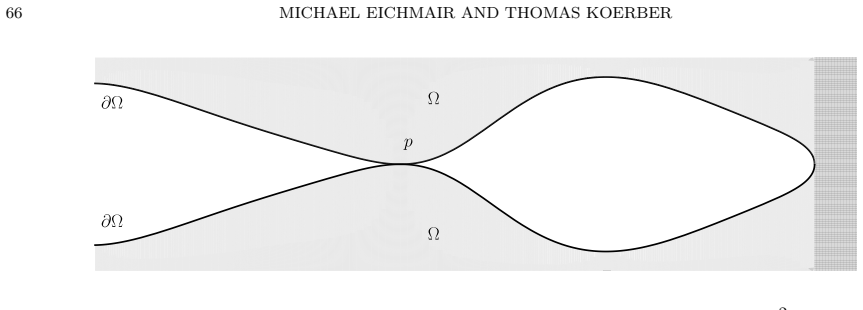

Figure 4. Figure 4: The shaded region illustrates a generalized domain Ω in R 2 with an intersection point p. Given Ω ⊂ U ∩ S relatively open, we denote by ∂Ω the topological boundary of Ω in U ∩ S. A relatively open subset Ω ⊂ U ∩ S is called a generalized domain in U ∩ S if for every p ∈ U ∩ ∂Ω there are (129) ◦ ε > 0, ◦ a chart Φ : (−ε, ε) × (−ε, ε) → S whose images contains p, and ◦ h 1 , h2 ∈ C 1,1 ((−ε, ε)) with −ε < h1… view at source ↗
read the original abstract

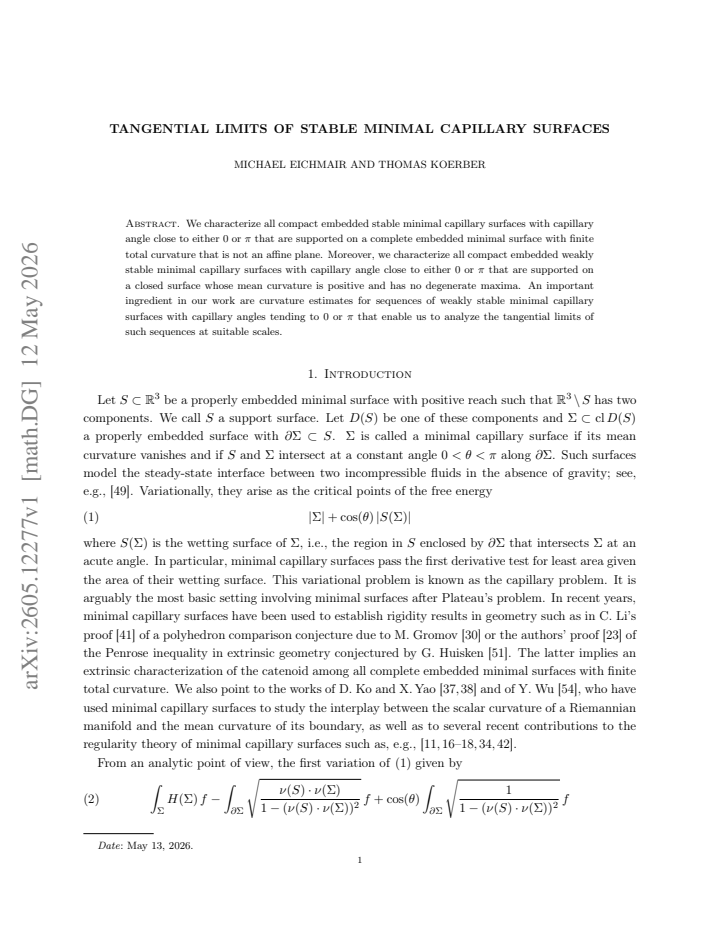

We characterize all compact embedded stable minimal capillary surfaces with capillary angle close to either $0$ or $\pi$ that are supported on a complete embedded minimal surface with finite total curvature that is not an affine plane. Moreover, we characterize all compact embedded weakly stable minimal capillary surfaces with capillary angle close to either $0$ or $\pi$ that are supported on a closed surface whose mean curvature is positive and has no degenerate maxima. An important ingredient in our work are curvature estimates for sequences of weakly stable minimal capillary surfaces with capillary angles tending to $0$ or $\pi$ that enable us to analyze the tangential limits of such sequences at suitable scales.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript characterizes all compact embedded stable minimal capillary surfaces with capillary angle close to 0 or π supported on a complete embedded minimal surface of finite total curvature that is not an affine plane. It also characterizes all compact embedded weakly stable minimal capillary surfaces with capillary angle close to 0 or π supported on a closed surface with positive mean curvature and no degenerate maxima. The central technical contribution consists of curvature estimates for sequences of weakly stable minimal capillary surfaces whose capillary angles tend to 0 or π; these estimates are used to analyze the tangential limits of such sequences at suitable scales.

Significance. If the stated characterizations hold, the work supplies a complete classification of these surfaces in the indicated limiting regimes, extending existing results on minimal capillary surfaces. The derivation of new curvature estimates that control tangential limits constitutes a concrete technical advance that can be checked against the hypotheses on the supporting surface (finite total curvature or positive mean curvature without degenerate maxima). The paper employs standard tools of geometric analysis without introducing free parameters or ad-hoc axioms.

minor comments (2)
  1. [§1] §1 (Introduction): the statement of the main theorems would benefit from an explicit sentence clarifying the precise notion of 'tangential limit' employed in the curvature estimates, even if the definition appears later in §3.
  2. [Abstract and §1] The abstract and §1 both refer to 'sequences of weakly stable minimal capillary surfaces'; a brief parenthetical reminder of the precise stability inequality used (e.g., the second variation formula with the capillary boundary term) would improve readability for non-specialists.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive report, the accurate summary of our results on characterizations of stable and weakly stable minimal capillary surfaces, and the recommendation for minor revision. The significance assessment correctly identifies the role of the new curvature estimates in analyzing tangential limits.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper derives a characterization of compact embedded (weakly) stable minimal capillary surfaces with capillary angles approaching 0 or π, supported on either a complete embedded minimal surface of finite total curvature (non-planar) or a closed surface with positive mean curvature and no degenerate maxima. The central argument proceeds by establishing new curvature estimates for sequences of such surfaces, which then permit analysis of their tangential limits at suitable scales. These estimates are obtained via standard tools from geometric analysis (stability inequalities, maximum principles, and asymptotic control under the stated hypotheses on the supporting surface), without any reduction of the main claims to fitted parameters, self-definitional loops, or load-bearing self-citations. The listed conditions on the supporting surfaces are external, standard hypotheses in the field for controlling behavior at infinity or at maxima, and the derivation remains independent of the target characterization. No step in the chain collapses by construction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard definitions and background results from Riemannian geometry and minimal surface theory; no free parameters, ad-hoc axioms, or invented entities are introduced.

axioms (1)
  • standard math Standard definitions of minimal surfaces, capillary boundary conditions, stability, weak stability, mean curvature, and finite total curvature in Riemannian 3-manifolds.
    These are invoked throughout the abstract as the setting for the characterizations.

pith-pipeline@v0.9.0 · 5395 in / 1255 out tokens · 113323 ms · 2026-05-13T03:47:20.090226+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

Reference graph

Works this paper leans on

55 extracted references · 55 canonical work pages

  1. [1]

    Reine Angew

    Hans Alt and Luis Caffarelli, Existence and regularity for a minimum problem with free boundary,J. Reine Angew. Math.(1981), no. 325, 105–144

    work page 1981

  2. [2]

    João Lucas Barbosa and Manfredo do Carmo, Stability of hypersurfaces with constant mean curvature,Math. Z. (1984), no. 185, 339–353

    work page 1984

  3. [3]

    Maxime Bôcher, Singular points of functions which satisfy partial differential equations of the elliptic type,Bull. Amer. Math. Soc.(1903), no. 9, 455–465

    work page 1903

  4. [4]

    Simon Brendle, Constant mean curvature surfaces in warped product manifolds,Publ. Math. Inst. Hautes Études Sci.(2013), no. 117, 247–269

    work page 2013

  5. [5]

    , The isoperimetric inequality for a minimal submanifold in Euclidean space,J. Amer. Math. Soc.(2021), no. 34, 595–603

    work page 2021

  6. [6]

    Math.(2014), no

    Simon Brendle and Michael Eichmair, Large outlying stable constant mean curvature spheres in initial data sets, Invent. Math.(2014), no. 197, 663–682

    work page 2014

  7. [7]

    Math.(2014), no

    , Large outlying stable constant mean curvature spheres in initial data sets,Invent. Math.(2014), no. 197, 663–682

    work page 2014

  8. [8]

    Reine Angew

    , Proof of the Michael-Simon-Sobolev inequality using optimal transport,J. Reine Angew. Math.(2023), no. 804, 1–10

    work page 2023

  9. [9]

    Luis Caffarelli and Avner Friedman, Regularity of the boundary of a capillary drop on an inhomogeneous plane and related variational problems,Rev. Mat. Iberoamericana(1985), no. 1, 61–84

    work page 1985

  10. [10]

    Z.(1921), no

    Torsten Carleman, Zur Theorie der Minimalflächen,Math. Z.(1921), no. 9, 154–160

    work page 1921

  11. [11]

    Anal.(2025), Paper No

    Otis Chodosh, Nick Edelen, and Chao Li, Improved regularity for minimizing capillary hypersurfaces,Ars Inven. Anal.(2025), Paper No. 2, 27

    work page 2025

  12. [12]

    , Weiss monotonicity and capillary hypersurfaces,preprint, arXiv:2506.02146(2025)

    work page arXiv 2025

  13. [13]

    J.(2022), no

    Otis Chodosh and Michael Eichmair, Global uniqueness of large stable CMC spheres in asymptotically flat Riemannian 3-manifolds,Duke Math. J.(2022), no. 171, 1–31

    work page 2022

  14. [14]

    A course in minimal surfaces, Graduate Studies in Mathematics, vol

    Tobias Colding and William Minicozzi. A course in minimal surfaces, Graduate Studies in Mathematics, vol. 121. American Mathematical Society, Providence, RI, ISBN 978-0-8218-5323-8

    work page

  15. [15]

    Celso Costa, Example of a complete minimal immersion inR3 of genus one and three embedded ends,Bol. Soc. Brasil. Mat.(1984), no. 15, 47–54

    work page 1984

  16. [16]

    Pure Appl

    Luigi De Masi, Nick Edelen, Carlo Gasparetto, and Chao Li, Regularity of minimal surfaces with capillary boundary conditions,Comm. Pure Appl. Math.(2025), no. 78, 2436–2502

    work page 2025

  17. [17]

    Guido De Philippis, Nicola Fusco, and Massimiliano Morini, Regularity of capillarity droplets with obstacle, Trans. Amer. Math. Soc.(2024), no. 377, 5787–5835

    work page 2024

  18. [18]

    Guido De Philippis and Francesco Maggi, Regularity of free boundaries in anisotropic capillarity problems and the validity of Young’s law,Arch. Ration. Mech. Anal.(2015), no. 216, 473–568

    work page 2015

  19. [19]

    Antonio De Rosa, Robin Neumayer, and Reinaldo Resende, Rigidity of critical points of hydrophobic capillary functionals,preprint, arXiv:2509.22532(2025)

    work page arXiv 2025

  20. [20]

    Manfredo do Carmo and Chiakuei Peng, Stable complete minimal surfaces inR3 are planes,Bull. Amer. Math. Soc. (N.S.)(1979), no. 1, 903–906

    work page 1979

  21. [21]

    Differential Geom.(2024), no

    Michael Eichmair and Thomas Koerber, Foliations of asymptotically flat manifolds by stable constant mean curvature spheres,J. Differential Geom.(2024), no. 128, 1037–1083

    work page 2024

  22. [22]

    Differential Geom.(2024), no

    , Large area-constrained Willmore surfaces in asymptotically Schwarzschild 3-manifolds,J. Differential Geom.(2024), no. 127, 105–160

    work page 2024

  23. [23]

    , The Penrose inequality in extrinsic geometry,preprint, arXiv:2411.02113(2024) 70 MICHAEL EICHMAIR AND THOMAS KOERBER

    work page arXiv 2024

  24. [24]

    J.(2024), no

    Michael Eichmair, Thomas Koerber, Jan Metzger, and Felix Schulze, Huisken-Yau-type uniqueness for area- constrained Willmore spheres,Duke Math. J.(2024), no. 173, 1677–1730

    work page 2024

  25. [25]

    Benjy Firester and Raphael Tsiamis, New minimal surfaces in the sphere from capillary minimal cones,preprint, arXiv:2602.20124(2026)

    work page arXiv 2026

  26. [26]

    Benjy Firester, Raphael Tsiamis, and Yipeng Wang, Area-minimizing capillary cones,preprint, arXiv:2601.18794 (2026)

    work page arXiv 2026

  27. [27]

    Pure Appl

    Doris Fischer-Colbrie and Richard Schoen, The structure of complete stable minimal surfaces in3-manifolds of nonnegative scalar curvature,Comm. Pure Appl. Math.(1980), no. 33, 199–211

    work page 1980

  28. [28]

    Elliptic partial differential equations of second order, Grundlehren der mathe- matischen Wissenschaften [Fundamental Principles of Mathematical Sciences], vol

    David Gilbarg and Neil Trudinger. Elliptic partial differential equations of second order, Grundlehren der mathe- matischen Wissenschaften [Fundamental Principles of Mathematical Sciences], vol. 224.Springer-Verlag, Berlin, ISBN 3-540-13025-X

    work page

  29. [29]

    Alexandre Girouard and Iosif Polterovich, Spectral geometry of the Steklov problem (survey article),J. Spectr. Theory(2017), no. 7, 321–359

    work page 2017

  30. [30]

    Misha Gromov, Dirac and Plateau billiards in domains with corners,Cent. Eur. J. Math.(2014), no. 12, 1109– 1156

    work page 2014

  31. [31]

    Elliptic partial differential equations, Courant Lecture Notes in Mathematics, vol

    Qing Han and Fanghua Lin. Elliptic partial differential equations, Courant Lecture Notes in Mathematics, vol. 1. New York University, Courant Institute of Mathematical Sciences, New York; American Mathematical Society, Providence, RI, ISBN 0-9658703-0-8; 0-8218-2691-3

    work page

  32. [32]

    David Hoffman and William Meeks, Complete embedded minimal surfaces of finite total curvature,Bull. Amer. Math. Soc. (N.S.)(1985), no. 12, 134–136

    work page 1985

  33. [33]

    Math.(1990), no

    , The strong halfspace theorem for minimal surfaces,Invent. Math.(1990), no. 101, 373–377

    work page 1990

  34. [34]

    Reine Angew

    Han Hong and Artur Saturnino, Capillary surfaces: stability, index and curvature estimates,J. Reine Angew. Math.(2023), no. 803, 233–265

    work page 2023

  35. [35]

    Math.(1996), no

    Gerhard Huisken and Shing-Tung Yau, Definition of center of mass for isolated physical systems and unique foliations by stable spheres with constant mean curvature,Invent. Math.(1996), no. 124, 281–311

    work page 1996

  36. [36]

    Ann.(2024), no

    Nikola Kamburov and Kelei Wang, Nondegeneracy for stable solutions to the one-phase free boundary problem, Math. Ann.(2024), no. 388, 2705–2726

    work page 2024

  37. [37]

    Dongyeong Ko and Xuan Yao, Scalar curvature comparison and rigidity of3-dimensional weakly convex domains, preprint, arXiv:2410.20548(2024)

    work page arXiv 2024

  38. [38]

    , Capillary minimal slicing and scalar curvature rigidity,preprint, arXiv:2602.21071(2026)

    work page arXiv 2026

  39. [39]

    Ann.(2011), no

    Tobias Lamm, Jan Metzger, and Felix Schulze, Foliations of asymptotically flat manifolds by surfaces of Willmore type,Math. Ann.(2011), no. 350, 1–78

    work page 2011

  40. [40]

    , Local foliation of manifolds by surfaces of Willmore type,Ann. Inst. Fourier (Grenoble)(2020), no. 70, 1639–1662

    work page 2020

  41. [41]

    Math.(2020), no

    Chao Li, A polyhedron comparison theorem for 3-manifolds with positive scalar curvature,Invent. Math.(2020), no. 219, 1–37

    work page 2020

  42. [42]

    Zhu, Min-max theory for capillary surfaces,J

    Chao Li, Xin Zhou, and Jonathan J. Zhu, Min-max theory for capillary surfaces,J. Reine Angew. Math.(2025), no. 818, 215–262

    work page 2025

  43. [43]

    Frank Pacard, Constant mean curvature hypersurfaces in Riemannian manifolds,Riv. Mat. Univ. Parma (7) (2005), no. 4*, 141–162

    work page 2005

  44. [44]

    Alberto Pacati, Giorgio Tortone, and Bozhidar Velichkov, Some remarks on singular capillary cones with free boundary,preprint, arXiv:2502.07697(2025)

    work page arXiv 2025

  45. [45]

    Differential Geom.(1983), no

    Richard Schoen, Uniqueness, symmetry, and embeddedness of minimal surfaces,J. Differential Geom.(1983), no. 18, 791–809

    work page 1983

  46. [46]

    Analyse Math.(1955/56), no

    James Serrin, On the Harnack inequality for linear elliptic equations,J. Analyse Math.(1955/56), no. 4, 292–308

    work page 1955

  47. [47]

    Rational Mech

    , A symmetry problem in potential theory,Arch. Rational Mech. Anal.(1971), no. 43, 304–318

    work page 1971

  48. [48]

    Differential Geom.(1987), no

    Leon Simon, A strict maximum principle for area minimizing hypersurfaces,J. Differential Geom.(1987), no. 26, 327–335 TANGENTIAL LIMITS OF STABLE MINIMAL CAPILLARY SURF ACES 71

    work page 1987

  49. [49]

    Partial Differential Equations(1977), no

    Jean Taylor, Boundary regularity for solutions to various capillarity and free boundary problems,Comm. Partial Differential Equations(1977), no. 2, 323–357

    work page 1977

  50. [50]

    Differential Geom.(2002), no

    Martin Traizet, An embedded minimal surface with no symmetries,J. Differential Geom.(2002), no. 60, 103–153

    work page 2002

  51. [51]

    Thesis, 2015

    Alexander Volkmann,Free boundary problems governed by mean curvature, Ph.D. Thesis, 2015. available at https://refubium.fu-berlin.de/bitstream/handle/fub188/11688/Thesis_Volkmann.pdf

    work page 2015

  52. [52]

    Ann.(2019), no

    Guofang Wang and Chao Xia, Uniqueness of stable capillary hypersurfaces in a ball,Math. Ann.(2019), no. 374, 1845–1882

    work page 2019

  53. [53]

    Rational Mech

    Hans Weinberger, Remark on the preceding paper of Serrin,Arch. Rational Mech. Anal.(1971), no. 43, 319–320

    work page 1971

  54. [54]

    Yujie Wu, Capillary surfaces in manifolds with nonnegative scalar curvature and strictly mean convex boundary, Int. Math. Res. Not. IMRN(2025), no. 9, Paper No. 14

    work page 2025

  55. [55]

    Math.(1991), no

    Rugang Ye, Foliation by constant mean curvature spheres,Pacific J. Math.(1991), no. 147, 381–396 Michael Eichmair University of Vienna Faculty of Mathematics Oskar-Morgenstern-Platz 1 1090 Vienna, Austria https://orcid.org/0000-0001-7993-9536 michael.eichmair@univie.ac.at Thomas Koerber University of Vienna Faculty of Mathematics Oskar-Morgenstern-Platz 1...

    work page 1991
