arxiv: 2605.13074 · v1 · submitted 2026-05-13 · 💻 cs.DS

Recognition: no theorem link

The Power of Graph Doubling: Computing Ultrabubbles in a Bidirected Graph by Reducing to Weak Superbubbles

Aleksandr Politov, Alexandru I. Tomescu, Corentin Moumard, Francisco Sena, Juha Harviainen, Sebastian Schmidt

Pith reviewed 2026-05-14 02:04 UTC · model grok-4.3

classification 💻 cs.DS

keywords bidirected graphsultrabubblessuperbubblesgraph doublinglinear-time algorithmsgraph algorithmsbioinformatics graphs

0 comments

The pith

Doubling a bidirected graph maps its ultrabubbles exactly onto weak superbubbles in the resulting directed graph.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that the standard graph-doubling construction, which turns any bidirected graph into a directed one while keeping walks and connectivity intact, creates a direct equivalence between ultrabubbles and weak superbubbles. Because linear-time algorithms already exist for weak superbubbles, the same procedures now compute all ultrabubbles in the original bidirected graph after a single doubling step. This supplies the first reduction-based linear-time method that works for arbitrary bidirected graphs rather than restricted subclasses. A reader would care because ultrabubbles serve as both biologically meaningful units and nested clusters in genome graphs, so faster enumeration improves downstream assembly and variation analysis.

Core claim

Graph doubling maintains connectivity and produces a directed graph whose weak superbubbles stand in one-to-one correspondence with the ultrabubbles of the input bidirected graph; therefore every existing linear-time weak-superbubble algorithm immediately yields a linear-time ultrabubble algorithm for any bidirected graph.

What carries the argument

Graph doubling, the node-duplication construction that converts each bidirected arc into a pair of directed arcs while preserving the set of possible walks.

If this is right

Any linear-time weak-superbubble algorithm can be reused unchanged after the doubling step to enumerate ultrabubbles.
Ultrabubbles can now be computed in linear time on arbitrary bidirected graphs rather than only on special cases.
Graph doubling serves as a general, correctness-preserving bridge that transfers directed-graph algorithms to the bidirected setting.
The same doubling step already used implicitly for shortest paths extends without modification to bubble enumeration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same reduction may simplify computation of other local structures, such as chains or cycles, that have directed-graph counterparts.
Practical genome-graph tools could replace custom bidirected bubble code with calls to mature directed-graph libraries after one doubling preprocessing pass.
The approach invites checking whether further generalizations of directed concepts, such as flow or matching problems, transfer to bidirected graphs via the same doubling map.

Load-bearing premise

The exact one-to-one correspondence between ultrabubbles in the original bidirected graph and weak superbubbles in the doubled directed graph holds for every possible bidirected graph.

What would settle it

A concrete bidirected graph containing an ultrabubble whose doubled version does not contain a corresponding weak superbubble, or vice versa.

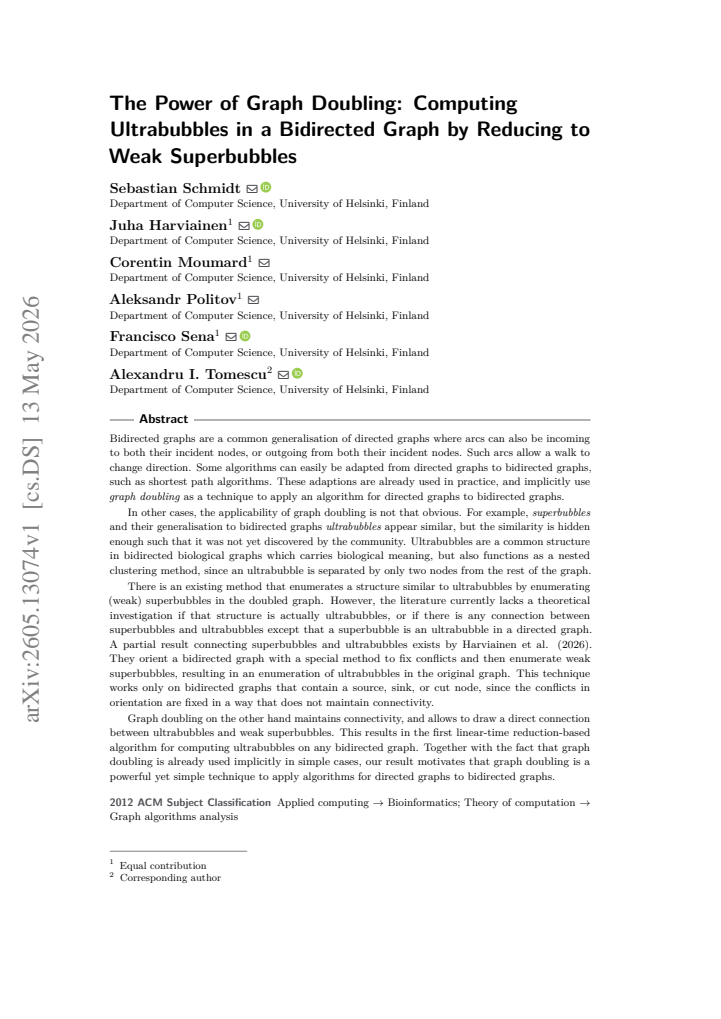

read the original abstract

Bidirected graphs are a common generalisation of directed graphs where arcs can also be incoming to both their incident nodes, or outgoing from both their incident nodes. Such arcs allow a walk to change direction. Some algorithms can easily be adapted from directed graphs to bidirected graphs, such as shortest path algorithms. These adaptions are already used in practice, and implicitly use the graph doubling technique to apply an algorithm for directed graphs to bidirected graphs. In other cases, the applicability of graph doubling is not that obvious. For example, superbubbles and their generalisation to bidirected graphs ultrabubbles. Ultrabubbles are a common structure in bidirected biological graphs which carries biological meaning, but also functions as a nested clustering method, since an ultrabubble is separated by only two nodes from the rest of the graph. There is an existing method that enumerates a structure similar to ultrabubbles by enumerating (weak) superbubbles in the doubled graph. However, the literature does not make any direct connection between superbubbles and ultrabubbles except that a superbubble is an ultrabubble in a directed graph. Only a partial result connecting superbubbles and ultrabubbles exists by Harviainen et al. (2026). Graph doubling on the other hand maintains connectivity, and allows to draw a direct connection between ultrabubbles and weak superbubbles. This results in the first linear-time reduction-based algorithm for computing ultrabubbles on any bidirected graph. Together with the fact that graph doubling is already used implicitly in simple cases, our result motivates that graph doubling is a powerful yet simple technique to apply algorithms for directed graphs to bidirected graphs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Graph doubling gives a direct linear-time reduction from ultrabubbles to weak superbubbles.

read the letter

The key takeaway is that graph doubling turns the ultrabubble problem on bidirected graphs into weak superbubble finding on directed graphs, delivering the first linear-time algorithm for it. The paper does well by making this connection explicit and general. Earlier work had only a partial link, but here the authors show that doubling preserves the right connectivity so the structures match up. This lets them reuse linear-time superbubble algorithms directly. It also fits with how doubling is already used for other bidirected problems, which strengthens the case that it's a reliable technique. The main soft spot is confirming the exact correspondence holds without exceptions. The abstract claims it works on any bidirected graph, but cases like self-loops, parallel arcs, or arcs that change direction at both ends need careful handling in the doubled version. If the proof shows no spurious weak superbubbles are created and every ultrabubble maps correctly, then it's fine. The stress-test note flags this correctly as the load-bearing part. Since the paper positions this as closing the gaps from prior partial results, the full manuscript should include the mapping definition and a proof that the weak superbubble separation property translates exactly to the ultrabubble one. This paper is for people working on genome assembly and variation graphs in bioinformatics. A reader who needs to compute these nested clusters will find a practical way to do it faster by leveraging existing directed-graph code. I would send this to peer review. The reduction is simple and the linear-time result is worth verifying in full.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that doubling a bidirected graph produces a directed graph in which ultrabubbles correspond exactly to weak superbubbles, thereby reducing ultrabubble enumeration to an existing linear-time superbubble algorithm and yielding the first linear-time method for arbitrary bidirected graphs. The argument rests on the assertion that doubling preserves connectivity and establishes a direct structural correspondence without introducing spurious features.

Significance. If the claimed bijective correspondence holds for all bidirected graphs, the result is significant for computational biology: ultrabubbles are the natural generalization of superbubbles to de Bruijn graphs and serve both as biologically meaningful units and as a nested clustering primitive. The work also supplies a concrete, reusable technique (graph doubling) that has already been used implicitly for simpler problems, thereby strengthening the case for systematic transfer of directed-graph algorithms to the bidirected setting.

major comments (2)

[Reduction section] The central reduction (described after the preliminaries) asserts a bijective mapping from ultrabubbles in the bidirected graph to weak superbubbles in the doubled directed graph. The manuscript provides no explicit construction or proof that direction-changing arcs (incoming to both endpoints) are represented without creating extra weak superbubbles; the skeptic's concern about parallel arcs and self-loops therefore remains unaddressed and is load-bearing for the correctness claim.
[Main theorem / complexity paragraph] The linear-time consequence is stated to follow immediately from the reduction plus any linear-time weak-superbubble algorithm. No argument is given that the weak-superbubble definition (as opposed to the strong version) exactly matches the ultrabubble separation property once doubling is applied; this gap must be closed before the complexity claim can be accepted.

minor comments (2)

[Abstract] The citation Harviainen et al. (2026) appears in the abstract; confirm the correct year and full reference.
[Preliminaries / Reduction] A small illustrative example showing an ultrabubble, its doubled image, and the corresponding weak superbubble would substantially improve readability of the correspondence argument.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful review and for identifying points where the reduction requires more explicit justification. We will revise the manuscript to address both major comments by adding the requested constructions, proofs, and arguments. These changes will strengthen the correctness claims without altering the core results.

read point-by-point responses

Referee: [Reduction section] The central reduction (described after the preliminaries) asserts a bijective mapping from ultrabubbles in the bidirected graph to weak superbubbles in the doubled directed graph. The manuscript provides no explicit construction or proof that direction-changing arcs (incoming to both endpoints) are represented without creating extra weak superbubbles; the skeptic's concern about parallel arcs and self-loops therefore remains unaddressed and is load-bearing for the correctness claim.

Authors: We agree that an explicit construction and proof are needed in the reduction section. In the revised manuscript we will insert a dedicated lemma that constructs the mapping and proves bijectivity. The proof will explicitly treat direction-changing arcs by showing how the doubling operation encodes them as pairs of directed arcs that preserve the ultrabubble boundary conditions. We will also demonstrate that the construction introduces neither parallel arcs nor self-loops that could generate extraneous weak superbubbles, thereby closing the gap the referee correctly identifies. revision: yes
Referee: [Main theorem / complexity paragraph] The linear-time consequence is stated to follow immediately from the reduction plus any linear-time weak-superbubble algorithm. No argument is given that the weak-superbubble definition (as opposed to the strong version) exactly matches the ultrabubble separation property once doubling is applied; this gap must be closed before the complexity claim can be accepted.

Authors: We will expand the main theorem paragraph (and the preceding lemma) to include a direct argument that the weak superbubble separation property coincides with the ultrabubble separation property after doubling. The argument will show that the two-node boundary condition of an ultrabubble maps exactly to the weak superbubble entrance-exit pair, while the strong superbubble requirement is not needed because doubling already enforces the necessary directionality. With this justification in place, the linear-time bound follows immediately from the known linear-time weak-superbubble algorithm. revision: yes

Circularity Check

0 steps flagged

No circularity: reduction via graph doubling is a self-contained theoretical mapping

full rationale

The paper defines a graph-doubling transformation on bidirected graphs and claims it preserves connectivity while establishing a direct equivalence between ultrabubbles and weak superbubbles, enabling reuse of existing linear-time superbubble algorithms. This mapping is presented as a novel explicit connection that closes gaps left by the partial Harviainen et al. result; the derivation does not define ultrabubbles in terms of superbubbles, fit parameters to data then relabel them as predictions, or rely on a uniqueness theorem imported from the authors' own prior work. The algorithm is a reduction to an external subroutine whose correctness is independent of the present paper's fitted values or self-referential premises. No quoted step reduces the claimed result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that graph doubling preserves the structural correspondence between ultrabubbles and weak superbubbles; no free parameters or invented entities are introduced.

axioms (1)

domain assumption Bidirected graphs can be transformed into directed graphs via doubling while preserving relevant connectivity and walk properties needed for bubble structures.
Invoked to establish the equivalence between ultrabubbles and weak superbubbles.
