ellFEM: An efficient loop-free Matlab implementation of isoparametric bulk and surface finite elements

Bal\'azs Kov\'acs , Michael Lantelme

Authors on Pith no claims yet

Pith reviewed 2026-05-15 02:16 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords finiteelementsimplementationisoparametricmatlabbulkefficientloop-free

0 comments

The pith

ℓFEM is a loop-free MATLAB package implementing isoparametric bulk and surface finite elements with high-order support, assembly details, and performance tests.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a MATLAB software package called ℓFEM that computes finite element solutions for problems inside volumes and on curved surfaces. It focuses on isoparametric elements, which use the same polynomial mapping for both geometry and solution fields, allowing accurate representation of curved boundaries at high order. The key implementation choice is to avoid explicit loops by relying on MATLAB's paged array operations, which vectorize the assembly of stiffness matrices and load vectors. The authors outline the surface element construction, the quadrature rules used, and how the code handles both linear and nonlinear problems. They include runtime comparisons against other approaches and supply a testing suite plus examples to verify the implementation.

Core claim

The ℓFEM MATLAB package provides a simple, efficient, and flexible implementation of isoparametric finite elements in bulk domains and on surfaces with completely loop-free matrix assemblies based on paged operators.

Load-bearing premise

That MATLAB's paged operators deliver competitive performance for the described high-order isoparametric surface elements without hidden overheads that would negate the loop-free advantage.

Figures

Figures reproduced from arXiv: 2605.14035 by Bal\'azs Kov\'acs, Michael Lantelme.

**Figure 2.** Figure 2: The reference element Eˆ and an arbitrary element E, and the transformation maps F and F −1 in between. We will denote the global basis functions ϕj , while on the reference element Eˆ by φˆj , where ˆj is the local label of the globally labelled node j. Recall the Lagrange basis functions satisfy ϕj (xi) = δji. Any element E, with nodes xj , is also given as the image of the map (3.1) F(x) = X 6 ˆj=1 xjφˆ… view at source ↗

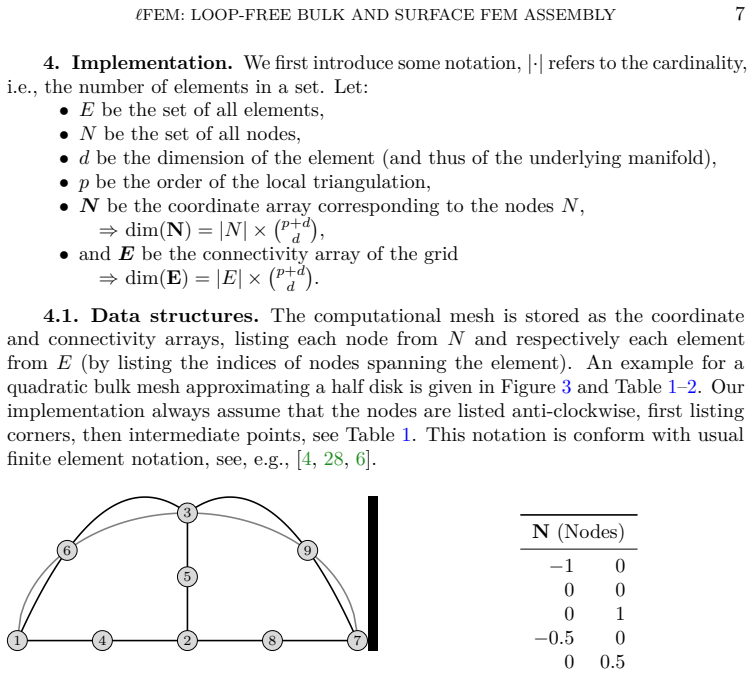

**Figure 3.** Figure 3: 2D P2 bulk elements E (Elements) 1 2 3 4 5 6 2 7 3 8 9 5 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

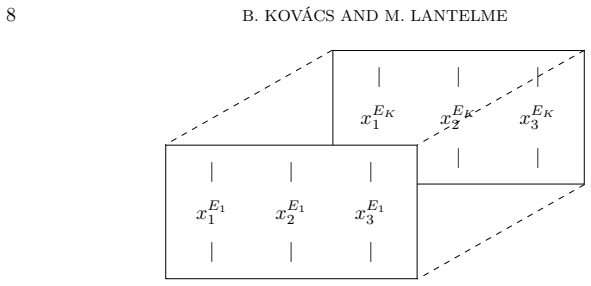

**Figure 4.** Figure 4: Coordinate array N, where each page corresponds to some element Ei for all elements (i = 1, . . . , |E|). The vector x Ei j stores all nodal coordinates of the j-th spatial dimension of the nodes of the given Element. O(|E| 2 ) in the number of elements |E|. There is a remedy to the elementwise approach, by storing the contributions of each element in cell arrays—storing the local mass and stiffness matrix… view at source ↗

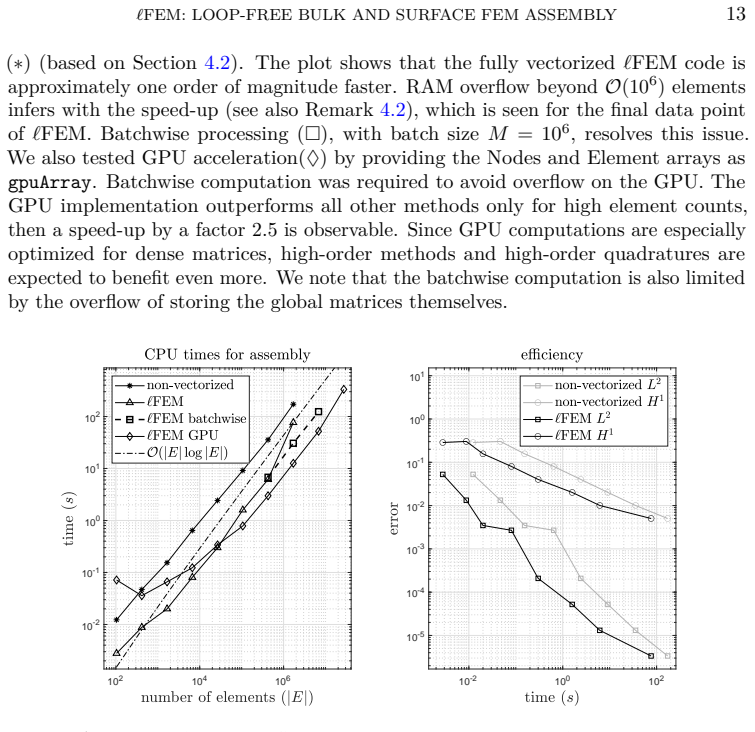

**Figure 5.** Figure 5: Assembly of mass, stiffness matrices and load vector for 2D surface FEM [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗

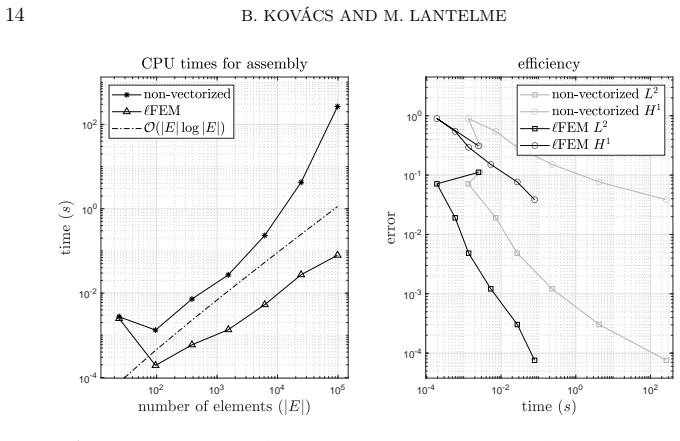

**Figure 6.** Figure 6: Assembly of mass, stiffness matrices and load vector for 2D bulk FEM with [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗

**Figure 7.** Figure 7: Comparing the assembly times for the non-vectorized, [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗

read the original abstract

The $\ell$FEM MATLAB package provides a simple, efficient, and flexible implementation of isoparametric finite elements in bulk domains and on surfaces. The finite element matrix assemblies are based on MATLAB's paged operators and therefore completely loop-free. We give a short and conscious description of high-order isoparametric surface finite elements, which is then used to describe the assembly process and the implementation. We report on relevant numerical experiments (runtime comparisons, modifications for non-linear problems, etc.), and on additional functions, examples, and a testing unit which are all part of the $\ell$FEM package.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ℓFEM gives MATLAB users a documented loop-free assembly for high-order isoparametric bulk and surface elements via paged operators, with the main value in the practical implementation rather than new theory.

read the letter

The paper's real contribution is a clear, loop-free MATLAB implementation of isoparametric finite elements that handles both volume and surface cases. It uses paged operators to avoid explicit loops during matrix assembly, and it includes a concise description of the high-order surface element setup that feeds directly into the code structure. The authors also supply runtime comparisons, notes on nonlinear extensions, examples, and a test suite, which makes the package immediately usable for people already working in MATLAB on surface PDEs. That combination of documented assembly and supporting material is the part that stands out as useful implementation work. The experiments they report are the right way to back the efficiency claim, and if those timings show consistent gains over standard looped code, the approach delivers on its promise. The stress-test worry about memory overheads from strided access in paged tensor contractions for curved high-order elements is reasonable to raise, but it lands only if the paper's own runtime data fails to show net improvement; otherwise the measured results take precedence. No new mathematical theory is claimed, and the citation pattern stays within the expected references for isoparametric surface FEM, so nothing looks circular or invented. This is a tool paper aimed at numerical analysts who need quick, maintainable code for these elements rather than a broad audience. Readers who already code in MATLAB and care about surface problems will get direct value from the package and the assembly description. It is solid enough on its own terms to deserve peer review so that the runtime claims can be checked against the released code and any edge cases in high-order mappings can be discussed.

Referee Report

1 major / 2 minor

Summary. The manuscript presents the ℓFEM MATLAB package for isoparametric finite elements in bulk domains and on surfaces. Matrix assemblies are implemented in a completely loop-free manner via MATLAB paged operators. The paper gives a description of high-order isoparametric surface finite elements, details the assembly process, reports runtime experiments (including comparisons and modifications for nonlinear problems), and describes additional package components such as functions, examples, and a testing unit.

Significance. If the reported runtime advantages hold under scrutiny, the package would be a useful practical contribution to the numerical analysis community. It lowers the barrier to using high-order surface finite elements in MATLAB by replacing explicit loops with native vectorized operations, which aids reproducibility and rapid prototyping for geometric PDEs. The inclusion of a testing unit and examples is a positive feature for usability.

major comments (1)

[Numerical experiments] Numerical experiments section: the runtime comparisons for high-order isoparametric surface elements report speedups but omit hardware specifications, MATLAB version, and any memory profiling (e.g., temporary allocations or cache behavior during paged tensor contractions). This information is required to evaluate whether the paged-operator approach truly avoids the overheads that could negate its advantage over hand-tuned looped code for curved high-order mappings.

minor comments (2)

[Abstract] Abstract: 'conscious description' appears to be a typographical error for 'concise description'.
[Assembly process] The description of the assembly process would benefit from an explicit small-scale example (e.g., a single quadratic surface element) showing the exact paged-operator expressions used for the isoparametric mapping and stiffness matrix contributions.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive evaluation of the manuscript and the constructive suggestion regarding the numerical experiments. We address the comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Numerical experiments] Numerical experiments section: the runtime comparisons for high-order isoparametric surface elements report speedups but omit hardware specifications, MATLAB version, and any memory profiling (e.g., temporary allocations or cache behavior during paged tensor contractions). This information is required to evaluate whether the paged-operator approach truly avoids the overheads that could negate its advantage over hand-tuned looped code for curved high-order mappings.

Authors: We agree that these details are important for a complete assessment of the reported speedups. In the revised manuscript we will add the hardware specifications of the test machine (CPU model, core count, and RAM), the precise MATLAB version used, and basic memory profiling results obtained via MATLAB's built-in memory monitoring (peak memory usage and notes on temporary array allocations during paged tensor operations). A detailed cache-miss analysis lies outside the scope of the current experiments, but the added information will allow readers to judge the practical overhead of the paged-operator approach. revision: yes

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The implementation rests on standard finite-element theory without introducing new free parameters, axioms beyond established mathematics, or invented entities.

axioms (1)

standard math Standard isoparametric finite-element mapping and quadrature rules hold for both bulk and surface elements
Invoked when describing the high-order surface element construction and assembly process.
