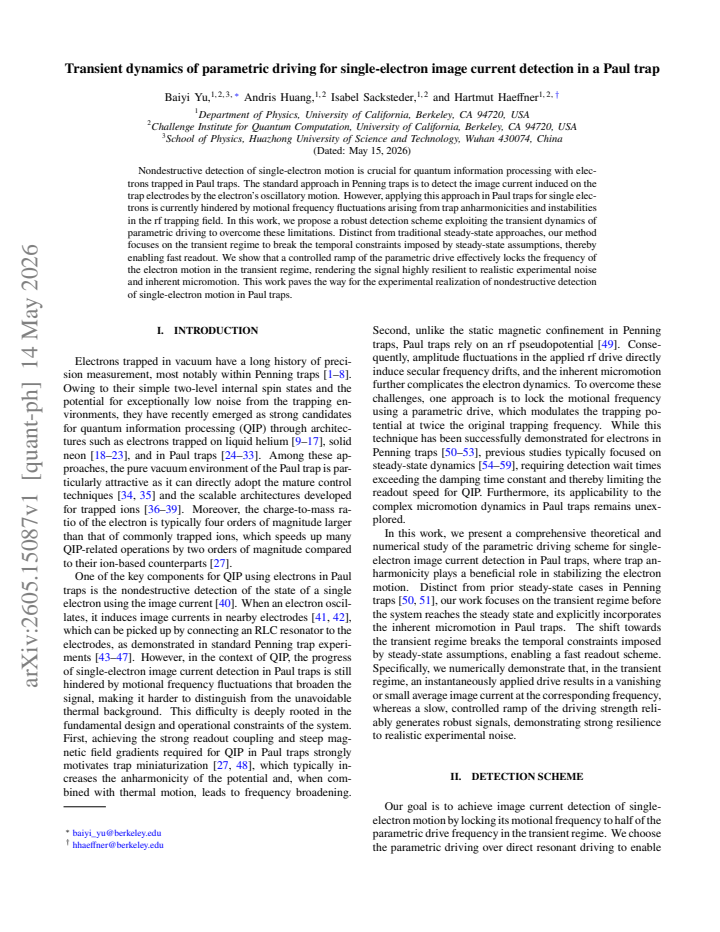

Transient dynamics of parametric driving for single-electron image current detection in a Paul trap

Baiyi Yu , Andris Huang , Isabel Sacksteder , Hartmut Haeffner

Authors on Pith no claims yet

Pith reviewed 2026-05-15 03:19 UTC · model grok-4.3

classification 🪐 quant-ph nlin.CDphysics.atom-phphysics.ins-det

keywords detectionmotionpaultransienttrapsparametricsingle-electrontrap

0 comments

The pith

A controlled ramp of the parametric drive locks the electron motion frequency in the transient regime, making image current detection resilient to noise and micromotion in Paul traps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Paul traps hold charged particles like electrons using rapidly oscillating electric fields, but small imperfections cause the electron's natural oscillation frequency to drift, which ruins attempts to detect its position by measuring the tiny electric current it induces on the trap electrodes. Standard detection waits for steady-state oscillations, but this paper instead examines what happens right after the drive starts or changes. By slowly ramping the strength of an extra parametric drive that modulates the trap potential at twice the natural frequency, the electron's motion gets pulled into a locked state during this short transient window. The induced current signal then becomes stronger and much less sensitive to small frequency shifts or the rapid micromotion from the main trapping field. This breaks the usual requirement for long stable periods and allows quicker, more reliable single-electron readout even when the trap is noisy or anharmonic.

Core claim

A controlled ramp of the parametric drive effectively locks the frequency of the electron motion in the transient regime, rendering the signal highly resilient to realistic experimental noise and inherent micromotion.

Load-bearing premise

The transient regime can be accessed and the frequency locking achieved before anharmonicities and rf instabilities cause the motion to deviate significantly from the ideal parametric response.

read the original abstract

Nondestructive detection of single-electron motion is crucial for quantum information processing with electrons trapped in Paul traps. The standard approach in Penning traps is to detect the image current induced on the trap electrodes by the electron's oscillatory motion. However, applying this approach in Paul traps for single electrons is currently hindered by motional frequency fluctuations arising from trap anharmonicities and instabilities in the rf trapping field. In this work, we propose a robust detection scheme exploiting the transient dynamics of parametric driving to overcome these limitations. Distinct from traditional steady-state approaches, our method focuses on the transient regime to break the temporal constraints imposed by steady-state assumptions, thereby enabling fast readout. We show that a controlled ramp of the parametric drive effectively locks the frequency of the electron motion in the transient regime, rendering the signal highly resilient to realistic experimental noise and inherent micromotion. This work paves the way for the experimental realization of nondestructive detection of single-electron motion in Paul traps.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper proposes ramping a parametric drive to lock electron frequency in the transient regime for Paul-trap image current detection, which targets a real experimental gap but still needs quantitative checks on whether locking beats anharmonic drift.

read the letter

The main takeaway is that a controlled ramp of the parametric drive can pull the electron motion into a locked frequency state during the short transient window, bypassing the long averaging times that let trap anharmonicities and rf jitter ruin steady-state signals. This is a clear departure from the usual image-current methods that work in Penning traps but stall in Paul traps. The authors correctly flag the frequency fluctuations as the central obstacle and show how standard driven-oscillator dynamics can be steered by the ramp to produce a more stable transient signal. That framing is useful and the distinction from steady-state approaches is real. The write-up also keeps the proposal grounded in the practical constraints of single-electron work rather than overclaiming immediate quantum-information payoffs. The soft spot is the missing comparison of timescales. The claim that locking happens before anharmonic deviations or micromotion grow large rests on the assumption that the ramp can be made fast enough, yet the abstract and stress-test note give no explicit bounds on perturbation strength or numerical runs for realistic Paul-trap coefficients. If the full manuscript contains only analytic sketches without those checks, the separation between locking and drift remains unproven under noise levels an experiment would actually see. The paper is aimed at experimental groups already running or planning single-electron Paul traps who need a nondestructive readout route. It is not yet a finished result but it is coherent enough on its own terms to deserve referee time. I would send it out for review so the authors can supply the missing timescale estimates and any simulations they have.

Referee Report

1 major / 2 minor

Summary. The paper proposes a nondestructive detection scheme for single-electron motion in Paul traps via image current, using transient dynamics under parametric driving. It claims that a controlled ramp of the parametric drive locks the motional frequency in the transient regime, rendering the signal resilient to trap anharmonicities, rf instabilities, and micromotion, thereby enabling fast readout beyond the limitations of steady-state methods.

Significance. If the frequency-locking mechanism holds under realistic conditions, the work would enable single-electron image-current detection in Paul traps, a key step toward quantum information processing with trapped electrons. The approach exploits transient dynamics to bypass steady-state constraints, which is a potentially valuable shift if quantitatively validated.

major comments (1)

[Abstract and main theoretical derivation] The central claim that the parametric ramp achieves frequency locking on a timescale short enough to outpace anharmonic deviations and rf instabilities (as stated in the abstract) lacks explicit bounds or numerical comparisons of the relevant timescales for realistic Paul-trap coefficients. Without this, the separation of timescales required for resilience to noise is not secured.

minor comments (2)

[Theoretical model] Clarify the precise functional form of the parametric drive ramp (e.g., linear vs. exponential) and its relation to the Mathieu equation parameters in the transient regime.
[Results] Include quantitative estimates or simulations showing the locking bandwidth relative to typical anharmonic perturbation strengths.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for recognizing the potential significance of our transient parametric driving approach for single-electron detection in Paul traps. We address the major comment below and will revise the manuscript accordingly to strengthen the presentation of the timescale separation.

read point-by-point responses

Referee: [Abstract and main theoretical derivation] The central claim that the parametric ramp achieves frequency locking on a timescale short enough to outpace anharmonic deviations and rf instabilities (as stated in the abstract) lacks explicit bounds or numerical comparisons of the relevant timescales for realistic Paul-trap coefficients. Without this, the separation of timescales required for resilience to noise is not secured.

Authors: We agree that explicit bounds and comparisons would make the central claim more robust. The main derivation in the manuscript starts from the time-dependent Mathieu equation under a linear ramp of the parametric drive amplitude and obtains an analytic expression for the locking time scale as the inverse of the effective damping rate induced by the ramp. In the revised version we will add a new subsection that (i) derives an upper bound on the locking time τ_lock < 2π/Ω_ramp (where Ω_ramp is the ramp rate) and (ii) compares this bound directly to literature values for anharmonic frequency shifts (typically 1–10 kHz) and rf amplitude instabilities (typically 0.1–1 ms) in Paul traps used for single-electron experiments. We will also include a short numerical integration of the driven equations with realistic trap coefficients (e.g., q-parameter ≈ 0.3, anharmonicity coefficient β ≈ 10^{-3}) showing that frequency locking is achieved within 20–50 μs, well before the onset of the cited noise sources. These additions will be placed immediately after the analytic derivation and will be cross-referenced in the abstract. revision: yes

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on standard assumptions about parametric resonance in driven traps and the ability to control the ramp without introducing new free parameters beyond those in the experimental setup.

axioms (1)

domain assumption Electron motion in Paul traps follows standard Mathieu equation dynamics under parametric driving
Invoked implicitly when describing frequency locking in the transient regime.
